East Coast Enterprisers Ltd. Brabourne Road, Kolkata, West Bengal

We are offering variable welding magnet. We are simple, sturdy, economic design having cast aluminium body. variable angle setting. powerful ferrite magnets hold sheets securely. keeps hands free during welding of two sheets. suitable for marking and inspection.

Cast aluminium body with fixed right angle. Keeps hands free during welding of two sheets.

We are offering permanent magnetic yoke. Applications most useful in garage shops for testing crankshafts during maintenance and overhauling. can detect gears and brackets of automobiles. can detect cracks in welding joints. for local spot testing in large fabrication jobs, castings etc. suitable for detecting hair line surface cracks on machined automobiles and similar components. suitable for detecting hair line surface cracks on machined automobiles and similar components.

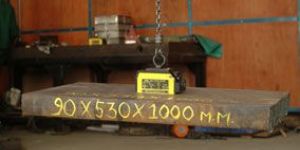

We are offering permanent magnetic lifter. Features line diagram for e-lift, permanent magnetic lifter lifting magnet tested to 3 times the rated capacity. state of art design. smaller and lighter than ever. made with high energy rare earth ndfeb magnets. very stable structure. easily transportable. actuating lever with positive spring lock. applications magnetic lifter for handling of steel plates, blocks, rounds, press moulds and loadingunloading in machines. commonly used near flame cutting and during fabrication. can handle finished components without leaving behind any scratch marks, unlike binding and slinging. can be used with spreader beam hanging multiple magnets to handle long plates pipes bars.

We are offering overband separator. Features manufactured in self cleaning with cross belt conveyor system, they automatically discard the tramp iron from the process. most effective for removal of tramp iron from materials carried over conveyors vibratory feeders or inclined planes. can be suspended for longitudinal or transversal cleaning over the conveyor belt. permanent magnetic suspension separators are made with powerful strontium ferrite magnets. electro magnetic suspension separators are supplied for deep depth up to 700 mm depth and manufactured with copper and aluminium insulated conductor.

We are offering magnetic mould clamping. Fmc, fast mould clamping system: these magnets help in changing the moulds very fast as the time required for clamping the mould is reduced to a few minutes. based on electro permanent magnet (epm) technology, which requires a pulse of electric current to switch on and then no electric power is required. fail proof holding system of moulds during power failure machined from solid steel hence structurally very stable. patent applied, mould displacement monitoring circuit: this revolutionary circuit takes feed back from the magnet to check the displacement of the mould. This technology has been applied for patent. This system has many benefits over the conventional proximity switch type sensors. epoxy is 1.5mm below the surface hence no variation due to heat-up. a wide range of pole configurations are available which gives us the flexibility to design the best suited and optimum solution as per customers requirments.

Features   epms suspended from fixed length spreader beam so that the maximum range of plates are covered. optimise the available work area by elimination of dunnage. electronic control panel along with standby pcb card. double mag cycle - this ensures the safe lifting of the load. power control – magnetic power can be varied in 4 steps magnets can be selectively switched according to the length of the plate being handled. smaller plates – only internal magnets are switched on. larger plates – all the magnets are switched on. safety interlock key – to magnetize/ demagnetize 2 buttons are to be pressed simultaneously. This eliminates the chance of accidental operation of the magnet. “inching” feature –when the magnet is switched on, it might lift more than a single plate. Inching is a feature, which when invoked reduces the magnetic power slowly such that additional plates, if lifted, are dropped. This is used to make sure that only one plate is handled at a time. adprem – accidental demagnetization preventionmechanism. Disable the demagnetization cycle when carrying load. lamp block – displays the systems present state. chain and hanging arrangement – made of grade 80 high strength steel along with bull ring.

Magnetic power above 100 MT/m2. Magnetic Pole Size: 50 x 50 mm. Perfect safety in case of power failure. No electricity needed to Keep the Electro Permanent Magnetic Chuck ON. Unobstructed movement of cutters during machining. Variable magnetic power. Drastically reduces set up Time by using magnets. Achieves best machining accuracy. Uniform clamping over entire area, such no chattering of tools there by improving finish and tool life.

FEATURES   Compact and light weight. Various models of portable drills can be fitted using adaptor & fixture. Powerful electro magnet which ensures a firm clamping on the job surface. Can rotate over 330 Degrees. Can position drill precisely by correct adjustment. Aluminium slides accurately machined and moves between brass guides.

  Powerful AlNiCo magnets encased in steel pot with aluminium insulation. Magnetic working face only on one side. Tapped hole on the back side. Working temperature up to 375°C. Poppy red colour painted and supplied with nickel plated keeper.

We are offering epm controller. Features solid state controller. magnetic power divided into eight pre-selected steps. mag demag on panel mounting. comes along with remote pendant unit, which can be mounted anywhere around the machine.

We are offering em controller. Solid state controller. power variation done using scr's. special demag operation ensuring proper demagnetization of hadened steel. has 4 different demagnetization programs. Select the program according to the job.

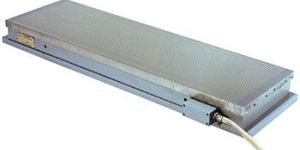

Offers electro magnetic chuck with all metal brass and steel laminated top plate. high resistance to coolant corrosion. electro magnetic chuck has high mechanical rigidity and proven robustness. electro magnetic chuck is guaranteed water proof. electro magnetic chucks have a multi energized magnetic circuit, consisting of a number of adjacent, reversed coils making up a magnetizing core which is small pole pitch. the multitude of exciting windings increases dissipation of electrical energy which becomes magnetic energy, while limiting both temperature rise caused by joule effect and distortion of the chuck. top plate of electro magnetic chuck is machinable up to 8 mm. electro magnetic chuck can be easily fitted to the surface grinder.

FEATURES   Highly efficient for demagnetising components which can pass through it. Strong AC demagnetising field inside window. Can be used for in line production process.

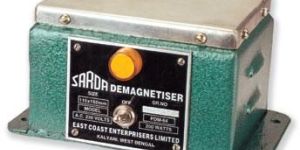

Offers demagnetiser. Applications useful for demagnetising drills, taps, cutters. can be effectively used for any magnetised materials like punches, dies, grinded plates, bearings etc. for some typical application can magnetise the job in contact and switched on.

FEATURES   Powerful magnets with rotating head. Movable yoke covering inspection area up to 500mm. Light weight, no electricity needed. Complete kit with standard crack test block, Black/Red magnetic paste and PVC squeeze bottle. Simple, sure and positive indication, test can be performed even by an unskilled worker.

FEATURES   Economical, simple design. Evenly spaced powerful magnets. (Open construction). Hinged stainless steel flap for easy removal of tramp iron.

We are offering alnico pot magnets. Powerful alnico magnets encased in steel pot with aluminium insulation. magnetic working face only on one side. tapped hole on the back side. working temperature up to 375°c. poppy red colour painted and supplied with nickel plated keeper.
