Fiji Electronics Pvt. Ltd. Pailan, Kolkata, West Bengal

We Also manufacture Wall mounting Automatic Voltage Stabilizers. These Stabilizers are Specially designed to use with AC machines.Wide fluctuation of main supply voltages is harmful for T.V., Refrigerators, Vacuum Cleaner, Air Conditioner etc. Fiji Electronics Pvt. Ltd. have designed voltage stablizer which gives an output which normally varies between 200V – 240V±1% which is considered safe limits of such equipments and appliances.There are two types of Voltage Stabilizers suitable for use with domestic appliances (1) Manual Voltage Stabilizers, (2) Automatic Voltage Stabilizer.1.Manual Voltage Stabilizer consist of a Single Phase Auto Transformer with multiple taps. The taps are selected with the help of a Rotary Switch of appropriate rating to give the desired output with a wide variation of input voltage i.e. from 50V-280V.2.An Automatic voltage stablizer also uses an auto transformer with several tappings and a control circuit. The solid state electronic controller senses the label of input supply and sends the required command signal to actuate electro magnetic relays to select a particular transformer tapping thus manufacturing the output voltage within the safe limit.FIJI has got both the stablizers of various capacities for domestic use starting from a Minimum of 100VA to Maximum of 20KVA.

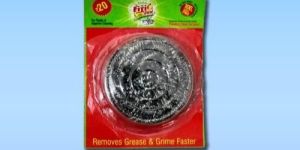

Packaging Type : Blister Packing

Material : Stainless Steel

Brand Name : Fiji

Size : 12 gms

Country of Origin : Made in India

Brand Name : Fiji

Phase : Single Phase

Output Current : 16 Amp

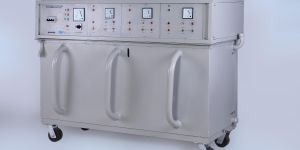

CAPACITY :- From 3 KVA to 1000 KVA 3 Phase Servo Controlled Voltage Stabiliiser TECHNICAL SPECIFICATION:- a) Input Voltage : As Specified by the Customer. b) Output Voltage : 415V AC ± 1% (Can Be Set Anywhere between 400V to 440V) c) Output Voltage Regulation : ± 1% d) Control :Automatic/ Manual e) Instrumentation: Voltmeters on each phase and Volt meter and Ammeter to Indicate line voltage/current out put with Selector Switches f) Frequency :47 Hz to 53 Hz (Sinusoidal) g) Input Indication: High and low voltage indicators with Audible alarm. h) Output Wave Form: The Out put wave form is true replica of the input. i) Correction rate : 35V/sec for each phase j) Ambient Temperature: 0-45ºc. k) Type of Motor :AC step synchronous Motor l)Type of Cooling :Air Cooled/ Oil Cooled m) Protection :1) Over load protection by MCB/MCCB. 2) High/Low Voltage Cut out 3) Single Phasing Prevention 4) Time Delay At the Output

CAPACITY :- From 3 KVA to 1000 KVA 3 Phase Servo Controlled Voltage Stabiliiser TECHNICAL SPECIFICATION: a) Input Voltage :As Specified by the Customer. b) Output Voltage :415V AC ± 1% (Can Be Set Anywhere between 400V to 440V) c) Output Voltage Regulation: ± 1% d) Control :Automatic/ Manual e) Instrumentation :Voltmeters on each phase and Volt meter and Ammeter to Indicate line voltage/current out put with Selector Switches f) Frequency :47 Hz to 53 Hz (Sinusoidal) g) Input Indication :High and low voltage indicators with Audible alarm. h) Output Wave Form :The Out put wave form is true replica of the input. i) Correction rate :35V/sec for each phase j) Ambient Temperature :0-45ºc. k) Type of Motor :AC step synchronous Motor l)Type of Cooling :Air Cooled m) Protection : 1) Over load protection by MCB/MCCB. 2) High/Low Voltage Cut out 3) Single Phasing Prevention 4) Time Delay At the Output

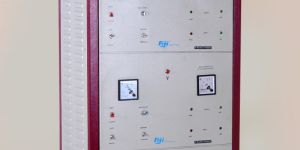

In laboratories and Industries where precision supply voltage is essential to avoid damage in costly equipments and instruments, use of servo controlled voltage stablizer are recommended. This type of voltage stablizer provides desired output voltage, either in single phase or three phase with a minimum of variation i.e. ±1% with an wide input range starting from 90V-265V in the lower side & 220V-290V on the higher side for single phase stabilizer & 160V-500V in the lower side and 380V-500V on the higher side for 3Phase variety as per customers specification.A Servo Controlled Voltage Stabilizer essentially consists of a variable auto transformer (variac) coupled with a servo motor, a buck-boost transformer and an electronic controller. A sample output is taken and compared with a reference standard. The difference is called Error signal which is used to drive the servo motor for output voltage correction.Stabilizers for balance load and supply systems can be used when variations in input supply voltage (phase to phase or phase to neutral) in all three phase are almost equal. In this Stabilizer a single 3 phase variac coupled with one drive motor is used for voltage correction. Output of any one phase of the three phase is selected and monitored to actuate the drive motor.Stabilizers for unbalanced load and supply systems can be used where the three phase voltages vary in an unbalanced manner. These Stabilizers have three nos. single phase variacs individually coupled with drive motors. Each drive motor along with electronic controller is entrusted to take care of one phase to neutral voltage and load variation independently. In other words these stablizers are a combination of three nos. Single Phase Stabilizers connected in STAR configuration.Fiji Electronics Pvt. Ltd. manufactures Servo Controlled AC Voltage Stabilizer of various capacities starting from 0.5 KVA to 20KVA in single phase and 3KVA to 1000 KVA in Three Phase.

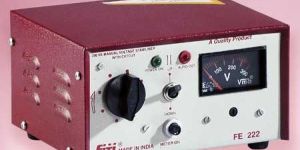

The Manual Relay Voltage Stabilizer manufactured by us consists of a Single Phase auto transformer with multiple taps. The taps are selected with the help of a Rotary Switch of appropriate rating to give the desired output with a wide variation of input voltage i.e. from 50V-280V. We offer the Manual Relay Voltage Stabilizer of various capacities for domestic use starting from a Minimum of 100VA to Maximum of 20KVA. Why Our Manual Relay Voltage Stabilizer? Sturdy constructionLong-lastingPerfectly designedMade from high grade components Click Here For Technical Specifications

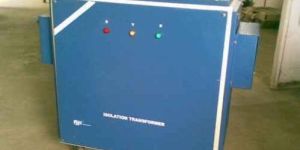

TECHNICAL SPECIFICATION FOR ISOLATION TRANSFORMER :- We Manufacture Both Single Phase & Three Phase Isolation Transformers 1) Make : Fiji. 2) Capacity :As Specified by the Customer 3) Mode of Operation :1 : 1 Isolation Transformer 4) Common mode noise :More than 80 Db. rejection. 5) DC Galvanic Isolation (winding to winding or ground to winding) :500Meghom. 6) Input Voltage :415 V±10%. 7) Frequency :50 Hz± 2 Hz 8) Out put Voltage :Same as Input on no load 9) Breakdown strength :2500V AC for 2 minute 10) Load regulation :Within 3 to 5% 11) Efficiency :more than 95% 12) Temperature rise :50º above ambient temperature 13) Multi Layer copper Shielding :Provided between Primary & Secondary.

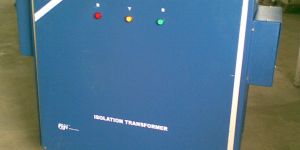

The Isolation Transformer manufactured and supplied by us is widely appreciated by the customers for its sturdy construction and superior features. The Isolation Transformer offered by us is especially designed to cater to the needs of highly sensitive devices such as computers etc. We offer the Isolation Transformer as per customer̢۪s requirements and specifications. Features Reduces power line noiseHigh insulation resistanceProvides the complete electromagnetic shieldingLong service life

The Isolation Transformer manufactured and supplied by us is widely appreciated by the customers for its sturdy construction and superior features. The Isolation Transformer offered by us is especially designed to cater to the needs of highly sensitive devices such as computers etc. We offer the Isolation Transformer as per customer̢۪s requirements and specifications. Features Reduces power line noiseHigh insulation resistanceProvides the complete electromagnetic shieldingLong service life

Brand Name : Fiji

Cooling Type : Dry Type/Air Cooled

Phase : Three Phase

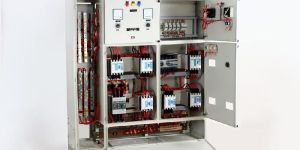

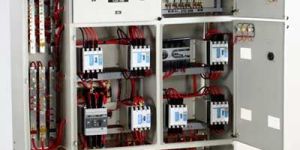

Fiji Electronics Pvt. Ltd. is placed amidst the foremost Manufacturers and Suppliers of Electrical Control Panels. Fabricated using finest quality components and advanced technology the Electrical Control Panels offered by us are being widely used in various industries. Due to their efficient performance, precision engineering the Electrical Control Panels offered by us are widely appreciated by the customers. Features Efficient performanceSmart control displayPrecision engineeringLong service life Types of Panels Manufactured by us Distribution PanelAPFC PanelStar Delta Panel. Etc

Clients can avail from us highly advanced Digital Inverter. The Digital Invertors offered by us are sophisticated inverters. Having digital technology (Mosfet), the Digital Inverters are manufactured by us from 300VA to 2KVA. The Digital Invertors are especially designed for household use. Our Digital Inverter provides power back up for television, refrigerators and other equipment. Features Precisely designedRobust constructionFitted with quality componentsLong working life

We Manufacture Control Panels as per Customer's Specification

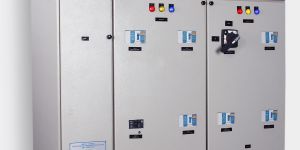

Fiji Electronics Pvt. Ltd. manufactures LT Control Panels as per Customers requirement and specification. We also manufacture Distribution Panels, APFC Panels, MCC Panels, Fire Protection Panel, PLC Panels etc.

Constant Voltage Transformer (CVT) are being manufactured from 100VA to 5KVA for use with sophisticated equipment

Input Voltage : 160V-280V

Output Voltage : 230Volt.

Protection : Inherent protection for short circuit, over loador over voltage with built in Surge Suppressor, proper heat sinking facility.

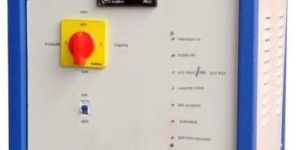

fiji electronics pvt. Ltd. Manufactures battery charger of various capacities with wide range of dc output voltage and charging current. We also undertake manufacture of customer specified battery chargers. specification of battery charger: constant ampere battery charger. boost & float charging of battery digital display of battery voltage and current. ac line voltage is also displayed. battery charger operating range is 130v- 270v ac. reverse polarity protection is in built.

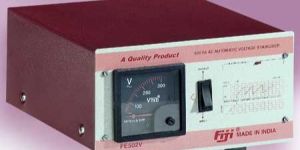

An Automatic voltage stabilizer also uses an auto transformer with several tapings and a control circuit. The solid state electronic controller senses the label of input supply and sends the required command signal to actuate electro magnetic relays to select a particular transformer tapping thus manufacturing the output voltage within the safe limit. We offer the Automatic voltage stabilizer of various capacities for domestic use starting from a Minimum of 100VA to Maximum of 20KVA. Features Strong constructionLong-lastingAccurately designedMade from high grade material Click Here For Technical Specifications

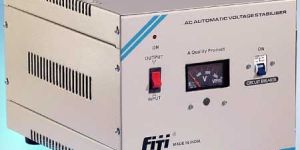

An Automatic voltage stabilizer also uses an auto transformer with several tapings and a control circuit. The solid state electronic controller senses the label of input supply and sends the required command signal to actuate electro magnetic relays to select a particular transformer tapping thus manufacturing the output voltage within the safe limit. We offer the Automatic voltage stabilizer of various capacities for domestic use starting from a Minimum of 100VA to Maximum of 20KVA. Features Strong constructionLong-lastingAccurately designedMade from high grade material Click Here For Technical Specifications

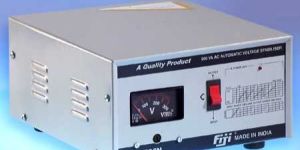

An Automatic voltage stabilizer also uses an auto transformer with several tapings and a control circuit. The solid state electronic controller senses the label of input supply and sends the required command signal to actuate electro magnetic relays to select a particular transformer tapping thus manufacturing the output voltage within the safe limit. We offer the Automatic voltage stabilizer of various capacities for domestic use starting from a Minimum of 100VA to Maximum of 20KVA. Features Strong constructionLong-lastingAccurately designedMade from high grade material Click Here For Technical Specifications

An Automatic voltage stabilizer also uses an auto transformer with several tapings and a control circuit. The solid state electronic controller senses the label of input supply and sends the required command signal to actuate electro magnetic relays to select a particular transformer tapping thus manufacturing the output voltage within the safe limit. We offer the Automatic voltage stabilizer of various capacities for domestic use starting from a Minimum of 100VA to Maximum of 20KVA. Features Strong constructionLong-lastingAccurately designedMade from high grade material Click Here For Technical Specifications

We are amidst the prime Manufacturers and Suppliers of Battery Charger. Manufactured using high grade components, the Battery Charger offered by us is known for its reliable performance and long life. Moreover, we offer the Battery Charger of various capacities with wide range of DC output voltage as per customer̢۪s requirement and specification. Features AdvancedReliable performanceHigh charging capacityDurable

We are amidst the prime Manufacturers and Suppliers of Battery Charger. Manufactured using high grade components, the Battery Charger offered by us is known for its reliable performance and long life. Moreover, we offer the Battery Charger of various capacities with wide range of DC output voltage as per customer̢۪s requirement and specification. Features AdvancedReliable performanceHigh charging capacityDurable

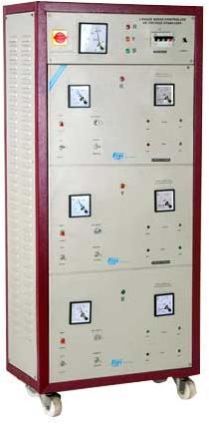

Our range of Servo Controlled Voltage Stabilizer also includes Air Cooled Servo Controlled Voltage Stabilizer. Manufactured using finest quality material and high grade technology the Air Cooled Servo Controlled Voltage Stabilizer is widely appreciated by the customers for its superior features and durability. Also, the Air Cooled Servo Controlled Voltage Stabilizer is offered by us at reasonable prices. Features Robust constructionPrecisely engineered Resistant to fluctuationsLong service life
