Mach Powerpoint Pumps India Pvt Ltd Bbd Bag, Kolkata, West Bengal

Mach Powerpoint Pumps India Pvt. Ltd. is a leading of high-quality stainless steel (SS) centrifugal pumps, which are widely used in various industrial applications, including food and beverage processing, pharmaceuticals, chemical processing, and water treatment. These pumps are designed to transfer fluids by converting rotational kinetic energy to hydrodynamic energy, which is then used to move the fluid through the pump. Mach Powerpoint Pumps India Pvt. Ltd. offers a wide range of SS centrifugal pumps in different types and configurations, such as end suction pumps, multi-stage pumps, and self-priming pumps. The pumps are available in different sizes and capacities, making it easy to find a pump that meets the specific requirements of the application. The pumps offered by Mach Powerpoint Pumps India Pvt. Ltd. are made of high-quality stainless steel, which provides excellent corrosion resistance and makes the pump suitable for use with a wide range of liquids. The smooth surface finish of the stainless steel also makes it easier to clean and maintain the pump, ensuring long-term reliability and efficiency. With their reliability, efficiency, and corrosion resistance, the SS centrifugal pumps offered by Mach Powerpoint Pumps India Pvt. Ltd. are an essential equipment for various industrial applications. Proper selection and maintenance of the pump can ensure efficient and operation, and help to minimize downtime and maintenance costs.

Number Of Flower : Centrifugal Pump

Material : Stainless Steel

Specialities : Corrosion Resistance, High-Quality

Semi-rotary hand pumps are mechanical pumps that are manually operated and used to transfer fluids from one container to another. They are commonly used for dispensing liquids such as fuels, oils, solvents, chemicals, and various other non-corrosive fluids. Body & cover – close grain cast iron Moving parts – Brass Shaft – Steel Gland bush – Gun metal Handle – Wooden RANGE: SIZE : 15mm – 80mm CAPACITY : 710 LPH – 19070 LPH >> These capacities of pumps given in the table are calculated and based and on a vertical lift of suction of 1 M and a vertical delivery of 1 M with full stroke at the rate stated. >> A foot valve should be fitted when suction lift is more than 2 M. >> In case the liquid is to be forced more than 4 M above the pumps, vertical check valve on the delivery pipe is desirable. Flange details:- Size: 0-5 : Have oval flanges Size: 6-10 : Have round flanges Size: 0-8 : Have vertical lugs and are fitted with single handle Size: 9-10 : Have horizontal lugs and are fitted double handle.

Number Of Flower : Semi-rotary Hand Pump

Material : Close Grain Cast Iron, Brass, Steel, Gun Metal

Rotary Gear Pump - and Efficient Fluid Handling with Rotary Gear Pumps from Mach Powerpoint Pumps India Pvt. Ltd. SPECIAL FEATURES * Single helical gears * Hardened & ground shaft * Max. capacity -500 Lpm * Max. pressure – 10 kg/ cm2 * Max temperature – 80°c * Modified version for high temp up to - 200°c * Modified version for molasses and vacuum Application * Higher aesthetic valve

Number Of Flower : Rotary Gear Pump

Brand Name : Mach Powerpoint Pumps India Pvt. Ltd.

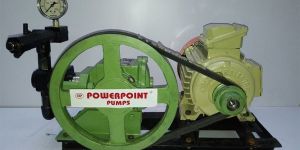

Boilers • Pressure Vessels • C.I. Mains • Castings parts • Gas Cylinders • Pipes and Tubes Parts Subjected to Hydraulic Pressure Standard Accessories • M.S. Fabricated Pail • Brass Foot Valve • G.M.J.S.S Check Valve • Brass Pressure Release Cock • Pressure Hose With Attachments • Pressure Gauge • Pressure Gauge for Testing Up to 705 kg/cm2 (10,000 PS.I.) PERFORMANCE RANGE * Test Pressure Up to 1000 kg/cm2 * Water Flow Capacity up to 150 LPH * Motor Up to 7.5 hp

Number Of Flower : Pressure Test Pump

Material : M.S. Fabricated, Brass, G.M.J.S.S

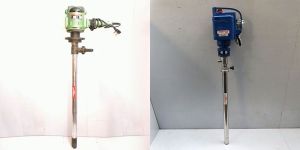

OUTER DIA: - Ø40 mm. * Outlet size: - 25 mm. * Power: - 0.88 kw. * Speed: - 14000 RPM. * Voltage: - 220v, 50 Hz. * Fitted with ON-OFF Switch. * Available with Flame proof Motor Also (NON CMRI).

Number Of Flower : Barrel Pump

Power : 0.88 Kw

Country of Origin : 220V, 50 Hz

Manual barrel pumps, also known as hand-operated barrel pumps, are mechanical devices used to transfer liquids from barrels, drums, and other containers to another container or dispensing point. These pumps are manually operated, and they are typically designed for use with non-corrosive fluids such as oils, lubricants, diesel fuel, kerosene, and other compatible liquids. CAST IRON BARREL PUMP Description >> Solid cast iron construction >> 1.25” pump inelet >> Suitable 50-210 liter >> Useful for transferring oi, diesel, kerosene & other non corrosive media >> Pipe tube Length 990 mm >> Capacity — 5 liter / 20 turns >> Weight ** Remark- M.S pipe tube, M.S Vanes Measurement PP ROTARY BARREL PUMP Description >> Body made glass filed polypropylene with PTFE vanes >> Viton rubber seals & ss hardware suitable for 50 - 210 lit drums >> Recommended for use with water based chemicals acids & all petroleum based fluids >> Pipe tube length. 990 mm >> Capacity 250 ml / rotation >> Weight >> Do not use with solvents, acetone, turpentine etc STAINLESS STEEL BARREL PUMP Description Solid ss construction 1.25" pump inlet Suitable 50-210 Liter Useful for transferring solvent & other corrosive media Pipe tube Length 990 mm Capacity - 5 Liter / 20 turns

Number Of Flower : Manual Barrel Pump

Material : Cast Iron, Polypropylene,Stainless Steel

Our range of diaphragm lpg transfer pumps are available in 0.5 hp, 1 hp, 2 hp sizes.The capacity is same in all the diaphragm type models i.e 2kg per minute, Rotary vane lpg transfer pump is available in 1 hp at present. All the pumps are in 220v ac 50hz only. Mach Powerpoint Pumps India Pvt. Ltd. is a leading of LPG transfer pumps in India. The company offers a wide range of LPG transfer pumps that are designed to meet the specific needs of different industries. The LPG transfer pumps offered by Mach Powerpoint Pumps India Pvt. Ltd. are made of high-quality materials that are resistant to wear and corrosion. They are designed to handle the high pressures and low temperatures associated with liquefied petroleum gas. Mach Powerpoint Pumps India Pvt. Ltd. works with reputable Suppliers to ensure that its LPG transfer pumps are of the highest quality and meet industry standards. The company's team of experienced professionals is available to provide technical support and recommend the most appropriate solutions for its customers. Mach Powerpoint Pumps India Pvt. Ltd. also provides installation, maintenance, and repair services for its LPG transfer pumps. Its team of skilled technicians is trained to provide timely and services to ensure that the pumps operate at peak performance. In summary, Mach Powerpoint Pumps India Pvt. Ltd. is a and trusted of LPG transfer pumps in India. With its commitment to quality, reliability, and cost-effectiveness, the company has established itself as a leading player in the Indian pump industry.

Capacity : 2kg Per Minute

Rated Power : 220v AC 50Hz

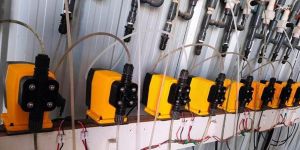

Salient features: * Maintenance free * Easy to operate * Economical * World class next generation Dosing Pumps * Inbuilt Air Relief Valve * Solid PTFE Diaphragm * Double NRV Check Valves * Less noise * Minimum SPM * Optionally Digital display of SPM available Solenoid: High quality, hot rated solenoid is designed to dissipate heat. Capacities & pressure do not derate even over extended use. Technical specification: 1. Power Supply - 230v AC, 50Hz 2. Power consumption at max. speed - 30 Watt 3. Fuse - 0.5 mA/ 230v Ac 4. Pump stroke per minute {adjustable} - 380 Max 5. Negative Suction - 1 Mtr 6. Environment temperature - 40’C Max 7. Capacity Max - 14 Lph(at open to atmosphere) 8. Pressure Minimum - 1 Kg/cm2 9. Flow rate 6lph at 4 bar It is a positive displacement diaphragm metering pump operating at 230V, 50 Hz supply. It is base mountable. Solenoid pushes the diaphragm which in turn pushes the liquid into the system. Solenoid is actuated by a solid state electronic circuit. It has controls for the desire accuracy of the dosing. Diaphragm: Superior diaphragm is designed to ensure to long life even under the most demanding applications. We are using imported quality solid PTFE diaphragm. Electronic Circuit: State of the art electronic circuit (protectively coated with epoxy) is virtually unaffected by temperature, magnetic fields & other electric disturbances. MOC: PP,PVDF,PTFE & SS316, Alloy20.

Number Of Flower : Electronic Dosing Pump

Material : PP, PVDF, PTFE, SS316, Alloy20

Coolant pumps, also known as cooling pumps or circulation pumps, are mechanical devices used to circulate coolant in various systems to manage and control temperature. "POWERPOINT" range of immiscible pumps has been designed especially for filtering systems in the machine tool industry. The low-pressure pumps are available in different flow variants and come with a choice of bottom suction or suction from the top of the volute. The compact coolant pumps efficiently transport liquid containing chips, fibers and abrasive particles on to the filtering unit. Semi open impellers allow the passing of chips up to 10 mm, making the pumps ideal for removing liquid from any machining process- from boring and milling to grinding. High-Quality materials:- Carefully chosen materials ensure trouble free operation and long life the top of the pump is made of cast iron, while the impeller is available in composite Bronze /aluminum /engineering plastic etc are used in pumps with flow up to 1000 1/min. in the bigger pumps with higher flow the impellers are made of bronze to ensure perfect Resistance to e.g metal chips. As the pumped liquid will always contain oil there no risk of Corrosion. Easy Installation:- Easy installation is another of the benefits of the pumps. The tank mounting flange dimensions’ have been carefully designed to ensure that even replacement of compacting products can be carried out without any inconvenience no special tools are required to the Installation of the coolant pumps just as the entire range is easily serviced and cleaned. Full-line Suppliers:- In addition to the range for filtering systems, we offers a wide range of pumps for the cooling and cleaning of tools inside the machine. this allows our customers the benefit of convenient and time -saving one stop shopping. 1. Available in very wide range. 2. High flexblility of Design. 3. Availability in any type of material like CI, $S-316,SS-304,Bronze , Alloy-20 Etc.

Number Of Flower : Coolant Pumps

Automatic Grade : Semi Automatic

Chemical Process Pump - and Efficient Chemical Process Pumps from Mach Powerpoint Pumps India Pvt. Ltd. Pumps are made up of materials like Polypropylene, PPH, PVDF, PFA. These are corrosion resistant pumps and mostly used in chemical and process industries. TEMPERATURE RESISTANCE * PP Up to 60°C * PPH Up to 100°C * PVDF Upto 120°C * PFA Upto 200°C TEMPERATURE RESISTANCE * Dyes and Chemical Industries. * Food Industries. * Textile Processing Plant. * Pharmaceuticals Industries. * Petro Chemical Industries. * Oil and Other Fuels. * Effluent Treatment Plant. * Fertilizer Industries. * Paint Industries.

Number Of Flower : Chemical Process Pump

Application : Dyes And Chemical Industries, Food Industries

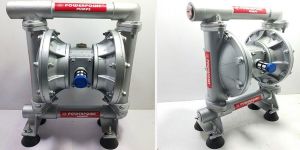

AODD Pump - Air-Operated Double Diaphragm (AODD) Pump - Fluid Handling with Mach Powerpoint Pumps India Pvt. Ltd. SPECIAL FEATURES * No elecirical molor required - non sparking. * No mechanical seal or gland packing. * The pumps can run dry indefinitely without damage. * Safe for use In hazardous/explosive environments. * Variable flow at different air pressure. * Self-priming from a dry start. * Pressure up fo 100 PSI (7 bar). * Gentle non-shearing action. * Quick assembly and disassembly. * Can lift any thing from powder to viscous materials. * Can be supplied on frolley for Mobile Operation. PRODUCTS APPLICATION * Solvents * Acids * Caustics * High Viscous Liquids * Abrasive Media * Hazardous & Flammable Liquids

Number Of Flower : Air-Operated Double Diaphragm Pump

Material : Various Materials For Fluid Handling

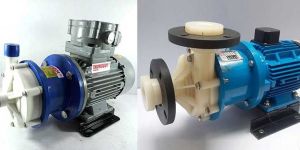

magnetic drive design eliminates the conventional method of shaft coupling. Hence the pump casing is fully sealed from drive end which gives away the use of conventional sealing system. There is no seal used and hence no troublesome seal repairing and replacement, leaking and production lost. Impeller and drive magnate are permanent rare earth magnets. They prevent slippage and ensure that full motor horsepower is converted into pumping power. * All pumps are rated for continuous duty with class “E” insulation. * All pumps are rated for continuous duty with class “E” insulation. * SS-316 magnetic pumps are available up to 5HP ADVANTAGES:- 100% Leak proof pumps due to magnetic drive arrangements. No shaft seal used which automatically solves problems of seal leakage and water & tear. Friction free operation for reduced power consumption. High power permanent magnets ensure full power transfer and eliminates slippage. All pumping parts are non-metallic, which gives supprior corrosion resistance, simple and easy to operate and maintain. Long life liable and trouble free operation. APPLICATIONS & USER INDUSTRIES:- Ideal for transfer of corrosive chemicals , plating chemicals, acids, dyes, solvents, toxic and & fuming liquids, petrol kerosene etc. use full in chemical industries, pharmaceuticals, and food processing industries, electroplating galvanizing/ anodizing plants. Laboratory equipment and PCB plants. Medical equipment and x-ray film plants. Textile dyeing houses. Liquid dispensing machine and chemical filtration equipments. For hazardous duty condition with flame proof motors. High efficiency due to permanent magnet power coupling. Acid Transfer Pump Range:- * CAPACITY :- FROM 10 LPM TO 750 LPM * HEAD :- UP TO 40 MTRS. * MATERIALS CONSTRUCTION:- POLY PROPYLENE GLASS FILLED, PVDF UP TO 110° C – SS316. * OPERATING TEMP- PP UP TO 80°C , PVDF UPTO 110°C * SPECIAL PUMPS FOR HIGH TEMPARATURE UP TP 150°C AND 250°C FOR SS-316

Head : Up To 40 MTRS

Feature : Magnetic Drive Design,100% Leak Proof

Number Of Flower : Acid Transfer Pump
