New Ghosh Industries Simla, Kolkata, West Bengal

New Ghosh Industries is reckoned as one of the Stainless Steel Testing Sieves exporters, based in India. Our stainless steel testing sieves are manufactured from the purest quality steel. All our stainless steel testing sieves are highly reliable and thus offer high resistance to rusting. Our stainless steel test sieves are very light in weight, which makes them user-friendly. Our stainless steel test sieves comes in various sizes and thus you can easily choose the one that suits your need. We provide stainless steel test sieves at the most competitive prices.

We are into manufacturing and exporting high quality Sieve Shaking Machine which is also known is Sieve Shaker Motorised Machine. In the world market, we are regarded as one of the most trustworthy Wagner Shaking Machine Manufacturers. GHOSH Sieve Shaking Machine is ideally suited for carrying out sieve analysis of different materials in dry conditions. The body of Rotary Sieve Shaker Machine is made of cast iron and the base is made of m.s. Sheet. Top rotating plate is made of cast aluminium complete with arrangement for fixing 8"/20cm. or 30cm.dia. sieves with lid and receiver. Features 1/4 H.P. Motor CROMPTON for 220/230V A.C. supply. Timer 0-60minutes is provided in the circuit. Rotation of sieve stage 12 per minute. Simultaneous tapping 500per minute. Oil bath for machine parts. Oil level indicator. The body and the base of Sieve Shaking Machine is made of mild steel plate and the top rotating plate is made of mild steel / aluminium plate with arrangement for fixing 5nos. of 45cm dia. or square sieves, with rigid clamp. Features 1 H.P. motor for 220/230V A.C. supply. Timer 0-60mts. is provided in the circuit Rotation of Sieve stage is 10 per minute. Simultaneous tappings 400 per minute. Oil bath for machine parts. Oil level indicator. Dimensions M.S. box: 400mm L x 385mm W approx. Ht. from base to rotating base: 525mm approx. Ht. from base to top of Sieve Clamp: 1425mm approx. Length of base plate with complete assembly & motor: 925mm approx. Gross WT : 80kg. approx.

For quick determination of moisture content of materials in powder from i.e. Soil sand, coal, pottery, ganister, cement etc. A weighed quantity of the substance under test is placed in the body of the tester together with a measured quantity of absorbent and the tester is then sealed and shaken vigorously thereby bringing the sample and the absorbent into intimate contact. The pressure of gas liberated by interaction of moisture in the sample and absorbent actuates the gauge which is directly graduated in percentage moisture on the wet weight basis. A conversion chart is provided for converting percentage moisture content on the wet weight basis to percentage moisture on the dry weight basis.the unit consists of a pressure vessel with clamp for sealing cap rubber sealing gasket, dial gauge calibrated in percentage moisture content to 25 % on the wet weight basis, counter poised balance for weighing sample, scoop for measuring absorbent, bottle of absorbent, cleaning brush. Complete in wooden carrying case with handle.the unit can be used to determine percentage moisture contents on the wet weight basis up to 25% which is equal to 33.3% moisture content on the dry weight basis.

This is for determining the bearing capacity of sub-grade soils or for compaction control and meets the requirement of astm d-420. Consists of a sturdy handle under which is 􀁅ixed a sensitive proving ring. An extension piece is 􀁅ixed on to the bottom of the proving ring and carries the detachable penetration cone at its tip. Proving ring capacity is 130 kg and the .002 mm dial indicator is provided, indicates the penetration load applied with a sensitivity of approx. 12 kg. Division. A calibration chart is provided for the proving ring. Instrument is complete in wooden carrying case.

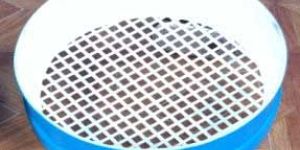

We are a prominent Manufacturer and Exporter of Perforated Sieves. We specialize in manufacturing high quality perforated plate G.I test sieves and Perforated Plate Sieves. We have been distinctly recognized in the market as a successful Perforated G.I Test Sieves Manufacturer. GHOSH TEST SIEVE (PERFORATED PLATE SIEVES): Perforated Plates are available in heavy gauge g.i round frame usually in 300mm or 450mm diameter, as per BIS Specification IS: 460. The perforated plates are made of mild steel gauges as specified in the standards, and with square openings. However round opening perforated plates and frame dimensions as per the Customers specifications are also manufactured.

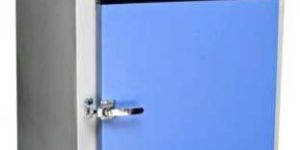

This oven has the provision of double wall with an inner chamber made of aluminum sheet, outer surface made of mild steel, 􀁅inished in silver gray hammer tone, with a gap of 2" between the walls 􀁅illed with special grade glass wool which helps proper insulation and avoids loss of energy. In the inner chamber 2 or 3 removable shelves are provided. The door is 􀁅itted with heavy casted chromium plated hinges with a spring and automatic roller to and fro latch.the temperature is controlled by german bimetallic thermostat working in the range of room temperature to 250 in the variation up to ± the inner chamber is heated with the help of coil heaters. To control the electric heaters for maintaining low, medium and high range which is essential to maintain in the oven, an imported wattage controller has been provided. Working of the temperature control is indicated by the pilot lamp on the front with adjustable shutter near the top for air regulation. Complete with wire and plug, but without thermometer. Size : 30 x 30 x 30 cm 35 x 35 x 35 cm 45 x 45 x 45 cm 60 x 60 x 60 cm

The body and the base of sieve shaking machine is made of mild steel and the top rotating plate is made of mild steel plate with arrangement for fixing 10 nos test sieves 750 mm(l) x 750mm(w) x 75 mm (h) with rigid clamp.

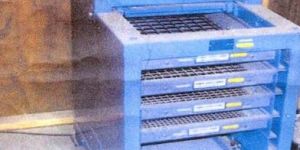

The aggregate screen shaker is designed for sizing test samples of crushed stone, sand, gravel, slag, coal, ores, and other similar materials.the shaker will receive andgrade up to 1 cu.ft. (0.03 m3) of bulk materials in one operation. The unit is designed primarily for sizing in the range of 4" down to a #4 screen size, and with smaller amounts of 􀁅iner materials down to a #200. The standard series shaker utilizes a manually-operated, threaded clamping rod arrangement to hold the screen trays during operation.the other series features a hydraulic pump clamping system for quick clamping and release of trays in just a few motions. Both versions are supplied complete with 􀁅ive coarse series screen trays and a dustpan tray

The apparatus comprises of the following :- loading unit:- vertical load, capacity 8 kgsq. Cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load for the applied either througe a steel ball recessed in the loading pad or directly through a base of the loading yoke. Shear load capacity 400 kg. Direct shear box for square specimen size 60x60x25 mm complete with one base plate, two plane gripper plates, porous stones and one loading pad. Shear box housing,complete with two ball roller strips. Specimen cutter for 60x60x25 mm specimen.

As per is-516-steel cube mould 2.78 (7.06 cm) for vibrating machine complete with base plate. -cast iron cube moulds complete with base plate size 5cm x 5cm x 5cm. -cast iron cube moulds complete with base plate size 10cm x 10cm x 10cm. Cast iron cube moulds complete with base plate size 15cm x 15cm x 15cm.-cast iron cube moulds complete with base plate size 20cm x 20cm x 20cm.

This test is used to determine the compressive strength of a concrete cube, which has usually been made from fresh concrete cast in a standard test mould. The value of compressive strength can then be used to assess whether the batch that the concrete cube represents meets the required compressive strength. Following cube manufacture and curing, which should both be closely controlled, the cube is crushed at a stated constant speed until it can sustain no further increase in load. The strength is then derived by calculation using the maximum load and cube dimensions.

Brand Name : GHOSH

We are proud to introduce ourselves as one of the prestigious Brass Testing Sieves manufacturers in India. Our brass frame test sieves are manufactured from the premium quality raw material, which is minutely inspected prior to use. We offer different types of brass test sieves that differ from each other in their shape & size. Our brass test sieves offer high resistance to corrosion and thus last for a longer version of time period. We also serve customized brass test sieves as per the clients� requirement. Our brass test sieves are accessible at the least market prices.
