P. C. Ghosh & Company Pvt. Ltd. Paikpara, Kolkata, West Bengal

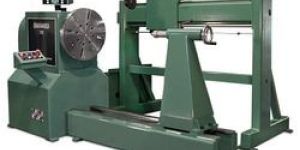

Wire winding machine is provided with machine for gradual increase & decrease the machine�s speed. Provision for change of speeds through gear unit is incorporated inside the gear box of the machine. Two hand lever is provided with the machine, one lever for precise setting of layer for different wire size and other lever for manual reverse of wire at the end of each layer.

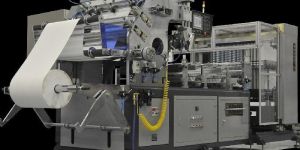

Wire rewinding machine of layer for different wire size and other lever for manual reverse of wire at the end of each layer. The machine is complete with counter meter, tail –stock, reel carrier, v-puley, v-belt, safety guard of belt , belt tensioner,

We are the main supplier of this product.

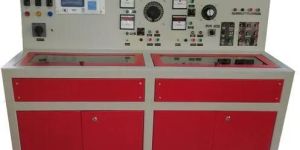

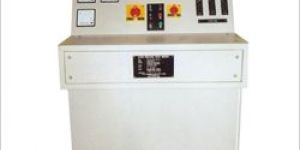

Number Of Flower : Transformer Test Bench

Application : Testing Transformers

Availability : 100-1000kg, 1000-2000kg

Country of Origin : 220V, 380V, 440V

Condition : New, Used

Automatic Grade : Fully Automatic, Manual

Power : 1-3kw

Driven Type : Electric

Total Carbohydrate : 1year, 2years

Purity : Rugged construction, Durable, High efficiency

Capacity : 8 swg to 30 swg

Country of Origin : Made in India

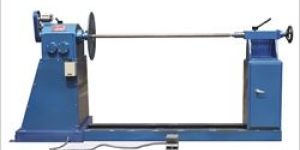

Transformer coil winding machines made of M.S. Plate having radial slots for holding the winding former. Provision for change of speeds through gear unit is incorporated inside the headstock of the machine. An electro magnetic brake is built in such a manner when the electrically operated foot switch is pressed for running the machine the brake automatically open and the machine starts running and when the pressure on the foot switch is removed the brake automatically applied and stop the machine instantaneously. A five figure counter metre with zero re-set is provided with the machine. The machine is complete with motor, brake, reversing switch, foot switch, tail stock, reel carrier, V-pulley, V-belts, safety guard of belt, belt tainsioner, winding mandrel etc.

This set is suitable to test electrical strength of insulating OIL. It is portable and useful for field indoor purpose. H. V. Transformer and control circuits are fitted in one steel cabinat.

Frequency : 60hz

Total Carbohydrate : 1 year

Material : MS

Country of Origin : depends

Availability : own location

Country of Origin : Made in India

High precision all geared reading machine, Type MIG - 14. Fitted on a fabricated base frame. A foot paddle is Provided for gradual starts and step the machine. Provision for stepiess adjustment of different wire size and precise setting of layer with automanual reverse of wires at the end of each layer. One turn table for carrying rough coil to be supplied with the machine, having brake arrangement in such a manner when the machine starts The brake open and the turn table starts run and when the machine stop the brake applied and stop the turn table, the total mechanism will be control by foot paddle which is fitted in the machine.

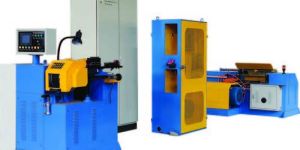

Precision layer winding machine is fitted with face plate, having radial slots for holding the winding formers. A foot pad is provided with machine for gradual increase & decrease the machine’s speed. Provision for change of speeds through gear unit is incorporated inside the gear box of the machine.

Country of Origin : 440 / 3 Ph

Country of Origin : Made in India

Material : MS

Number Of Flower : Oil Insulation Test Kit

Country of Origin : 220V

Condition : New, Used

Packaging Type : Catron, Plastic Bag

Feature : Confortable, High Accuracy, Suitable For Self Testing

Total Carbohydrate : 1yrs

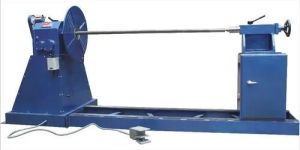

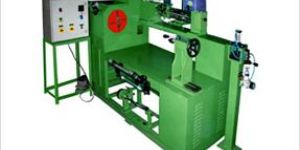

lv winding machine is provided with the machine, one lever for precise setting of layer for different wire size and other lever for manual reverse of wire at the end of each layer.

Automatic Grade : Semi-Automatic

Country of Origin : Made in India

PCGL Robust vibration proof construction all geared electrically operated winding machine is fitted on fabricated base frame, reduction gear box is fitted with face plate made of M.S. Plate having radial slots for holding the winding former. Provision for change of speeds through gear unit is incorporated inside the headstock of the machine. An electro magnetic brake is built in such a manner when the electrically operated foot switch is pressed for running the machine the brake automatically open and the machine starts running and when the pressure on the foot switch is removed the brake automatically applied and stop the machine instantaneously. A five figure counter metre with zero re-set is provided with the machine.

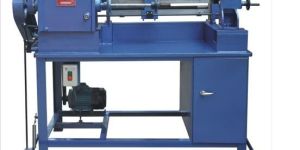

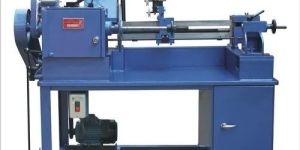

HV winding machine is fitted with face plate, having radial slots for holding the winding formers. A foot pad is provided with machine for gradual increase & decrease the machine’s speed. Provision for change of speeds through gear unit is incorporated inside the gear box of the machine.

Automation Grade : Semi-Automatic

Country of Origin : 220 / 440

Country of Origin : Made in India

PCGL High precision all geared coil winding machine fitted on a fabricated base frame, geared head is fitted with face plate, having radial slots for holding the winding formers. A foot pad is provided with machine for gradual increase & decrease the machine’s speed. Provision for change of speeds through gear unit is incorporated inside the gear box of the machine. Two hand lever is provided with the machine, one lever for precise setting of layer for different wire size and other lever for manual reverse of wire at the end of each layer. The machine is complete with counter meter, tail –stock, reel carrier, v-puley, v-belt, safety guard of belt , belt tensioner, winding mandrel etc. and detailed specifications are

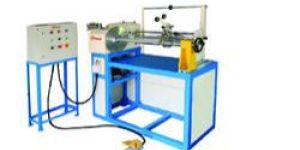

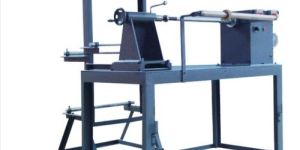

HT winding machine is provided with machine for gradual increase & decrease the machine’s speed. Provision for change of speeds through gear unit is incorporated inside the gear box of the machine. Two hand lever is provided with the machine, one lever for precise setting of layer for different wire size and other lever for manual reverse of wire at the end of each layer.

HT coil winding machines A foot pad is provided with machine for gradual increase & decrease the machine’s speed. Provision for change of speeds through gear unit is incorporated inside the gear box of the machine. Two hand lever is provided with the machine, one lever for precise setting of layer for different wire size and other lever for manual reverse of wire at the end of each layer.

We are using 2 type of Servo motor and Drive packages to achieve Winding and Unwinding operation.Traverser will be unique design with LM Guideways and Ballscrews integrated with 1:1 connection of the servo motor.Control panel to house Drives and Operator Panel with 4 line HMI for Operator Interface. Uncoiler will be provided with brake chopper and brake resistor for maintaining Tension. Wire break is detected by Proximity switch. Complete operation will be controlled by ABB frequency Drive PLC unit with 3 inch HMI display. HMI will be placed in operation panel and Main PLC in the main control panel.

Brand Name : P.C.GHOSH and CO PVT LTD

Country of Origin : Made in India

Size : 300 LPH to 12000 LPH

Input Voltage : 415 Volts

Country of Origin : Made in India

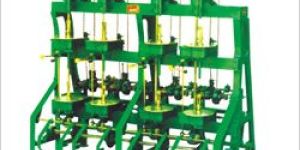

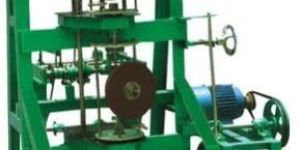

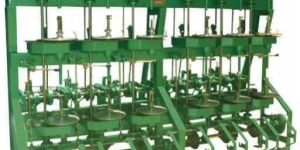

High precision all geared 3 – speeds D.P.C. wire strips covering machine ideally suited for large scale accurate production with quality finished in normal wires strips. Reception drum is fitted with reduction gear head for pulling the finished materials. Provision for speed changing according to percentage of covering is incorporated in gear head. A hand lever is provided with the machine by which gradually increased and decreased the machine speeds. One attachment is fitted with the machine for layer winding with automatic reverse of wire strips at the end of each layer. A mechanical clutch device is fitted with the machine for tensioning the wire strips according to the dimension. Chain & Sprocket system is incorporated from gear head to tensioning unit and coil winding unit, v– belts & gear system is also incorporated inside the spinner tray.

"PCGL" High precision all geared 3 – speeds D.P.C. wire strips covering machine ideally suited for large scale accurate production with quality finished in normal wires strips. Reception drum is fitted with reduction gear head for pulling the finished materials. Provision for speed changing according to percentage of covering is incorporated in gear head. A hand lever is provided with the machine by which gradually increased and decreased the machine speeds. One attachment is fitted with the machine for layer winding with automatic reverse of wire strips at the end of each layer. A mechanical clutch device is fitted with the machine for tensioning the wire strips according to the dimension. Chain & Sprocket system is incorporated from gear head to tensioning unit and coil winding unit, v– belts & gear system is also incorporated inside the spinner tray. The machine is complete with abonite plate for paper pad, paper pad tensioning device with two nos. general dies for top & bottom tray, rough & final coil carrier, v-pulley etc. and detailed specifications are mentioned below :
