Raman Industries Bagmari, Kolkata, West Bengal

We offer a diverse range of Slitter - Rewinder Machines, which provides a simple and cost effective solution to the clients. These are available in Simplex and Duplex Type Rewinder with a Slitting Width of Min. 20mm that enables unwinding the web tension by adjusting the Friction Brake. These machines generally cater to the requirements of Paper Coverters. Flexible Packaging Units Technical Specifications: Up to 600mm Diameter Centre Rewinder Suitable Up to Or 400Mm Diameter Paper Or Aluminium Foil Roller Unwinder & Surface Rewinder Roll Quick-Release & Mounting Arrangement For Rewind Shafts Wrinkle Removal Rollers All Rollers Drive Shafts Are Mounted On Bearings All Drive Rollers Are Dynamically Balanced Speed Up to 100\Mtr\Mins depending On the type & thickness of substrate & operating parameters Optional Equipment: Auto Web Guiding Systems Pneumatic Loading/Unloading Of Unwind Rolls Auto Web Tension Control Systems Centre-Cum-Surface Rewinder Systems

We offer a quality range of sheetfed flexo printers (1 to 4 colour) to our esteemed clientele across the indian subcontinent. These printers are widely appreciated for their high performance under tough working conditions. They are generally used for printing purposes on kraft paper and corrugated boards. Features : low power consumption durable precision engineered Specifications : board size printing area dimensions l x w x h power required 50" x 62" 48" x 60" 120" x 78" x 54" 2hp/415 v or 230 v 52" x 89" 50"x 80' 140" x 81" x 58" 3hp/415 v or 230 v 65' x 84' 63' x 80' 145" x 95' x 62' 5hp/415 v or 230 v

Number Of Flower : Sheetfed

We Offer a Diverse Range of Rotogravure Printing Machines, Which Possess a Working Width 300 to 1300 Mm Specifically Designed for Polythene/pp/bopp/pet Film Jobs. Further, Thyristor Control Panel is Used as a Drive Control Panel for Drying System Wed. the Ink Circulation Pump is Provided with Flameproof Motor and Ss Tank to Ensure Safety of the User. technical Specifications: Cylinder Diameter: 100 Mm to 310 Mm Parent Reel Diameter, 640 Mm Adjustable Friction Brake Regulates Unwind Web Tension Printing Speed 80/100 Mtrs/min Oscillating Doctor Blade Assembly optional Attachments: Reversible Printing Arrangements Surface Winders Automatic Web Tension Control Systems Pneumatic Controls for Robber Roll & Doctor Blade Impression Electronic Tension, Control Unwind and Fully Synchronized Rewind Optional Ink Circulation Systems One to Eight Colors Reverse Printing Attachment Aligning Systems Two/three Rolls Registration Constructed On Heavy Duty Structure and Perforated for Accurate and Quick Registration.

We Offer a Diverse Assortment of Coating and Laminating Machines Which Includes Dry/wet Lamination Machine Sutable for Flexible Packaging Units, Bopp Self Adhesive Tape Coating Machine and Renowned in the Industry for Their Hassle Free Maintenance and Easy Operation. Our Highly Efficient Manufacturing Unit is Equipped with Modern Facilities, to Deliver Reliable and Cost Efficient Machines. features: Low Maintenance Precision Engineered Durable specifications lm 1001 web Width 800/1525mm laminating Speed (max) 70-80 drying Tunnel Length 7 Mtrs. substrates paper, Film & Foil heating Media electric Heater Hot Air power Requirement 70-h-.p. Approx area Requirement 15 Mtrs. L X 6 Mtrs. W X 5 Mtrs. H unwinder Units simplex Type tension Control and U/w, R/w automatic (optional) control System thyristor Control

Paper Bag Making Machine Is Designed to manufacture Flat And Satchel Paper Bags From Kraft Paper, Greaseproof, White Paper And Poster Paper Etc. Grocery, Dry Cleaners, etc. 1.MODEL RI � I (BIG SIZE) Paper Bag Machine complete with online 2 Colour Flexo Printing attachment. 2.MODEL RI � II ( SMALL SIZE) Paper Bag Machine complete with online two colour Flexo printing attachment.

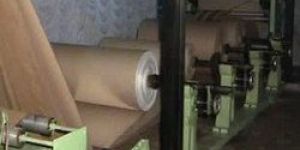

We are offering multiwall (1 to 6 ply) flash cut paper tuber machine with online flexoprinting attachment (1 to 4 colour) technical specifications : a) machine length : 48 ft. B) machine width : 7 ft. C) machine height : 9 ft. D) working width : 5 ft. E) production speed : 40 to 50 pcs. Tube per minute +_ 5% (approx) f) finished tube size i) length minimum : 510 mm maximum : 1370 mm ii) width :minimum : 300 mm maximum : 720 mm iii) gusset size : a)minimum 50 mm b)maximum 200 mm g) no. Of ply : 1 to 6 ply h) paper deckle length : minimum 625 mm maximum 1465 mm paper reel dia : minimum 100 mm maximum 1250 mm j) maximum reel weight : 1.5 m.t. K) motor :5 h.p. D.c. Drive motor with control p.
