RHINO ROAD EQUIPMENTS PVT LTD Ganesh Chandra Avenue, Kolkata, West Bengal

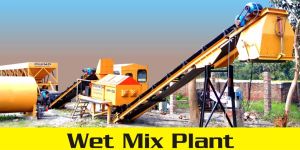

We are offering wet mix macadam plant. In continuing the tradition of providing automatic excellence in road construction machinery, rhino has engineered wet mix plant (soil stabilisation plant) for achieving homogenous mix material to prepare base and sub base in road construction projects. Designed to confront the toughest job site requirements and maximum reliability to meet specific customer requirements, rhino wet mix plant ranging from 100 tph to 200 tph can be tailored as needed. Cement stabilisation (ctab) system and other optional accessories can be provided as per the requirement. Standard configuration: twin shaft pug mill mixing unit cold aggregate four bin feeder oversize removal vibrating screen conveyors-load out & slinger gob hopper electrical control panel with fully furnished cabin

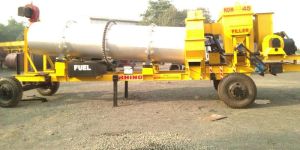

We are offering mobile drum mix plant capacity-40-60 tph. Advantages: 1. Easy to transport 2.less fuel consumption 3.high energy saver 4.less maintenance 5.easy to dismantle and mobilize mobile drum mix plant- standard configuration:(with pollution control unit) one chassis - drying & mixing unit with load out conveyor & gob hopper, fuel tank, one chassis - cold aggregate four bin feeder with slinger conveyor one chassis - bitumen tank, & mineral filler unit, electrical control panel with fully furnished cabin & optional d.g. Sett.

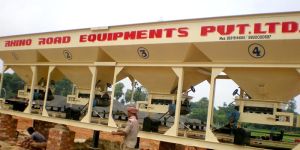

We are offering four bin feeder no.of bins 4 storage capacity 55 tons auxiliary drive motor 1.125 kw x 4 nos. Auxiliary conveyor bolt 500 mm x 2.5 mtrs.x 4 ply auxiliary conveyor gear box smsr x 4 nos. Gathering drive motor 3.75 kw gathering gear box smsr gathering conveyor bolt 600 mm x 24 mtrs.x 4 ply bin vibrator (1 no.) 0.75 kw feeding capacity 140 tph overall dimension (approx.) 12 mtrs x 2.50 mtrs x 2.55 mtrs total connected load 9.0 kw

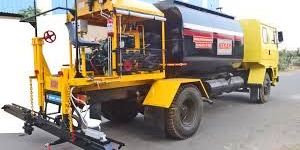

Bitumen Sprayers Bitumen Pressure Distributor comes as truck mounted, self-propelled with suitable heating system and variable spray bar to operate on constant pressure system, complete with air compressor, bitumen pump, auxiliary engine, tank mounting and other accessories for uniform and constant rate applications of hot bitumen (or cold tar). A unique Pressure Cleaning System (PCS) cleans the system after use and avoids clogging. It is capable for use with bitumen emulsion also. Trolley mounted versions can be made available in place of Truck mounted.

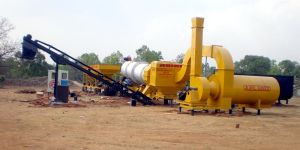

We are offering asphalt drum mix plant. Rhino make asphalt drum mix plant consisting of: four bin feeder for cold aggregate with independent ac variable speed gathering conveyor vibrating screen for removal of oversize material slinger conveyor drying & mixing unit with pressure jet oil burner & cyclonic type dust collector load out conveyor with hydraulic hopper & power pack bitumen tank 1520 ton capacity with imported auto burner ldo tank filler unit with blower electrical control panel for above (automatic) with printer fully furnished, insulted control cabin for control panel pollution control unit
