Ultrasonic Level Transmitter
1 Piece (MOQ)
Country of Origin : India
Material : Metal
Condition : New
Frequency : 0-25Ghz
Range : 0-30Mtr
Signal output : 0-20mA
Temperature : 0-30 Deg C
Ultrasonic Level Transmitter works on the principle of calculation of time interval between emission and receipt of High Frequency sound wave. A high frequency sound wave emitted from a transmitter mounted inside a transducer hits the liquid surface, the time taken by the sound wave to return to receiver mounted inside the transducer will be proportional to liquid level”Highlights Our entry level cost effective product Fast setup, configuration and commissioning Maximum range of 10mts (33fts) 4-20mA output and optional LCD display False echo tracing Direct installation on tanks, vessels and reactors Independent hand held programming unit for fast configuration of multiple units Perfect for diesel oil tank measurements Extended range of 0.25 to 15 meter (0.8ft to 49ft) Integral LCD display, keypad and integral 4-20 mA output Automatic compensation for different environment Approved for installations in hazardous areas (Ex) Simple to install and configure Direct installation on tanks, vessels and reactors

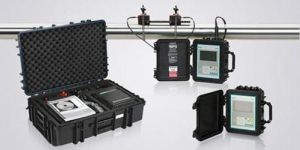

Ultrasonic Flow Transmitter
Siemens Ultrasonic Flow meter is used in wide range of application Like Water Industry, Chemical Industry, Power Industry. Clamp-on & Portable both flow Meter has single & dual channel feature. SITRANS FST 020 is a Standard Model with flow rate accuracy is +/- 1.0 % to 2.0 %. But high precision model SITRANS FUE 1010 are also available with accuracy 0.5 % - 1.0 % of flow. FUG1010 is for Gas application & FUH1010 is for oil application. SITRANS FUS1010 IS 4 Channel Ultrasonic flow meter.
Ultrasonic Level Transmitter
Highlights : Level measurement during processing and storage of liquids. Sumps, water and wastewater basins. Noncontact flow measurement and detection in open channels.
Short ultrasonic pulses in the range of 35 kHz to70 kHz are emitted by the transducer to the product surface, reflected there and received by the transducer. The pulses travel at the speed of sound - the elapsed time from emission to reception of the signals depends on the level in the vessel. The latest microcomputer technology and the proven processing software select the level echo from among any number of false echoes and calculate the exact distance to the product surface. An integrated temperature sensor detects the temperature in the vessel and compensates the infuence of temperature on the signal running time. By simply entering the vessel dimensions, a level-proportional signal is generated from the distance. It is not necessary to all the vessel for adjustment.
Ultrasonic Integrated Level Transmitter
FEATURES 3/4-wire compact transmitter Low cost Non-contact level measuring Narrow 5° beam angle Temperature compensated Excellent signal processing via QUEST+ software Secondary lightning protection HART communication Power relay output Dust-Ex models APPLICATIONS Most free-flowing solids Level, volume or weight calculation Reliable measurement in challenging applications such as dusting during filling SPECIFICATIONS Power supply: 11.4-40 V DC, 3.6W or 11.4-28 V AC, 4 VA Ambient temperature: -30 °C to +60 °C Medium temperature: -30 °C to +90 °C Pressure: 0.7 .. 1,1 bar Measuring range: max. 60 m Output: 4-20 mA, relay, HART Protection: IP 65,ATEX II 1 D IP65 T130°C
Ultrasonic Level Transmitter
