Websoft Solution Khardaha, Kolkata, West Bengal

Material : Mild Steel

Type : Digital

Material : Stainless Steel

Application : Industrial

Accuracy : +/- 2% full scale

Power : Batery Operated 0.864 Watt (4.8V 2000mAH)

Specialities : Easy Measurement & direct display of Peroxide value, Outstanding Measurement Quality, Save Space in your Laboratory, Fast Response

Usage/Application : O2 Purity Analysis

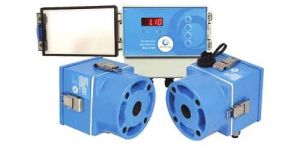

Salient Features  Ideal for monitoring dust levels in the exhaust gas of industrial combustion or air filtration processes. Dynamic Detection Principle (DDP) measurement technique results in increased immunity to drift Measurement reading as mg/m3 (when calibrated against standard reference measurements) Internal electronic calibration check facility Rugged 316 stainless steel construction Choice of interface options enabling easy integratio Cleaning Cycle Generally in a dust monitor, regular maintenance involves cleaning optical surface. Our systems are easily accessible due latched head design. To overcome manual cleaning, the systems come with a purge air system which when connected keeps the contaminated stack gas away for the lens surfaces. An aluminum air purge body is available for use on standard installations and a more advanced stainless steel body for more demanding installations. APPLICATIONS: Cement PlantsSteel PlantsSponge Iron PlantPower PlantOil & Gas industries.Note- Analyzer for other gases like HCL,Cl2,O2,CO,NH3,CO2 etc with different range can also be provided.

Accuracy : : + 2 %

Voltage : 240 VAC ( + 10 % Voltage tolerance)

Weight : 2.5 kg (TX or reflector head plus Aluminium Air Purge Body) 1.3 kg (OI wall mounted/ OI panel mounted)

Detector : Silicon Photodiode

Weight : 1 kg

Chemiluminescence has long been recognized as the best practical analytical method for NOx detection at parts per billion level and with little or no interference from other pollutant gases. A sample containing nitric oxide is mixed with a large quantity of ozone. The nitric oxide reacts with the ozone to produce nitrogen dioxide in excited state. These excited molecules relaxes to ground state by emitting light in the region 600-2800nm which is measured using a photomultiplier Tube. The amount of light produced is proportional to the amount of nitric oxide in the sample. FEATURES:  Measurement based on Chemiluminescence technique Internal ozone generation Fast and reliable analysis On board memory ,store up to 1500 test results along with time and date Minimum maintenance Suitable for stack gas monitoring APPLICATIONS:  Continuous Emissions Monitoring Combustion efficiency Vehicle emission Personal safety Mobile Van / laboratory

Power Source : Plug-In

Display Type : Digital

Country of Origin : Made in India

Feature : Relay output for automatic activation of exhaust fan, hooter, solenoid valve etc, Alarm acknowledgement / reset and mute keys on both local and remote consoles.

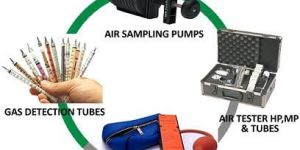

The  precision gas detector tube system consists of two parts viz. 1) the Gas Detector Tube & 2) Air Sampling Pump.Detector Tube is a glass tube filled with gas specific sensing chemical & sealed at both ends. The tube indicates the target gas concentration directly on the scale printed on the detector tube.Available for NH3, H2S, SO2, CL2, PH3, HCL, HCN, CO, CO2, O2, C6H6, alcohols, amines, mercaptans and 120 other gases and vapors with over 200 ranges.     FEATURES:   Efficient and spot check of toxic gas concentration at work place at specified  intervals.  No requirement of complicated accessories.  No requirement of specialist to operate.  It is pre calibrated and requires minimum maintenance Specific to target gas.  Available for most of the industrial toxic gases and organic vapours. APPLICATIONS:   Petrochemical & Refineries  Pharmaceutical  Chemical & Fertilizer  Fumigation  Food Industry  Pulp & Paper Mills Industries  Power & Steel Plants  Municipal Corporations  Environmental monitoring agencies and many more

Material : Chemical resistant & flame retardant material

Size : 210X160X150 mm

Color : Yellow

Weight : 700 gm

Country of Origin : Made in India

Portable Gas Detector is a simple and compact instrument, designed to protect personnel from the hazards of toxic and combustible gases. A certified and affordable solution ideal for a wide range of applications.It is available in single gas monitor as well as multi gas monitor. In multi gas monitor it measures upto 4 gases simultaneously.In Multi Gas Detector it will detect LEL,O2,H2S,CO simultaneously.    FEATURES:High specificity to gas of concern.Long sensor life.Quick response.Continuous display of the gas concentration reading.Built-in audible and visual alarms.Easy to read LCD display.GAS DETECTED:Carbon Monoxide, Flammable, O2, Bromine, Chlorine, Diborane, Formaldehyde, H2, HCL, Carbon disulphide, HCN, HF, Hydrazine, Hydrogen Sulphide, NH3, NO2, Vinyl Chloride, Ethyl  Mercaptan, Phosphine, Sulpher dioxide, Ammonia, Silane, Phosgene, VOC.  APPLICATIONS:Confined SpacesFumigationOccupational Safety & HealthOil & GasPetrochemical PlantsProcess ControlResearch Laboratories

Power Source : One 9V replaceable alkaline battery

Certification : Intrinsic Safety (By CMRI Dhanbad)- EEx ia IIB T4

Digital Universal Gas Transmitter is a field mounted gas detector for the continuous monitoring of hazardous & combustible gases. It provides an industry standard 4-20 mA output signal that can be connected to any control system (DCS, PLC, etc.). It also provides RS-485 MODBUS-RTU digital output signal. It is available for a large variety of toxic and flammable gases such as Combustibles, Oxygen, Carbon Monoxide, Hydrogen Sulfide, Ammonia, Chlorine, SO2, NH3, HCN, HCL, NO2 etc APPLICATIONS:  Refineries Petrochemicals Pharmaceuticals Power Industries Pollution control monitoring Oil & Gas Industry.

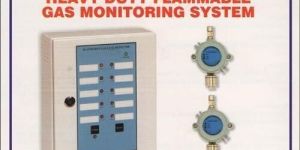

Flammable Gas Monitoring System is a novel state of the art leak detection system. Designed for permanent installation, the unit is able to monitor the presence of combustible gases such as LPG, CNG, LNG etc. in a variety of applications.FEATURES:Microprocessor based system with in-built self-test facility & RS 485 digital data communication link.CMRI / CCOE certified Gas Leak Detector heads continuously monitors the presence of flammable gases.Local & an optional Remote Alarm Indicator console provides audio-visual alarm status from all detector heads.Relay output for automatic activation of exhaust fan, hooter, solenoid valve etc.Alarm acknowledgement / reset and mute keys on both local and remote consoles. APPLICATIONS:  LPG/CNG/LNG Gas storage area LPG Bullet & Banks Plant Locations Hotel Kitchens Industrial Canteens Gas Filling Stations
