Automobile Gears Dealers in Kota

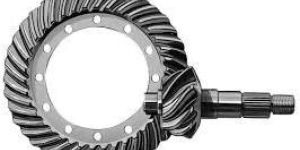

A hypoid is the name given to a type of helical (spiral) gear. The main application of this is in the final drive of an automobile, where the direction of the drive carried by the has to be turned through 90 degrees in order to power the driven wheels. Conventional straight-cut or spur-cut gears, with perpendicular teeth, are considered to be too noisy in use, and a normal spiral bevel does not always give sufficient contact area. The hypoid gear places the pinion off-axis to the crown wheel which allows the pinion to be larger in diameter. In a normal passenger car the pinion is always offset to the bottom of the crown wheel. This provides for longer tooth contact and serendipitously allows the propeller shaft that drives the pinion to be lowered, reducing the "hump" intrusion in the passenger compartment floor. A hypoid gear incorporates some sliding and can be considered halfway between a straight-cut gear and a worm gear. Special gear oils are required for hypoid gears because the sliding action creates extreme pressure between the teeth.

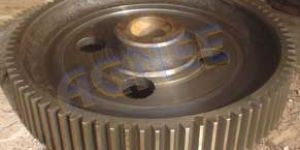

• Upto 20 Module/1.5 D.P. Outer Diameter Upto 2500 mm/100" in spur gear and Pinion Required information for quotation: Material of Construction - steel, EN 8, EN 24, EN 353, SAE 8620 etc Teeth Specification - pitch in Module or DP, Helix Angle Outer Diameter Bore size Key way size Hub size if any Any other requirement

Agnee manufacture custom precious Gear Rack and Pinion in both Spur and Helical tooth form in steel, stainless steel , cast iron , brass , bronze, plastic, hylam etc. Heat treatment facility is also offered. Continuous length of Gear Racks up to 2500mm are possible. Agnee has a dedicated facility for preicision Gear Rack and Pinion cutting in volume ensuring quality at highly competitive prices.   Specifications of Rack and Pinion gears ·  1.0 Module/ 25 D.P. to 12 Module/2.1 D.P. ·  Face Widths up to 250 mm/9" ·  In Mild Steel, Alloy Steel, Hardened and Tempered Steels , Case carburised,  Case Hardened Steels, Cast    Iron or as specified ·  Custom made as per Specifications, Drawing or Sample ·  Automotive and Industrial use   Required information for quotation :           ·  Material of Construction – eg. Steel.           ·  Teeth Specifications – Module, pitch.            ·  Dimensions: Face Width, Length.              ·  Hardening and tempering required etc.           ·  Holding holes if any, Quantity, Any other requirement

Spur Gear, Gears, Pinion Shafts, Gearbox Assembly, Industrial Mandrel Bar

Gear, Gear Boxes, Pinions, Rac

Worm Gear, Helical Gearboxes, Worm Shaft, Worm Gear Boxe

Gear, Automobile Spare Parts, Clutch, Brea

Gear, Two Wheelers Auto Mobile Parts, Clutc

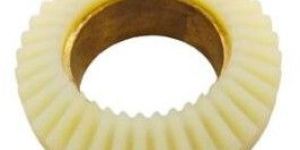

Spiral Bevel Gears, Pinion Gearbox, Bevel Helical Gearboxes, Servo Gearbo

Gear, Two Wheeler Auto Parts, Clutch, Brea
