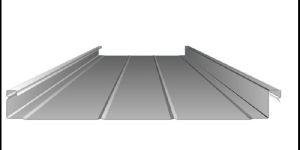

Product description what is a standing seam? standing seam metal roofing is defined as a concealed fastener metal panel system that features vertical legs and a broad, flat area between the two legs. Standing seam systems can be used for either metal roofing, which is the most common, or metal walls. specification:-material gl/gi/glcc/gicc aluminum thickness0.40mm to 0.85mm0.65 mm to 1.20 mm tensile strength240 mpa to 350 mpa coating70 gsm to 275 gsm colour coating rmp smp sdp pvdf hd available coloursall ral shades

Number Of Flower : Standing Seam Roof

Material : Alluminium

Thickness : 1mm to 3mm

Application : Commercial, Industrial, Infrastructural, Residential

Surface Treatment : Color Coated, Galvanised

Feature : Corrosion Resistant, Durable Coating, Homogeneous Roof, Long Lasting, Puncture Less, Standing Seam, Water Proof

Thickness of Sheet : 0.5-0.7

Product description raw material of stone coated steel roofing tilegalvalume steel sheet: 0.42mmcolorful stone chips size of stone coated steel roofing tile overall size: 1340mm x 420mm valid size: 1280mm*370mm acreage of stone coated steel roofing tile   acreage per tile:0.473sqm tiles per square meter: 2.08pcs weight of stone coated steel roofing tile weight per tile: 2.80kg weight per square meter: 6.00kg .

Number Of Flower : Roofing Tiles

Material : Ceramic, Natural Stone

Thickness : 0-5mm

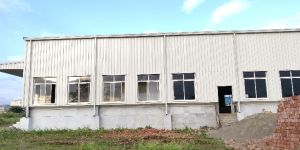

We are an innovative and dynamic company specialised in the supply and installation of roof and wall cladding. As a result of our many years of experience in this field, we have developed a leading role within the steel construction industry. However, not only are we experts in steel construction, we have also completed projects in other industries.

  following base materials: galvalume high tensile cold rolled steel as per as1397, coating class az150 (min. 150 gsm/m2 zinc - aluminum alloy coating mass, total on both sides), 550 mpa / 345 mpa / 245 mpa yeild strength. We also offeraz70/100/200/275 gsm as per customer requirement, even though our standard offering isaz150. galvanized cold rolled steel as per is:277 and is:513 (min. 120 gsm/m2 zinc coating mass total of both sides) 550/345/245 mpa yeild strength. aliminium alloyaa3105 ores per specification. color coating -oven baked paint system applied to substrates: silicon modified polyster (smp) or flouropolymer (70% kyner 500) 20 microns top coat over primer (finished side), neutral back coat over primer (back side) over galvalume steel.   flouropolymer (70% kyner 500) or polyster top coat 20 microns over primer (finished side) neutral back coat (back side) over aluminum.

Size : Mutlisize

Number Of Flower : Roofing Sheets

Material : Aluminium, Galvanized, Mild Steel

Thickness : 0.5-1mm

Packaging Type : Multicolor

Condition : New

Application : Roofing

Finishing : Polished

Feature : Corrosion Resistant, Durable, Fine Finish, Good Quality, Tamper Proof, Water Proof

Brand Name : Essar steel,Tata bluscop,Jindal steel,etc.

Length : 1meter to15 meter

Application : roof and wall cladding,industerial sheds,residential,

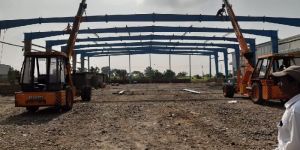

with an aim to be a leader in our domain, we are growing as one of the renowned manufacturers and suppliers of industrial pre engineering building fabrication service. It is highly cherished due to its minimal maintenance and stable operational life. It is easy to dismantle and install. Over and above that, industrial pre engineering building fabrication service can tolerate bad weather.

Number Of Flower : Prefabricated Steel Buildings

Material : Prefabricated Steel

Certification : ISI Certified

Application : Commercial, Constructional, Industrial

Feature : Corrosion Proof, Excellent Quality, Fine Finishing, High Strength, Optimum Quality, Perfect Shape

pre pabricated portebel buildings.

Number Of Flower : Portable Buildings

Material : Puf Panel

Application : House, Shop

Thickness : 0-4 Mm, 4-8 Mm

Condition : New

Surface Treatment : Coated, Polished

Feature : Durable, Easily Assembled, Easy To Move, Fine Finished, Perfect Designed, Portable, Quality Tested

Construction : Rugged

Built Type : Modular, Panel Build, Prefab

Dimension : 9x12x7.4 Feet

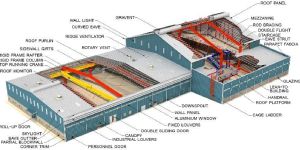

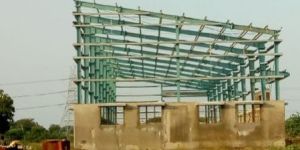

peb buildings are mostli used in industrial sheds,lawns,hospitals,restourants,storage solutions,schools and collages.

Number Of Flower : Pre Engineered Building

Material : Galvanized Steel, Mild Steel

Thickness : 10-20mm

Certification : ISI Certified

Application : Commercial, Constructional, Industrial

Feature : Corrosion Proof, Excellent Quality, Fine Finishing, High Strength, Optimum Quality, Perfect Shape

peb buildings are mostli used in industrial sheds,lawns,hospitals,restourants,storage solutions,schools and collages.  .

Number Of Flower : Pre Engineered Building Structure

Material : Galvanized Steel, Mild Steel

Thickness : 10-20mm

Certification : ISI Certified

Application : Commercial, Constructional, Industrial

Finishing : Polished

Feature : Corrosion Proof, Excellent Quality, Fine Finishing, High Strength, Optimum Quality, Perfect Shape

we are offering wide range of rubber moulded paver blocks & machine made paver blocks.durable, dimensionally accurate and precision designed, these products are offered in different designs, colors, sizes, shapes and specifications to meet the specific demands of the customers.in maharashtra,latur, usmanabad,nilanga,barshi.     .

Number Of Flower : Paver Block

Material : Concrete

Thickness : 30-40mm, 50-60mm

Application : Flooring

Pattern : Plain

Feature : Fine Finished, Optimum Strength, Stain Resistance, Unbreakable, Washable, Water Proof

insulated roofing sheets or puf panels are mostely use in wether controled buildings like cold storages industeril sheds.labor colones,etc.

Size : Multisizes

Number Of Flower : Puf Insulated Panels, Roofing Puf Insulated Panels

Material : Aluminium, Polyurethane

Shape : Plain

Application : Roofing, Wall Insulations

Packaging Type : Multicolor

Condition : New

Finishing : Polished

Feature : Corrosion Resistant, Durable, Fine Finish, Good Quality, Tamper Proof, Water Proof

Number Of Flower : Industrial Sheds

Material : Metal, Steel, Tin

Application : Weather Protection

Thickness : 5mm

Certification : ISO 9001:2008 Certified

Condition : New

Finishing : Polished

Feature : Corrosion Resistant, Durable, Fine Finish, Good Quality, Water Proof

Height : 10feet, 12feet, 14feet, 16feet, 18feet, 8feet

z’ and ‘c’ purlins are specially designed to provide economy to building construction and keep the site clean and environment friendly, and yet it is strong and sturdy to hold the building in position for lifelong. ‘z’ and ‘c’ sections are accurately roll formed from high strength galvanized steel, cut to the length and are pre-punched to the required dimensions to provide efficiency in faster construction. technical & material specificationsthickness : 1.5mm to 3mmlength : upto 12000mmmaterial : cr steel as per is:513/hr steel as per is:1079, galvanized as per : 277yield strength : 245 mpa to 345 mpa type: bare, primer coated, galvanised, painted c and z purlins made of hot rolled coils are degreased, phosphate and then primer finished with zinc chromate red-oxide paint -matching test as requirements of is : 4777 and is : 2074. Special treatment to combat severe atmosphere corrosion can be offered. We also offer purlins in galvanised coated steel in 120gsm/175gsm/275gsm coating as per customer requirement.

Number Of Flower : Purlin

Material : Aluminum, Steel

Shape : C, Z

Length : 5000-10000 Mm

Application : Construction, Peb

Feature : Corrosion Resistance, High Dimension, High Strength, Rust Proof

Condition : New

Finishing : Polished
