Voltage Tester

12,000 / Piece

Model Name/NumberTPT320
BrandMegger
Power Supply2 x 1.5 V batteries type AAA LR03
Display TypeOptical 3 digit, LCD8 red LEDs voltage and polarity indication
AC/DC volts12 to 690 V
Battery(consumption) 80 mA
ComplianceTUV Rheinland GS testedEN 61243-3:2014EN 61010-1:2010
Duty Cycle30s On / 240s Off
Frequency operating range40 to 400 Hz
LCD+-3% +-5 digits
Operating panelTorch button / buzzer for continuity and dangerous voltage indication
Phase indication>90 V AC +-10%
PolarityYes
Safety protectionCAT IV 600 V
Test current range<3.5 mA
TorchWhite LED
Humidity85% RH
IP ratingIP64
Maximum altitude2000 metres
Operating temperature range-15 Degree Celsius - +55 Degree Celsius
Storage temperature range-20 Degree Celsius - +70 Degree Celsius
Dimensions67 mm (W) x 205 mm (H) x 19 mm (D)
Lead length1.2 metres
Weight180 g

...more
Voltage Tester

12,000 / Piece

Get Best Price
Testo Thermal Camera

70,000 / Piece

BrandMegger
DisplayLCD
Field Of View38 Degree Celsius x 38 Degree Celsius
Model NumberTC3231
Measurement Range-20 to 300 Degree Celsius (-4 to 572 Degree F)
Measurement Accuracy+/-2% +/-2 Degree Celsius as tested (at 25 Degree Celsius)
On-Screen Emissivity CorrectionYes
On-Screen Reflected Background Temperature CompensationYes
Image Capture Frequency9 Hz
Detector TypeUn-cooled pyroelectric ceramic
Thermal Sensitivity (NETD)< 150 mK
Visual Camera48608 pixels
Focus MechanismFixed Focus
PalettesHot Metal, Ironbow, Rainbow, Rainbow High Contrast, Grayscale (white hot) Grayscale (black hot)
Level and SpanAuto
Image CaptureImage available for review before a save
Storage MediumMicro SD memory card, stores upto 6,000 images, 4 GB supplied
File FormatBmp
Memory ReviewScroll through all saved images and view on-screen images / delete unwanted images
Operating Temperature0 Degree Celsius to +50 Degree Celsius
Storage Temperature-20 Degree Celsius to +60 Degree Celsius
Relative Humidity10 % to 90 % non-condensing
Dimensions208 mm (H) x 62 mm (W) x 150 mm (D)
Weight406 g (including battery)
Battery (fitted)18500 3.7 V 1400 mAh Li-Ion
Auto Power Off10 minutes

...more
Testo Thermal Camera

70,000 / Piece

Get Best Price

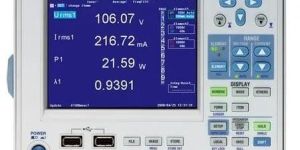

Power Analyzer

Get Latest Price

AvailabilityApprox. 6.5kg
Country of Origin15 V
Country of OriginMade in India
Model Name/NumberWT500
Usage/ApplicationLaboratory Use
Display TypeDigital
FrequencyDC 0.5 Hz
BrandYokogawa
Current0.5amp
Basic Power Accuracy0.1%
SpeedUpdating 100ms
Operating Temperature5 to 40 Degree Celsius
Dimensions (L x W x H)Approximately 213 (W) x 177 (H) x 409 (D) mm
Display Size5.7inch
Data MemoryApproximately 20 MB (internal), HDD

...more
Power Analyzer

Request for Price

Availability : Approx. 6.5kg
Country of Origin : 15 V
Country of Origin : Made in India
...more
Get Best Price

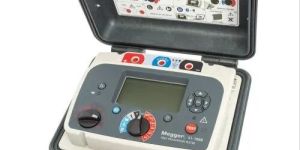

Insulation Resistance Testers

600,000 / Piece

Model Name/NumberS1-1068
BrandMegger
Battery Life11.1 V, 5.2Ah meets IEC 62133: 2003 (S1-1568 has 2 batteries)
Memory Capacity11 hrs logging @ 5 sec intervals
Auto power offInstrument turns off after a few minutes if non-use to conserves battery life
Battery charge time2.5 hours deep discharge, 2 hours normal discharge
Test voltage250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V, 15000 V, V
Lock test voltage40 V to 1 kV in 10 V steps
Test voltage accuracy+4%, -0%, +/-10 V nominal test voltage at 1 G load (0 Degree Celsius to 30 Degree Celsius)
Resistance range10 k to 15 T @ 5 kV
Short circuit/charge current6 mA
Current range0.01 nA to 6 mA
Software 4 filter settings10 s, 30 s, 100 s, 200 s
Voltmeter range30 V to 660 V ac or dc, 45Hz - 65Hz
Timer rangeUp to 99 minutes 59 seconds, 15 second minimum setting
Test modesIR, IR(t), DAR, PI, SV, DD, ramp test
InterfaceUSB type B (device), Bluetooth Class 2
Real time output(V, I, R) readings at a rate of 1 Hz

...more
Insulation Resistance Testers

600,000 / Piece

Get Best Price
Insulation Continuity Tester

Get Latest Price

Frequency50 Hz
Country of OriginMade in India
BrandMegger
Model Name/NumberWM6
Insulation Testing Voltage500V
Insulation Testing Resistance200Gohm
Minimum Operating Temperature-10 Degree Celsius
Maximum Operating Temperature55 Degree Celsius
External Height61mm
External Width131mm
External Depth98mm
Weight650g

...more
Insulation Continuity Tester

Request for Price

Frequency : 50 Hz
Country of Origin : Made in India

Get Best Price

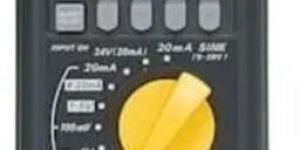

Handy Portable Calibrator

Get Latest Price

Display TypeDigital
Country of OriginUp to 30 VDC
AvailabilityApprox. 440 g (including batteries)
Country of OriginMade in India
Model Name/NumberCA11E
Relative Humidity20 to 85%RH
BrandYokogawa
CurrentUp to 24 mA DC
Battery LifeApprox 25 hours
Automatic Power-OffApprox 10 minutes (Can be canceled by DIP switch setting)
Update Interval Display7 Segments LCD
Operating Temperature0 to 50 Degree Celsius
Storage Temperature-20 to 50 Degree Celsius
DimensionsApprox. 192 (W) x 92 (H) x 42 x (D) mm
FeaturesAutomatic Power-off, Longer Lead Cables, Compact and Lightweight, Simple and Easy Calibration

...more
Handy Portable Calibrator

Request for Price

Display Type : Digital
Country of Origin : Up to 30 VDC
Availability : Approx. 440 g (including batteries)
Country of Origin : Made in India
...more
Get Best Price
Frequency Response Analyzer

28 / unit

Test MethodSweep Frequency (SFRA)
Frequency resolution0.01%
ApplicationIndustrial
DC power supply11- 16 V DC
AC power supply90 - 264 V AC, 47 - 63 Hz
Instrument Dimension410 x 340 x 205 mm (16.1
Instrument Weight8.5 kg (18.7 lbs)
Frequency accuracy0.01% (measurement error)
Level resolution0.001 dB
Number of pointsDefault 1046, Up to 32 000 points, user selectable
Measurement timeDefault 64 s, fast setting, 37 s (20 Hz - 2 MHz)
Points spacingLog., linear or both
Internal noise level (average 20 Hz to 2 MHz)< -140 dB
Dynamic range1)>15 0 dB
Inaccuracy+-0.1 dB from +10 dB down to -40 dB +-0.5 dB down to -100 dB
IF bandwidthUser selectable, default <10%
USB4 type A, 1 type B
Standards / guidesFulfills requirements in IEC 60076-18, IEEE C57.149-2012, CIGRE Technical Brochure 342, DL/T 911-200

...more
Frequency Response Analyzer

28 / unit

Test Method : Sweep Frequency (SFRA)
Frequency resolution : 0.01%
Application : Industrial
...more
Get Best Price
Digital Multimeter

15,000 / Piece

Availability522 g
Dimensions76 mm x 158 mm x 38 mm without holster
Model Name/NumberAVO410
BrandMegger
Display6000 counts updates 1.5/sec.
PolarityAutomatic, positive implied, negative indicated
Over-range indication"OL" or "-OL"
Battery indicatorDisplayed when the battery voltage drops below operating Voltage
Auto power downApprox 10 minutes
Operating ambientNon-condensing
Storage temperature range and humidity-20 Degree Celsius to 60 Degree Celsius,0 to 80% R.H.
Temperature co-efficient0.15 x (Spec.Acc'y) / Degree Celsius,<18 Degree Celsius or >28 Degree Celsius
SafetyThe instrument complies withIEC61010 CAT IV 600 V
Power supplyStandard 9 V battery PP3, NEDA 1604, IEC6F22, JIS006P
Battery lifeAlkaline 300 hours
Protection1000 V DC or AC
Input impedance10 M ohm // less than 100 pF
AC conversion typeAC conversions are AC coupled True RMS responding, calibrated to the sine wave Input
Crest factorC.F. = Peak/rms

...more
Digital Multimeter

15,000 / Piece

Availability : 522 g
Dimensions : 76 mm x 158 mm x 38 mm without holster

Get Best Price
Digital Earth Tester

80,000 / Piece

Brand NameMegger
Model Name/NumberDET3TD
DisplayLCD
SafetyIEC61010-1 CAT IV 100 V*EN61557-1, EN61557-5
Weight1 kg
Battery Type8 off AA cells
Battery Life3 hours or 700 consecutive tests
C spike checkAutomatic
Noise rejection40 V peak to peak
Resistance accuracy2% +/- 3 digits
Resistance range0.01 to 2000 Ohm
Maximum probe resistanceRp limit: 100 k ohm (50 V output voltage)
Earth voltage accuracy2% +-2 V
Earth voltage range0 - 100 V a.c.
Test voltage25 V or 50 V, user selectable (factory setting 50 V)
Test frequency128 Hz
Operating temperature range-15 to +55 Degree Celsius
Storage temperature range-40 to +70 Degree Celsius
Ingress protectionIP54
Dimensions203 x 148 x 78 mm (8 x 5.7 x 3.2 inches)

...more
Digital Earth Tester

80,000 / Piece

Brand Name : Megger

Get Best Price
Digital Earth Clamp

Get Latest Price

Brand NameMegger
Model NameDET24C
Availability985 g
Dimensions248 mm (l) x 114 mm (b) x 49 mm (h)
Maximum jaw opening39 mm
Maximum jaw inner dimensions39 mm x 55 mm
Display4 + 6 digit with backlight
Battery type4 x 1.5 V IEC LR6/AA alkaline
Battery life24 hours continuous testing
Auto power down300 s (reset by jaw action or button press)
Data loggingDET14C 256 records DET24C 2 K records
Data downloadBluetooth interface (DET4C only)
RangeSelection: Automatic within each mode
Sampling time<1 s
Hold functionYes with visual indicator
Alarm/warningBuzzer: Yes
Operating temperature range and humidity-20 DegreeC to +50 DegreeC, <85% RH
Storage temperature range and humidity-40 DegreeC to +60 DegreeC, <75% RH
IP ratingIP30 with jaws closed
SafetyEN 61010-2-032
EMCClass B Compliant, IEC 61326

...more
Digital Earth Clamp

Request for Price

Brand Name : Megger
Model Name : DET24C
Availability : 985 g
...more
Get Best Price
Digital Clamp Meter

25,000 / Piece

Availability225 g including batteries
Dimension68 mm (W) x 237 mm (H) x 42 mm (D)
Model Name/NumberDCM340
Battery1 x 9V PP3 MN1604 6LR61 alkaline cell
BrandMegger
Digit Display3 1/2 digit large-scale readout
Continuity Buzzerbeeper sounds @ < 30 Ohm
Display Count4000
Open circuit voltage3 V
Sensitivity3 A
Hold functionPeak Hold: +/-3% +/-15 digitsMIN/MAX : add 15 digits to accuracy for a.c. & d.c. A
Sampling time10 ms
Positional error+/-1% of reading
Overload protection600 V & 600 A rms
AC conversion typeAverage sensing rms indication calibrated to the rms value of a sine wave input
Auto power down30 minutes after power-on
Sample Rate1.5 per second
Battery life200 hours (alkaline)
Operating temperature range and humidity0 Degree C- 30 Degree <80% Rh30 Degree - 40 DegreeC <75% Rh400 DegreeC - 50 DegreeC <45% Rh
Storage temperature range and humidity-20 Degree Celsius - +60 Degree Celsius (<81% Rh)(batteries removed)
Over-voltage safety categoryIEC 61010-1 600V CAT III
Maximum altitude2000 m
Drop protection1.2 m onto a hardwood surface
Maximum jaw inner dimensions35 mm diameter
Calibration accuracy12 month recommended

...more
Digital Clamp Meter

25,000 / Piece

Availability : 225 g including batteries
Dimension : 68 mm (W) x 237 mm (H) x 42 mm (D)

Get Best Price

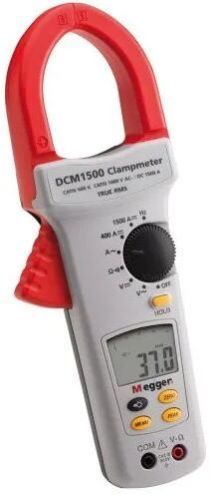

Clamp Meter

45,000 / Piece

Availability524 G Including Battery
Model NumberDCM1500
Brand NameMegger
Accuracy+/-(3.0% reading + 7 digits)
Range1500 A
Display Count4000
Resolution1 A
Frequency Response61 Hz
Overload Protection1500 A rms
Max.CF1.5 @ 1500A
Auto power downThe meter will automatically shut itself off after approximately 30 minutes after power on.
Min/Max HoldAdd +- 15 dgt to accuracy for ACA and DCA.
LCD Display3 3/4 digit large scale readout
Power supply1 x PP3 MN1604 6LR61 alkaline cell
Battery life100 hour
Operating temperature range and humidity0 Degree Celsius - 30 Degree Celsius (
Maximum conductor size51 mm

...more
Clamp Meter

45,000 / Piece

Availability : 524 G Including Battery
Model Number : DCM1500
Brand Name : Megger
...more
Get Best Price
