SOLAR WATER HEATER

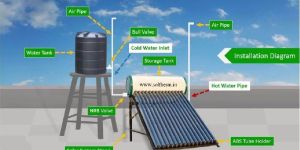

Solar water heating system is a system that uses solar energy to heat water for domestic, commercial, and industrial needs. A typical solar water heating system can save up to 1400 units of electricity every year, for every 100 liters per day of solar water heating capacity. Solar water heating system consists of a solar collector, a storage tank (kept at a height behind the collector), and connecting pipes. The system is generally installed on the roof with the solar collector facing the sun and connected to a continuous water supply. Water flows through the Collector becomes hot. The heated water is stored in a tank for further use and stored water in the tank remains hot overnight as the storage tank is fully insulated.
ETC Solar Water Heater
The Evacuated Tube Collector consists of co-axial glass tubes which are fused at both ends with air between the tubes evacuated to create a vacuum that works as insulation. The outer surface of the inner tube is selectively coated to increase the absorption of solar energy. When Coldwater enters in the storage tank, fills it up and then flows into the individual tubes until all the tubes are full. When the sun rises in the morning, the heat energy is absorbed and transferred to the water in the inner tube. The heated water being lighter than the cold water rises and via the top header pipe heated water flows into the storage tank. This process continues until the temperature of the water in the storage tank and the tube equalizes. Hot water is stored in the insulated storage tank and is available for use as and when required.
Model
Type of Collector
300 Ltr Solar Water Heater
Evacuated Tube Collector
ApplicationHotels, Hospitals, Ashrams, Hostels, etc.
PerformanceOptimum
MaintenanceLow
DurabilityLong Life
Product Details
Product range varies from 100 liters to 500 liters storage capacity for Residential use.
Systems for Institutional use(Hotels, Hospitals, Ashrams, Hostels etc.), are of 500 Liters and multiples upto 1 Lakh Liters and more.
Systems for Industrial use
Pharmaceuticals, Textiles, Food Processing & other Process Industries e.g. Pre feeding the boilers or other heating medium for supply of hot water.
Systems are offered with different features ( Pressurized and Non Pressurized) to suit different needs.
Offer product warranty 5 years.
Proven technology and product performance for more than 2 decades.
Design for durability with 2.5mm GI tank with Epoxy Coating, PP powder coated 1.6mm “C” channel and angle stand and superior quality three layer vacuum glass tubes.
Better efficiencies ensure faster heating and longer heat retention. Greater savings in Electricity bills and fuel cost. Improved return on investment (ROI)
In order to meet with the rising market demand and ensure quality standards, Kosol has established vertically integrated manufacturing facilities at Ahmedabad and Gondal.
Each plant is equipped with State-of-the-Art equipments and skilled talents to ensue excellent precision engineering, powder coating, PUF insulation, stand manufacturing and in process quality checks before product shipment.
Our manufacturing facilities are spread over 100000 Sq feet of built-up area.
