ApplicationsOperation, Control & protection of distribution network
System3 Phase, 3 or 4 wire, 50Hz
Rated CurrentUpto 4000 Amps
Operational Voltage110/230v 415v AC
Rated Insulation1000v
Rated Service Voltage690v
Ambient Temperature45 Deg C
Short Time Current50KA for 1Sec, 105KA peak
Degree of ProtectionIP42-IP54
Form of SeprationUpto 3B/4B (Optional Type 5)
Type Tested forShort Time Current withstand Temperature Rise Degree of Protection
Bus Bar SystemInterleaved above 1600A
Bus BarAluminium or Copper
Ref. StandardIEC61439-12009, IS:8623
Feeder ConfigurationSemi Drowout or Fix Type

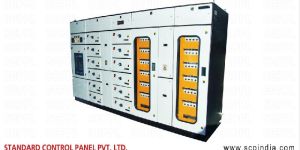

An MDB is a panel or enclosure that houses the fuses, circuit breakers and ground leakage protection units where the electrical energy, which is used to distribute electrical power to numerous individual circuits or consumer points, is taken in from the transformer or an upstream panel. An MDB typically has a single or multiple incoming power sources and includes main circuit breakers and residual current or earth leakage protection devices.
