National Cutting Tools Model Gram, Ludhiana, Punjab

Wire Striating & Cutting Machine For 5 mm and 13 mm thread bar specification: 1.Thickness of Wire 5mm to 13mm 2.length of wire:25mm to 3000mm 3.Feeding Capacity per minute: 60 feet 4.Power of Motor:15 HP 1440 RPM & 3 HP 1440 RPM 5.Approx Weight: 1200 KG 6.Floor Space Required: 82x22

Wire Striating & Cutting Machine For 5 mm and 13 mm thread bar specification: 1.Thickness of Wire 5mm to 13mm 2.length of wire:25mm to 3000mm 3.Feeding Capacity per minute: 60 feet 4.Power of Motor:15 HP 1440 RPM & 3 HP 1440 RPM 5.Approx Weight: 1200 KG 6.Floor Space Required: 82x22

Usage : Striating And Cutting Wires

Features : With strict quality control, best performance, durables and little breakdown rate. Sound is slight during running and no vibrations. Through special design which is studied and improved for years, the easy operation goes with automatic control in high efficiency. Directly deciding its sizes as well as length, the cutting is accurate and flat. Straightness and cutting face is to meet international standard.

Condition : New

Material : Metal

Condition : New

Total Carbohydrate : 1 Year

Rated Power : 3-5kw

Number Of Flower : Automatic

Wire Pointing Machine Use of Wire Pointing Machine:: To make wire point to pass from machine Make wire in specific gauges by different two rollers Precise operation to make wire for specific size according to there application Attributes : Machine is very efficient Long service life Consistent performance Easy operation

Number Of Flower : Automatic

Certification : CE Certified

Country of Origin : 230V

Power : 1-3kw

Driven Type : Electric

Total Carbohydrate : 1 Year

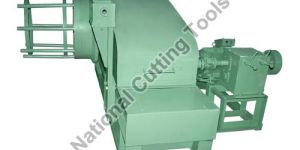

Product Description: This Horizontal type wire drawing machine is suitable for drawing of wire from 03mm to 40mm drum is made of C.I. steel duly SS welded and grounded for long life. A four speed gearbox is attached with the machine so that speeds can be change according to the size of wire to get maximum production.

Country of Origin : 380V

Total Carbohydrate : 1 Year

Wire Striating & Cutting Machine For 5 mm and 13 mm thread bar specification: 1.Thickness of Wire 5mm to 13mm 2.length of wire:25mm to 3000mm 3.Feeding Capacity per minute: 60 feet 4.Power of Motor:15 HP 1440 RPM & 3 HP 1440 RPM 5.Approx Weight: 1200 KG 6.Floor Space Required: 82x22

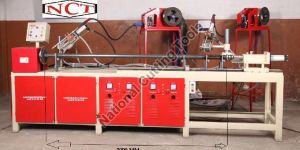

Welder/Outer Prop Welding Machine Prop Outer Prop welding machine With Mig Welding Machine 380-415 Volts 50-60 Hz. Only.(Three Hot Lines) Projection Welder / Welding (NCT50) Key Features:- High production , Easy to operate, Easy to maintain, Uniform welding results Description : Automatic Outer prop welding machine is used to weld base plate with pipe and sleeve without making any joint between them,It gives high production and accuracy to product. Outer prop are used with combination of Inner prop and base jack to make a sctructure. All the components are used in combination of each other Base jack welding machine,Inner prop welding machine,Outer prop welding machine,Cuplock welding machine,Ringlock welding machine. National Cutting Tools provides complete solution for scaffolding and formwork by prov

Number Of Flower : Projection Welder

Voltage : 380-415 Volts

Application : Welding Base Plate With Pipe And Sleeve Without Joint

Packaging Type : Multicolor

Roller Guides : The upper beam Is guided by three point roller guides. A replaceable hardened Liner is provided for minimum wear.   Power Pack : Hydraulic system Is mounted at top al rear side of the machine. Hydraulic components are of internationally leputed make like Victors, Dowty. Rcxiolh. etc. Valves are mounted on a compact manHotd block minimizing piping and chances of leakages. For oil cooling, suiticient sue ot oil reservoir Is provided CYLINDERS Cylinders are recisely honed and are lilted with hard chromed piston rod with best quality scaling elements Cylinders are connected with upper beam (cutting beam) with spherical bearings lor higher capacity Two cylinders are working on differential pressure principle for synchronization. This eliminates force on cutting edge.   Hyor Hold Down : Hydraulic hold down pads hold the sheet secareiy to avoid slipping & bowing lesuhlng in clean sauare cut Hold down units are provided tor better clamping white cutting narrow strips. BLAOE CLEARANCE Blade clearance can be adiusted manually By lever on each side ol machine with calibration ot clearance suitable for thickness   Hotohised Back Gauge : Motorised back gauge Is operated from the front of the machine by push button. Back gauge traveled distance is displayed on electronic counter Next position can be preset and can run with auto stop arrangement Back gauge automatically retract from bottom blade alter Shearing, to avoid trapping ol cut strips.   Blades : ATLAS shears are provided with high Quality. Single segment (HcHc) blades tor longer tool lile Ease in assembly ol Blade reduces down time The blades are four edged.   Operation : Electric panel & operational console are provided at right side of the machine lor easy operation By operator. Console & control panel Is provided with on-off push-button, three phase indicator forward-reverse push-button for back gauge operation, inch push-button for individual hold down function emergency stop push-button Foot switch is provided to cany out Shearing Operation if foot switch is released at any point of shearing upper beam will return from that point. FINGER GUARD Fitted in Iront of hold down for operator's protection without obstructing viewing.

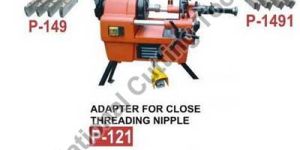

We are Offering Universal Electric Pipe Threading Machine and Universal Electric Bolt Threading Machine. Please Contact Us.

Number Of Flower : Electric Pipe And Bolt Threading Machine

Material : Metal

Packaging Type : Multicolor

Application : Pipe And Bolt Threading

Power Source : Electric

Packaging Type : Industrial Standard Packaging

Prod. 1401A. Universal Electric Pipe & Bolt Threading (With standard Accessories One RIDGID Die Head 1/2" - 2" and Dies Size 1/2" - 3/4 & 1" - 2" BSPT for Pipe only with Foolt Control)

Number Of Flower : Pipe & Bolt Threading Machine

Material : Metal

Packaging Type : Multicolor

Packaging Type : Industrial Standard Packaging

Application : Threading Pipes And Bolts

Power Source : Electric

Number Of Flower : Automatic

Certification : CE Certified

Availability : 100-1000kg

Country of Origin : 380V

Power : 3-6kw

Driven Type : Electric

Total Carbohydrate : 1 Year

After-Sales Service Provided : Spare Parts

Country of Origin : 380 V

Number Of Flower : Two Roll Hydraulic Thread Rolling Machine

Availability : 100-1000kg

Country of Origin : 380V

Condition : New

Automatic Grade : Semi Automatic

Driven Type : Hydraulic

Country of Origin : India

Product Specification Square Tool Bits : M-2 H.S.S Available in two versatile grades of High Speed Steel, M-2 and M-34, bits and blades are ground on all sides and ready for use. Packaged for convenient handling. Each tool is clearly marked with size and product number. Steel Analysis M-2 Tungsten Moly High Speed Steel : Carbon, 84%, Manganese, 25%, Silicon, 30%, Tungsten, 6.40%, Chromium, 4.15%, Vanadium 1.90%, Molybdenum, 5.00%. M-34 Cobalt High Speed Steel : Carbon, 90%, Manganese, .30%, Silicon 30%, Tungsten, 1.55%, Chromium, 3.75%, Vanadium 2.00%, Molybdenum 8.70%, Cobalt 8.00%.

Material : M-2 H.S.S, M-34 Cobalt High Speed Steel

Number Of Flower : Square

Grade : M-2, M-34

Packaging Type : Industrial Standard Packaging

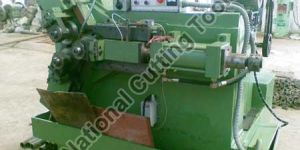

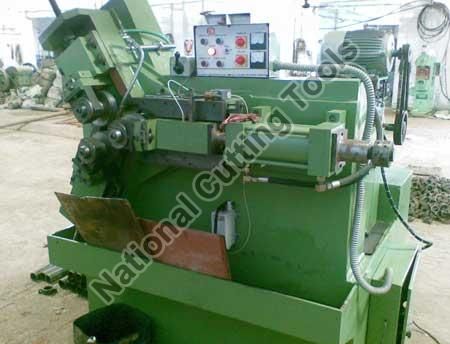

Description: The machine is suitable for scaffolding pipe, jack, prop, sleeve, solid jack, fin tube and hollow components. Three roll thread rolling machine is also suitable for solid bar to achieve finish & accuracy. Threads with fine surface & greater accuracy can be achieved on this machine at a high production rate. Three Roll Type SWW25,SWW50, SWW75, SWW100 Outsider Diameter 8mm - 25mm, 25mm - 50mm, 32mm - 75mm, 32mm - 100mm Thread Length in Feed 38mm, 50mm, 75mm, 120mm Through Length INDEFINITE Thread Roll Dia 80mm, 140mm, 160mm, 180mm Spindle Dia 25mm, 40mm, 54mm, 69.85mm Spindle Motor 2 H.P, 3 H.P, 7.5 H.P, 10 H.P. Hydraulic Motor 1 H.P, 2 H.P, 3 H.P, 5 H.P. Coolant Pump 0.16 H.P, 0.16 H.P, 0.16 H.P, 0.25 H.P.

Capacity : 10-50kg/h

Finishing : Polished

Width : 50mm

Packaging Type : Wooden Box

Pressure : Low Pressure

Usage : Automotive Industry

Specialities : Cost Effective, Easy To Operate

Material : Mild Steel

Certification : CE Certified

Country of Origin : India

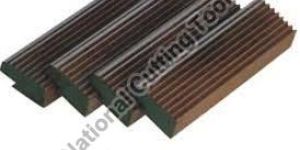

We offer a wide collection of Tangential chaser such as thread cutting chaser, pipe threading chaser, bolt threading chaser and rod threading chaser. We stand amid the well known steel tangential chasers suppliers in India. We are specialized NCT threading tangential chaser manufacturer. This Threading Tangential Chaser is manufactured from metallurgical standard proven imported high speed steel. These NCT Threading Tangential Chasers are designed as per international threading standard, which assist us in manufacturing natural and fine threads. These Landis tangential chasers are available in various lengths ranging from 1� to 6�depending on the size of the die head. BSP, BSPT, NPT, UNF, UNC, BSW threads that can be excellently and easily be cut on this tangential chaser. NCT Tangential Chasers are manufactured from imported High Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatic imported heat treatment plant and imported Testing equipments, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended. NCT Chaser are interchangeable. If one Pc. Of a chaser set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing entire set. Die-Head Size Holder Set/Sets (Provided) Chaser Section 1/4" to 1" 1/4" to 1" 3" x 1.3/64 (Set of 4 Pcs) 3/8" to 1. 1/2" 3/8" to 1. 1/2" 4" x 1.3/64 (Set of 4 Pcs) 1/2" to 2.1/2" 1/2" to 1. 1/2" & 1.5/8 to 2.1/2" 4" x 1.1/4" (Set of 4 Pcs) 1" to 4" 1" to 2" 2.1/2" to 4" 4" x 1.1/4" (Set of 4 Pcs) 5" x 2.1/4" (Set of 4 Pcs) 2.1/2" to 6" 2.1/2" to 3" 3.1/2" to 4" 4.1/2" to 6" 5" x 2.1/4" (Set of 6 Pcs) 4" to 8" 4" to 5.1/2" 5.1/2" to 8" 5" x 2.1/4" (Set of 6 Pcs)

Number Of Flower : Threading Tools

Material : High Speed Steel

Packaging Type : Metallic

Application : Thread Cutting For Various Types Of Threads Like BSP, BSPT, NPT, UNF, UNC, BSW

Packaging Type : Industrial Standard Packaging

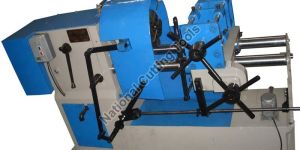

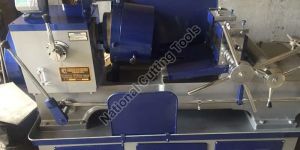

Product Description GEAR HEAD PILLAR TYPE THREAD CUTTING MACHINE 1/2'' to 2 .1/2 , 1'' to 4'' , 2 .1/2 to 6'', 4" to 8" Capacity Product Feature Model Super Deluxe= 12 mm to 65 mm Saddle Movement= 175 mm Spindle Speed Range=32-54-85 Number of Spindle Speed=3 Threading Capacity=12 mm to 65 mm Production per Hour=45 to 80 H.P. Required=7.5 H.P.960 RPM Automatic Leading Cut off=NIL Space Required=1060 mm to 1650 mm Model Super Deluxe= 25 mm To 100 mm & 65 mm to 150 mm Saddle Movement=250 mm Spindle Speed Range=28-48 Number of Spindle Speed=2 Threading Capacity= 25 mm To 100 mm & 65 mm to 150 mm Production per Hour=35 to 40 H.P. Required=12.5 H.P.960 RPM Automatic Leading Cut off=Provided Space Required= 1525 mm to 2425 mm Model Super Deluxe= 100 mm to 200 mm Saddle Movement=250 mm Spindle Speed Range=28-48 Number of Spindle Speed=2 Threading Capacity= 100 mm to 200 mm Production per Hour=35 to 40 H.P. Required=15 H.P.960 RPM Automatic Leading Cut off=Provided Space Required=1775 mm to 2700 mm Product Specification/Models DESIGN & WORKMANSHIP: The National Cutting Tool thread cutting machines are designed to produce quality threads within the to lerance for which they were intended. HEAD STOCK: A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings. THE BED: The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit. THE SADDLE: The Saddle is fitted on two pillers very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment. The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. Its all gears are made of best quality steel. VICE JAWS: The vice jaws made from the best quality steel are fitted on the saddle

Brand Name : NCT

Material : ANY

Application : EXTERNAL THREAD

Country of Origin : India

Our wide area network helps us in delivering the products across Ludhiana(India) and other markets. We have with us a well-maintained and capacious storage unit that is facilitated by advanced and automated warehousing system, which is operated and supervised by experts only.

Material : Metal

Packaging Type : Multicolor

Packaging Type : Industrial Standard Packaging

Application : Industrial

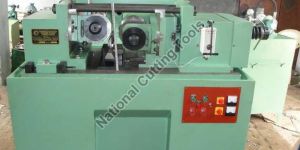

Model NCT2R-25 Hydraulic Thread Rolling Machine Two roll type with complete Electrical. Specification: model No.:NCT -25 Max. Pitch Can Be Rolled (in Mm): 2.5 Max. Dia Can Be Rolled in Feed (in MM): 25 Max. Dia Can Be Through Feed (in MM): 16 Max. Rolling Length in Feed (in MM): 80 Max. Rolling Length Through Feed: Indefinite Max. Outer Dia Thread Rolls (in MM): 150 spindle Dia (bore Dia) (in MM): 54 Max. Rolling Force: 8 Tons Power for Roll Spindles: 3 HP. 1400 Rpm Power for Hydraulic Pump: 2 HP. Power for Coolant Pump: 0.1 HP. 1. Model NCT2R-40 Hydraulic Thread Rolling Machine Two roll type with complete Electrical. Model No.: NCT-40 Max. Pitch Can Be Rolled (in MM): 3.5 Max. Dia Can Be Rolled in Feed (in MM): 40 Max. Dia Can Be Through Feed (in MM): 28 Max. Rolling Length in Feed (in MM): 150 Max. Rolling Length Through Feed: Indefinite Max. Outer Dia Thread Rolls (in MM): 180 Spindle Dia (bore Dia) (in MM): 54 Max. Rolling Force: 13 Tons Power for Roll Spindles: 5 HP. 1400 Rpm Power for Hydraulic Pump: 3 HP. Power for Coolant Pump: 0.1HP. 1. Model NCT2R-50 Tie Rod and 25mm-50mm Hydraulic Thread Rolling Machine Two roll type with complete Electrical. Model No.:NCT-50 Max. Pitch Can Be Rolled (in MM): 4.0 Max. Dia Can Be Rolled in Feed (in MM): 50 Max. Dia Can Be Through Feed (in MM): 35 Max. Rolling Length in Feed (in MM): 150 Max. Rolling Length Through Feed: Indefinite Max. Outer Dia Thread Rolls (in MM): 200 Spindle Dia (bore Dia) (in Mm): 69.85 Max. Rolling Force: 15 Tons Power for Roll Spindles: 7.5 HP. 1400 Rpm Power for Hydraulic Pump: 5HP. Power for Coolant Pump: 1 HP.

Number Of Flower : Hydraulic Thread Rolling Machine

We Stand in the Midst of Specialized Circular Thread Roller Exporters. We Manufacture High Quality Thread Roller from Superlative Quality Raw Materials that Make Them Durable and Highly Resistant to Various Climatic Factors. We are One of the Predominant Flat Die Thread Roller Suppliers from India. These Thread Rollers are Manufactured as per International Standards, Under the Strict Vigil of Our Skilled Staff. as a Result, this Range of Our Unmatched Quality and High Performance Thread Rollers are Widely Demanded in National as Well as International Markets. in Addition to This, We Provide the Facility to Supply Variety of Thread Rolls as per the Client’s Specifications and Requirements. the 3 Rollers Hu-3r Rolling Machine Operates Hydraulically. the Simultaneously and Concentricity of Three Forces At 120º Assure Stability of the Work Piece During the Rolling and as a Consequence the Maximum Geometrical Precision of the Work Piece. the Elimination of the Support Blade Consents a Better Finishing of the Piece and the Execution of Particularly Delicate Profiles. the Machines is Suitable for Rolling Pipes, Lapping Work, Threading with a High Class Precision and for Mass Production of Scaffolding Pipe Jack and Solid Jacks Screws Etc. the Maximum Values Specified Above Can Not Be Achieved Simultaneously.

Number Of Flower : Automatic

Certification : CE Certified

Availability : 100-1000kg

Country of Origin : 380V

Driven Type : Electric

Total Carbohydrate : 1 Year

Power : 3-6kw

We stand in the midst of specialized circular thread roller exporters. We manufacture high quality thread roller from superlative quality raw materials that make them durable and highly resistant to various climatic factors. We are one of the predominant flat die thread roller suppliers from India. These thread rollers are manufactured as per international standards, under the strict vigil of our skilled staff. As a result, this range of our unmatched quality and high performance thread rollers are widely demanded in national as well as international markets. In addition to this, we provide the facility to supply variety of thread rolls as per the client�s specifications and requirements. The 3 rollers HU-3R rolling machine operates hydraulically. The simultaneously and concentricity of three forces at 120o assure stability of the work piece during the rolling and as a consequence the maximum geometrical precision of the work piece. The elimination of the support blade consents a better finishing of the piece and the execution of particularly delicate profiles. The machines is suitable for rolling pipes, lapping work, threading with a high class precision and for mass production of Scaffolding pipe jack and solid jacks screws etc. The maximum values specified above can not be achieved simultaneously.

Number Of Flower : Hydraulic 3 Rollers

Material : Metal

Application : Rolling Pipes, Lapping Work, Threading With High Precision

Purity : High Performance, Stability, Maximum Geometrical Precision

Product Description GEAR HEAD PILLAR TYPE THREAD CUTTING MACHINE 1/2'' to 2 .1/2 , 1'' to 4'' , 2 .1/2 to 6'', 4" to 8" Capacity Product Feature Model Super Deluxe= 12 mm to 65 mm Saddle Movement= 175 mm Spindle Speed Range=32-54-85 Number of Spindle Speed=3 Threading Capacity=12 mm to 65 mm Production per Hour=45 to 80 H.P. Required=7.5 H.P.960 RPM Automatic Leading Cut off=NIL Space Required=1060 mm to 1650 mm Model Super Deluxe= 25 mm To 100 mm & 65 mm to 150 mm Saddle Movement=250 mm Spindle Speed Range=28-48 Number of Spindle Speed=2 Threading Capacity= 25 mm To 100 mm & 65 mm to 150 mm Production per Hour=35 to 40 H.P. Required=12.5 H.P.960 RPM Automatic Leading Cut off=Provided Space Required= 1525 mm to 2425 mm Model Super Deluxe= 100 mm to 200 mm Saddle Movement=250 mm Spindle Speed Range=28-48 Number of Spindle Speed=2 Threading Capacity= 100 mm to 200 mm Production per Hour=35 to 40 H.P. Required=15 H.P.960 RPM Automatic Leading Cut off=Provided Space Required=1775 mm to 2700 mm Product Specification/Models DESIGN & WORKMANSHIP: The National Cutting Tool thread cutting machines are designed to produce quality threads within the to lerance for which they were intended. HEAD STOCK: A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings. THE BED: The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit. THE SADDLE: The Saddle is fitted on two pillers very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment. The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. Its all gears are made of best quality steel. VICE JAWS: The vice jaws made from the best quality steel are fitted on the saddle

Brand Name : NCT

We are reckoned among the best roll threading die head manufacturers in india. Threading die head manufactured by us is passed through stringent heat treatment in our advanced imported treatment plant. This threading die head is available in assortment of types with us such as pipe threading die head, bar threading die head, bolt threading die head and rebar threading die head. These threading die heads are efficient enough to give high performance in loner use. We facilitate our client’s by providing easy accessibility of these threading die heads at most reasonable prices. 14” t0 1” capacity pipe & bolt 38” to 1.12” do- 12” t0 2.12” do- 1” to 4” do- 2.12” to 6” do- 4” to 8” do-

Number Of Flower : Roll Threading Die Head

Material : Steel

Production Capacity : 14

Application : Pipe Threading, Bar Threading, Bolt Threading, Rebar Threading

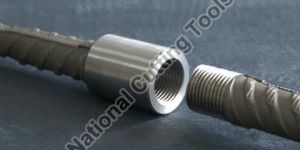

We have one workshop to produce rebar couplers ( parallel thread and taper thread system).( Anchor bolt & rock bolt) So far we have supplied many couplers and threading service to many high-rise building and bridge projects in India https://www.youtube.com/watch?v=f62MvdidcuQ Cutting: 1) The end of the reinforcement bars is swan square. Cold Forging: 2) With the help of patented cold forging, the swan end of the reinforcing bar is then enlarged. With this the core diameter of the bar is increased to pre determined diameter. Threading: 3) An ISO standard metric thread is then cut
