Navtech India Janta Nagar, Ludhiana, Punjab

Features Four Spindles with Cross Slide: Enables radial movement for precise positioning and tight drilling operations. High-Speed Drilling Heads: Handles various materials like alloy steels and forged steels. Close Spindle Positioning: Ideal for tight spaces and multiple holes in a single pass. Programmable Operations: Customizable to drill specific patterns for different size of UJ Cross Mass Production Ready: Designed for high-volume manufacturing in industries like automotive Material Versatility: Suitable for a wide range of materials and components. Advantages Increased Productivity: Simultaneously drills multiple holes, reducing cycle time. Precise Drilling: Radial movement ensures accurate alignment for every operation. Compact Design: The 4 Sides Drilling head design allows for drilling in tight spaces. Versatile Application: Suitable for various industriestypes of UJ Cross Sizes Cost Efficiency: Saves time and labor in mass production environments. Consistent Quality: Ensures precision and uniformity across high-volume production runs. Description The UJ Cross 4-Spindle Drilling Machine is a high-performance, specialized machine tool designed to drill multiple holes in a workpiece simultaneously with unmatched precision and efficiency. Featuring four spindles mounted on a cross slide, the machine allows for radial movement, enabling precise alignment and optimal positioning of the spindles. The Slide design ensures that the spindles can be positioned closer together, making this machine particularly useful for drilling holes in tight spaces or performing multiple drilling operations in a single pass. Equipped with high-speed drilling heads, the UJ Cross 4-Spindle Drilling Machine is capable of handling a wide range of materials, including alloy steels and stainless steels, making it versatile for diverse manufacturing needs.

Type : Multi Spindle Drilling Machine

Features Dual-Spindle Design:- Two independent spindles allow simultaneous drilling of two components, doubling the production capacity. High-Speed Drilling:- Achieves U-drilling Dia 50 mm depths of 110 mm in just 80 seconds (40 seconds per part), saving significant production time. Precision and Accuracy:- Ensures consistent drilling dimensions with tight tolerances for high-quality outputs. Independent Motors:- Each spindle is powered by a dedicated motor for superior performance and flexibility. Heavy-Duty Build:- Robust design with industrial-grade materials ensures long-term durability and minimal downtime. User-Friendly Interface:- Simple controls make it easy to operate, reducing the need for skilled labour. Customisable:- Machine dimensions, cycle time, and spindle configurations can be tailored to meet unique production needs. Cost-Effective Solution:- Minimizes workforce requirements while delivering faster cycle times, ensuring quicker ROI. Advantages Reduced Cycle Time: Achieves high-speed drilling, reducing production cycle times by 60%. Double Productivity: Simultaneously processes two components, increasing output efficiency. Lower Labor Costs: Requires fewer operators for continuous, efficient operation. Superior Accuracy: Consistent drilling results with reduced errors and rejections. Quick ROI: Saves time, labor, and energy, paying back the investment rapidly. Versatile Applications: Suitable for automotive, aerospace, steel plants, and other industrial applications. Description The TwinDrill Pro 50 is the ultimate solution for manufacturers facing challenges with pre-drilling operations. Built with dual-spindle technology and powered by independent motors, this advanced U-drilling machine performs precise and high-speed drilling in two components simultaneously.

Type : U-Drilling Machine

Application : Pre-drilling Operations

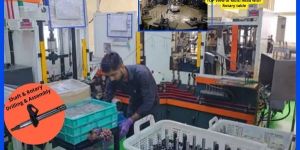

Features Integrated Multi-Operations: Combines multiple assembly machining and finally springpin pressing steps into a single streamlined process. Hydraulic Rotary Table: Ensures precise indexing between operations. Servo-Controlled Slides: Delivers exact depth and positioning for all machining steps. Automated Component Ejection: Enhances efficiency and reduces manual intervention. Programmable Operations: Easily configurable via HMI for tailored assembly requirements. Compact Design: Optimized for space efficiency in manufacturing setups. Advantages Reduced Manpower: One operator can oversee the entire assembly process. Increased Efficiency: Automated workflow minimizes production time. Improved Accuracy: Precision-controlled operations ensure consistent results. Enhanced Productivity: Seamless integration of operations boosts throughput. Cost-Effective: Eliminates the need for multiple standalone machines. Description In this machine, manufacturing, optimizing efficiency and reducing manpower is key to achieving productivity goals. This will complete details or you can say a Streamlined workflow for rotor and shaft assembly, where a single worker can efficiently perform multiple operations such as pressing, spot facing, center drilling, drilling, reaming, hole cleaning, pin pressing with hydraulic pressure, and automatic component ejection. Let`s delve into each operation in detail and understand how they come together to create an efficient assembly process.

Type : Assembly Machine

Specialities : Integrated Multi-Operations

Usage : Rotor & Shaft Assembly

Description A mould insert tapping machine is a specialized machine tool designed for tapping threads into a mould insert. A mould insert is a component used in injection moulding, which a metal insert made out of metal part for injecting material into a mould cavity. The Mould insert tapping machine can be a dedicating tappingmachine with a cycle time of 1200 parts per hour manufacturing. The tap size can be from M2 to M10 size, the mcahine runs in a vertical coloumn and the head moves vertically in a LM guideways with a Ball screw in it. the complete system run in the Servo control system, the spindle motor and also the machine Slide motor, both are Servo controlled with a PLC controller. In the injection moulding process, the mould insert is often made of hardened steel and contains the cavity into which the material is injected. The mould insert tapping machine is used to create threaded holes in the mould insert to allow for the insertion of screws or other fasteners that hold the mould components together. The machine typically consists of a tapping head that is mounted on a spindle and driven by a motor. The mould insert is clamped in place on a fixture, and the tapping head is brought into position over the insert. The spindle is then rotated, and the tapping head cuts threads into the insert. Mould insert tapping machines are typically used in high-volume production environments where speed and accuracy are critical. They are often used in the automotive and electronics industries, where tight tolerances and high precision are required

Type : Tapping Machine

Usage : industrial

Features Drilling and Tapping in a Single Stroke: Reduces cycle times significantly. Multi-Spindle Setup: Enables simultaneous operations across multiple parts. Multi-Station Configuration: Increases throughput with parallel operations. Servo-Controlled Slides: Ensures precision in drilling and tapping. HMI-Based Programming: Allows for customizable operations for various components. Robust Construction: Durable and reliable for high-volume production. High-Speed Performance: Boosts productivity by up to 8 times compared to traditional methods. Advantages Increased Productivity: Combines operations to save time and boost output. Cost-Efficiency: Reduces labor and operational expenses by performing tasks simultaneously. Versatility: Suitable for automotive parts, general engineering, and more. Accuracy and Consistency: Servo controls ensure precise results for every part. Ease of Use: Intuitive HMI interface simplifies operation and setup changes. Quick ROI: High throughput and efficiency lead to faster return on investment. Description The Multi-Operation Drilling and Tapping Machine is a revolutionary solution designed to enhance productivity in the manufacturing of auto parts, general engineering components, and more. Unlike traditional methods, where drilling and tapping are performed as separate operations, this machine combines both tasks into a single stroke across multiple stations, dramatically reducing cycle times and increasing efficiency. Equipped with multi-spindle setups and multi-station configurations, this high-performance machine enables simultaneous operations, making it up to 4 to 8 times more productive than conventional machines. By eliminating the need for separate setups and transitions, this machine helps you achieve production targets faster and more cost-effectively.

Type : Drilling And Tapping Machine

This is Heat sink assembly machine with IC. We need to put all part automatically including screwing it. Only IC has to be fed manually, because its a dedicated part and can be damaged. Heat sink and the screws are fed from Bowl Feeder. First one screw is assembled and then Conductive material is applied. IC is placed manually and once again both the screws are tightened. Then the finished Heat sink is taken out of machine.

Type : Assembly Machine

Features Two Pallets and Two BT-40 Spindles: Simultaneous machining of two parts with efficient loading and unloading. Servo Motor and PLC Control: Ensures precise machining and repeatability. Spindle-Through Coolant: Keeps the machining area clean and reduces wear. 4-Part Fixture with Pallet Type Slides: Simplifies handling and increases throughput. Easy Chip Collection: Keeps the workspace clean and minimizes downtime. Compact Power Consumption: Less than 10 KW total machine power, with 60–70% actual consumption. Single Operator Design: Optimized for cost-effective operation. Advantages Precision Tolerance: Maintains accuracy within ±0.01 mm offset from center. High Productivity: Achieves a 12–14 second cycle time per part. Energy Efficient: Designed for low power consumption, reducing operational costs. Cost-Effective: Streamlined design for minimal labor and maintenance expenses. User-Friendly Maintenance: All points are easily accessible for quick and hassle-free servicing. Reliable Performance: Built for consistent operation in demanding production environments. Description The Conrod Cap Boring Machine is a Special Purpose Machine (SPM) specifically designed for the precision machining of Conrod Caps. This innovative machine features two pallets and two BT-40 spindles, enabling simultaneous machining of two parts while another two parts are unloaded and loaded for machining. This ensures continuous operation and maximizes productivity

Usage : Precision Machining Of Conrod Caps

We make you feel the difference of peerless automatic facing machine at one stop destination. We manufacture centering facing machine using optimum quality raw materials thereby guarantying our customers of our authenticity. High precision and long life of this centering machine make this machine highly demanded in the global market. We are regarded as one of the famous centering machine manufacturers and Suppliers in India. We ensure easy accessibility of centering & facing machines, and at th

We, NAVTECH INDIA, most commonly known as NTS, are the manufacturers of versatile and high precision auto Production Lathe ,Special Purpose machines and many of its kinds. NTS's plant is equipped with design infrastructure, modern manufacturing equipment and systems for quality control through all stages of manufacture.

Features Dual-Sided Chamfering: Simultaneous chamfering from both ends for efficient processing. Automated Depth Calculation: Ensures precise chamfering by calculating the required depth of cut. Hydraulic Step Feeder: Smooth handling of heavy billets with minimal wear and tear. Chain Conveyor Integration: Automates billet transfer between stations. Weight Checking and Segregation: Automatic weight measurement and sorting into bins. Fully Automated Process: Requires no manpower, enhancing productivity and reducing labor costs. Customizable Design: Configurable to meet specific customer requirements. Advantages Enhanced Productivity: Fully automated process eliminates manual intervention and speeds up operations. Cost-Effective: Reduces labor costs and improves operational efficiency. Consistent Accuracy: Automated depth calculation ensures precision in chamfering. Durable Design: Built for handling heavy billets with robust components. Flexibility: Customizable features cater to diverse billet sizes and operational needs. Seamless Integration: Automated sorting streamlines the downstream manufacturing process. Safety and Reliability: Eliminates manual handling of heavy parts, reducing risks and ensuring consistent output. Description The Billet Chamfering Machine is an advanced, fully automated solution designed for precision chamfering of heavy billets. This machine is ideal for industries requiring efficient and consistent chamfering, where handling heavy parts manually can be time-consuming and labor-intensive. With dual-sided chamfering capabilities, the machine calculates the required depth of cut after deducting the face, ensuring accurate chamfering every time. The system begins with a hydraulic step feeder, which handles the heavy billets effortlessly. From the step feeder, billets are transferred via a chain conveyor to the chamfering station. Here, the machine performs chamfering operations automatically, eliminating the need for manual intervention.

Type : Industrial Machinery

Application : Precision Chamfering Of Heavy Billets

Features 24 High-Precision Spindles: Simultaneous drilling for multiple holes. Servo-Controlled Movements: Smooth and accurate operations. LM Guideways and Ball Screws: High precision and durability. Hydraulic Hirth Coupling: Ensures precise positioning of parts. Customizable Drilling Depths: Adjustable spindles for diverse requirements. Rotating Table with Fixture Mounting: Supports high-speed production. Multi-Material Compatibility: Suitable for various materials. Programming Capability: Handles multiple hole sizes and depths. Advantages High Productivity: Multi-hole drilling reduces production time. Cost-Efficient: Cuts down on labor costs and operational expenses. Versatility: Compatible with various industries and applications. Enhanced Accuracy: Servo control and hydraulic coupling ensure precision. Reliability: Designed for continuous, high-output operations. Customizability: Drill depth and bit type can be tailored to specific needs.

Type : Drilling Machine
