New Era Machines G. T. Road, Ludhiana, Punjab

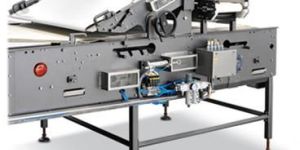

We are offering scrap lift conveyor scrap return scrap distributor technology this unit is to take off scrap from the sheeting coming from rotary cutting unit. The scrap lifted from this unit is delivered to a narrow inclined conveyor on the non operator side which takes it back to dough feed hopper. The return point can be foreseen with a reciprocating distributor to uniformly distribute the scrap being returned across the width of the processing system. Application separates scrap from product and transfers it to a cross conveyor which further delivers to scrap return system for re processing. Options pneumatic actuator to lifting and running positions. Light barrier for operator's safety in case of pneumatically actuated lifting conveyor.

We are offering rotary moulder 602 series rotary technology rotary moulding machine to produce biscuit shapes of soft dough varieties. Application soft dough biscuits & cookies salient features 260 mm 340 mm diameter die roll various working widths up to 1.5m band width two individual drives for forcing roll & die roll individual drive for apron motorized knife height adjustment motorized knife angle adjustment two independent servo motors backup roll pressure adjustment - side to side motorized adjustment for forcing roll - die roll gap reversible cross conveyor for apron scrapper stainless steel receiving hopper modular unit with delivery web hygienic design

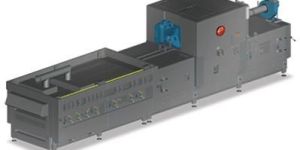

We are offering hybrid ovens. Technology can be design as combination of any of the two - direct gas fired multi burner direct heated forced convection oven indirect radiant cyclotherm oven product application soft biscuits cookies wire cut products hard biscuits crackers fuel options gas fired burners band options z47 wiremesh cb5 balanced weave heavy wire mesh f4015k-st wiremesh

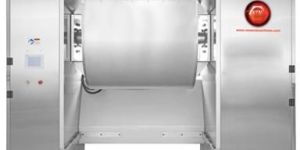

We offer HS 1000 MIXER. Technology High Speed, Single Blade, Horizontal Dough Mixer Application Soft Dough Hard Dough Salient Features 1000 Kgs Mixing Capacity Heavy Duty Mild Steel Main Frame Stainless Steel Drum, Shaft and Beater Mixing Drum foreseen with Water Jacket Beater Speed - 3060 RPM Tilt Angle 140 degree Modular Unit Hygienic Design Centralized Lubrication as Standard Options Customized In Feed Openings on Top CEUL Certification

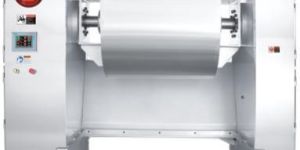

We offer Em 500 Mixer. EM 500 MIXER Technology High Speed, Single Blade, Horizontal Dough Mixer Application Soft Dough Salient Features 500 Kgs Mixing Capacity Mild Steel Main Frame Stainless Steel Drum, Shaft and Beater Mixing Drum foreseen with Water Jacket Beater Speed - 3060 RPM Tilt Angle 140 degree Modular Unit Hygienic Design Centralized Lubrication as Standard

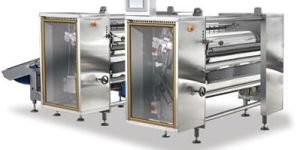

We are offering ecm 300 gauge roll. Technology gauge roll units deployed to reduce sheet thickness in progressive stages before cutting. The number of reduction stages is decided as per product or capacity requirements. Application hard dough biscuits crackers various varieties producedprocessed using rotary cutting process salient features pair of ground rollers gap between rolls adjustable top roll is fixed while bottom roll adjustable eccentrically. Rolls foreseen with scrappers with catch tray modular unit with delivery web hygienic design

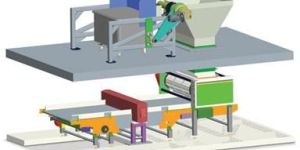

We are offering dough feeding system with star roll sheeter. Process dough can directly be dropped into the hopper of star roll sheeter or a tilter or lifter cum tilter can be used depending on the layout star roll sheeter is deployed to produce dough lumps that can be directly fed to cutting line or passed through a rotary kibbler to break down into small pieces for moulding lines. System can be foreseen with a metal detector and rejection system application hard dough biscuits crackers soft dough (with kibbler unit)

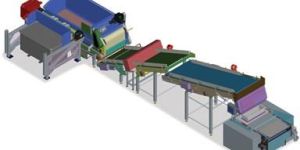

We offer Dough Feeding System with Lay Time Conveyor. Application Soft Dough Hard Dough Salient Features Fine Pitch Roller Bed Conveyor for adequate lump support. High side walls to accommodate good amount of volume Length of the conveyor can be customized according to capacity and li

We offer Direct Forced Convection Ovens. Technology Direct Heated Forced Convection Oven. Product Application Soft Biscuits Cookies Wire Cut Products Hard Biscuits Crackers Fuel Options Gas Fired Burners Band Options Solid Steel Band Z47 Wiremesh CB5 Balanced Weave Heavy wire Mesh F4015K-ST Wiremesh

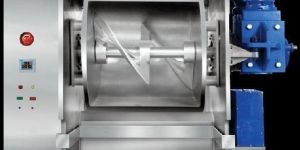

FEATURES High Speed, Horizontal Dough Mixer Stainless Steel Drum, Shaft and Beater Mixing Drum foreseen with Water Jacket Tilt angle upto 140 Degrees Modular unit Hygienic design Centralized lubrication as standard OPTIONS Both side Tilter Customized In Feed openings on top CE/UL certification CONTROLS PLC system with HMI Display Recipe management system Dough temperature on HMI

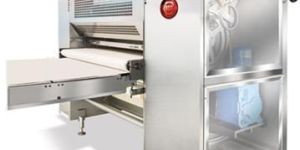

We offer 3 Roll Sheeter. Technology 3 Roll Sheeting machine to receive dough lumps in hopper and produce endless and homogenous dough sheet for cutting line. Application Hard Dough Biscuits Crackers Various varieties producedprocessed using Rotary Cutting Process Salient Features One Grooved Rollers & One Ground Roller on Top One Plain Roller on Bottom Gap Between Rolls adjustable Customized capacity of Stainless Steel Receiving Hopper Modular Unit with Delivery Web Hygienic Design
