Shreeji Expeller Industries Partap Nagar, Ludhiana, Punjab

Number Of Flower : Cold & Hot Pressing Machine

Application : Mustard Oil

Motor : 50 HP

Brand Name : SHREEJI

Country of Origin : 50 HP

Certification : ISO 9001-2008

Production Capacity : 20 TONS /DAY

Automatic Grade : Automatic

Condition : New

Supply Ability : 50 Unit/Units per Month

Brand Name : Custom / Shreeji Expeller

Number Of Flower : Grain Processing Equipment

Country of Origin : Punjab, India

Brand Name : SHREEJI

Model Number : SHREEJI VK -200

Capacity : 20 Ton Per24 Hour

Packaging Type : Export Packaging in Wooden Crates, Boxes or Plywood Boxes

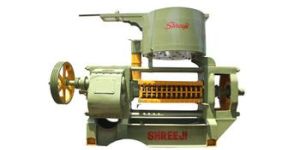

Shreeji Expeller Industries is the top most Indian manufacturer and supplier of oil extraction machinery and components to oil extraction plants, oil mills, oil refinery plants and bio-diesel plant production houses. The company incorporated in the year 1992 was established by Sh. Naresh Kumar Goyal. And right from the start we are serving both local and international markets efficiently and commercially.   FEATURES All Steel Fabrication & Improved DesignFor perfect alignment and stability. Vertical Hinged 34” Three-section Pressing Box.Entirely eliminates the difficult task of removing box for relining or for replacement of worms, which saves a lot of time and labour. Steel Casted ChambersReduces time and labour for relining of Cage Bars. Shaft WithdrawalThe main Worm Shaft can be withdrawn very easily without disturbing the gear section in any way and pressure worms and spacing collars can be changed without disturbing the shaft. The thrust of the pressure worm is taken upon a large thrust bearing. Pressure ConeThe final pressure of the cake is positively controlled by a Pressure Cone which is hard faced. Cake at DischargeThe cake thickness is controlled by a manually operated hand-wheel which is so simple that the choke gear is independent of the main drive and there is no possibility of a sudden load being placed on expeller motor. CompressorThe Expeller feed is under automatic control and the seed or meal when entering the Expeller is given a preliminary compression by a small crammer-shaft driven by an automatically tensioned belt which stops when feed is excessive, starting again when the accumulation of feed has been absorbed by the Expeller. PowerOil Expeller is 15HP/20HP and for Cooker 3HP. Gear Box & LubricationA double helical gear unit made from most suitable special steel running in oil bath. All shafts run on antifriction bearings. The drive housing is oil tight and dust proof, totally enclosed design and is fitted with two oil level indicators. Kettle / CookerThe Steam Kettle is of adequate capacity with 42” dia. two high steam jackets fitted with self controlled mean inlet to prevent overflowing with open steam spray arrangement, safety valve, steam pressure gauge, steam traps and steam valves. The Kettle requires 40-55 kgs. process steam per hour at a pressure of 4-5 kg/cm2. CapacityThe capacity, however, varies with the material and working conditions. The average capacity is 8/10 tons in first pressing and 5/6 tons in second pressing.

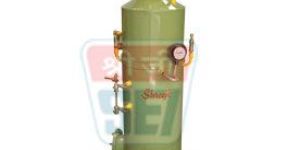

FEATURES : It is vertical type Smoke tube Boiler (Multi- Fuel). Vertical Boiler (Non IBR) are available from 50 kgs to 950 kgs per Hour. Steam Pressure is from 6 kg/cm2 to 10.5 Kg/cm2 (90 to 150 PSI). Final Steam type is Dry Saturated. Fuel: Wood, Coal, Diesel Oil Fired and Furnace Oil can be used.. Salient Features High efficiency optimum heat transfer & minimum radiation losses. Optimum delivery of steam to meet all load conditions. Ample water space to give extra steam when sudden & heavy demands occur. Shop assembled – easy access for proper cleaning & maintenance. Insulated with mineral wool covered with sheet metal.

Number Of Flower : Steam Generation

Application : Produce Steam from Water

Fuel : Wood, Coal, Diesel Oil Fired and Furnace Oil can be used.

Availability : 5500 KG

Automatic Grade : Automatic

Country of Origin : 40 HP

Number Of Flower : Cold & Hot Pressing Machine

Condition : New

Application : Rapeseed Oil

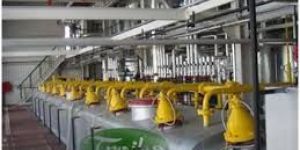

In batch oil refinery process or cooking oil refinery process, a measured quantity of oils is processed in sequence of neutralizing, bleaching & deodorizing.For plants capacity from 5 to 25 tons per day, batch process is recommended being low cost and easy to operate.First Stage of Refining is to Remove Free Fatty Acids(F.F.A.) wih caustic Soda Treatment called Neutralizing Process Thereafter further processed in the bleaching section under vacuum and treated with bleaching earth and activated carbon for removing colour .Finally it will be Deodorized under high vacuum and high temperature to remove the odour from the oil. The Edible obtained in a batch refinery is of good quality meeting all requirement.

Brand Name : SHREEJI

Automatic Grade : Automatic

Number Of Flower : Cold & Hot Pressing Machine

Application : Peanut Oil

Country of Origin : 20 HP

Combined Action of Vibrating Motion of Fluidized bed creates separation of stones or any other impurities heavier than Product. Vaccum Type Destoner ensures better air distribution and provides dust free working in the plant through totally enclosed aspiration system with cyclone. Speed facilities almost complete removal of heavy impurities from products in one pass only.   FEATURES : Improved drive and thrust New air throat design – no loss of good product Fast – removes all heavy foreign material Easy to operate and adjust All material design – allows easy cleaning Rubber busing Suspension. Less Maintenance

First Stage of Refining is to Remove Free Fatty Acids(F.F.A.) wih caustic Soda Treatment called Neutralizing Process Thereafter further processed in the bleaching section under vacuum and treated with bleaching earth and activated carbon for removing colour .Finally it will be Deodorized under high vacuum and high temperature to remove the odour from the oil. The Edible obtained in a batch refinery is of good quality meeting all requirement of International Standard. However in case of Sunflower and rice bran oil, there is one more process of Dewaxing after bleaching Process.

Brand Name : Custom

Usage : Sunflower Oil

Number Of Flower : Cold & Hot Pressing Machine

Condition : New

Country of Origin : 50HP

Country of Origin : Punjab,India

Combined Action of Vibrating Motion of Fluidized bed creates separation of stones or any other impurities heavier than Product. Pressure type de-stoner is economical and simple to operate. Speed facilities almost complete removal of heavy impurities from products in one pass only. FEATURES : Improved drive and thrust New air throat design – no loss of good product Fast – removes all heavy foreign material Easy to operate and adjust All material design – allows easy cleaning Rubber busing Suspension. Less Maintenance VACCUM TYPE DESTONER Combined Action of Vibrating Motion of Fluidized bed creates separation of stones or any other impurities heavier than Product. Vaccum Type Destoner ensures better air distribution and provides dust free working in the plant through totally enclosed aspiration system with cyclone. Speed facilities almost complete removal of heavy impurities from products in one pass only.

Condition : New

Automatic Grade : Automatic

Brand Name : Custom / Shreeji Expeller

Country of Origin : 10 HP

Availability : 1000 KG

Capacity : 15 Ton Per 24 Hour,15 to 16 Tons/ Day

Country of Origin : 50HP

Usage : Soybean Oil

Number Of Flower : Cold & Hot Pressing Machine

Condition : New

Automatic Grade : Automatic

Brand Name : SHREEJI

Availability : 44.742 KW

Application : Rapeseed Oil

Condition : New

Country of Origin : 60 HP

Certification : ISO 9001-2008

Production Capacity : 16-18 TPD

Mechanical method is the combo of high pressure, high temperature, & high moisture, which causes color fixation, oxidation, and hydrolysis. Some seeds like rice bran & soya cannot be handled by the expellers. Continuous solvent extraction plant does not cause any alteration to the property of oil and recovers it with the characteristics as where present in the raw material and can handle all materials. CAPACITY – 50 TPD TO 2000 TPD SHREEJI continuous solvent extraction plant consists of Seed preparatory section Solvent extraction section Distillation section Meal de-solventising section Recuperation section Meal conditioning section Preparation is the process of properly preparing seeds for extraction of oil either by solvent or mechanical method. While a particular seed may contain from 20 % – 50 % oil, the oil is tightly bound within the cell & mechanical action must be taken to either forcefully remove the oil or to make the oil accessible to subsequent solvent extraction. The unit operations typically involved are scaling, cleaning, cracking, conditioning (or cooking) & flaking. Depending on process & oilseed in question, process drying and hulling may be employed, as May expander and collect dryer/coolers. Welcome to the SHREEJIs Solvent Extraction Process The main objective of the extraction process is to reduce oil contain in oilseed to the minimum possible level. The chain conveyor from preparatory transfers the prepared material to the Rotary Airlock Feeder, which further drops it to the feeding hopper. Rotary airlock feeder ensures the effective vapor seal also regulates the feed. Hopper is provided with the special flameproof level switches for the indication of high and low level. So as to enable to generate audio signal in the situation of high level, for preparatory operator to take corrective actions. SHREEJIs Extractor is a mild steel construction rectangular vessel, installed horizontally. Pretreated material from preparatory moves on the specially designed articulated band conveyor inside the extractor. Band conveyor speed is adjusted according to the process demand. Band conveyor insures the continuous travelling of the feed material from feed end to the final end with determined speed, pre-calculated bed height and under the continuous solvent spray. Bed of the feed material on band conveyor is adjusted by adjustable damper. Band conveyor cleaning is accomplished by high pressure jet spray of fresh solvent on to the return of band conveyor at discharge end which ensures perfect cleaning of mesh and completely eliminates the possibilities of mash Choking & channeling. SHREEJIs specially designed spray breakers ensures the uniform distribution of solvent over the entire width of moving bed. Fresh solvent is admitted into the extractor near the discharge end of the moving bed of the material and the full miscella is recovered from the initial stage, thus ensures the perfect counter current flow of the material and the solvent. The miscella circulates in a closed circuit in each of the successive section by overflowing from each hopper. So in each section there is equilibrium between the oil extracted from the seed in corresponding section and the difference in oil content of solvent Overflowing the preceding hopper together with the solvent overflowing the following section. Special features of SHREEJIs Economizers Reduces the steam consumption. Increases the capacity of distillation Section increases the capacity of condensing section. The miscella from the tank is pumped through the vapor economizer, to the first evaporator. The economizer unit is specially designed in order to effectively utilize the heat of vapors emerging from the desolventizer toaster. The concentrated miscella thus obtained from the economizer unit is rapidly heated in the first evaporator by means of low pressure steam and enters into the flasher, where solvent vapors are flashed off. The oil rich miscella thus obtained is charged into the second evaporator & stripper. The flashed of solvent vapors are condensed into the condensers & liquid solvent is re-circulated back to the process through solvent water separator. Distillation system operates under high vacuum & lower temperatures & short distillation period ensures good quality of oil. Furthermore the distillation system is coupled with a final drying of oil in final oil heater, which results in production of oil with exceptionally low volatiles in it. Plants Section Biodiesel Extraction Plant Cattle Feed Manufacturing Plant Solvent Extraction Plant Get a Quote Head Office 11349/3A, St. No. 3, Partap Nagar,Industrial Area-B Ludhiana-141003. (INDIA). Manufacturing Unit 1 11460/1, St. No. 4, Partap Nagar,Industrial Area-B Ludhiana-141003. Manufacturing Unit 2 Dehlon Sahnewal Road,Teh.Dehlon Ludhiana-141206. Call Us +(91)-98142-22963, 99150-90111 Fax +(91)-(161)-2535575 Share Us Send Mail info@shreejiexpeller.com About Us Company Profile Weaving History Core Values Vision & Mission CSR & Guiding Principles Products Oil expellers oil presses Seed Preparatory Section Steam Generation / Boiler Spare Parts Plant Automation Section Cooking Oil Refinery Plant Biodiesel Extraction Plant Cattle Feed Manufacturing Plant Solvent Extraction Plant Oil Seeds Applications Cashew Shell Process Castor Coca Beans Copra Cotton Seed Ground Nut Jatropha Mustard Palm kernel SafFlower SHEANUT Soyabean Sunflower Infrastructure FABRICATION SHOP ASSEMBLY SHOP MACHINE SHOP PACKING AND DISPATCH Showcase Video Gallery Photo Gallery Copyright © Shreeji Expeller Industries - All Rights Reserved.

Brand Name : SHREEJI

Condition : New

Number Of Flower : Cold & Hot Pressing Machine

Availability : 4000 KG

Certification : ISO 9001-2008

Country of Origin : 30 HP

Automatic Grade : Automatic

Production Capacity : 7-8 TPD

After-Sales Service Provided : Engineers available to service machinery overseas

Country of Origin : 30 HP

Condition : New

Number Of Flower : Cold & Hot Pressing Machine

Automatic Grade : Automatic

Production Capacity : 7-8 TPD

Country of Origin : 60 HP

Automatic Grade : Automatic

Application : Sunflower Oil

Certification : ISO 9001-2008

Number Of Flower : Grain Processing Equipment

Number Of Flower : Grain Processing Equipment

Country of Origin : Punjab,India

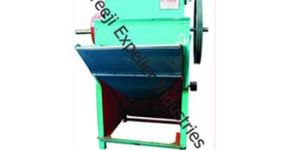

    features : v-belt counter drive with motor, rotor with blades,adjustable grate bars capacity range:-10 to 50 ton per day (in 24 hrs.) jatropha decorticator decorticator is mainly used in separation of hulls from kernel. Use of decorticator increases the capacity of expeller and reduces the down time of the machine features:   v-belt counter drive with motor, rotor with blades,adjustable grate bars capacity range:-10 to 50 ton per day (in 24 hrs.) sunflower decorticator most efficient huller with minimum breakage and fines. Controls of speed and feed permits operator to obtain best possible hulling of material. features case hardened knives. less maintenance. capacity:- 10 to 50 ton per day (in 24 hrs.).
