United Machinery & Tools Corporation Kanganwal, Ludhiana, Punjab

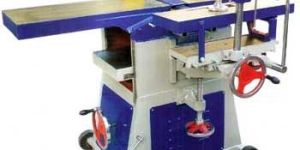

We offer Woodworking Machines that are highly acclaimed for their vast industrial applications. Precision engineered Woodworking Machines can be availed from us that are known for giving cutting edge performance. All the Woodworking Machines offered by us are robustly constructed and precision engineered. Clients can avail Woodworking Machines from us at the market leading prices.

Brand Name : UMTC Lathes

Condition : New

Usage/Application : Giving cutting edge performance.

Country of Origin : Ludhiana

Wood Turning Lathe Machine, available with us, is a high performance and high capacity machine. Wood Turning Lathe Machine is known for giving cutting edge performance for lifetime. We make available energy efficient Wood Turning Lathe Machine, which demands very low maintenance as well. This Wood Turning Lathe Machine is loaded with the latest features. Special Features Twist free, steel construction with heavy cast iron feet. Quiet, vibration free, Requires no maintenance Modern Attractive Design Technical Specifications Height of Centre : 200mm Distance between Centres : 1200mm Spindle Bore : 20mm with MK3 Internal Taper Range of Speeds : 425 to 2800 Motor Drive : 2 H.P. Standard Accessories Appropriate Spanners : 1 Set Appropriate sizes Allen Keys : 1 Set

Country of Origin : Ludhiana

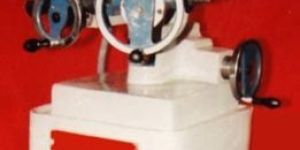

We offer power saving and low maintenance Tool Cutting Grinder (Model-600), throughout India. We are one of the leading Tool Cutting Grinder manufacturer, exporter & Supplier. We offer precision engineered Tool Cutting Grinder that is fabricated with the highest level of perfection.

Number Of Flower : Tool Cutting Grinder

Brand Name : UMTC Lathes

Condition : New

Country of Origin : Ludhiana

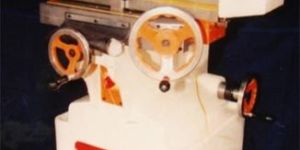

We hold expertise in manufacturer, exporter & Supplier premium Tool Cutting Grinder (Model-500) that is known for giving cutting edge performance. High performance Tool Cutting Grinder that we offer is produced with top grade components.

Brand Name : UMTC Lathes

Condition : New

Application : Giving Cutting as Perfomance,

Country of Origin : Ludhiana

Number Of Flower : Slot Machine

Brand Name : UMTC Lathes

Condition : New

After-Sales Service Provided : Available

Feature : High Grade Casting for Wear Resistance and Rigidity,Single Lever Control for Changing the Speeds,Centralized Machine Controls On Operating Side,Steel Gear Sliding On Multi Splined Shafts,Drum Clutch for Stopping Ram At Any Position.

Country of Origin : Ludhiana

Clients can avail high performance Shaper Machine from us. Shaper Machine, available with us, is highly appreciated for demanding very low maintenance. Corrosion resistant Shaper Machine, that we provide, is in extensive demand, owing to its broad industrial applications. Clients can avail Shaper Machine from us at the leading market prices. Technical Specifications InchesmmInchesmmInchesmmInchesmm Capacity 12" 18" 24" 30" Length Of Ram Stroke 12 305 18 457 24 610 30 762 Length Of Ram 26 660 40½ 1029 50 1270 55 1699 Length Of Width Of Ram Bearing 26x7 660x178 28½x9 724x229 33x11½ 838x292 39x12 46/8 975x323 Max & Minimum Distance From Table To Ram 10x1 257x25 15x1 406x25 18x3 457x89 19x3 483x76 Table Working Surface Of Table 12x8 305x228 18x11½ 457x292 24x14 610x356 30x15 711x406 Max Table Travel Horizontal 16½ 419 18 457 24 610 30 750 Max Table Travel Vertical 9 229 13 350 15 381 16 406 Angular Movement Of Table On Either Sides 60ºL 60ºR 60ºL 60ºR 60ºL 60ºR 60ºL 60ºR Tool Head Max. Vertical Travel Of Tool Slide 5 140 6 152 6 152 8 200 Maximum Swivel Of Tool Head 60ºL 60ºR 60ºL 60ºR 60ºL 60ºR 60ºL 60ºR Length Of Main Slide Base 23"   29"   36"   41"   Length Of Width Of Base 37x18 940x457 50x17¼ 1270x433 64x23 1600x585 72x26 1800x650 Speed & Feeds Cone Pulley Belt 3 Dia Of Clutch Pulley 9¼ 235 12" 3 305 12" 4 305 14"   Range Of Ram Speeds             4 355 Stroke Per Minute 3   4   4   8,16,32,48   Dia Of Motor Pulley 2½ 30,60,90 60 2¾ 16,32,64,96 70 2¾ 12,24,48,72, 70 2¾76 Range Of Table Feed Per Stroke Of Ram 0.01 0.23 0.01 0.23 0.01 0.23 0.01 0.23 Range Of Tool Head Feed                 Drive & Electrical Equipments (Hand Feed) Electric Motor 1.5H.P. 1.5H.P. 1.5H.P. 1.5H.P. Drive Motor 1440RPM 1440RPM 1440RPM 1440RPM Main Switch Starter ( Push Button Type ) 3.5AMP 3.5AMP 5AMP 5AMP Specification Of Vice Overall Dimensions 5" 8" 12" 13¼ Length 48 1219 62 1580 78 1981 86 2150 Width 30 762 37 940 43 1092 48 1219 Height 54 1371 55 1400 63 1600 62 1550 Note : In accordance with our continues improvements we reserve the right to change the design and specifications without any notice.

Brand Name : UMTC Lathes

Condition : Good

Country of Origin : Ludhiana

Brand Name : UMTC Lathes

Country of Origin : Ludhiana

Clients can avail high performance Radial Drilling Machine from us. Radial Drilling Machine, available with us, is highly appreciated for demanding very low maintenance. Corrosion resistant Radial Drilling Machine, that we provide, is in extensive demand, owing to its broad industrial applications. Radial Drilling Machine is among our flagship products.

Number Of Flower : Drilling Machine

Brand Name : UMTC Lathes

Condition : New Good

Country of Origin : Ludhiana

Condition : New

Brand Name : UMTC Lathes

Country of Origin : Ludhiana

Number Of Flower : Piller Type Power Press Machine

Condition : New

Brand Name : UMTC

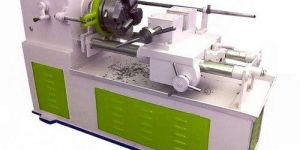

Clients can avail high performance Pillar Type Pipe Threading Machine from us. Pillar Type Pipe Threading Machine, available with us, is highly appreciated for demanding very low maintenance. Corrosion resistant Pillar Type Pipe Threading Machine, that we provide, is in extensive demand, owing to its broad industrial applications.

Brand Name : UMTC Lathes

Material : Top Grade

Country of Origin : Ludhiana

We are the one stop shop in market for availing precision engineered Pillar Type Drilling Machine. Fabricated with perfection, Pillar Type Drilling Machine, offered by us, is corrosion resistant and loaded with the latest features. Clients can avail high performance Pillar Type Drilling Machine from us at the leading market prices.

Number Of Flower : Drilling Machine

Brand Name : UMTC Lathes

Condition : New Good

Feature : Corrosion resistant and loaded

Country of Origin : Ludhiana

We are engaged in providing precision engineered Milling Machines in market. Milling Machines, that we offer, are fabricated with the highest level of perfection. Premium components are used in the production of Milling Machines, which ensure their reliable performance. We make available power saving Milling Machines, such as Universal Milling Machine and Vertical Milling Machine. Standards Accessories of Milling Machines : Electric Motor & Panel, Arbour, Handle & Tool Kit Accessories at Extra Cost : Horizontal Attachment, Milling Vice, Rotary Table, Rack Cutting Attachment, Dividing Head, Slotting Attachment, Timex Cutter & Tips, Coolant System & Forced Lubrication & D.R.O. etc. Note : Keeping pace with today's technical developments, we reserve the right to change the designs or specifications of the machines Technical Features Duly seasonal alloyed heavy duty casting. Height quality steel is used in shafts & gears. Interchangeability of parts ensured through standardization & quality control. All sliding screws fitted with Bronze Bushes & bearing for smooth running & easy interchangeability. Ram, Cross Slide. Main Working Table all alignments with Taper gib strips. The machines table accuracy is within one two Micron, plus host of other features like Vibration free precision, honed head hardened & grinded, seasonal cast steel body.

Brand Name : UMTC Lathes

Condition : Good

Country of Origin : Ludhiana

Specialities : eHight quality steel is used in shafts & gears. Interchangeability of parts ensured through standardization & quality control. All sliding screws fitted with Bronze Bushes & bearing for smooth running & easy interchangeability.

We offer comprehensive range of Lathe Machines that are highly acclaimed for their vast industrial applications. Precision engineered Lathe Machines can be availed from us that are known for giving cutting edge performance. All the Lathe Machines offered by us are robustly constructed and precision engineered. Clients can avail Lathe Machines from us at the market leading prices. The UMTC Extra Heavy Duty Lathes are renowned throughout the World to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. UMTC Lathes are famous for precision jobs, accuracy and trouble free performance. UMTC Lathes have been designed to cater need of sustained accuracy and superb finishing. Bed : The bed being the foundation of the lathes is carefully designed and is of high grade cast iron. It has cross-ribs to support its walls and three inverted 'VEES' assembled with removable gap for large swing. Head Stock : The main spindle is of alloy steels with ground finish to give accurate results. The main spindle runs in bush or taper Roller Bearings. We manufacture lathe machines with Geared Head model also. Saddle : The V ways running on the bed and the slides are most accurately hand scrapped and aligned accurately with bed and the headstock. The saddle is fitted with 'Hand' and 'Automatic Travers' along the bed with steel rack and pinion. It is assembled with cross and upper slide graduated to give desired taper turning. Tool-Post : The tool-post is made out of one piece steel block and can hold four different tools at a time and can be swiveled to any desired angle. Apron : The apron gives movement to the saddle for screw cutting sliding and surfacing by means of enclosed gears and half nut. All gears are of steel with Gun Metal Bushes. Tailstock : The tailstock is designed to give maximum strength. It has long bearing within the barrel and ensures true alignment. We also provide Rotary Type Tailstock for bigger Lathe Machines having provision to fix the Dog Chuck. Three Speed Gear Box : The three speed gear box is provided with the lathe to obtain coarse, medium and fine cutting ranges, both longitudinal and cross on the feed Shaft. We also provide Full Norton Gear Box for Geared Head Models. Standard Accessories (Supplied with the machine) : one-Catch Plate two Dead-Centre one-Centre adopter one-Steady Rest one-Follow Rest one- set of 23 gears ( 7 gears for geared head model )-Threading dial one- Motor pulley and Motor Bracket.

Number Of Flower : Lathe Machine

Brand Name : UMTC Lathes

Condition : Good

Country of Origin : Ludhiana

After-Sales Service Provided : Available

Speciality : UMTC Lathes are famous for precision jobs, accuracy and trouble free performance.

Number Of Flower : Power Press Machine

Condition : New

Brand Name : UMTC Lathes

Country of Origin : Ludhiana

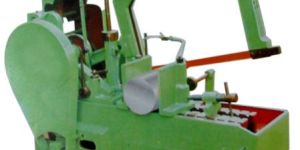

The blade is hydraulically operated by two levers on the dash-pot on linking to an automatic lift of saw frame on completion of cutting cycle while other regulating the rate of down feed, the dash-pot being designed to lift the blade on non cutting stroke.

Number Of Flower : Hacksaw

Application : Cutting

Availability : 600-800gm

Feature : Easy To Use

Condition : New

Finishing : Coated

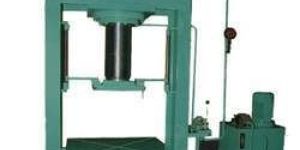

A hydraulic press is a device (see machine press) using a hydraulic cylinder to generate a compressive force. It uses the hydraulic equivalent of a mechanical lever, and was also known as a Bramah press after the inventor

Finishing : Polished

Packaging Type : Wooden Box

Pressure : High Pressure

Specialities : Rust Proof

Material : Stainless Steel

Size : 500*125 75*600 travel ram in 100 mm motor hp 3

Heavy Duty Radial Drilling Machine, available with us, is a high performance and high capacity machine. Heavy Duty Radial Drilling Machine is known for giving cutting edge performance for lifetime. We make available energy efficient Heavy Duty Radial Drilling Machine, which demands very low maintenance as well. This Heavy Duty Radial Drilling Machine is loaded with the latest features. Salient Features Of Heavy Duty Radial Drilling Machine All shafts are made from carbon alloy steel and run on ball bearings, which are easily available for replacement. The bearing system of the work spindle is capable of taking axial as well as radial workloads of the machine to perform vertical boring jobs besides drilling. All gears in drilling head are pump lubricated and gears in elevating gear box are bath lubricated. The main gear box is well-covered from dust and iron chips. Special alloy steel, heat-treated property and lapped is used to manufacture all gears. The horizontal movement of the drilling head is made by a screw so that it can be used as a keyway milling The main electric motor is coupled to main gear box by a shock absorbing coupling.

Brand Name : UMTC Lathes

Number Of Flower : Drilling Machine

Country of Origin : Ludhiana

Heavy Duty Pillar Type Drilling Machine, manufacturer, exporter & Supplier by us, is precision engineered and gives cutting edge performance. Fabricated using top grade raw materials, Heavy Duty Pillar Type Drilling Machine, that we provide, is robustly constructed and gives lifelong hassle free performance. Heavy Duty Pillar Type Drilling Machine is suitable for various industrial applications.

Brand Name : UMTC Lathes

Condition : New

Material : Fabricated using top grade raw materials.

Country of Origin : Ludhiana

umtc lathe machines have been designed to cater need of sustained accuracy and superb finishing umtc lathes are guaranteed for their original design and are tested to the graded limts with speciaiiy imported precsion tools

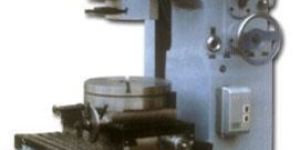

The Column consists of two parts which are adequately ribbed & securely held together to form a rigid unit. The deep throat enables a wide variety of parts to be machined. The Electric motor drives the clutch pulley and the gears fitted in the column. From there the power is transmitted to the ram by the means of link mechanism. The ram-movement is started by engaging clutch. The link mechanism allows for an accelerated ram-movement in return stroke Ram speed changes are effected by sliding gears controlled by shaft through gear box.

Number Of Flower : Head Slotting Machine

Condition : New

Hacksaw Machines are manufacturer, exporter & Supplier by us. We offer various models of precision engineered Hacksaw Machines that are suitable for carrying out various industrial applications. Hacksaw Machines, provided by us, are energy efficient and demand very low maintenance. Robustly constructed Hacksaw Machines can be availed from us at the leading market prices. Salient Features Automatic, Two Speed Fast Precision cutting-Accurate True. Saw Frame : The saw frame is of rigid construction and runs in prismatic guide ensuring a square and parallel cut. The cutting of the material takes place on the draw stroke and the blade is hydraulically lifted out of contact with the wrok-piece on the forward stroke to prevent wear on the blade. Feed : The blade is hydraulically operated by two levers on the dash-pot on linking to an automatic lift of saw frame on completion of cutting cycle while other regulating the rate of down feed, the dash-pot being designed to lift the blade on non cutting stroke. Bed : The bed is of large size provided with guide ways for holding the material. The vice is rigid construction with one jaw is fixed, while the other is operated by a screwed shaft and nut. Drive : Power is supplied by a suitable electric motor through V-belts which are full adjustable for tension all drive mechanism being totally enclosed. Coolant Tank : Coolant tank is totally enclosed in the machine base and a constant speed pump supplies the coolant the point of contact between the blade and work-piece. Speed : Two cutting speed are provided by us, the mechanism allows for the most suitable speed to select for material being cut. Electrical Equipemnts : A direct-on-line push-button, starter incorporates an adjustable trip mechanism and stops the machine as the blade is cleared off the workpiece.

Condition : New

Country of Origin : Ludhiana

avialble in size 50mm 75mm and 100mm tecnical packing and good service.Centerless grinding differs from centered grinding operations in that no spindle or fixture is used to locate and secure the workpiece

Brand Name : Umtc

Material : Cast Iron

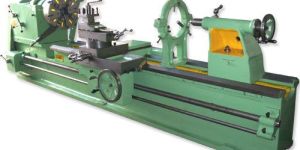

We are offering Extra Heavy Duty Roll Turning Lathe Machine, planner lathe machine, lathe machine: machine technical descriptions the umtc extra heavy duty lathes are renowned throughout the world to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. Umtc lathes are famous for precision jobs, accuracy and trouble free performance. Umtc lathes have been designed to cater need of sustained accuracy and superb finishing. Bed: the bed being the foundation of the lathes is carefully designed and is of high grade cast iron.It has cross-ribs to support its walls and three inverted 'vees' assembled with removable gap for large swing. Head stock: the main spindle is of alloy steels with ground finish to give accurate results.The main spindle runs in bush or taper roller bearing. Saddle: the v ways running on the bed and the slides are most accurately hand scrapped and aligned accurately with bed and the headstock.The saddle is fitted with 'hand' and 'automatic travers' along the bed with steel rack and pinion.It is assembled with cross and upper slide graduated to give desired taper turning.

Type : Lathe Machine

Brand Name : UMTC Lathes
