Wire Straightening Machines Dealers in Janta Nagar, Ludhiana

(5 products available)
Janta Nagar
  • Storm-12 Wire Straightening & Cutting Machine

    Storm-12 Wire Straightening & Cutting Machine

    Get Price Quote

    • Brand NameStorm
    • Country of OriginIndia
    • In Thickness of Wire4 to 12mm
    • In Length of Wire to Be Cut Automatically50 to 1000mm Length increased as per Requirment
    • Feeding Capacity per Min.60' Feet
    • Power of motor H.P.10 H.P., 1 H.P.
    • Required R.P.M.1440
    • Approx. Weight in Kg.1000
    • Floor space required60"x22" Inch
    ...more
    www
  • Brass Wire Cutting & Straightening Machine

    Brass Wire Cutting & Straightening Machine

    135,000 / Piece

    • Country of OriginIndia
    • Number Of FlowerSemi Automatic
    • Rated Power5 HP
    • Driven TypeElectric
    • MaterialMild Steel
    • Total Carbohydrate1 Year
    • CertificationCE Certified
    • Country of Origin240 V
    • UsageIndustrial
    • Working Capacity80 ft/min
    • FinishingPaint Coated
    ...more
  • Wire Straightening Machine

    Wire Straightening Machine

    150,000 / Piece

    • Country of OriginIndia
    • Wire Diameter Range1 Mm To 12 Mm (varies By Model)
    • Straightening MethodRotary Rollers / Multi-roller System
    • Cutting Length Range100 Mm To 6000 Mm
    • Cutting Accuracy±1 Mm To ±2 Mm
    • Speed20–120 Meters Per Minute
    • Power Consumption2 HP To 10 HP Motor
    • Control SystemManual / Semi-Automatic / Fully Automatic
    • Material CompatibilityMild Steel, Stainless Steel, Galvanized Iron
    • We are a leading Manufacturer and Supplier of Wire Straightening Machines from India. Our machines offer a wire diameter range of 1 mm to 12 mm, utilizing a Rotary Rollers or Multi-roller system for straightening. With cutting length options from 100 mm to 6000 mm and cutting accuracy ranging from ±1 mm to ±2 mm, our machines operate at speeds of 20–120 meters per minute. They feature power consumption from 2 HP to 10 HP motors and come with manual, semi-automatic, or fully automatic control systems. Compatible with mild steel, our Wire Straightening Machines are designed for precision and efficiency.
    ...more
    www

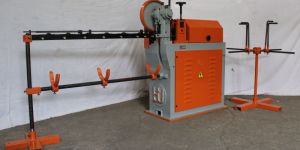

  • 2.5mm Single Roller Wire Straightening Cutting Machine

    2.5mm Single Roller Wire Straightening Cutting Machine

    180,000 - 199,000 / piece

    • Brand NameBTI
    • MaterialHigh Grade
    • FinishingPolished
    • Driven TypeMechanical
    • ConditionNew
    • Rated Power1hp
    • PressureLow Pressure
    • Operating TypeAutomatic
    • UsageWire Straightening Cutting
    • CertificationCE Certified
    • Country of Origin415v/50Hz
    • WidthNA
    • Packaging TypeWooden
    • Overall LengthNA
    • Size (mm)2.5mm
    • Working Capacity10-50kg/h
    • SpecialitiesRust Proof, Long Life, High Performance, Easy To Operate
    • Dimension (LxWxH)NA
    • Number Of FlowerWire Straightening Machines
    • Diameter1.2mm - 2.5mm
    • Thickness1.2mm - 2.5mm
    • Availability300-400kgs
    • CompositionNA
    • Phase3
    • Total Carbohydrate1 Year
    • After-Sales Service ProvidedLife Time
    • Country of OriginIndia
    • GaugeNA
    • Wire TypeMS, SS,
    • Corrosion ResistanceYes
    • Machine StructureHorizontal
    • Straightening Speed2300rpm
    • Reverse RotationYes
    • Is It Variable SpeedNo
    • Roll CentreNA
    • Rotating Speed2300
    • No Of RollOne Set
    • Thickness of Wire mm1.2 to 2.5mm
    • BTI MINI Wire Straightening and Cutting Machine Model No. M-02 is a compact designed machine to serve the need of thin wire straightening and cutting 1.2 mm to 2.5mm mild steel, Stainless steel, Copper, Brass and Aluminium wire. BTI M-02 machine is compact but matches quality & performance with international demands that’s why it is appreciated machine in the wire industry. Suitable for 1.2mm - 2.5mm (Mild Steel Wire)(Feeding Cap: - 90’ feet per minute)(Cutting Cap: - up to 70’ feet per minute) **(Depending upon the diameter, the quality of wire and length of cut) M-02 – STANDARD FEATURES: 1.     Fast Feeding.2.     One set of feed roller for smooth feeding.3.     Specially designed half round straightening dies to help Smooth wire straightening.4.     Low Maintenance with High Productivity.5.     Cutting tools is a simple construction, easy to adjust and change.6.     Quickly and easily adjustable dies in spinner.7.     Consumes less Power.8.     Gear Box driven.9.     Complete with 1hp 3phase CROMPTON Make Electrical Motor and Switch. Free Accessories; - 1.     One set of cutting die and blade.2.     One set of CAST IRON half round straightening dies. (Set of 5 pcs.)3.     One Wire stand capacity: - 120kg.
    ...more
  • Wire Straightening Machines

    Wire Straightening Machines

    Get Price Quote

    Manufacturer & Exporter of Wire Straightening & Cutting Machine. Our product range also comprises of Biomass Fuel Briquetting Plant, Paper Corrugating Machine and Corrugated Cardboard & Box Making Unit. We take pride in introducing ourselves as one of the leading manufacturers and exporters of a wide range of Wire Straightening and Cutting Machines designed by highly trained engineers. The Wire Straightening and Cutting Machine operates by drawing the wire from the coil through the fast rotating spinner, passes through a cutting off tool into the scaling bar where it strikes at the adjusted length and this stroke makes the cutting mechanism complete. The straightening function is performed by 5 straightening blocks which are adjustable and contains a simple to use straightening bush lets the user to make replacement to his own work.
    ...more
