Asphalt Road Equipment Dealers in Shankar Nagar Society, Mahesana

Bitumen Sprayer (Tractor Linked) The Bitumen Emulsion Sprayer is devloped for tack - coat from manually hand spraying arrangement up to 5 mts. the unit can be supplied on 2 nos. axels and 4 nos. trolly wheels.

It is mounted on truck chasis of Ashok Layland or Tata.Bitumen pump: 2"*2" size Positive displacement gear pump with output of 350Lit./Min(Max)Driving unit: Kirloskar Engine Model HA-294,Air Cooled Electric Start, 25HP@2000RPM diesel Engine(Twin Cylinder).BItumin Spraying Pressure - 0 to 6 Kg/cm2Tachometer - Slow Speed 0.5 Meter/Min.Compressor - Make 3HP two Stage Compressor.

Asphalt mixing plant is key equipment for any road construction company. Any asphalt batch mix plant operation has many functions. This makes them a bit complicated compared to the drum types. This post will try and highlight the asphalt batch mix plant operation in the simplest manner.

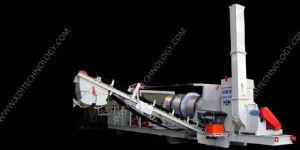

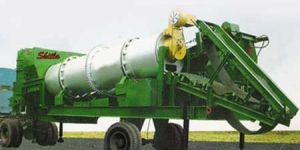

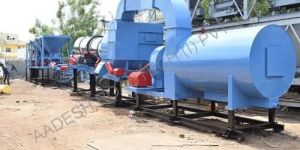

We Take the Pleasure in Bringing to You a Premium Quality Mobile Asphalt Drum Mix Plant, Which is Highly in Demand in the Industry. this Product is Brought to You in An Array of Dimensions Befitting the Variety of Construction Related Applications Where It Will Be Extensively Used.

FEATURES Fully - Insulated tank with high efficiency heating system. Air cooled diesel engine and positive displacement gear pump. Designed to suit standard truck chassis. Hand spray system. Safe and Easy in operation. Totally factory tested, arrives ready to launch. BITUMEN PUMP 2"x2", 350 Lpm, Positive Displacement gear pump. AIR COMPRESSOR Twin cylindered, 3 HP, 360 Lpm capacity with working pressure of 9 kg/cm2. DRIVING UNIT Powered by a 25 HP Air cooled, Kirloskar make diesel engine. BITUMEN SPRAYING PRESSURE 0 - 6 kg/cm2, Pressurized bitumen spraying. TEMPERATURE INDICATORS 0 - 300°C (analog) scale located on the tank. Digital temperature indicator on remote box. SPRAY BAR Standard width : 2.4 M. Adjustable extension bar for spraying width upto 4.2 M.Nozzle distance : 225 mm Nozzle c/c. Pneumatically operated nozzles for Spray bar controlling.

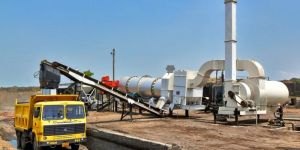

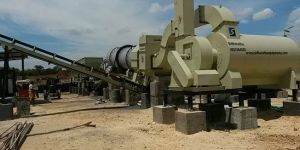

Sidhartatha Road Equipments offers Asphalt Drum Mixing Plant that is extensively used for road construction. These Asphalt Drum Mixing Plants are integrated with latest technology thus provide superior performance. Our Asphalt Drum Mixing Plants are manufactured in accordance with international standards and are highly demanded among the clients.

Drums mix asphalt plants have confirmation for MORTH specifications. We designed maintenance stations and less fuel efficient and low. For Our MDM plants have a strong structure and precision quality. Our mobile asphalt drum mix plants ranges are from 25 to 120 TPH TPH.

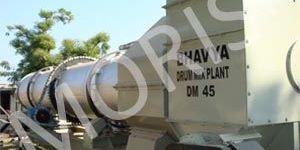

We provide Drum Mix Plant, which is fabricated from steel plants. The rotating cylindrical drum of the Drum Mix Plant is mounted on chasis. The Drum Mix Plant we offer is of high quality and manufactured in accordance with industrial norms. There is an electronic high-pressure jet burner which is fitted on the structure and from here cold aggregate is fed into the drum. This helps in controlling temperature automatically. The thermo drum is divided into two zones i.e. Radiation Zone and Coating Zone. There is a divider plate before coating zone, which prevents fire of bitumen inside the thermo drum. Features Cyclone type dust collection system is providedExhaust is providedHigh qualityAffordable price

4-Bins for cold aggregate feeders are all-welded and modular in construction, permitting easy addition of bins to meet growing needs. Steep bin-walls and valley-angles allow free flow of aggregates from the feeders minimizing hold-up of materials in the corners and bridging with sticky aggregates. There is a bin vibrator  mounted on walls of dust bin. The bins are supplied with adjustable calibrated gate openings and variable speed feeder drives together offer a total proportional control, greater flexibility and accuracy of operations. Belt scrapper perfectly cleans wet dust stick on return belt of gathering conveyor. A single-deck vibrating screen removes over size aggregates from main flow to prevent any damage of dryer internal flights. Feeding belt-conveyor further feeds material into a rotary dyer. Field proven Dryer drum with high aggregates drying efficiency at very low maintenance cost has gained top reputation among present day's asphalt batch plant manufactures in India. The drum is equipped with 4-wheel drive by gear motors. The dryer also has an unique feature of air-preheat system, which improves drying efficiency, aid power saving, reducing the thermal stresses on the drying drum by burner. Two heavy dyer rings fitted on drum shell & 4-trunning rollers with pressure-fitted shafts & heavy duty bearing pedestals have long working life which are special design features of our dryer. The modulating type dryer burner operates on high fuel-atomizing pressure (40bar) suitable for LDO/Furnace Oil with automatic controls, and of wich a wide turn-down air/fuel ratio saves your money... A temperature-sensor(PTR/thermocouple) fitted at discharge chute senses temperature of dried hot-aggregates. Burner controls this temperature at desired set level. FULLY AUTOMATIC PLANT CONTROL SYSTEM Fully computerized air-conditioned control cabin, with on-board electrical power control console, distribution switch board, fully automatic process and sequence controls are a standard on our batch plants. User-friendly software on the computer with a parallel PLC man machine interface gives you total reliability and ensures top notch performance. Fail proof power interlocks and auto process controls. Online fault detection with remote connectivity and solution. Docket printing and inventory management. Provisions to print, store and email productions details, mix proportions, etc. Automatic cold aggregate feeder controls linked with mix design and hot bin levels. Automatic free fall compensation. The controls is equipped with function-keys and numeric-keys, and does not require special skills for operation. The operator can monitor the complete process control, motor status and pneumatic controls through the colour CRT display.

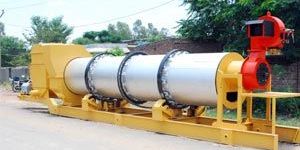

We present a comprehensive range of drum mixers, asphalt drum mixers, drum mix plant, asphalt drum mix plant which are able to perform accurately. These are precision engineered through state of the art technology and can be easily operated. Our ISO certified range of drum mix plant includes drum mix plant -45 (40-60 TPH), drum mix plant -50 (60-90 TPH), drum mix plant -60 (90-120 TPH) etc. Capable of working efficiently in adverse conditions, our range of drum mixers are made by our expert engineers using state-of-the-art technology. Assuring the clients of higher output, our range of machines are require less maintenance and are also easy to operate.

The Hot Mix Plant, which we supply, is reckoned for its robust construction and long service life. Owing to our wide distribution network and the fastest transit system, buyers can receive their orders on timely basis. Clients can stay assured for the products that we offer, as they will remain damage free. For this, we make use of premium packaging material for wrapping them.

  We are Manufacturer of Asphalt Drum Mix Plant Since 1991. and we are exporters of Asphalt Drum Mix Plant, leading Supplier of Asphalt Drum Mix plants in India DRYER DRUM The dryer is accurately fabricated to ensure proper heating of aggregates with minimum heat loss. Specially designed flights lift and cascade the aggregate to reduce the final moisture content to 0.5% (by weight). It is supported on steel rollers through steel tyres with idlers and guide rollers and is provided with segmented driving sprocket. A fully automatic high-pressure auto jet burner is mounted at one end of the drum. The discharge chute design discharges heated aggregate directly onto the loadout conveyor. FOUR-BIN FEEDER It is of single chassis construction. At each Bin a radial gate is provided         which can be opened in any position to regulate the aggregate flow. Individual endless belts are provided below the gates to discharge material onto the gathering belt.   VIBRATING SCREEN A single-deck vibrating screen is provided on the slinger conveyor to remove oversize aggregate received from the 4-bin feeder. SLINGER CONVEYOR An inclined conveyor mounted on idlers receives aggregate from the gathering conveyor and feeds it to the dryer LOAD OUT CONVEYOR Mixed aggregate from the dryer drum is discharged on an inclined conveyor provided with a hydraulic hopper at delivery end for feeding the Mix into Tippers. BITUMEN TANKS One/Two Bitumen Tanks of 15/20/30 MT capacity each are provided, fabricated from steel plates with 50 mm glasswool insulation, manhole, thermocouples, etc. Bitumen is pumped to the dryer drum through pipe lines. Tanks are fitted with independent on-off type burners. MULTICYCLONE EXHAUST The dust collection system consists of enclosed multiple cyclones, exhaust fan and chimney. MINERAL FILLER Fabricated from steel plates, it feeds the required quantity of mineral to the drum. CONTROL CABIN A fully automatic control panel with feather touch controls is provided for controlling the quantity and quality of production with operator sitting in Air-conditioned comfort. All systems are completely synchronized with automatic / manual control of burners, load cells, mix temperature, cold feed / mineral / bitumen proportions, etc. Manual control is possible through over-ride system. Adequate safety measures are adopted to avoid overloading, short-circuit, etc. LDO TANK One LDO Tank of 2000 / 4000 Ltrs. Capacity is provided with each plant. OPTIONALS • Wet type air pollution control system. • Baghouse filter system. • Hot mix storage silo. • Portable plants.

The Sweeper is constructed from pressed steel shell which give excellent strength to weight ratio. It is a tractor mount sweeper driven from the tractor PTO shaft and is available with small debris collector box and water spray equipment as optional. The sweeper is designed for use with almost any tractor which is fitted with hydraulic lift, three point linkage and power take off and can be fitted or detached in less than five minutes. Brush sections are supplied in crimped steel wire or polyproplyene and are easily replaceable. The castor wheels fitted to the rear enables the sweeper to follow road undulations. The sweeper may be used to sweep straight ahead (for collection) or in two angled positions either side. The splash guard fitted to the sweeper is easily removed the allow the collector attachment to be bolted into place.   FEATURES   Steel wire, polypropylene or combination brush section. Rigid pressed steel shell. Easily adjusted for brush wear. Different lengths available to special order Optional water tank and sprinkler attachment.

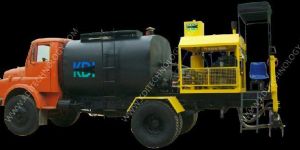

We hold expertise in the manufacture of Bitumen Pressure Distributor with high functionality. These Bitumen Pressure Distributors are manufactured with precision and with the use of latest technology to offer very high capacity up to 7000ltr. Fitted with Pressure Cleaning System (PCS), our Bitumen Pressure Distributors uniformly coat hot bitumen on hot surface. Attributes Of our Bitumen Pressure Distributor : High capacityAccurate and robust constructionHigh performanceLong service life

Bitumen Hand Sprayer, Batch Mix Plant, Slinger Conveyor Set, Wet Mix Plan
