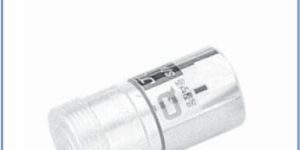

RF Connectors Dealers in Shastri Nagar, Meerut

Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Female: Beryllium Copper Male : Brass Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold
