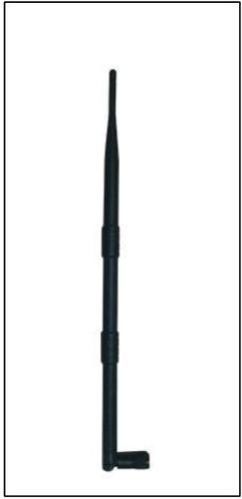

As per the assorted demands of our customers, we are highly immersed in the domain of presenting to our customers an inclusive collection of WLAN WiFi Long Antennas. Product Details: Easy installation Long lasting life Light weight Precisely designed Seamless finish Elevated strength View PDF.

Wlan Wifi Antennas we are leading dealers or suppliers of Wlan Wifi Antennas at very best price with best services.

By understanding the altering demands of our respected customers, we are involved in presenting a wide compilation of Indoor Outdoor Covered Broadband Antenna or Patch Panel Antenna. Product Details: Simple mounting Corrosion resistant Sleek design Easy to install Dimensional accuracy Dully tested

Our company is instrumental in offering premium quality UFL Cable to our esteemed customers. The offered UFL cables are commonly used inside various sophisticated embedded systems and laptops. These UFL cables are used for connecting the Wi-Fi antenna to a Mini PCI cards. In addition to this, these UFL cables are used to connect various GPS antennas. Features: Fine finish Dimensional accuracy Compact design Specifications: Electrical Data Frequency Range (GHz) 0~3 Input Impedance (Ω) 50 Cable Length(CM) 50Customized Connector Type UFL~ SMA(F) BH Diameter mm 1.13(Grey Color) Attenuation dB.

RP TNC (M) st. for Rg 316 Features Threaded coupling interface ensures connector will not de-couple in vibration-intensive applications. Many TNCs are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory. Performance from 0 - 11 GHz operations in many applications. Ideal for wireless and GPS applications. Space-saving vertical mating. Tags: rf connector, Tnc Connector, TNC Male connector, rf Connector dealer, best connector. suppliers of tnc connectors , male connectors ,female connectors

TNC (F) Straight For Rg 58 Features Threaded coupling interface ensures connector will not de-couple in vibration-intensive applications. Many TNCs are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory. Performance from 0 - 11 GHz operations in many applications. Ideal for wireless and GPS applications Space-saving vertical mating Tags: rf connector, Tnc Connector, TNC Female connector,rf Connector dealer, best connector

Product Details: Connector Type FemaleJack RP TNC (F) straight For Rg 316 Specifications Electrical Characteristics Impedance 50O Frequency Range 0 - 4 GHz Voltage Rating 500 volts peak Dielectric Withstanding Voltage 1,500 volts rms VSWR M39012 straight connectors: 1.3 max @ 0 - 4 GHz M39012 right angle connectors: 1.35 max @ 0 - 4 GHz Insertion Loss 0.18 dB @ 9 GHz Insulation Resistance = 5,000 MO Mechanical Characteristics Mating 437-28 threaded coupling BraidJacket Cable Affixment Hex crimp Center Conductor Cable Affixment Hex crimp or solder Captivated Contact Except as noted Cable Retention 20 - 100 lbs depending on cable Mating 437-28 threaded coupling Material Male Center Contacts Brass, gold plated Female Center Contact Beryllium copper or phosphorous bronze, gold plated Other Metal Parts Brass with bright nickel finish Insulators TFE Weatherproof Gaskets Silicone rubber Environmental Temperature Range -65°C to +165°C Corrosion MIL-STD-202, method 101, test condition B

TNC (F) BH for Rg 58 Specifications Electrical Characteristics Impedance 50 O Frequency Range 0 - 11 GHz Voltage Rating 500 volts peak Dielectric Withstanding Voltage 1,500 volts rms VSWR M39012 straight connectors: 1.3 max @ 0 - 11 GHzM39012 right angle connectors: 1.35 max @ 0 - 11 GHz Contact Resistance Center: contact 1.5 moouter contact: 0.2 mo Braid to Body 0.1 mo RF Leakage -60 dB minimum @ 3 GHz Insertion Loss 0.18 dB @ 9 GHz Insulation Resistance = 5,000 MO Impedance 50 O Mechanical Characteristics Mating 716 threaded coupling BraidJacket Cable Affixment Crimps: hex braid crimp Clamps: screw-thread nut and braid clamp Center Conductor Cable Affixment Crimps: crimp or solder All others: solder only Captivated Contact All crimps unless specified otherwise Cable Retention Crimps: 20 - 100 lbs Clamps: 20 - 50 lbs Mating 716 threaded coupling Material Male Center Contacts Brass, silver or gold plated Female Center Contact Beryllium copper or phosphorous bronze, silver or gold plated Other Metal Parts Brass with nickel finish (except for M39012 which are silver) Insulators TFE, Delrin Clamp Gaskets Synthetic rubber, silicone rubber Environmental Temperature Range -65°C to +165°C Weatherproof Clamps with clamp gaskets, Crimps with heat-shrink tubing Hermetic Seals Pass helium leak test of 2x10-8 ccsec Shock MIL-STD-202, method 202

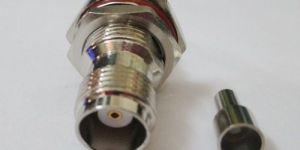

TNC (F) BH for Rg 316 Specifications Electrical Characteristics Impedance 50 O Frequency Range 0 - 11 GHz Voltage Rating 500 volts peak Dielectric Withstanding Voltage 1,500 volts rms VSWR M39012 straight connectors: 1.3 max @ 0 - 11 GHzM39012 right angle connectors: 1.35 max @ 0 - 11 GHz Contact Resistance Center: contact 1.5 moouter contact: 0.2 mo Braid to Body 0.1 mo RF Leakage -60 dB minimum @ 3 GHz Insertion Loss 0.18 dB @ 9 GHz Insulation Resistance = 5,000 MO Impedance 50 O Mechanical Characteristics Mating 716 threaded coupling BraidJacket Cable Affixment Crimps: hex braid crimp Clamps: screw-thread nut and braid clamp Center Conductor Cable Affixment Crimps: crimp or solder All others: solder only Captivated Contact All crimps unless specified otherwise Cable Retention Crimps: 20 - 100 lbs Clamps: 20 - 50 lbs Mating 716 threaded coupling Material Male Center Contacts Brass, silver or gold plated Female Center Contact Beryllium copper or phosphorous bronze, silver or gold plated Other Metal Parts Brass with nickel finish (except for M39012 which are silver) Insulators TFE, Delrin Clamp Gaskets Synthetic rubber, silicone rubber Environmental Temperature Range -65°C to +165°C Weatherproof Clamps with clamp gaskets, Crimps with heat-shrink tubing Hermetic Seals Pass helium leak test of 2x10-8 ccsec Shock MIL-STD-202, method 202.

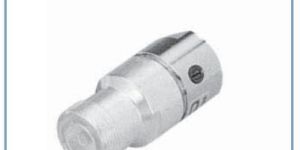

Straight Jack Coaxial Connector Details: Cable group 78” Applicable Cable Company Part No. EUPEN(5128) 1D2206 ANDREW(LDF4-50A) 1D2207 RFS(LCF12”CU2Y) 1D2208 LG(HFC-12D) 1D2209

Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Male: Brass Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold

Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Female: Beryllium copper Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold

Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Female: Beryllium copper Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold

Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Male: Brass Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold

Broadband performance DC to 18 GHz with low reflection Precision machined from brass and gold plated. Cost saving nickel plated options are available Threaded coupling mechanism offers extremely low loss in a compact design Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables

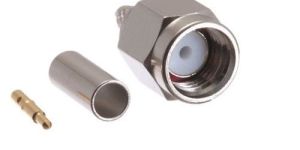

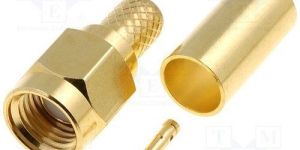

Product Details: Type RG-174 This male SMA connector is designed for crimp attachment to RG174, RG188 and RG316 . This 50 Ohm subminiature connector utilizes a threaded coupling mechanism making it a popular choice in higher frequency applications Features: Designed for crimp style attachment to RG174188316 coaxial cable Nickel plated body for enhanced corrosion resistance Gold plated contact pins to minimize signal loss Associated bulk cable and crimp tools available Applications: Coaxial cable assembly Coaxial cable repair Premise wiring Coaxial cable installation

Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Female: Beryllium Copper Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold

Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Female: Beryllium Copper Male : Brass Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold

Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Female: Beryllium Copper Male : Brass Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold

Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Female: Beryllium copper Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold.

Product Details: Connector Type FemaleJack Specification Electrical Characteristics Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-18 GHz. Flexible cables:0-12.3 GHz. Voltage Rating RG-55,58,141,142,223,303: 335 volts peak RG-122,174,188,316: 250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Female: Beryllium Copper Insulators PTFE Gasket Silicon Rubber Crimp ferrules finish Seamless copper tubing alloy Nickel or Gold.

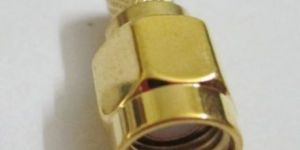

RP SMA (F) For Rg 58 Specification Material Description Material Surface Plating Remark 1 ShellBody BRASS Gold 2 Contact Socket BERYLLIUM Gold 3 Insulator PTFE 4 Crimp Ferrule BRASS Gold Electrical Characteristics Item Technical Data 1 Impedance 50 Ohm 2 Frequency range max 12.4 GHz 3 Dielectric Withstanding Voltage 1000V (RMS) 4 Contact Resistance Center conductor =3mOhm, Outer conductor = 2mOhm, 5 Insulation Resistance = 5000M Ohm 6 VSWR DC ~3 GHz .

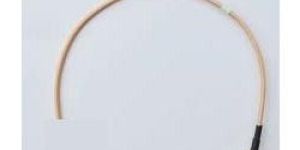

We have experience and knowledge of this domain, we have been able to offer premium quality sma female bulkhead cable to our valuable customers. These sma female bulkhead cables are widely used as a minimal connector interface for various coaxial cables. As per the specification provided by the customers, these cables can be custom designed. Features: long functional life fine finish flawless design

Product Details: Minimum Order Quantity 5 Piece Connector Type FemaleJack Application PCB Specifications Features Reverse Polarity Versions available. Precision machined from brass and gold plated. Cost saving nickel plat Specification Electrical Characteristic Impedance 50 ohms Frequency Range 141” & .085” O.D. copper jacket semi-rigid cable.0-3 GHz. Flexible cables:0-3 GHz. Voltage Rating RG-55,58,141,142,223,303:335 volts peak RG-122,174,188,316:250 volts peak Dielectric Withstanding Voltage 0.141” & RG-58 group: 10000 VRMS 0.085” & RG-316 group: 750 VRMS. VSWR Straight: 1.3 max. Right Angle: 1.5 max. Contact Resistance Center: 6 milliohms Body: 2.0 milliohms Insulation Resistance 5000 megohms Mechanical Cheracteristics Mating 50 ohm coupling Mating Torque Recommended:2 inch pounds Disengagement:2 inch pounds Connector affixment to cable Crimp types,Solder types Cable affixment to center contact Solder Contact captivation All types, except as noted Connector durability 250 mating and unmating cycles min. Material Body,Metal Parts ,Finish Brass ,Gold* Center contacts Gold plated Female: Beryllium copper Insulators Teflon
