Tonk and Associates (P) Ltd. Delhi Road, Meerut, Uttar Pradesh

RF Cable Assemblies Wiring Harness and Assemblies Electrical Equipment Wiring Harness Electronics Wire Harness Automotive Wire Harness Genset Wire harness Battery Cable Assemblies Our wiring harness and RF Cable assemblies are used in automobiles, electrical and electronics. Made of PTFE, they are also used as connectors in various terminals. Its basically uses as an assembly. Detailed Product Description : Used for Automotive Electrical and Electronics Equipment. Assembled according to customer's specifications. The component can be JST, AMP and MOLEX according to customer's request. Materials of wire and cable are comply with MIL and JSS standards. All kinds of our products are ROHS compliant.

Number Of Flower : Cable Assemblies and Wire Harness

“Polytef”® is our innovative Insulated Wires have wonderful insulating properties suitable for use as lead wires in Motors and Gen. sets up to Thermal Class B, F and H. The conductor used is Uni-lay perfect round shape conductor construction. “Polytef”® is ideally suitable for Motor Lead, Coils Transformers, Genset and Panel with excellent thermal stability. “Polytef”® is high temperature performance is characterized by MIL W 16878 and JSS 51034 rating at 125 ºC, 150ºC and 180ºC. Excellent cut-through and abrasion resistance with braid and varnished fillers makes it ideally suitable for Class B, Class F and Class H. It is available in 0.5 MM2 to 70 MM2 and in any other required size in Red, Yellow, Blue, Black and Green colors.

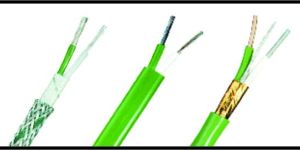

A thermocouple is a temperature measuring device consisting of two conductors of dissimilar metals or alloys that are connected only at the ends. When the ends are at different temperatures a small voltage is produced in the wire that can be related directly to the temperature difference between the ends. If the temperature at one end is known, the temperature at the other end can be determined. Calibration Type TYPEJ (Iron vs Constantan).TYPEK (CHROMEL vs ALUMEL )TYPET (Copper vs Constantan)TYPEE (CHROMEL vs Constantan)

Conductor Type : J, K, T and E

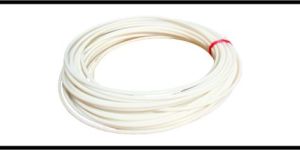

We are leading Manufacturer and suppliers of best quality Teflon Extruded Tubes and Teflon Extruded Sleeve. This vary has been particularly designed to meet the exacting requirements of a vast customers from various industries. Further, these tubes and Sleeve have been manufactured using top rank PTFE and are modified as per the exact requirements of our consumers.

We produce a range of PTFE Insulated RTD Cables in multi core versions in silver plated copper and nickel plated copper. These cables are also available in fibre glass and PTFE versions. They can be screened and / or metallic braided cover.Silver Plated Copper 2, 3, 4, 6, & 8 coreNickel Plated Copper 2, 3, 4, 6 & 8 core .

Our wiring harness and RF Cable assemblies are used in automobiles, electrical and electronics. Made of PTFE, they are also used as connectors in various terminals. Its basically uses as an assembly. Detailed Product Description. 1. Used for Automotive Electrical and Electronics Equipment. 2. Assembled according to customer's specifications. 3. The component can be JST, AMP and MOLEX according to customer's request. 4. Materials of wire and cable are comply with MIL and JSS standards. 5. All kinds of our products are RoHS compliant.

Packaging Type : All Electronic Colours

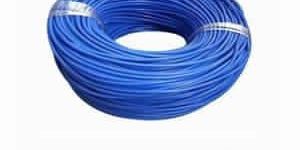

Tonk & Associates have been recognized as the most prominent player in this domain of having more than three decades of experience in manufacturing PTFE wires. PTFE wires are known for their compact strength, shock resistance, semi rigid nature, heat and acids resistant, high temperature, electric shocks, fire proof, high conductivity, optimum strength, flexibility. All these features make PTFE wires most desirable in the Indian and international market as well.These all features come in the PTFE Wires manufactured by Tonk & associates. They have been manufacturing PTFE wires since more than 30 years of industry experience.PTFE Wires manufactured by Tonk & Associates manufactures nickel or tinned plated coated thin wires wrapped inside fiber glass braid having lowest melting points which means these can be applied in various high temperature regions like arc furnace, ovens automobiles and also they has highest dielectric strength which means they can better conduct electricity than any other wires. These wires are highly flexible so this can be used in mechanical sections and has chemical resistivity also.Just because of these significant features PTFE Wires are so much demanded in the global market, for this we have been able to make our client’s domain so big that all the international clients have been in association with us like KIRLOSKAR, BHEL, GILLET, HAL, BIRLA POWER, & even govt. sectors like Ministry of Defense.Tonk & Associates We at Tonk & Associates keeps pride in us to be the best manufactures of PTFE Wires all over the India. The customers from the various regions and customize the products according to the need at best affordable prices.

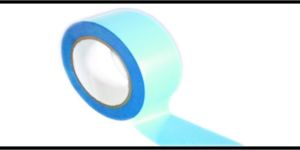

We only used quality material in manufacturing of PTFE Tape and distribute quality produce to our consumers. We convey for our consumers PTFE tapes that are used in pipe fittings, plumbing, and Thread jointing purpose. PTFE tapes are known for their bond properties and approach in the typical volume as follows. Our collection of Sintered & Un-sintered PTFE tapes have traditional wide acceptance in both industrial and commercial applications. Feature like high elongation, unbending to climate, outstanding dielectric properties and more, create it extremely convenient to use in difficult shapes. PTFE tapes are higher wire wrap and insulation tape for high warmth and high dielectric applications. They are also used for different mechanical applications and offer low friction and non-stick properties. Additionally, high elongation, visual transparency and outstanding resistance to UV are the key attributes of these tapes. The properties that make PTFE ideally suited for all sealing applications include:   Its non-wetting non-stick surface is resistant to enzymatic and microbiological attack and does not enable fungal or bacterial growth. Its chemically pure and inert state gives unmatched resistance to water, gases, solvents, acids, alkalis and other reactive media. Its lack of leach-able additives ensures no effect whatsoever on process fluids. Its resistance to cracking and embitterment even after long-term use. Its lubricity prevents the binding and sticking of pipes. Its retention of these properties over a very wide temperature range, from about -65°C to + 260°C.

Our range of Sintered & Un-sintered PTFE tapes have received wide acceptance in both commercial and industrial applications. Attributes like high elongation, impervious to weathering, excellent dielectric properties and more makes it highly convenient to use in difficult shapes. these tapes are superior wire wrap and insulation tape for high temperature and high dielectric applications. They are also used for various mechanical applications and offer low friction and non-stick properties. Furthermore, high elongation, optical clarity and exceptional resistance to UV are the key attributes of these tapes. The properties that make PTFE ideally suited for all sealing applications include: Its non-wetting non-stick surface is resistant to enzymatic and microbiological attack and does not enable fungal or bacterial growth. Its chemically pure and inert state gives unmatched resistance to water, gases, solvents, acids, alkalis and other reactive media. Its lack of leach-able additives ensures no effect whatsoever on process fluids. Its resistance to cracking and embitterment even after long-term use. Its lubricity prevents the binding and sticking of pipes. Its retention of these properties over a very wide temperature range, from about -60°C to + 260°C PTFE tapes can be used with all types of pipe, including iron, steel, copper, brass, alloys, plastics and even rubber. The tape is highly pliable so that it embeds in the threads, and remains compliant at high and low temperatures even at high pressure.

Polytef” ® is our innovative insulated wires have wonderful insulating properties suitable for use as lead wires in Motors, Transformers and Gensets up to Thermal Class B, F and H. The conductor used is uni-lay perfect round shape conductor construction. Polytef” ® is ideally suitable for Motor Lead, Coils Transformers, Genset and Panel with excellent thermal stability. “Polytef” ® is high temperature performance is characterized by MIL W 16878 and JSS 51034 rating at 125 ºC, 150ºC and 180ºC. Excellent cut-through and abrasion resistance with braid and varnished fillers makes it ideally suitable for Class B, Class F and Class H. It is available in 0.5 MM 2 to 95 MM 2 and in any other required size in Red, Yellow, Blue, Black and Green colors. Wire Construction Conductor : Nickel or Tinned Plated Copper or Bare Copper Wire Primary Insulation : PTFE Wrap or PTFE/Polyamide/PTFE Combination Secondary Insulation : Fiber Glass Braid and Varnished Properties : Resistance to Fire, Chemicals, Acids, Sunlight and Moisture. Voltage Grade : 600 V & 1000 V and above as per customer requirement.

Size : AWG 24 to AWG 1 and up to 95 Sq MM

We produce a range of PTFE Insulated RTD Cables in multi core versions in silver plated copper and nickel plated copper. These cables are also available in fibre glass and PTFE versions. RTD Cables can be screened and / or metal over braided.  Silver Plated Copper 2, 3, 4, 6, & 8 core Nickel Plated Copper 2, 3, 4, 6 & 8 core   Cable Construction : Conductor : Silver or Nickel or Tinned Plated Copper or Bare Copper Wire Insulation : PTFE Wrap or PTFE/Polyamide/PTFE Combination or PTFE/FG Twisting : Cores Twisted in pairs or as per Customer Screening : Screened or Braided with Silver or Nickel or Tinned Plated Copper or BC Wire Jacket : PTFE or FG Braid or PVC and other. Properties : Resistance to Fire, Chemicals, Acids, Sunlight and Moisture.

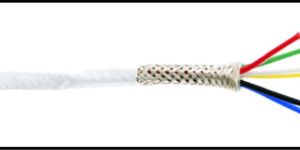

We manufacture multi-core twisted cable insulated with PTFE with or without shielded and jacketed with PTFE or fiber glass braiding & varnished or P.V.C. or as per customer's requirement. PTFE insulated multi-core wire has very wide range of application. It is used in computers, Flight Simulators, Electronic test equipment, Telecommunication equipments, Electronic equipments for Aircraft, Radar, Navigation, Satellites, Navy, Meteorology, Atomic Energy, Satellite Launching, Ground control, reactors and process control, telephone exchange etc. The wires insulated with PTFE confirms to MIL W 16878 or MIL W 22759 or JSS-51034 or as per customer's specifications.

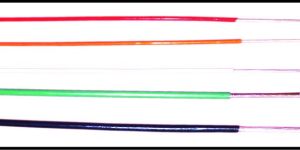

We also manufactures PTFE Extruded Wires of standard and custom PTFE insulated wire for any hook-up application, qualifying to MIL W 16878 and JSS 51034 specification and other popular military standards. As the industry's only vertically integrated supplier, Tonk's proprietary PTFE Extruded material is free of pinholes and offers the highest uniformity, making us the leader in high performance hook-up wire. Standard products meet the following MIL Standards: - MIL-W-16878 (Type ET, 250 volts) MIL-W-16878 (Type E, 600 volts) MIL-W-16878 (Type EE, 1000 volts) We manufactures a range of standard PTFE hook-up wire, however, our expertise goes beyond standard mil-spec wire. If your needs include special performance or size, we would be happy to provide a quotation.

PTFE Insulated Sleevings application is for high temperature or high frequencies or both. PTFE Sleevings possesses excellent electrical properties, which remain practically constant over a wide range of frequencies, temperature (-65° C to +260° C) and humilities and has a very low loss factor. We manufacture the PTFE Sleevings confirming to JSS-54802 specification of the Department of Defense Production, Ministry of Defence, New Delhi. Application : Used for electrical insulation process, Wire Harness and Component Covering Properties : Resistance to Fire, Chemicals, Acids, Sunlight, and Moisture.  The PTFE Sleevings can be manufactured as per any other specific requirement on request. All the sizes may be manufactured in Black, Brown, Red, Orange, Yellow, Green, Blue, Grey and White Colors on specific instructions in the P.O.

PTFE Insulated Sleevings application is for high temperature or high frequencies or both. PTFE Sleevings possesses excellent electrical properties, which remain practically constant over a wide range of frequencies, temperature (-65° C to +260° C) and humilities and has a very low loss factor.We manufacture the PTFE Sleevings confirming to JSS-54802 specification of the Department of Defense Production, Ministry of Defence, New Delhi.

Temperature : -65° C to +260° C

we also manufactures ptfe extruded wire of standard and custom ptfe insulated wire for any hook-up application, qualifying to mil w 16878 and jss 51034 specification and other popular military standards. As the industry's only vertically integrated supplier, tonk's proprietary ptfe extruded material is free of pinholes and offers the highest uniformity, making us the leader in high performance hook-up wire. Standard products meet the following mil standards: - mil-w-16878 (type et, 250 volts) mil-w-16878 (type e, 600 volts) mil-w-16878 (type ee, 1000 volts) we manufactures a range of standard ptfe hook-up wire, however, our expertise goes beyond standard mil-spec wire. If your needs include special performance or size, we would be happy to provide a quotation.

We manufacture multi-core twisted cable insulated with PTFE, with or without shield and jacketed with PTFE or fiber glass braiding & varnished or P.V.C. or as per customer's requirement. PTFE insulated multi-core wire has very wide range of application. It is used to computers, Flight Simulators, Electronic test equipment, Telecommunication equipments, electronic equipments for Aircraft, Radar, Navigation, Satellites, Navy, Meteorology, Atomic Energy, Satellite Launching, Ground control, reactors and process control and telephone exchange etc.. The wires insulated with PTFE confirms to MIL W 16878 or MIL W 22759 or JSS-51034 or as per customer's specifications.

Jacket : PTFE or FG Braid or PVC and other.

HTAW™ automotive wires for continuous use at operating temperatures of up to -40ºC to +150°C (Class D), + 200ºC (Class F) and +250ºC (Class H), confirm first mover status in the development of forward-looking product technology. This new generation of automotive wires are suitable for vehicles with hybrid power trains and for fuel cell wiring applications.   -40ºC to +150°C (Class D) -40ºC to + 200ºC (Class F) -40ºC to +250ºC (Class H) ZZZZ Conductor : Soft annealed electrolytic copper, Bare or Tinned or Silvered. Insulation : High Temperature Fluro Polymer, with properties similar to ISO6722 ClassD

We manufacture a variety of standard and custom PTFE insulated wire for any hook-up application. Standard products meet popular military standards. As the industry's only vertically integrated supplier, Our proprietary PTFE tape wrap material is free of pinholes and offers the highest uniformity, making us the leader in high performance hook-up wire. Standard products meet the following MIL Standards: - MIL-W-16878 (Type ET, 250 volts) MIL-W-16878 (Type E, 600 volts) MIL-W-16878 (Type EE, 1000 volts) We manufactures a range of standard PTFE hook-up wire, however, our expertise goes beyond standard mil-spec wire. If your needs include special performance or size, we would be happy to provide a quotation.

We offers the high-quality miniaturized proprietary and custom designed cables. Among the important characteristics designed into miniature cables are low noise, low capacitance and high operating temperatures. We offers Following RF and RG Cables. M17/60-RG142 | FLEXIBLE, COAXIAL CABLE, 50 OHMS M17/93-RG178 | FLEXIBLE, COAXIAL CABLE, 50 OHMS M17/93-00001 | FLEXIBLE, COAXIAL CABLE, 50 OHMS M17/94-RG179 | FLEXIBLE, COAXIAL CABLE, 75 OHMS M17/95-RG180 | FLEXIBLE, COAXIAL CABLE, 95 OHMS M17/110-RG302 | FLEXIBLE, COAXIAL CABLE, 75 OHMS M17/111-RG303 | FLEXIBLE, COAXIAL CABLE, 50 OHMS M17/112-RG304 | FLEXIBLE, COAXIAL CABLE, 50 OHMS M17/113-RG316 | FLEXIBLE, COAXIAL CABLE, 50 OHMS M17/127-RG393 | FLEXIBLE, COAXIAL CABLE, 50 OHMS M17/128-RG400 | FLEXIBLE, COAXIAL CABLE, 50 OHMS M17/131-RG403 | FLEXIBLE, TRIAXIAL CABLE, 50 OHMS The above are just for indicative Information we manufacture. For any other RF or RG cable having PTFE Dielectric can be manufactured.
