Detergent Dealers

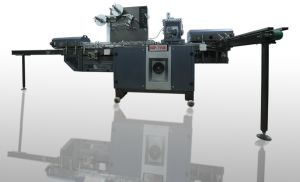

With rich industry experience and knowledge, we are providing an excellent quality range of Detergent Bar Wrapping Machine.Details:\r\n\r\nLaundry bar wrapping Machines has been designed to pack laundry cake in a single wrap of wrapping paper.\r\nThe machine has been designed to handle heat sealable wrapper, laminates and Poly coated wrapping material.\r\nThis machine is built from high precision components having the desired metallurgical and heat treatment characteristics, resulting in lower wear and tear, high life and less maintenance.\r\n\r\nWorking Principle:\r\n\r\nThe soap cakes are fed onto a continuous motion In-feed Conveyor.\r\nThe In-feed pushers take the soap cakes to the wrapping feed station.\r\nWith the help of pulling rollers, the reel fed wrapper is positioned between the cakes and tumble box.\r\nThe wrapper is cut to the required length as the in-feed pushers push the soap along with the cut wrapper into the turret.\r\nSpring-loaded end blocks retain the product in position.\r\nThe turret box then indexes by 180 degrees and resulting in top folding.\r\nThe next incoming cake pushes the previously packed cake forward which is further pushed into the sealing zone.\r\n\r\nFeature:\r\n\r\nMachine suitable for detergent bar/laundry bar\r\nHeavy duty cast structure\r\nMachine weight: Approx. 1600 Kgs\r\nSpeed up to 180 TPM depending upon the product dimensions, laminate quality and feeding of soap\r\nDirectly linkable to bar cutting machine through conveyor for automatic feeding of bars\r\nFixed/Adjustable size turret assembly\r\nDesigned to handle soft bar\r\nSoap moves on belts with the pusher to avoid any scratch mark.\r\nDouble spool arrangement for wrapper to save change over time of paper roll to increase the uptime of machine\r\nNo soap and no wrapper interlock through PLC\r\nAC variable speed drive unit\r\nDouble chain for overhead infeed conveyor\r\nDouble chain for overhead discharge conveyor\r\nSpeed of machine directly proportional to soap feeding\r\nStop-start mechanism with Geneva Drive for auto feeder belt conveyor\r\nCollator unit for easy collection of packed bars\r\nTwo sided heaters and cooling unit provide better sealability\r\nDouble corrugation rollers\r\nDifferent cut length for paper stiffener lengths can be made at a cut off unit quickly.\r\nSeparate temperature controller for topside heaters and rear heater.\r\nInfeed queue pressure release mechanism while transferring the soap from infeed belt conveyor to prevent dent marks\r\nCentralized lubrication system\r\nPrint control system with worm and worm wheel mechanism\r\nCooling unit for the electrical panel.\r\nPID temperature controllers.\r\nWrapper : Paper / Poly / Hot Melt Lamination Max Dia 450mm\r\nCore ID 70mm\r\nStiffener: Card paper / poly laminated\r\n\r\nSpecifications:\r\n\r\n\r\nLengthWidthHeight\r\n\r\nL min 35\r\nw min 30\r\nH min 8\r\n\r\n\r\nL max 180\r\nw max 65\r\nH Max 40\r\n\r\n\r\n
