Accelus Robotics Private Limited Jogeshwari, Mumbai, Maharashtra

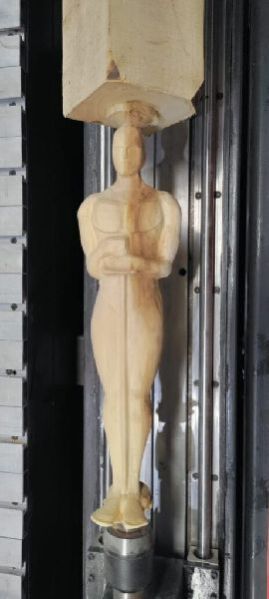

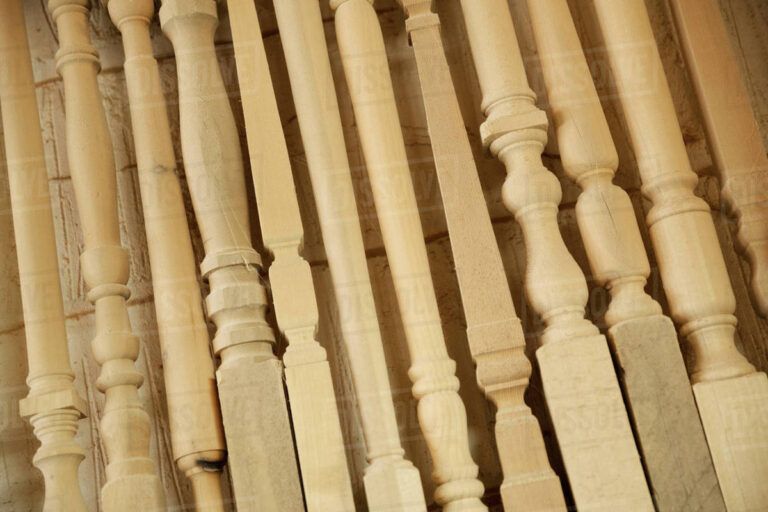

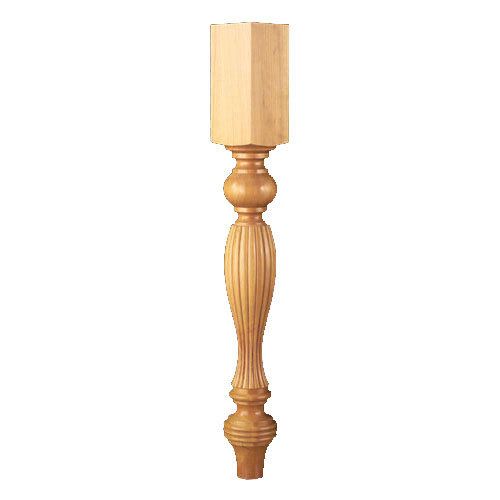

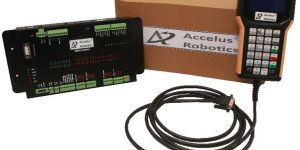

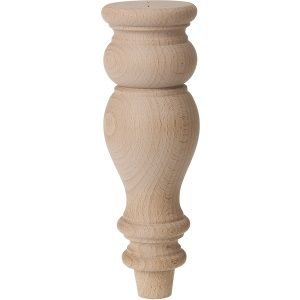

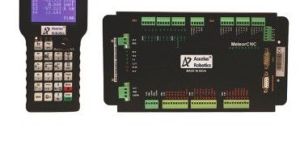

MeteorCNC 4T series is upto 4 axes woodworking lathe machine controller with handhandle running upto 500khz differential pulse & direction output for smooth operation with 24 Inputs, 12 Outputs, 1 Analog output and encoder facility available.   MeteorCNC 4T series is a 4 axes woodworking lathe machine controller comes with control card supporting 4 axis jitter free differential and direction output, 24 digital NPN inputs, 12 NPN outputs and 0-10v analog output. In addition with firmware and UI facility to work with Turning or Lathe machine.   4-axis CNC machines work like 4-axis machines with additional facility for turning jobs. 4T series very special as it can be used for Turning jobs as well as milling and engraving jobs. The 4th axis can be controlled as spindle in velocity mode OR rotary axis in position mode like 4H series. Generally 4th axis used is servo spindle motor with servo drive or vfd with PG card that can connect encoder from the servo spindle motor. The workpiece is immobile as the cutting tool removes material and shapes it. 4-axis machining adds a rotational axis to X, Y, and Z motions.   The X-axis rotation generates a fourth plane, the A-axis. The axis of rotation may be parallel or perpendicular to the tool tip. A conventional CNC lathe has two axes (X and z axis) and an 8- to 24-station turret, but 4T series provides additional 2 axis facility specially for wood turning lathe machines as well with 4 axis CNC router using servo spindle as 4th axis and Lathe V shape tool attachement on the machine making it operational as “Router with Lathe Machine” solving dual purpose for the user.   “Turning” refers to rotating a workpiece. Some CNC lathes are named CNC Turning Machines. CNC lathes manufacture circular forms with an OD and ID (ID).   4T : 4 axes woodworking lathe machine controller comes with inbuilt CAM generator using 2D cad file like .dxf, .plt etc. for the turning job and spiral jobs using 4 different modes of operation with simplified settings making user very comfortable for cutting critical shapes in the turning.   Specially used for pillar making for Cardle, heavy pillar jobs, rotary jobs, square jobs with facility to do Carving and engraving on each faces of the workpiece.   Features It is supporting the following modes of operation Lathe mode Spiral mode Mill mode Lathe & Spiral combine mode Lathe & Mill combine mode 4 –axis mode. Auto workpiece feeder facility. Inbuilt CAM generation for lathe & Spiral mode 2D Dxf file for lathe & Spiral mode. Supporting ISO Standards rs274d G-codes & M-codes.

Country of Origin : India

Automatic Grade : Automatic

Color : Black

Warranty : 1 Year

Brand : Accelus Robotics

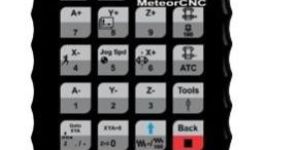

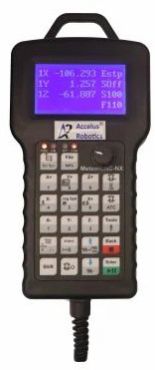

MeteorCNC 4H series is 4 axes CNC router controller manufacturer with handheld running upto 500khz differential pulse & direction output for smooth operation with 24 Inputs, 12 Outputs, 1 Analog output and encoder facility available.   MeteorCNC 4H series is a 4 axes CNC router controller operated with handheld provides up to 500khz jitter free differential pulse & direction output for smooth motion at the motor end. It comes with 4 axis control card and handheld and inbuilt MPG available with few extra inputs and outputs with additional facility of external high speed differential encoder input which can be used for either MPG remote for jogging of axis OR spindle encoder feedback for tapping cycle.   A 4-axes CNC machine functions much like its 3-axes counterpart. With addition of one extra rotational motion from the controller makes it very special for making critical works. The workpiece is in a stationary position, and the cutting tool works on it to remove material and mold the desired part. However, as the name indicates, 4-axis machining adds an axis of rotation to the standard X, Y, and Z movement. This extra movement is rotation along the X-axis, which forms a fourth plane the A-axis OR rotational along Y-axis. The rotation may be accomplished by moving the tool or the workpiece which is being machined, and the axis of rotation may be parallel to or perpendicular to the tool surface. The orientation of the axis of rotation determines how easy it is to machine certain features and undercuts on a given machine.   4 individual simultaneously running axis machine is majorly used in wood working / router machine industries for making statues, stone cutting/ engraving machine for pillar making etc.  making the job faster and easier for the users.   Features 4 individual running axis without compromising another axis. The file can be transferred by using USB as well as over the network via lan cable. Position of axis & line number will be store on power off. Providing a total of 9 work co-ordinate systems. Supporting ISO Standards rs274d G-codes & M-codes. Velocity & Acceleration management for each axis & overall path basis. Exteranl high speed differential encoder input for MPG or Spindle encoder for tapping.   Applications Statue making Stone cutting. Stone Pillar engraving. Rotary Carving.

Country of Origin : India

Type : Cnc Controller

Shape : Rectangular

Certification : CE Certified

Feature : Durable, Stable Performance

Voltage : 24Vdc

Condition : New

Power Source : Electric

Warranty : 1year

Brand Name : Accelus Robotics

After-Sales Service Provided : Yes

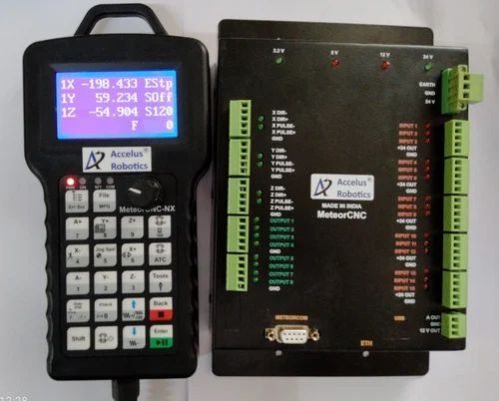

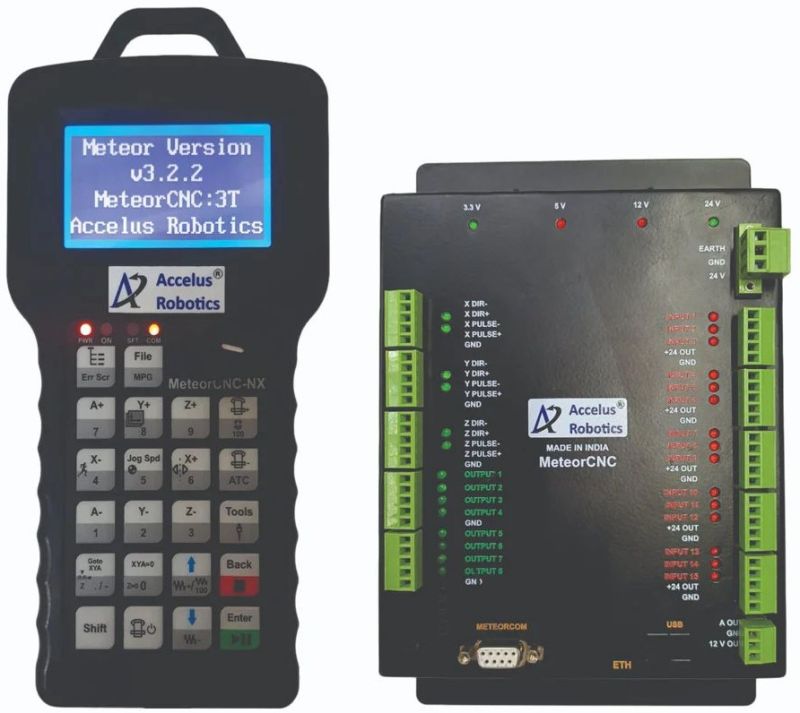

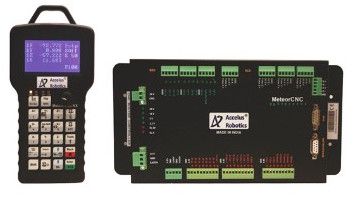

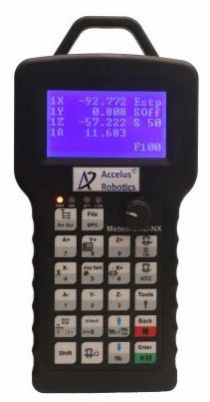

MeteorCNC 3H series is 3 axis CNC DSP Controller Manufacturer with handhandle running upto 500khz differential pulse & direction output for smooth operation with 15 Inputs,8 Outputs & 1 Analog output.   MeteorCNC 3M is 3 axis CNC controller comes with control card and operated with handheld with 128×64 graphics LCD,  Easy to learn and user-friendly UI comes with blue and white color combination which gives an appealing look to the user.   Easy to setup and configure any 3 axis CNC machine with inbuilt MPG that provides ease of operation for job setup. Setting backup option also available using pen drive and network connectivity facility for remote debugging and program transfer facility using lan cable with and option for handheld cables length upto 50 Mtrs as per user requirements.   The 3M series  Controller provides at up to 500 kHz jitter free differential pulse and direction output, making it ideal for smooth motion at the motor end and precision work. When the job at hand doesn’t call for a lot of depth or detail, a machine with only three axes will do just fine. That’s why it’s one of the most popular methods for making mechanical components for robotics and other forms of automation and specially for wood working market and interior industries.   You may also use it for boring, milling slots, tapping, and drilling holes in addition to cutting sharp edges.   Features The file can be transferred by using USB as well as over the network. Position of axis & line number will be store on power off. Providing a total of 9 work co-ordinate systems. Supporting ISO Standards rs274d G codes & M codes. Velocity & Acceleration management for each axis & overall path basis. Inbuilt  MPG is available on handhandle.   Applications Metal Engraving Wood Carving. Stone cutting. Die making.

Country of Origin : India

Type : Cnc Controller

Shape : Rectangular

Feature : Stable Performance

Voltage : 24Vdc

Condition : New

Power Source : Electric

Warranty : 1year

Brand Name : Accelus Robotics

After-Sales Service Provided : Yes

Brand Name : Accelus Robotics

Operating System : Ubuntu, Window 10

Color : Black

Condition : New

Feature : Fast Processor, High Speed, Low Consumption, Stable Performance

Screen Size : 18inch

Type : Industrial Panel Computers

Resolution : 1920x1080

Warranty : 1year

Country of Origin : India

Processor : Dual Core, I3, I5, I7

Connectivity : Wifi, Wireless

Features Fanless Intel Quad-Core J1900 core 2GHz True flat screen with aluminum bezel High resolution LCD with LED Backlight Flat panel with projected capacitive touchscreen Front panel compliant with IP65 Ruggedized read-only Linux (Windows 7 Embedded or Windows 10 IOT options available) Dual gigabit LAN   An industrial panel PC is a computer designed for industrial use (the production of goods and services). Our IPCs come with SAW touch, which has been a favorite choice of touch technology, especially for touch monitors, ATMs, ticket machines, Industrial HMI, Retail/POS, hospitality, and public applications requiring long-term endurance. Industrial PCs are typically used for process control and/or data collection. In other circumstances, an industrial PC is merely utilized as a front-end to another control computer in a distributed processing environment. built to withstand the rigors of an industrial setting, making them resistant to damage from heat, cold, shock, and vibration. The usable temperature range is between -20 and 60 degrees Celsius. Panel PCs enable workers from factory managers to surgeons with an easier approach for obtaining data, analyzing conditions, and maximizing results as factories, hospitals, and other workplaces become increasingly linked and digital.    TFT Display with IP65 rating (only front side protection) and touch display with 7H-hard glass. Supports multi touch with gestures supports (depends on operating systems). One-layer tempered glass used in the SAW Touch sensor provides exceptional optical clarity and high-quality touch sensitivity; glass thickness may be adjusted to boost the touch screen’s resistance to impact and make it a vandal-proof option for industrial use. All IPCs comes with high quality Aluminum frames and metal body with shockproof coating. IPCs also supports multiple display ports  HDMI, VGA or Display port. We provide various sizes 10.1 inch (1280 x 800 pixels), 12.1 inch (1024 x 768 pixels), 15 inch (1024 x 768 pixels), 18.5 inch (1920 x 1080 pixels) and 21 inch (1920 x 1080 pixels) touch display in our Industrial panel computer with viewing angel 170°/170°.     We also provide fan-less PC with intel Celeron J1900 Quad core 2 GHz however there also option of i3, i5 and i7 with DDR4 ram it provides an excellent customer experience, and a long-lasting life expectancy for future development.    Networking Our IPCs come with dual gigabit Ethernet slots of RJ45. Wireless For wireless there is option to use IEEE 802.11ac mini-PCI Wi-Fi card or IEEE 802.11n USB Wi-Fi card, we do not provide Wi-Fi functionality on the motherboard. Our IPCs also comes with 2x serial ports.    3G/4G LTE modem we also provide connectivity with LTE modem is in a series of LTE category 4 modules adopting standard PCI Express® Mini Card form factor (Mini PCI-E). It is optimized specially for M2M and IoT applications, and delivers up to 150Mbps     Storage for storage IPCs support mSATA (Up to 550 MB/s Read, 520 MB/s Write) up to 1 TB storage, M.2 SSD (Up to 1100 MB/s Read, 950 MB/s Write) and 2x SATA 2.0    Power Works with 12V 3 pin power supply or 12V power adaptor. User has option if they want power button or not, All IPC with no power button are configured to AutoStart after plug DC supply    Operating system users have freedom to use any operating system like Microsoft Windows, Linux, BSD however we also provide  windows 10 IOT Enterprise OS with license.

Country of Origin : India

Type : Industrial Panel Computers

Color : Black

Feature : Fast Processor, Low Consumption, Stable Performance

Condition : New

Screen Size : 15 inch

Operating System : Ubuntu, Window 10

Warranty : 1year

Processor : Dual Core, I3, I5, I7, Intel Celeron Processor J1900 Quad Core 2 GHz

Brand Name : Accelus Robotics

Resolution : 1024x768

Features Fanless Intel Quad-Core J1900 core 2GHz True flat screen with aluminum bezel High resolution LCD with LED Backlight Flat panel with projected capacitive touchscreen Front panel compliant with IP65 Ruggedized read-only Linux (Windows 7 Embedded or Windows 10 IOT options available) Dual gigabit LAN   An industrial panel PC is a computer designed for industrial use (the production of goods and services). Our IPCs come with SAW touch, which has been a favorite choice of touch technology, especially for touch monitors, ATMs, ticket machines, Industrial HMI, Retail/POS, hospitality, and public applications requiring long-term endurance. Industrial PCs are typically used for process control and/or data collection. In other circumstances, an industrial PC is merely utilized as a front-end to another control computer in a distributed processing environment. built to withstand the rigors of an industrial setting, making them resistant to damage from heat, cold, shock, and vibration. The usable temperature range is between -20 and 60 degrees Celsius. Panel PCs enable workers from factory managers to surgeons with an easier approach for obtaining data, analyzing conditions, and maximizing results as factories, hospitals, and other workplaces become increasingly linked and digital.    TFT Display with IP65 rating (only front side protection) and touch display with 7H-hard glass. Supports multi touch with gestures supports (depends on operating systems). One-layer tempered glass used in the SAW Touch sensor provides exceptional optical clarity and high-quality touch sensitivity; glass thickness may be adjusted to boost the touch screen’s resistance to impact and make it a vandal-proof option for industrial use. All IPCs comes with high quality Aluminum frames and metal body with shockproof coating. IPCs also supports multiple display ports  HDMI, VGA or Display port. We provide various sizes 10.1 inch (1280 x 800 pixels), 12.1 inch (1024 x 768 pixels), 15 inch (1024 x 768 pixels), 18.5 inch (1920 x 1080 pixels) and 21 inch (1920 x 1080 pixels) touch display in our Industrial panel computer with viewing angel 170°/170°.     We also provide fan-less PC with intel Celeron J1900 Quad core 2 GHz however there also option of i3, i5 and i7 with DDR4 ram it provides an excellent customer experience, and a long-lasting life expectancy for future development.    Networking Our IPCs come with dual gigabit Ethernet slots of RJ45. Wireless For wireless there is option to use IEEE 802.11ac mini-PCI Wi-Fi card or IEEE 802.11n USB Wi-Fi card, we do not provide Wi-Fi functionality on the motherboard. Our IPCs also comes with 2x serial ports.    3G/4G LTE modem we also provide connectivity with LTE modem is in a series of LTE category 4 modules adopting standard PCI Express® Mini Card form factor (Mini PCI-E). It is optimized specially for M2M and IoT applications, and delivers up to 150Mbps     Storage for storage IPCs support mSATA (Up to 550 MB/s Read, 520 MB/s Write) up to 1 TB storage, M.2 SSD (Up to 1100 MB/s Read, 950 MB/s Write) and 2x SATA 2.0    Power Works with 12V 3 pin power supply or 12V power adaptor. User has option if they want power button or not, All IPC with no power button are configured to AutoStart after plug DC supply    Operating system users have freedom to use any operating system like Microsoft Windows, Linux, BSD however we also provide  windows 10 IOT Enterprise OS with license.

Processor : Intel Celeron Processor J1900 Quad Core 2 GHz

Brand Name : Accelus Robotics

Features Fanless Intel Quad-Core J1900 core 2GHz True flat screen with aluminum bezel High resolution LCD with LED Backlight Flat panel with projected capacitive touchscreen Front panel compliant with IP65 Ruggedized read-only Linux (Windows 7 Embedded or Windows 10 IOT options available) Dual gigabit LAN   An industrial panel PC is a computer designed for industrial use (the production of goods and services). Our IPCs come with SAW touch, which has been a favorite choice of touch technology, especially for touch monitors, ATMs, ticket machines, Industrial HMI, Retail/POS, hospitality, and public applications requiring long-term endurance. Industrial PCs are typically used for process control and/or data collection. In other circumstances, an industrial PC is merely utilized as a front-end to another control computer in a distributed processing environment. built to withstand the rigors of an industrial setting, making them resistant to damage from heat, cold, shock, and vibration. The usable temperature range is between -20 and 60 degrees Celsius. Panel PCs enable workers from factory managers to surgeons with an easier approach for obtaining data, analyzing conditions, and maximizing results as factories, hospitals, and other workplaces become increasingly linked and digital.    TFT Display with IP65 rating (only front side protection) and touch display with 7H-hard glass. Supports multi touch with gestures supports (depends on operating systems). One-layer tempered glass used in the SAW Touch sensor provides exceptional optical clarity and high-quality touch sensitivity; glass thickness may be adjusted to boost the touch screen’s resistance to impact and make it a vandal-proof option for industrial use. All IPCs comes with high quality Aluminum frames and metal body with shockproof coating. IPCs also supports multiple display ports  HDMI, VGA or Display port. We provide various sizes 10.1 inch (1280 x 800 pixels), 12.1 inch (1024 x 768 pixels), 15 inch (1024 x 768 pixels), 18.5 inch (1920 x 1080 pixels) and 21 inch (1920 x 1080 pixels) touch display in our Industrial panel computer with viewing angel 170°/170°.     We also provide fan-less PC with intel Celeron J1900 Quad core 2 GHz however there also option of i3, i5 and i7 with DDR4 ram it provides an excellent customer experience, and a long-lasting life expectancy for future development.    Networking Our IPCs come with dual gigabit Ethernet slots of RJ45. Wireless For wireless there is option to use IEEE 802.11ac mini-PCI Wi-Fi card or IEEE 802.11n USB Wi-Fi card, we do not provide Wi-Fi functionality on the motherboard. Our IPCs also comes with 2x serial ports.    3G/4G LTE modem we also provide connectivity with LTE modem is in a series of LTE category 4 modules adopting standard PCI Express® Mini Card form factor (Mini PCI-E). It is optimized specially for M2M and IoT applications, and delivers up to 150Mbps     Storage for storage IPCs support mSATA (Up to 550 MB/s Read, 520 MB/s Write) up to 1 TB storage, M.2 SSD (Up to 1100 MB/s Read, 950 MB/s Write) and 2x SATA 2.0    Power Works with 12V 3 pin power supply or 12V power adaptor. User has option if they want power button or not, All IPC with no power button are configured to AutoStart after plug DC supply    Operating system users have freedom to use any operating system like Microsoft Windows, Linux, BSD however we also provide  windows 10 IOT Enterprise OS with license.

Country of Origin : India

Type : Industrial Panel Computers

Color : Black, Blue, Silver

Feature : Durable, Fast Processor, Low Consumption, Stable Performance

Condition : New

Screen Size : 10.1 inch

Operating System : Ubuntu, Window 10, Window 7

Warranty : 1year

Processor : Dual Core, I3, I5, I7, Intel Celeron Processor J1900 Quad Core 2 GHz

Brand Name : Accelus Robotics

FloydCNC 4F series is 4 axes CNC controller running with Floyd Software running with 6Mhz differential pulse & direction output for smooth operation. It is using 2D DXF or Plt files. FloydCNC converts this .dxf or .plt file to GCode internally & it will run the machine accordingly.     MeteorCNC 4F is a 4-axis CNC controller operated with pc based user interface called “Floyd” software. 4F series controller comes with 4 axis individual  jitter free differential pulse and direction, 24 digital NPN inputs, 12 digital NPN outputs, 0-10v analog output for the spindle, high speed external  encoder input and software license.   “Floyd” software can be installed in any windows 7  or windows 10 computer or Laptop with minimum specifications of the PC like 2Gb/4Gb RAM, 32GB SSD or HDD inbuilt graphics care also sufficient to run the software with 3D display. Software running inside computer communicates with control card over the lan cable. User interface has facility for inbuilt CAM generation using 2D .dxf or .plt files. Auto Centering facility provides additional ease to user to setup the job and finding the center in both X and Y direction using graphical interface.  3D view provides wire mesh interpretation of the toolpath where user can zoom in, zoom out, rotate, pan etc to view job going to go for cutting or engraving.  However, as the name indicates, 4-axis machining adds an axis of rotation to the standard X, Y, and Z movement. This extra movement is rotation along the X-axis or Y axis, which forms a fourth plane. The rotation may be accomplished by moving the tool or the workpiece which is being machined, and the axis of rotation may be parallel to or perpendicular to the tool surface.   Software also provides machine boundaries for ease of user operation and ware the user if any movement is going to violate the machine boundaries prior to the job start which helps user for unnecessary damage in tool or workpiece and saving lots of user time making him productive in the work.   Best suitable for die and mold making machine, laser machines, plasma cutting machine, multi side wood drilling and slot application etc.   Software Features Inbuilt CAM generation using 2D cad file like .dxf, .plt etc, 3D wire mesh path simulation. Ability to run large G-Code files with millions of lines. Rs274D ISO Gcode Supported. Advance lookahead algorithm for high feed rate control. Auto Centering user interface.

Country of Origin : India

Type : Cnc Controller

Shape : Pc based

Feature : Durable, Stable Performance

Voltage : 220V, 24Vdc

Condition : New

Power Source : Electric

Warranty : 1year

Brand Name : Accelus Robotics

After-Sales Service Provided : Yes

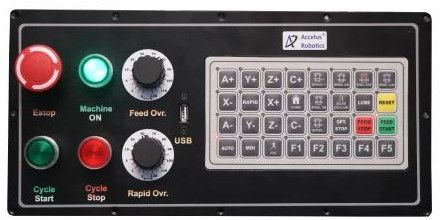

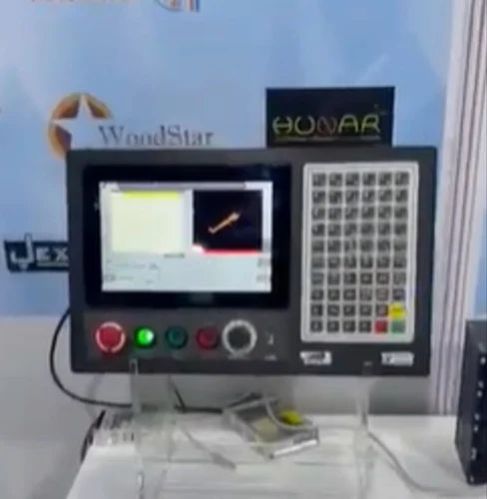

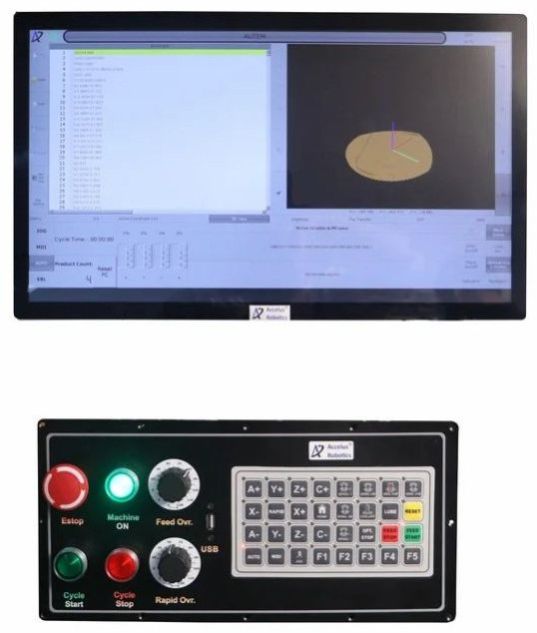

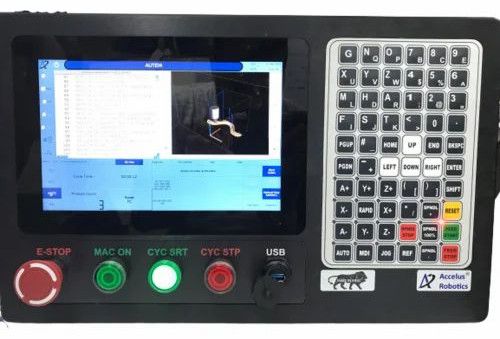

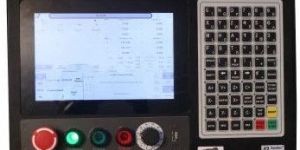

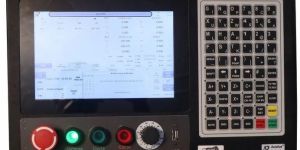

Autemx4 is PC based Linux system with a simplified & easy touch screen user interface with EtherCAT bus AND/OR high-speed pulse & direction output with high-speed encoder feedback.   AutemX4 is a 3 axis / 4 axis standalone CNC Controller with 10.1″ multi touch screen, machine operating panel, keypad for the value entry. It support EtherCAT as well as high speed up to 6Mhz differential pulse and direction outputs and high speed encoder feedback inputs for each axis making it close loop controller. Autem controller comes with inbuilt software PLC which can be programmed by the user configuring additional inputs and outputs using ladder programming as per user requirements. Panel mounting method for the controller give appealing look when user with heavy machines.   Touch user interface is designed with keeping in mind of operators perspective of operating the machine providing various software tools ease of work. JOG, MDI, AUTO modes with switching interface as per mode selected, 3D wire mesh toolpath simulation helps operator to see the actual job prior to start cutting and gives alarm if any machine movement is going to violate the machine boundaries. Self guided user interface helps user to setup any job easily with calculating the edge based as well as center based machine zero and job zero. MOP keypad provides various buttons for jogging individual axis and feer override switch provides control over the speed of the all axes while staring the job or in between running machine.   User space is available as per requirements in GBs which helps to store large number of programs. Drag and drop feature for file transfer over USB disks, diagnostic view helps operator debug various alarms and status of the machine. Controller supports various compensation methods to overcome the minor mechanical errors like backlash compensation, bi directional pitch error compensation using laser calibration providing accuracy in microns at the machine level.   Best suitable for VMC, HMC,  Turning Centers, Metal Engraving, Pattern-making machines, Stone cutting machine etc.   Features Expandable IO supported. Remote IO cards with 48 inputs, 32 outputs & high-speed quadrature encoder interface for spindle & secondary axes encoder. Power Outage Safety & No moving parts. User-programmable PLC with easy-to-use ladder paradigm for OEM settings. Timers & high-speed counters for encoder interface. ISO standard (rs274D)G-codes & M-codes supported. 2.5D onboard CAM for dxf ,plt & HPGL Programmable base coordinate offsets

Country of Origin : India

Type : Cnc Controller

Shape : Rectangular

Voltage : 12vdc And 24vdc

Condition : New

Power Source : Electric

Warranty : 1year

Brand Name : Accelus Robotics

After-Sales Service Provided : Yes
