AG. Electronics Dahisar, Mumbai, Maharashtra

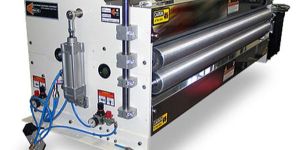

APPLICATIONS1. AG. Roll to Roll TREATMENT SYSTEMS2. AG. TREATMENT SYSTEMS FOR LAMINATION 3. AG. TREATMENT SYSTEMS FOR FLEXO PRINTING.AG. TREATMENT SYSTEM FOR BOPP COATING   AG. CORONA TREATMENT SYSTEM FOR ROLL TO ROLL OPTIONAL FEATURES : 1. Pneumatic operated treater station using filtered air from 60-120 p.s.i. Cylinders are controlled by manual or electronic air valve with switch. 2. Ozon extraction system efficiently remove ozone and to cool the electrode. This reduces warping of the electrode and provides more consistent treatment across the web. Increase the life of silicone sleeve. To protect the operator from excess ozone gas. 3. Aluminium frame featuring stainless steel enclosure Station. 4. In order to protect the treater rolls, zero speed switch automatically shuts down the output power , when the web reaches slow speed less than set speed. 5.Stainless steel segmented electrode 6. Bare Roller System. 7.Easy view windows allow clear unobstructed view of corona discharge.  Technical Specifications * Treat width capacity :4 " to 48" webs.* Treater roll :2"/ 3” /4” diameter.* Idler roll : 2"/ 3” diameter.* Maximum line speed : 15 to120 meter per minute.* Treat capability : One or two sides.* Mains supply : 440V,AC ± 5 %,1 Ø.* Mains frequency : 50 Hz ± 5 %.* Output frequency : 15 to 25 Khz.* App. output power : 3/5/10 KW.* Electrodes: Multisegment / Multiblade.

Static charge eliminator are available depends upon the width the of the materials and variety of the materials. Power of this machine like 1 kw to 10 kw models are available, Width upto 3 meters models available. This is useful for Cap seal materials (Wads, toffee, chocolate, food packagings etc..)

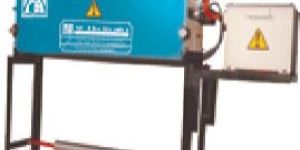

AG. Electronics'  new and improved Split Box station opens horizontally allowing easy thread-up, quick installation, comfortable to operate and simple maintenance... maximizing productivity for BLOWN FILM EXTRUDERS, BOPP, WOVEN SACKS, PAPER COATING PLANT, LAMINATION, AND FLEXO PRINTING MACHINE ETC...                AG. WIDE WEB WIDTH Advanced IGBT Technology Aluminium Split box type station assembly for light weight and low corrosion Pneumatic operated Treater station. Ozone  extraction system efficiently remove ozone and to cool the  electrode. This reduces warping of the electrode and provides more consistent treatment across the web and increase the life of Silicone Sleeve. It protects the operator health from ozone gas. SALIENT FEATURES* Digital indication of corona current. * Plug/socket connections to electrodes. * Continuous heavy duty rating at even maximum operation. * Force cooled converter for longer life. * Multisegmented electrode facility for adjusting any width of the film. * Treatment Rolls with Silicon Sleeves. * Smooth To & Fro micrometric air gap adjustment facility. * High voltage side insulator on station for high voltage cable    entry to avoid short circuit problem. * Fully enclosed treater station. * Audio/Visual Alarm Facility. * Station interlock switches prevent operation when station is in thread-up position. * 3 OR 4 Inch Dia. Silicon roller for silicon reliability and treatment reliability. OPTIONAL FEATURESPneumatic operated treater station using filtered air from 60-120 p.s.i. Cylinders are controlled by electronic air valve with switch/manual valve.*  Aluminium frame featuring stainless steel enclosure.*  Stainless steel segmented electrode.*  Bare Roller System.*  Easy view windows allow clear unobstructed view of corona discharge.    Treat width capacity : 1 meters to 3 meters. Treater roll : 3” /4” diameter Idler roll : 3” diameter Maximum line speed : 80 to 120 meters per minute Treat capability : One or two sides Mains supply : 440 V,AC ± 5 %,3 Ø Mains frequency : 50 Hz ± 5 % Output frequency : 15 to 40 Khz App. output power : 3 / 5 / 10 Kw Electrode : Multisegment / Multiblade / Die-Electric Protection: over current/over voltage in microsecond tripping with fuse and MCB.  BENEFITS Easy to install.Accurate output power.Small, compact and economical design.Low maintenance.User friendly.Maximum operator safety. Full range of sizes from .5 Kw to 10kw

This is polymetal corona treater, the metalised polyester, aluminium foil, Laminated / non-laminated conductive or non conductive material, that we can treat. Reverse polarity of the electrode, the design of the structure may comfortable to treat the conductive materials..The various models are available depends upon the width the of the materials and variety of the materials. Power of this machine like 1 kw to 10 kw models are available,  Width upto 3 meters models available. This is useful for Cap seal materials (Wads, toffee, chocolate, food packagings etc..) Assembly :Plug / Socket connections to electrodes.Force cooled connector for longer life.Multisegmented electrode facility for adjusting any width of the film.Treatment Rolls with Silicon Sleeves.Smooth To & Fro micrometric air gap adjustment facility.High voltage side insulator on station for high voltage cable entry to avoid short circuit problem.Fully enclosed treater. OPTIONAL FEATURES :1. Pneumatic operated treater station using filtered air from 60-120 p.s.i. Cylinders are controlled by manual or electronic air valve with switch.2. Ozon extraction system efficiently remove ozone and to cool the electrode. This reduces warping of the electrode and provides more consistent treatment across the web. increase the life of silicone sleeve. To protect the operator from excess ozone gas.3. Aluminium frame featuring stainless steel enclosure station.4. In order to protect the treater rolls, zero speed switch automatically shuts down the output power, when the web reaches slow speed less than set speed.5. Stainless steel segmented electrode.6. Bare Roller system.7. Easy view windows allow clear unobstructed view of corona discharge.

Corona treatment equipment the design of the structure may comfortable to treat the conductive materials.The various models are available depends upon the width the of the materials and variety of the materials.

Corona treater are available depends upon the width the of the materials and variety of the materials. Power of this machine like 1 kw to 10 kw models are available, Width upto 3 meters models available.

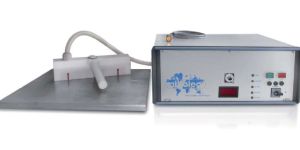

Corona generator a result excellent bonding of inks takes place. On untreated Plastic and paper, inks adhere on the surface by means of mechanical friction & are easily released by rubbing or adhesive Tape test.

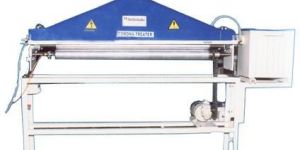

AG Single bag to bag SHEET TREATMENT system to treat the non continues sheet/bags/woven sacks for FLEXO-OFFSET-SCREEN-LAMINATION-COATING manual machines. Materials like, self locking bag, Metalised laminated cardboard, pvc, polyester sheet, hm/ld/ sheet, woven sack bags (laminated / unlaminated, reverse bags, paper, conductive / nonconductive dupblex etc.CORONA TREATMENT increase the Surface bonding strength by creating Polar molecule on the surface. As a result excellent bonding of inks takes place. On untreated Plastic and paper, inks adhere on the surface by means of mechanical friction & are easily released by rubbing or adhesive Tape test. It needs the Surface tension to the surface more than (10dynes/cm) the surface tension of the printing inks/adhesives, etc... for bonding, coating, printing etc.. SALIENT FEATURES* Zero speed switch. Zero speed cut-off system, whenever silicon roller / motor speed comes down machine will automatically shut down, hence prevents the damage of silicon roller and increase the life of machine.* DC with motor with panel for Speed variation.* Audio-Visual alarm system* Ultra High Frequency* Compact design for comfortable to installation / operate / Quality* Soft Start.* Maximum Operator safety.* Treatment Roll with Silicon Sleeves.* High voltage side insulator on station for high voltage cable entry to avoid    short circuit problem.* Digital indication of corona current.* Force cooled converter for longer life.* Fully enclosed treater station.    Technical Specifications* Treat width capacity : 4" to 48 webs, Treater roll : 2"/3"* Idler roll : 2" / 3" diameter* Maximum line speed : 6 to 60 meter per minute.* Treat capability : One side* Mains supply : 230 V/440 V, AC ± 5 %, 1 Ø.* Mains frequency : 50 Hz ± 5 %* Output frequency : 15 to 25 Khz.* App. output power : 1/15/2 Kw.* Electrodes : INSULATED ROLL ELECTRODE
