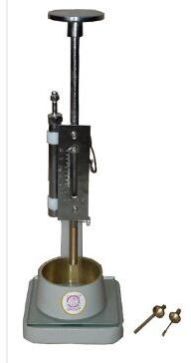

Vicat needle apparatus, Consist of a metallic frame bearing a movable rod with cap at one end and a AIC-VMLD-8070. VICAT MOULDS having 80±5mm Dia at the base 70±5mm Dia at the top and 40±0.2mm high and with a glass base plate, consistency plunger, initial and final setting needles in a nice plastic case. Complete with dashpot to facilitate the gentle lowering of the needle.
Vicat needle apparatus, Consist of a metallic frame bearing a movable rod with cap at one end and a AIC-VMLD-8070. VICAT MOULDS having 80±5mm Dia at the base 70±5mm Dia at the top and 40±0.2mm high and with a glass base plate, consistency plunger, initial and final setting needles in a nice plastic case. Complete with dashpot to facilitate the gentle lowering of the needle.
SLUMP TEST APPARATUS.
Complete with Slump Cone having 100mm Dia Top x 200mm Dia Bottom x 300mm Height, octagonal shaped Base Plate with Swivel handle and Bakelite Bolt-knobs & 'L' Shape steel clamps and Tamping Rod of 16mm Dia x 60mm Long with 0-30cm Graduation.
SLUMP TEST APPARATUS.
Complete with Slump Cone having 100mm Dia Top x 200mm Dia Bottom x 300mm Height, octagonal shaped Base Plate with Swivel handle and Bakelite Bolt-knobs & 'L' Shape steel clamps and Tamping Rod of 16mm Dia x 60mm Long with 0-30cm Graduation.

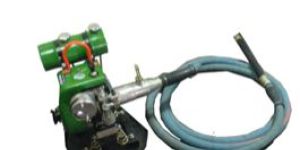

Needle vibrator, The Laboratory Needle Vibrator is used in vibrating concrete test cylinders and beams in the field or lab. It is also widely used in making laboratory specimen in making concrete products, in experimental works and in small scale construction projects. Without Shaft & Needle.
Needle vibrator, The Laboratory Needle Vibrator is used in vibrating concrete test cylinders and beams in the field or lab. It is also widely used in making laboratory specimen in making concrete products, in experimental works and in small scale construction projects. Without Shaft & Needle.
Lab testing equipment, image
J Ring consists of a base 915x915mm, one cone of 200mm bottom dia 100mm top dia and 300mm height. Complete with J Ring of 300mm Dia with 16nos. plain rods of 16mm Dia.
Lab testing equipment, image
J Ring consists of a base 915x915mm, one cone of 200mm bottom dia 100mm top dia and 300mm height. Complete with J Ring of 300mm Dia with 16nos. plain rods of 16mm Dia.
Engineering instruments, These Buoyancy Balances useful to find out specific gravity, apparent specific gravity and water absorption of aggregate and density of hardened concrete. Consists of an iron angle frame covered of M.S. sheets and front door made from see through acrylic sheet. An Electronic Table Top Balance with having an arrangement to suspend Density Basket or Concrete Cube. A watertight container is provided on a mechanical pedestal jack arrangement, which is fixed inside the frame.
Engineering instruments, These Buoyancy Balances useful to find out specific gravity, apparent specific gravity and water absorption of aggregate and density of hardened concrete. Consists of an iron angle frame covered of M.S. sheets and front door made from see through acrylic sheet. An Electronic Table Top Balance with having an arrangement to suspend Density Basket or Concrete Cube. A watertight container is provided on a mechanical pedestal jack arrangement, which is fixed inside the frame.
Ductility testing machine, Used for determining the ductility of asphalted bitumen and fluxed native asphalt cutback bitumen and blown type bitumen.
The apparatus consists of a Water Bath having inner chamber made of Aluminium and fitted with heater and a circulating pump to maintain uniform temperature. Temperature is controlled by a Thermostat Digital Temperature controller cum Indicator.
Ductility testing machine, Used for determining the ductility of asphalted bitumen and fluxed native asphalt cutback bitumen and blown type bitumen.
The apparatus consists of a Water Bath having inner chamber made of Aluminium and fitted with heater and a circulating pump to maintain uniform temperature. Temperature is controlled by a Thermostat Digital Temperature controller cum Indicator.

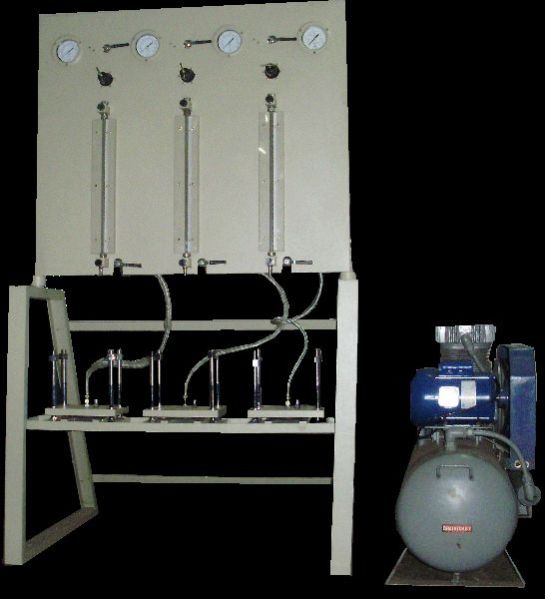

Concrete permeability apparatus, Permiability Cell : Consist of a metal cylinder with a ledge at the bottom for retaining the specimen, a flange at the top, removable cover plate and a funnel, a rubber or neoprene ring or gasket seated in matching grooves between the cell and the cover plate to render the joint water tight. Water Reservoir : Consist of a length of metal pipe, 50 to 100 mm in diameter and about 500mm long. The reservoir fitted with a graduated side arm gauge glass and the necessary fittings and valves for admitting water and compressed air and for drainage, bleeding and connection to the permeability cell.
Concrete permeability apparatus, Permiability Cell : Consist of a metal cylinder with a ledge at the bottom for retaining the specimen, a flange at the top, removable cover plate and a funnel, a rubber or neoprene ring or gasket seated in matching grooves between the cell and the cover plate to render the joint water tight. Water Reservoir : Consist of a length of metal pipe, 50 to 100 mm in diameter and about 500mm long. The reservoir fitted with a graduated side arm gauge glass and the necessary fittings and valves for admitting water and compressed air and for drainage, bleeding and connection to the permeability cell.
Country of Origin : India
Number Of Flower : Concrete Permeability Apparatus
Civil engineering equipment, For determination of compression strength of cement by testing concrete cylinders, cubes etc. * With Microprocessor Based Digital Load Indicator. (AIC-MDLI-D10).
* 0.01 KN Least Count.
* Direct calculated reading in Kgcm2 and Nmm2 and also load display in kN.
Civil engineering equipment, For determination of compression strength of cement by testing concrete cylinders, cubes etc. * With Microprocessor Based Digital Load Indicator. (AIC-MDLI-D10).
* 0.01 KN Least Count.
* Direct calculated reading in Kgcm2 and Nmm2 and also load display in kN.
Cement autoclave, The autoclave is suitable for conducting accelerated soundness test on cements or the autoclave expansion test requiring constant steam pressure with the correspondent constant pressure. It is consists of a stainless steel cylinder with a welded heat insulated voer, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing attractively finished. The attached control unit encloses sensitive pressure regulator and pressure gauge, Power switches and pilot lights for controlling the electric heating units.
Cement autoclave, The autoclave is suitable for conducting accelerated soundness test on cements or the autoclave expansion test requiring constant steam pressure with the correspondent constant pressure. It is consists of a stainless steel cylinder with a welded heat insulated voer, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing attractively finished. The attached control unit encloses sensitive pressure regulator and pressure gauge, Power switches and pilot lights for controlling the electric heating units.
Aggregate crushing value apparatus, As Per IS 9376 to 1979 & IS 2386 (Part IV)-1963. For measuring resistance of aggregates to crushing.
It is useful for 38" to 34" aggregate.
Consist of a 150mm +- 0.5mm Diameter x 130mm to 140mm High open ended steel cylinder with base plate of 200 to 230mm²x 6mm thick and a plunger of 148mm +- 0.5mm Dia x 100 to 111.5mm High.
Aggregate crushing value apparatus, As Per IS 9376 to 1979 & IS 2386 (Part IV)-1963. For measuring resistance of aggregates to crushing.
It is useful for 38" to 34" aggregate.
Consist of a 150mm +- 0.5mm Diameter x 130mm to 140mm High open ended steel cylinder with base plate of 200 to 230mm²x 6mm thick and a plunger of 148mm +- 0.5mm Dia x 100 to 111.5mm High.
