Akcelport Industries Deonar, Mumbai, Maharashtra

The test terminal blocks are used for easy access during on site testing of Ammeters, KWH Meters, Maximum Demand Indicators, Trivector Meters, Relays and Instrument Transformers without disconnecting from load and avoid CT open circuit problems. Connections for testing can be easily made. The Test Terminal Block therefore becomes an important element of the Metering Solution. The Test Terminals Blocks are designed for projection mounting with either front or back connection possibilities, designated with FC or BC. The Test Terminal Blocks are for 3 phase, 3 wire or 3 phase 4 wire application for up to 50 A continuous rating at 600 V.

We offer complete range of insulators, moulded out of high grade polyster reinforced resins (DMC and SMC). The Standoff insulators are made from DMC material, and are offered in different variants : Conical Type, Octagonal Type, Full Cylindrical Type, Cylindrical Type, Round-Hex Type. Drum Type (Taiwan model) Finger type and grip type insulators are also offered - made from standard SMC material.

We offer complete range of insulators, moulded out of high grade polyster reinforced resins (DMC and SMC). The Standoff insulators are made from DMC material, and are offered in different variants

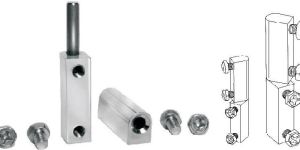

Panel Hinges (Lift off Type) are manufactured from extruded Brass rods duly polished and Nickel Chrome Plated, with stainless steel inserts and Philips-recessed hexagonal head screws duly zinc plated. We cover all the standard range dimensions in this product that is being incorporated by the panel board manufacturers worldwide and can also offer any customer required variations against request. Please note all our products in this category are RoHS Compliant.

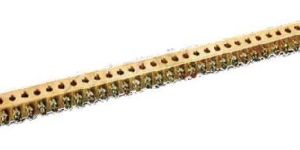

We offer standard brass neutral bars in sections of 7mm x 9mm, 8mm x 12mm, 19mm x 9.5mm, 12.7mm x 9.5mm having wide applications in distribution / panel boards. Both single screw per tunnel as well as double screws per tunnel can be made available as required from 6 ways, 12 ways, 18 ways, 24 ways, 30 ways, 36 ways, 42 ways, 48 ways, 60 ways upto 72 ways. We have listed some of the designs we manufacture in brass neutral bars. Other than these, we can also cater to any specific customer designs with respect to bolt hole, terminal holes, length and cross-section of brass neutral bars. The bars are generally with fine surface finish and standard MS screws duly zinc plated. The option of cheese head screws or Philips head screws are also available.

Features: Easy Installing Screw fitted to make instant connections Suitable for copper conductors Suitable for upto 2000 volts Features of CGB9x12-174: Cost effective and easy to install 174 connections possible Screw fitted to make instant connections Suitable for copper conductors Suitable for upto 600 volts

An easy and economical solution for switchgears, panels, switchboards, and transformers. Features: Material : Electrolytic Copper Finish : Natural / Tin Electroplated Length : Upto 2 meters Thickness : 1mm to 10mm Width : 10mm upto 200mm Variants : Solid Busbars, Punched Busbars, Threaded Busbars

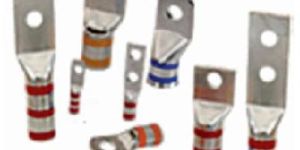

Manufactured from ETP copper Finish : Tin Electroplated Inspection hole available on request Bell Mouth Entry available on request The Default Configuration of any lug is considered to be : Without Inspection window, and Without Flared / Bell mouth entry. Please mention “I” after the product code for inspection hole and “B” for bell mouth / flared entry

Manufactured from high impact rigid polyvinyl chloride Non-flammable, non-corrosive and rust proof Will not peel, chip or crack High dielectric strength, high temperature withstanding capacity Side slots are designed to prevent popping up of wires Heavy and robust design of duct and cover for efficient and fast locking Colour : Standard colour is grey. Other colours - Black, White, Ivory, Green, Blue are available for bulk quantities. Standard available lengths : 1 meter, 2 meters
