Ameri-source Engineering India P Ltd Goregaon, Mumbai, Maharashtra

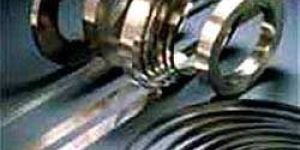

Following are the specifications of Stainless Steel Strips (Grade 430-420) Thickness Max: 1.50 mm Min: 0.01 mm Width Max: 450 mm Min: 2 mm Thickness Tolerances :- Tolerances Standard (+-mm) Precision (+-mm)

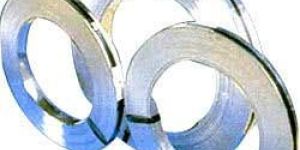

Following are the Specifications of Stainless Steel Strips (Grade 410) Thickness Max: 1.50 mm Min: 0.01 mm Width Max: 450 mm Min: 2 mm Thickness tolerances :- Tolerances Standard (+-mm) Precision (+-mm)

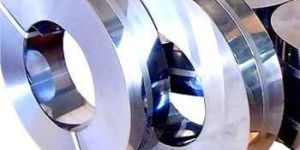

Following are the Specifications of Stainless Steel Strips (Grade 304316L321202201) Thickness Max: 1.50 mm Min: 0.01 mm Width Max: 450 mm Min: 2 mm Thickness Tolerances :- Tolerances Standard (+-mm) Precision (+-mm)

We are the most reckoned name in the market for the manufacturing of supreme quality Molded Graphite. Molded Graphite, offered by us, popular for its excellent resistivity of erosion and thermal properties. Molded Graphite, we are offering, used by many industries in the smelting process and electric arc furnaces. We made Molded Graphite in the various sizes as per the demand of client. For that, we have enlisted on the top among the existing Molded Graphite manufacturers and suppliers. Sizes Available :- Block :- 16" x 16" x 72"Rounds :- 24" diameter through 60" diameter x 16" long Applications :- Large diameter molds and cruciblesInduction and vacuum furnace partsHeat exchangers' chemical process equipmentFluidized bed reactors Typical Properties At Room Temperature :-   English AG Metric AG Density lbs/ft3 107 g/cm3 1.71 Average Particle Size (max) inches 0.07 mm 2.0 Specific Resistance (max) 10 4 in 3.35 µ m 8.5 Flexural Strength psi 2,160 Mpa 15 Comprehensive Strength psi 4,650 Mpa 32 CTE (to 100 deg. C) 10-6/deg F 1.3 10-6/deg C 2.5

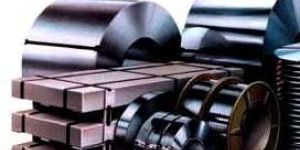

Following are the specifications of High Carbon Hardened & Tempered Steel Strips Width 6 mm to 500 mm Thickness 0.10 mm to 3.5 mm Finish Bright blue bronze and grey Edges Sheared, round and square edge Flatness Maximum 0.025 mm in 25.4 mm width Grades High medium carbon and alloy steel Camber Maximum deviation +- 0.05 mm per 1000 mm length Cut Length Max length 3000 mm + 2 mm - Nil, Minimum length 500 mm + 2 mm - Nil Coil Weight Maximum 4.00 Kgmm strip width Packing The strips are normally packaged with light coat of V.C.I. oil followed wrapping with thick polythene film and finally with polythene lined Hessian strips. These are further covered with sea worthy G.I. sheets and strapped on metallic pallets in case of exports.

Following are the specifications of High Carbon Annealed Steel Strips Width 6 mm to 600 mm Thickness 0.2 mm to 4.5 mm Finish Bright and Matt Flatness When a five-meter length of the strip is allowed to lay on a flat surface no part of the strip shall lift more than five mm from the flat surface by its own weight. Grades High Carbon, Medium Carbon, Low Carbon and alloy steel Camber Maximum tolerance on edge camber in any 2000 mm length: 10 mm Coil Form In Slit width or Mill width Cut Length Minimum 1 Kgmm strip width, Maximum 8 KMmm strip width Coil Weight Max length 3000 mm + 2 mm - Nil, Minimum length 500 mm + 2 mm - Nil Coil Dimensions Coil I.D. can be offered with 300 mm, 400 mm & 500 mm. Packing The cold rolled strips are packed with light coat of V.C.I. oil followed by wrapping with this polythene film and finally with Polythene lined Hessian strips. These are further covered with sea worthy G.I. sheets and strapped on metallic pallets in case of exports.

We are one of the most trusted Graphite Electrodes Exporter and Supplier in the worldwide markets. We offer them in various grades as per the requirement of customer. Continuous development in Electric Arc Furnaces & Ladle Technology has led to the need of Graphite Electrodes of very stringent quality. Emergence of DRI, HBI, Sponge Iron as potential source of raw material as against steel scrap revolutionized Electric Steel Making Industry, Higher Capacities of Electric Arc Furnace with bigger size, UHP Electrodes are common requirements of Electric Steel Industry. The emphasis is on better consumption norms & least electro mechanical problems.CEL keeps abreast of technological developments in EAF's at its customers end in order to carry on R&D efforts to meet their ever-changing and or their demanding requirements. Features :- High strengthHigh densityElectrical conductivityLightweightDimensional accuracy Applications :- Electric Arc Furnace, Plasma FurnaceDescription of Extruded Graphite Click Here For More Information Specifications :- Regular Power (RP) Grade Graphite Electrodes Typical Physical Properties (Grade: CH): Bulk Density g/cm3 >1.65 Specific Resistance µ m >7.0 Flexural Strength Mpa (min) >10 Young's Modulus Gpa (max) >14 Ash Content (max) % >0.2 CTE x10-6/Deg.C >1.9 Current Carrying Case (Grade:RP) :- Nominal Diameter (MM) Current Carrying Capacity (AMPS) 150 3500-6000 175 4600-7800 200 5500-9100 225 7000-11200 250 8000-13200 300 11500-18500 350 15100-25000 400 18500-30000 450 23000-36000 500 26000-40000 550 30000-50000

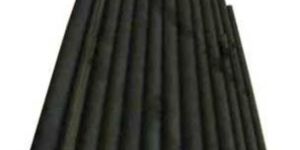

Extruded Graphite Rods are manufactured with the supreme quality of graphite. Extruded Graphite Rods, offered by us, are widely used by industries for multiple applications in grounding rods, electrodes & anodes, and are appreciated for excellent erosion resistance and thermal properties. Due to the multiple applications of these Extruded Graphite Rods, we made them in variant of sizes. For the supplying of most satisfactory services, we have taken a lead in between the leading Extruded Graphite Rods Suppliers. Sizes :- 2" Rods3" Rods4" Rods5" x + 60" Rods Applications :- Grounding rodsElectrodes & anodesErosion resistanceThermal properties

We are the prime manufacturer and exporter of Extruded Graphite, which is famous for its supreme quality. We manufacture Extruded Graphite and other Extruded Graphite products like EAF, graphite paste, insulating blocks etc. Extruded Graphite, we are offering, accredited for its high density, efficient mechanical properties and various applications. For the satisfactory catering services, we offer Extruded Graphite as per the specific demand of client. Range :- Grade AS-CX Extruded GraphiteHigh density and good mechanical propertiesCZ silicon Crystal growth partsInduction and vacuum furnace partsElectrolytic anodes and cathodesQuartz processing Features :- Supreme qualityHigh densityEfficient mechanical properties

Doctor Blades are the prime manufacturing product of AMERI-SOURCE ENGINEERING INDIA P. LTD. Doctor Blades, we are offering, made up of supreme raw material. Doctor Blades are mainly used in Roto Gravure Machines, Flexography Machines and to remove the excess ink from smooth portions of the image carrier. Doctor Blades, offered by us, have anti-breaking ability and sharp cutting edge. These are widely demanded by the industries like printing industry, etc, for various applications. We avail these Doctor Blades in various sizes and also customize them as per the specifications of clients. Sizes :- 0.15 mm0.2 mm Applications :- Roto Gravure MachinesFlexography MachinesTo remove the excess ink from smooth

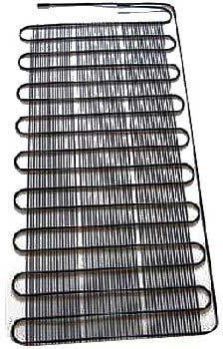

We are engaged in the supplying of Copper Coated Tubular Steel Tubes, which are also known as Bundy Tubes. We are offering a wide range of Copper Coated Tubular Steel Tubes, which is manufactured as per the national standard GB11258-89, American standard ASTM 254-84 and SAE-1527. These Copper Coated Tubular Steel Tubes are widely used in refrigeration and automobile industries for pressure piping such as condensers, evaporators, brake lines for oil pipelines, and combustion lines for gas pipelines. For all that, we are supplying against the consistent demand. Quality Standards: · National Standard GB11258-89 · American Standard ASTM 254-84 · SAE-1527 Used In: · Refrigeration Industries · Automobile Industries for pressure piping · Condensers · Evaporators · Brake lines for oil pipelines · Combustion lines for gas pipelines
