Amocon Enterprise Masjid Bunder, Mumbai, Maharashtra

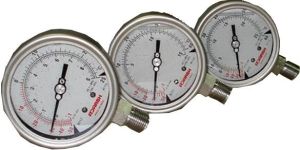

We are offering compressor gauges. • suction gauge : -1 to 12 bar or -1 to 15 bar • oil gauge : -1 to 9 bar or 12 bar • discharge gauge : -1 to 25 bar or -1 to 30 bar

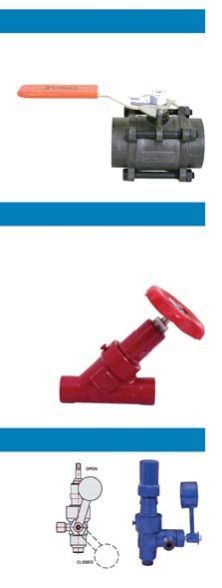

We are offering ball valves - dn 15 to dn-125 (12" to 5") application petroleum, petrochemical, chemical, refrigeration, airconditioning and engineering industries. Valves are compatible with ammonia, cfc, hcfc, oil, air, chemicals, gas, acids, alkalies etc. Amongst many other media. Installation the three piece design makes the series c-44 valves the most easily maintainable valves in its type. By removing three body connetor bolts and loosening the fourth, the body can be swung away using the fourth bolts as a fulcrum, to carry out any maintanance on the valve. This feature allows the valve to be online and considerably reduces down time. Swp : 40 bar temp : -46+125°c

We are offering shut off valves. Csva butt weld dn 15 to dn 200 technical data introduction refrigerants applicable to all common non flammable refrigerants including r717 and non corrosive gases liquids dependent on sealing material compatability. For further information please see installation instruction for csva temperature range standard version : - 46+150°c pressure range the valves are designed for max. Working pressure 40 bar (580 psig).

We are offering shut off valves, type csva-av,csva-st introduction cfia filters are a range of angle-way and straight-way filters which are carefully designed to give favourable flow conditions. The design makes the filter easy to install, and ensures quick filter inspection and cleaning. Cfia filters are used ahead of automatic controls, pumps,compressors etc. For initial plant start-up and where permanent filtration of the refrigerant is required. The filter reduces the risk of undesirable system breakdowns and reduces wear and tear on plant components. Cfia filters are equipped with a screen mesh of stainless steel, available in sizes 100, 150, 250 and 500µ (microns*), (us 150, 100, 72, 38 mesh*). Design connections available with the following connections: butt-weld ansi (b 36.10 schedule 80), dn 15 - 40 (12 - 112 in.) butt-weld ansi (b 36.10 schedule 40), dn 50 - 200 (2 - 8 in.) socket weld (ansi b 16.11), dn 15 - dn 40 (½ -1.½ in.) filter insert a filter grid and filter net of stainless steel ensure long element life. The filter net offers a very high degree of cleanability.

We are offering liquid level indicator. Application : these level indicators are used to display the level of ammonia gas in the system. Material of construction : valves are made of steel with a ball for protection incase of failure. The glass is fused to the metal at high temperatures.

We are offering regulating valves. Creg are angle-way and straight-way regulating valves, which act as normal stop valves in closed position. The valves are designed to meet the strict quality requirements on refrigerating installations and are carefully designed to present favourable flow conditions and accurate linear characteristics. creg are equipped with internal backseating enabling the spindle seal to be replaced with the valve still under pressure. Features applicable to all common non flammable refrigerants including r 717 and non corrosive gases liquids dependent to sealing material compatibility designed to ensure perfect regulation internal backseating enables replacement of the spindle seal whilst the valve is active, i.e. under pressure easy to disassemble for inspection and possible repair max. Operating pressure: creg: 40 bar g (580 psi g) full temperature range packing gland - 46 +150°c

We are offering purge valves with counterweights. Dn-8 & dn-15 design characteristics purge valves with counterweights are valves with a normal primary closing system and a secondary closing system operated by the counterweight falling.the normal closing system is designed to provide a seal for a long period.the secondary closing system is a quick but provisional closing,see below the design working pressures.

We are offering solenoid valves. Application these valves are for ammonia duty. The msva are pilot operated valves whilst the mdsva are direct operated solenoid valves. They are used in many applications such as cold stores, freezers, chilling applications etc. Construction the valve is made up from various metals. Whilst stainless steel is used for components like stems, plungers, the main body is made from lcc safe working pressure : 300 psi

We are offering liquid level controller and liquid level switch. Application while primarily designed for ammonia, this control is also suitable for r-22 and other non-corrosive liquids that have a specific gravity of 0.5 or more. The controller is ideal for the control of the operating level of liquid in liquid refrigerant accumulators and separators. Although this is normally done with a solenoid valve, the controller can activate an alarm or a pump or similar device. Safe working pressure : 300 psi

We are offering stop needle valve. Features : applicable to all common refrigerants including r717 and r744 (co2) and non corrosive gasesliquids. suitable for "heavy duty" industrial applications having a very sturdy and safe design including high pressures and wide temperature range. the snv-st valves have backseating (metal to metal). compact and light valve for easy handling and installation no special flow direction required. provide high flow characteristics. each valve type is clearly marked with type and size. housing and bonnet material is low temperature steel according to requirements of the pressure equipment directive and other international classification authorities. valve safety is enhanced with the spindle being secured such that it cannot be unscrewed. max. Operating pressure: 52 bar g ( 754 psig) full temperature range: - 46 +150°c
