Anil Engineers Deonar, Mumbai, Maharashtra

1) Horizontal & vertical version 2) Designed as per IS2062 3) Horizontal & Vertical Receiver as per following size.

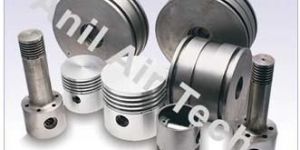

1) All Pistons are manufactured by graded cast iron & aluminium alloys with perfect machining. We can supply as per specifications, drawings or sample of customer’s requirement.   2) Pistons are available ready stocks for Aircooled compressors, watercooled compressors, Lubricated type & Non Lubricated type of units. 3) All pistons are available with original specifications, dimensions, material of constructions with reliability & competitive price with guarantee of performance

PISTON ROD / OIL SCRAPPER RINGS / PACKING RINGS   1) Piston Rods are of different size for different models are available ready stock. 2) Our Piston Rods are Heat treated to the specification so as to meet mechanical properties & tensile strength. 3) Our Piston Rods are ground to close finish, so as to increase the life of of Oil Scrapper Rings & packing rings. 4) Plasma coated Piston Rods can be arranged as per the requirement & Specification of customer’s requirements. 5) Having fine threads with close pitch on both end of Piston rod ( crosshead side / piston side)to ensure better looking & Top / Bottom clearance. 6) Oil Scrapper Rings are available in different MOC, i.e. Individual graded cast iron,Bronze, glass filled PTFE, with perfect roundness, inner grooved & drilled to wipe oil from piston rod & with S.S. garter spring with proper tension. 7) Ring & Spring Packing sets MOC can vary depending upon applications. The Packing Rings sets are available in metallic segment, carbon filled PTFE, Bronze filled PTFE, glass filled PTFE; with CI backup rings. They are readily available suitable for different diameter of piston rods. It is also available in 3 piece, 6 piece, Segmental, Radial cut, Tangential  cut segment with garter spring with proper tension so as it seal the pressure of Air/Gas & long lasts. Ring & spring packing set for High pressure unit with metallic back up rings are  also available ready stock for immediate shipments.

All types of “O” rings for I/R & KPC compressors are available ex-stock. Different types of MOC like Neoprene, Viton, Nitrite & Silicon rubber “O”Rings are available with proper standard thickness & roundness as per the OEM specification. Gasket of different size for I/R & KPC compressors with MOC, Asbestos, Non Asbestos, Spiral steel, Ring gasket of Solid Copper/Solid Aluminium, copper asbestos, Aluminum asbestos with proper standard thickness and Roundness are available ex-stock with us. Standard Oil Seals with S.S. spring for grip with different size of compressor of I/R & KPC are available ready stock for immediate shipments.

Compressors are expected to function for long service intervals without maintenance. It is essential to select the right lubricating oil for the compressed medium, which can be air, process gas or a refrigerant. Our Klüber Summit product range is proven for compressors of all types. They minimise wear and extend service intervals for higher compressor availability. Our oil offers a lot of benefits when compared to the mineral oil and other competitor’s synthetic oil, as mentioned below Reduced down time costs Increased Compressor availability Reduced spare parts costs for oil, filters and separators Less strain on environment and resources due to lower energy consumption and lower disposal quantities Reduces friction in the compressor and offers a better gap sealing effect Low pour points Longer oil life Improved oxidation protection Reduced power consumption

GAS COMPRESSOR CROSSHEAD & PIN X HEAD OF INGERSOLL RAND & KIRLOSKAR   CROSSHEAD These crossheads are used in watercooled unit. It is made of individual aluminium alloy casting. Our cross heads are fully machined with proper tolerance to maintain clearance between Crosshead and guide (Dist Piece). The crossheads are having fine pitch to match the thread with Piston rod. PIN CROSSHEAD The Pin crosshead is steel material, harden ground & hollow inside for proper oil pressure of unit. Both the end of pin is grooved for locking arrangement by retainer ring. Outer surface of pin is drilled on equal distance to match the hole with bronze X-head pin bush. Both the end are closed. One end by cap & the other by plug. It is so ground & perfect tolerance is maintained so as to slide feet in crosshead bore.

COMPRESSOR PISTON RINGS & RIDER RINGS OF INGERSOLL RAND & KIRLOSKAR   1) Available ready stock in various grades. 2 ) For lubricated compressor individual cast iron piston ring with 45 degree Angle cut / glass filled PTFE Piston ring available ex-stock. Our piston rings are having perfect roundness & spring tension as per the applications, customer’s requirement & long life. 3 ) For Non lubricated unit Piston Rings & Wearing Rings (Guide Rings) are available with carbon filled  PTFE, Bronze filled PTFE & thermoplastics. 4 ) Unloader piston rings are also available in glass filled PTFE & Bronze Metallic rings. 5 ) We supply any type of Piston Rings & Guide Rings with MOC cast iron, PTFE, thermoplastic in any size  as per specifications ,drawings, sample provided by customer.

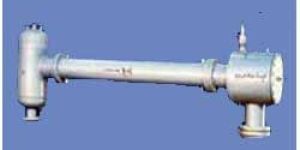

COMPRESSOR AFTERCOOLER / HEAT EXCHANGER / INTERCOOLER   1) Shell & Tube Design & Water Cooled. 2) Tube bundle removable type & fixed type 3) Vertical type & Horizontal type (version) 4) Air Flow 10 to 10,000 cfm or Higher on request 5) Pressure up to 100 kg/cm2 6) Built as per India & International codes

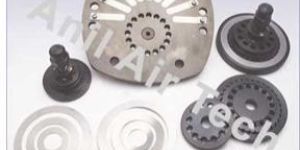

CHANNEL VALVES These are two types of channel valves,Rectangular & Round valves. Both type of valvesare used in reciprocating type compressors. These valves are available for Lubricated & Non-lubricated type of units. Exclusive designs of Valve seat, Stop plate, Plate seat so that to maximum flow is utilized & perfect sealing ensured. Holder guide (metallic) are highestquality machined with OEM tolerance which can significantly improve life of the valves. Plate seat are of stainless steel, heat treated,perfectly micro finished on both the side and lapped. FINGER VALVE / CONCENTRIC VALVE ASSEMBLY / VALVE PARTS Concentric valvesare ready for shipment. Valve seat , Stop plate and Valve bolts are matching with OEM specifications. Valve plates are properly heat treated & Micro finished for leak proof valve assembly. Spring plates , Finger valves & spacer plates are also heat treated, ground and engineered to give best operating efficiency against High pressure & high temperature of unit.

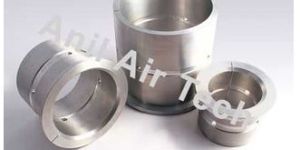

AIR / GAS COMPRESSOR CRANK PIN BUSH OF INGERSOLL RAND & KIRLOSKAR   Steel bushing are used in Air Cooled compressors which is readily available for immediate shipment. The same is properly heat treated, maintained tolerances with internal & external grinding and smooth& shining surface. Internal surface will match the dimension of crank pin with easy hand press sliding & external surface with big end of connecting rod for easy assembly & for long life. ALUMINIUM MAIN BEARING / CRANK PIN BUSHING  These Main Bearing Bushing & Crank Pin Bushing are full floating bearing bush & are used on forged crankshaft for water cooled unit. Our aluminium Main Bearing bush is in one piece with axial cut and are capable of carrying both radial & thrust load. Crank pin bush (two halves) Is a precision bushing which requires no adjustment. The above bearing Bush are made from perfect composition with aluminium ingots, heat treated & complete machined with groove in center & drilled for making oil film for perfect lubrication & maintaining correct oil pressure.

AIR / GAS COMPRESSOR CONNECTING RODS OF INGERSOLL RAND & KIRLOSKAR   1) Connecting rods are available in MOC of Aluminium, Leaded bronze, SG Iron& Forging.Connecting rods are available in MOC of Aluminium, Leaded bronze, SG Iron& Forging.   2) All the Connecting rods are machined on both the sides. Centre distance between big end & small end is maintained for perfect straightness & perfect boring of big end & small end   3) Big end & small end of connecting rods are perfectly bored so as to match original clearances with steel bush for Air cooled unit & aluminium / Bronze floating bushes for water cooled unit   4 ) 4 ) The above Connecting Rods are available ex-stock & ready for shipment in case of urgency. 5 ) The forged connecting rods are drilled internally perfect to maintain lubrication & oil pressure of unit,

Suction Air filters for Air cooled compressor & water cooled compressors For I/R & KPC available ex-stock as per OEM specifications Panel filters with silencers with 5 micron efficiency & paper filter element With 25 micron efficiency and complete filters with body are also available Ready stock. All types of Oil filters for above compressors are ready stock for immediate shipment.
