Anjali Engineering Corporation Kandivali, Mumbai, Maharashtra

Wire Rope Drum is fixed in a welded one piecedrum housing which is machined in one setting to ensure smoothrunning of rope drum. Welded drum housing also nullifies skewingeffect Drum housing plates are not aligned with each other. asboth the plates are fixed with long distance bolts in other types ofHoist. In other types of Hoists, drum housing plates as fixed withlong distance bolts are not eligned with each other perfectly. Thisis not the case with Dhyan Brand Wire Rope Hoists.FEATURES :1) Fabricated from tested plates2) Accurate grooving3) Supported on large diameter roller bearings at both ends BENEFITS :1) Designed for long life2) Rope guide prolongs rope life3) Alternative drum lengths allow for various heights of lift

DHYAN is a specialty manufacturer of universal joints for industrial, off highway and transportation applications. We can provide universal joints from 1 inch to upwards of 30 inches. We have the capability to custom design and manufacture specialized universal joints and driveshafts, and their connections to your requirements. In addition to universal joints we can provide gear couplings, disc couplings and elastomeric couplings. All Power offers a repair and maintenance service for our universal joints and products and those supplied by other manufacturers.

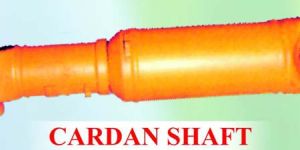

The Universal Joint Shaft, we provide, is made of high-grade materials, in adherence to the standards. It is rated high in quality, durability, fineness, suitability, and dimensional accuracy. It is doled out in different sizes, to meet the variegated demands of the clients. Its precise physical properties and unbelievable mechanical strength are all for which it is acclaimed. We are referred to as the nonpareil Manufacturer and Supplier of Universal Joint Shaft in Mumbai, Maharashtra.

Number Of Flower : Universal Joint Shaft,Industrial Heavy Cardan Shaft

Material : Aluminum, Stainless Steel

Application : Connecting Rigid Rods

Finishing : Non Polished

Structure : Cross, Double

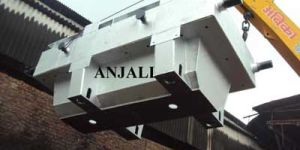

ANJALI has a huge unit for Tundish Car manufacturing. A Tundish Car in a continuous casting assembly which includes wheel supporting frames for supporting a pair of front wheels and a pair of rear wheels, and lift mechanisms respectively mounted above the wheel supporting frames, two pairs of the wheel supporting frames being connected respectively through inter-wheel frames, each right and left pair of the lift mechanisms being connected through a lift frame which supports a tundish. All equipments are designed to suit from 4mR to as large as 12mR machines suitable for section sizes from 100 x 100 mm to 250 x 320 mm billets & blooms. All assemblies can be offered in regular Steel grades as well as in Stainless Steels.

Number Of Flower : Ladle Transfer Car

Application : Processing Molten Liquid Metal

Availability : 1000-2000kg

Country of Origin : 110V, 220V

Automatic Grade : Automatic, Fully Automatic

Driven Type : Hydraulic

Total Carbohydrate : 1year

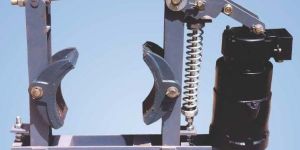

Thruster brake is a device used to retard the speed of moving machinery and to stop it accurately to the desired position. The braking force is applied to the brake shoes by a pre-stressed comprising spring. The shoes press on the rotating brake drum retarding its speed and finally stop it. The releasing of the brake drum and compressing of the spring is done by thruster. Assembly and FunctionA thruster shoe brake has a pair of cast iron shoes which are lined up with friction pads. The shoes are hinged on main arm and side arm of the brake, each of them have a hinge pin fitted in the base. They are connected to each other on top by a tie rod, which is hinged in the main arm and locked to the swivel block in the side arm, by a lock nut. A crank lever is hinged on the main arm and the other end is fixed to the top clevis of the thruster by a hinge pin. A brake spring is fixed on the main arm and is pre-loaded by a locknut on the lever. The pre-tension in this spring decides the braking torque. The thruster is fitted on the base by a hinge pin. When the thruster is not energized, the brake shoes are pressed on the brake drum fitted on the drive motor shaft and hold it under the effect of braking force provided by the spring. In such condition, the brake is applied and the drum cannot rotate.As the piston travels upwards the angle lever turns, pushes the brake rod and compresses the brake spring. Simultaneously, the brake lever on the other side of the wheel (Brake Drum) is retracted. When the first lever reaches the stop on the brake base member the brake lever at the thrustor begins to move, releasing the brake drum.

Buy high-quality Thrustor Brake Assembly at best prices from us! The Thrustor Brake, in which we deal, is noted for its robustness and dimensional accuracy. It is known as the ace brakes for various applications. Its design and performance are ensured to comply with the quality standards. Such efficiency has placed us in the group of acknowledged Manufacturers and Suppliers of Thrustor Brake in Mumbai, Maharashtra.

Number Of Flower : Thrustor Brake

Material : Cast Iron

Shape : Round

Country of Origin : 110V, 190V

Frequency : 50Hz

Feature : Corrosion Resistance, Easy Installation, Heat Resistant

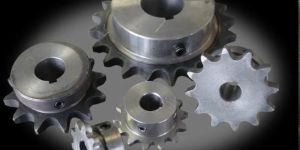

DHYAN  are  leading  manufacturer  of  all  types  of  Sprockets. Sprockets should be as large as possible given the application. The larger a sprocket is, the less the working load for a given amount of transmitted power, allowing the use of a smaller-pitch chain. However, chain speeds should be kept under 1200 feet per minute. The dimensions of a sprocket can be calculated as follows, where P is the pitch of the chain, and N is the number of teeth on the sprocket; Pitch Diameter = P ÷ sin (180° ÷ N),   Outside Diameter = P × (0.6 + cot ( 180° ÷ N) ),  Sprocket thickness = 0.93 × Roller Width - 0.006" Range  : -  Chain  Sprocket  Simplex, Duplex, Triplex, Size  :  ¼”  to  6”  pitch,  Material  :  Mild-Steel, En8, Cast Steel, S.S. or  C.I.  graded casting.

DHYAN manufacture a variety of snatch block assemblies for different capacity tonnes of cranes. A snatch block assembly consist of hook, outer strap, swallow, sheave, breech, thimble, becket, face, pin, cheek, shell, inner strap and pea. A snatch block Assembly, complete with forged steel hook carried on bell thrust bearing is provided. It is provided with cast iron or fabricated M.S. pulleys and is fitted with guards to prevent the rope from leaving the pulleys. Lifting Hook is tested as per IS 3815 and IDLR test certificate is issued for each hook.

Application : E.O.T. CRANE AND ELECTRIC HOIST

Capacity : 1 TON TO 40 TON

We stand out in amongst our competitors as far as the manufacturing of Sleeve Gear Couplings is concerned. We feel honored to introduce ourselves are one of the most prominent Industrial Gear Couplings Manufacturers, incepted in India. Our Sleeve Gear Couplings and all other couplings are manufactured using the sate of the art machineries that provides them enhanced durability. Also the use of quality raw material adds to this given feature and has made them highly popular in the industry. In spite of all these features gear couplings manufactured by us is available in the market at some of the most pocket friendly prices.

Size : 2inch, 4inch

Number Of Flower : Nylon Sleeve Gear Coupling

Material : Stainless Steel

Shape : Round

Application : Connecting Shafts

Finishing : Non Polished

Feature : Corrosion Proof, Durable, Excellent Quality

DHYAN” manufacture different rollers used for conveyor systems. Conveyor rollers are used to move goods along a belt or within a conveyor assembly. They differ in terms of type, dimensions, applications, and features. Roller types include brake rollers, driven rollers, guide rollers, and idler drum pulleys; idler rollers and impact rollers; motorized drum pulleys and motorized rollers; and both spiral and wing pulleys. Dimensional specifications for conveyor rollers include the length of the roller or the belt width of the assembly, the roller diameter, the shaft diameter, and the voltage (for powered products). In terms of features, some conveyor rollers are belt-driven, grooved, magnetized, or self-cleaning. Others have sprockets or an angled taper. Coated or plated conveyor rollers are also available. Selecting conveyor rollers requires an analysis of roller types. Brake rollers are used to slow or stop the flow of goods on a conveyor assembly. Driven rollers may be driven by either a belt or chain. Sprocketed rollers are used with chain drives. Grooved rollers are used with belt drives. Guide rollers are vertically-mounted and supported by one end. These conveyor rollers are used to prevent the belt from drifting laterally. Both idler rollers and idler drum pulleys are non-powered. Idler rollers are free-spinning and used as a conveying device. Impact rollers are conveyor rollers that have a cushioned surface and a heavy-duty construction for sustaining hard impacting loads. We started manufacturing differenct roller assemblies like withdrawal rollers (top & bottom) , guide roller assembly, pipe roller assembly, etc

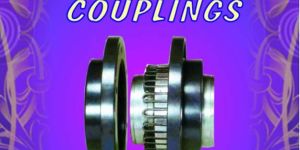

Strong and compliant, the Resilient Couplings that we furnish the buyers with are deemed to be the exemplary couplings of such type. These couplings are designed and fabricated in line with the quality norms. They are inexpensive as compared to other couplings. They can be acquired in varying sizes. We are one of the accomplished Manufacturers and Suppliers of Resilient Couplings in Mumbai, Maharashtra.

Number Of Flower : Resilient Couplings

Material : Aliminum, Mild Steel

Shape : Round

Are you looking for that ultimate Precision Roller Chain? If your answer to this question is yes, then we are your best target. We are one of the most sought after short pitch precision roller chain suppliers of India. We offer customers, the standard precision roller chain that is simply unsurpassed in its quality and is favored even among our own competitors. The chains that we supply to customers are manufactured using the best quality of raw material. These chains that we manufacture are highly durable as they are manufactured with the help of high-tech machineries that enables these chains to attain vital toughness.

Number Of Flower : Short Pitch Precision Roller Chain

Application : Conveyor

Feature : Accuracy Durable, Corrosion Resistance, High Tensile

Material : 40Mn

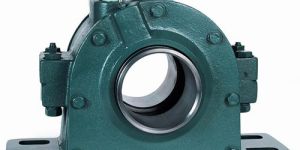

DHYAN   IS  A  LEADING  MANUFACTURER  OF  ALL  TYPES  OF  PLUMMER  BLOCK  AND  BEARING  HOUSING.Plummer-blocks or pillow-blocks are usually of cast iron, and are required for supporting axles of various classes during their rotation, the gap in a pillow-block being required to contain the bearer-brasses which are in direct contact with the axle-bearing or neck.  We  are  specialized  in  manufacturing  different  plummer  blocks  and  bearing  housing  as  per  drawing.  We  also  manufacture  plummer  blocks  from  shaft  size.  Range  :  S  series,  SN  series,  SD  series,  SNA  series,  etc.

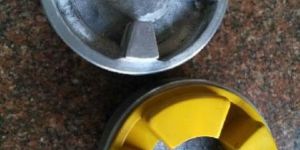

Magnaloy Coupling are the light weight, heavy-duty flexible drive coupling. this has been manufacturing their precision machined, magnesium alloy cast couplings. Used for Flexible Drive Couplings including, Pump/Motor Mounts, Cylinder Rod End Alignment Couplers, a complete line of Fluid Power Accessories, Hydraulic Manifolds & Manifolding Accessories and Hydraulic Reservoirs.

DHYAN” is a leading manufacture of Laddle.After tapping from electrical arc furnace, the ladle furnace is put on LF refining position.LF refining is conducted through arc heating and argon blowing. During this process, the steel deoxidization, desulfurization, the adjustment of steel temperature and chemical composition are completed. In primary slag, there is no vacuum function in LF, but room of vacuum device may be obligated in LF zone for future development. The ladle containing qualified liquid steel is hoisted to a ladle rotator of continuous casting machine and then it taps from the base of the receiving ladle to tundish, after that, it drops down into crystallizer to cast into bloom, which are severally straightening and cut to set dimensions and sent to a cooling bed through a roller table. It turns into qualified bloom. Ladle refining furnace specification Model: Bridge. Nominal capacity: 40 tons. Water-cooling cover and bunch water-cooling cable are used. Near by the LF, there set argo n blow device. During the refining process, Argon blows from beginning to the end.

Gears are the most common means of transmitting power in mechanical engineering. There are tiny gears for devices like wrist watches and there are large gears that some of you might have noticed in the movie Titanic. Gears form vital elements of mechanisms in many machines such as vehicles, metal tooling machine tools, rolling mills, hoisting and transmitting machinery, marine engines, and the like. Toothed gears are used to change the speed, power, and direction between an input and output shaft.

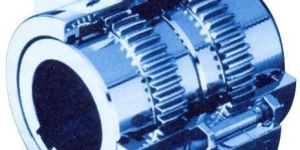

We cater to the demand for Gear Couplings with the best-in-class ones. We are associated with the league of #1 Manufacturers and Suppliers of Gear Couplings in Mumbai, Maharashtra. Each product, which rolls off our manufacturing unit, is duly tested and assured on all quality parameters. We can efficiently meet the orders for the couplings of any size, up to 115.

Number Of Flower : Gear Coupling

Material : Aliminum

Size : 101,112 number

DHYAN is the one of the leading manufacturer of worm and helical Gear units. DHYAN offers wide range of gear units suitable for any industrial application. As a result of continous design improvement, innovative ideas, consistence quality and cost effectiveness, DHYAN has become preferred supplier to many Indian industries. Today DHYAN is known for producing high precision gears for wide variety of industrial applications. INFORMATION REQUIRED FOR SELECTION OF GEAR UNIT : Type of model of gear unit suitable for application.Type of prime mover, its HP Rating and RPM.Required reduction ratio or output RPM of gear unit.Details of driven machine, actual power (HP) & speed (RPM) required.Detail of peak and shock load with magnitude & duration.Type of drive provided between I) Prime mover and reducer II) Reducer & Driven machine.Duration of working hours per day.Position of output shaft either horizontal or verticalPosition of shaft either Right or Left Hand with respect to input shaft or otherwise.Sketch of available space for gear box installation is preferable.

DHYAN”  manufactures  frame  assembly  in  batches  of  2000  sets  per  months.  We  basically  deals  in  two  types  i.e.  SACI – Self  Alignment  Carrying  Idler  &  SARI – Self Alginment  Return  Idler.  Conveyor frame assembly is  that which includes a pair of spaced side rails joined by one or more cross supports. Each of the side rails includes a dedicated wire channel and self-contained air flow cavity that enhances the functionality of the conveyor frame assembly. The air flow cavity and the wire channel are formed as part of the side rails separate from typical attachment slots that receive T-shaped connectors. The cross supports utilized with the conveyor frame assembly are attached to the side rails by upper and lower connectors that are each accessible from the top of the conveyor frame assembly. Specifically, the cross support includes a center web and laterally offset attachment webs that allow for easy and convenient construction and field modification of the conveyor frame assembly.Frame  assembly  sizes  is  as  per  belt  sizes.

We are a well-known Manufacturer and Supplier of Foundry Ladles, which are highly demanded among the clients. The Foundry Ladles are manufactured using quality materials and after tapping from electrical arc furnace, the ladle furnace is put on LF refining position. LF refining is conducted through arc heating and argon blowing. During this process, the steel deoxidization, desulfurization, the adjustment of steel temperature and chemical composition are completed. In primary slag, there is no vacuum function in LF, but room of vacuum device may be obligated in LF zone for future development. The ladle containing qualified liquid steel is hoisted to a ladle rotator of continuous casting machine and then it taps from the base of the receiving ladle to tundish, after that, it drops down into crystallizer to cast into bloom, which are severally straightening and cut to set dimensions and sent to a cooling bed through a roller table. It turns into qualified bloom. Specifications Model : Bridge Nominal capacity : 40 tons Water-cooling cover and bunch water-cooling cable are used Near by the LF, there set argon blow device. During the refining process, Argon blows from beginning to the end

Number Of Flower : Foundry Ladles

Material : Stainless Steel

Feature : Durable, Reflective Finish, Rust Proof

Finishing : Non Polished

Handle Material : Stainless Steel

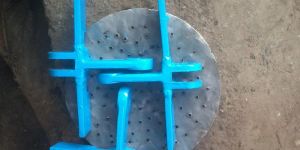

All those who are looking for a responsible name supplying Forged Chain Links can get in touch with us! We have invested a huge amount in the excellent storage space and shipping facilities. We, with complete ease, entertain voluminous requirements of our respected patrons and uphold entire records and transactions of the products delivered.

Size : 100, 142, 200 PITCH

Material : EN8, SS, CRNI

All those who are looking for a responsible name supplying Forged Chain Links can get in touch with us! We have invested a huge amount in the excellent storage space and shipping facilities. We, with complete ease, entertain voluminous requirements of our respected patrons and uphold entire records and transactions of the products delivered.

Size : 100, 142, 200 PITCH

Number Of Flower : Forged

Brand Name : DHYAN

Material : EN8, SS, CRNI

Condition : NEW

Function : Scrapper Chain

Country of Origin : India

DHYAN “ MANUFACTURE DIFFERENT TYPES OF CONTINOUS CASTING MACHINE(CCM) SPARES like Foot Roller Assembly, Tundish Car, Dummy Bar, Gear stopper mechanism. Mould Jacket Assemblies including all flanges, SS inner casing with machined corners and as well as the guide roller assembly. SS Spray Aprons, Spray Pipes, Headers as well as Spray Nozzles. Oscillation mechanism. Foot Roller Assembly consist of SS304, all plates of SS 304, Top flange, Bottom Flange, cover inserts, Duly machined, Foot Roller assembly along with SS Spray Pipe, Foot Roller, Base plate, SS 304 Material, All roller pin, All bolts, Nuts, Washer will be SS 304.

Hailing from Mumbai, Maharashtra, we have pioneered the manufacturing and supplying of Electric Chain Hoist. The Wire Rope Hoist, we offer, exhibits fineness in its fabrication and perfection in its finishing. It is mounted on heavy-duty bearings for a considerable lifespan. It is further passed through rigorous testing stages, which end up in approving its reliability and quality. Its phenomenal endurance makes it ideal even for critical applications.    Highlights : Heavy duty Robust designs Ensures smooth & safe operations Modular construction Ease of maintenance as each component i.e. motors, brakes, gear - box & control panel are easily accessible and maintainable in its installed position, resulting in huge saving of time and labor Manufactured by an ISO 9001: 2008 certified co. An assurance of seamless quality & interchangeability of parts Accurately machine rope drum of seamless pipe mounted on heavy duty bearings for longer life Specially designed S4 crane duty motors  Alloy steel precision cut case hardened gears ensuring smooth working & longer life Brakes heavy duty fail safe disc brakes Complete safety and ease of adjustment Control panel components of reputed make We specifically give 24V control voltage for complete operator safety.  Capacity  from  0.25  ton  to  20  ton

Number Of Flower : Electric Chain Hoist

Availability : 100-1000kg

Country of Origin : 110V, 220V

Application : Weight Lifting

Automatic Grade : Manual, Semi Automatic

Total Carbohydrate : 1year
