The CP-04 wall-mounting Panel is an optional accessory. It houses the AUP-500L, Molten Steel Temperature Measuring System. It has the three Status Indication Lamps, Hooter and Thermocouple socket on the front panel. The panel is completely wired. The opening is from the front.

Brand Name : Artech

Application : Wall Mounting

Feature : Accuracy, High Quality

Surface Finishing : Polished

ARTECH manufactures the most versatile Molten Metal Temperature measuring systems since1987.  In use extensively in India and also exported.

Brand Name : Artech

The lamps indicate “READY”, “MEASUREMENT IN PROGESS” AND “MEASUREMENT OVER” , using the relay outputs of the Model AUP-500. These indications are of great help to the operator, as they indicate whether the thermocouple is properly inserted into the lance before taking a reading and also whether the reading was completed without thermocouple burn out; in case the thermocouple becomes open before the sampling process is complete “Measurement Over” will not be indicated.

Feature : Low Consumption, Stable Performance

Country of Origin : 220V

Packaging Size : Paper Box

Brand Name : Artech

The Remote Display Unit is a useful accessory which provides an easy to read numeric display of temperature recorded. The display numerals consists of LEDs assembled in an array to form 6 inch high characters. When a reading is taken, this unit receives serially pulsed data on a simple two wire connection. The Temperature is clearly displayed and if the unit is mounted at a suitable height, the reading can be visible to all on the shop floor.

Application : Industrial

Brand : Artech

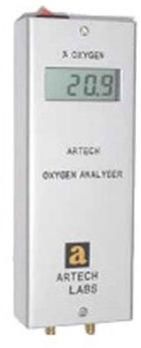

This portable indicator is a convenient and handy instrument for field applications where a quick, easy and accurate measurement of oxygen is required. The sensor being located within the instrument requires the gas sample to be delivered to the inlet port at a slight positive  pressure. Alternately,  a  sampling  pump  can  be  provided.  The  instrument  is microprocessor based and has a very readable  white LED display. It is powered with a rechargeable  battery.APPLICATIONS :Common applications including checking of Oxygen Purity Oxygen level where required Oxygen Generators/ Ventilators Nitrogen Purity Medical Applications

Number Of Flower : Portable Oxygen Indicator

Feature : Handy Instrument For Field Applications, Microprocessor Based, White LED Display

Power Source : Rechargeable Battery

Applications : Oxygen Purity,Oxygen Level Monitoring,Oxygen Generators/ Ventilators,Nitrogen Purity,Medical Applications

This portable indicator is a convenient and handy instrument for field applications where a quick, easy and accurate measurement of oxygen is required.

Brand Name : Artech

This portable indicator is a convenient and handy instrument for field applications where a quick, easy and accurate measurement of oxygen is required.

Brand Name : Artech

The Artech DPA10 is used for continuous measurement of the Dew Point of air and gases in Gas Plants, Annealing Furnaces, Compressed Gases, Medical Gases, Natural Gas, Drying Systems and Power Generation. The instrument is provided with a by-pass valve to isolate the sensor when not in use, thereby ensuring fast response on re-startup. With the flow indicator the user knows when the sample gas is flowing The regulator controls the pressure, thus preventing damage of the sensor path by excess/fluctuating pressure..

Number Of Flower : Oxygen Analyser

Model : DPA-I0

Application : Continuous Measurement Of Dew Point In Air And Gases

This portable indicator is a convenient and handy instrument for field applications where a quick, easy and accurate measurement of nitrogen is required. The sensor being located within the instrument requires the gas sample to be delivered to the inlet port at a slight positive pressure. Alternately, a sampling pump can be provided. This indicator is based on electro-chemical oxygen cell and can be used for nitrogen derived from air separation plants. The instrument is microprocessor based and has a very readable white LED display. It is powered with a rechargeable battery. APPLICATIONSCommon applications including checking of Nitrogen Purity For Cylinders For Air Separation Plants

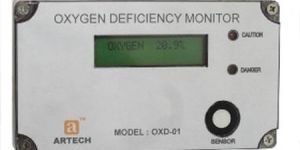

The OXD-01 enables continuous monitoring of atmospheric oxygen levels. In confined rooms and work areas which have the possibility of reduced oxygen levels this can be of life saving importance. The monitor gives Alarm indication warnings at two levels:  1) An early warning when Oxygen falls below 20% signifies caution. 2) When the oxygen level falls below 19.5 %, a Danger alarm is activated so that appropriate action may be taken.  The alarm conditions are indicated by two LEDs with an additional beeper for the Danger level. The battery backup provided will last for a day in case of power failure.

Artech offers high performance low cost Analysers for measuring oxygen levels from pure oxygen down to fractional percentage levels.

Artech offers high performance low cost Analysers for measuring oxygen levels from pure oxygen down to fractional percentage levels. These analysers are based on electrochemical sensors.

Brand : Artech

The Artech Trace Oxygen Analyser Model OA-10 uses an electrochemical microfuel cell to measure the concentration of oxygen in a gas stream. The cell produces an output which varies linearly with the ppm level of oxygen. The cell is specific for oxygen and is not influenced by the presence of reducing agents such as hydrocarbons, CO, SO2, etc

Brand : Artech

Artech offers high performance low cost analysers for measuring oxygen from percentage level to ppm level. It uses electrochemical cell for detecting oxygen in % level and microfuel cell to detect ppm level of O2. It displays automatically % value or ppm value without need of manual switching. The analyser is also provided with two independent alarm settings for percentage range and ppm range.

Artech offers high performance low cost Indicators for Nitrogen levels from pure nitrogendown to atmospheric levels. These indicators are based on electro-chemical oxygencell sensors and can be used for nitrogen derived from air separation plants. A needle valve regulator and a flow indicator on the front panel enable the user to regulate sample gasflow to the recommendedrateof0.5litres/min.

Range : 70% to99.99%(byvolume)inAir

Resolution : 0.01%

Power Supply : 230VAC+10%50Hz.

The Artech DPA10 is used for continuous measurement of the Dew Point of air and gases in Gas  Plants, Annealing Furnaces, Compressed Gases, Medical Gases, Natural Gas, Drying Systems  and Power Generation. The instrument is provided with a by-pass valve to isolate the sensor  when not in use, thereby ensuring fast response on re-startup. With the flow indicator the user  knows when the sample gas is flowing The regulator controls the pressure, thus preventing  damage of the sensor path by excess/fluctuating pressure..

Brand Name : Artech

Model : DPA-10

Output : 4-20 mA , RS-232

The Artech Scan Indicator conveniently measures the temperature of several channels. It indicates on a digital display the channel being scanned at a regular interval of time, which is adjustable from 1 sec.to approx. 30 secs.per channel.   The instrument accepts inputs from sensors through terminal strips situated on the back panel.

The Artech microprocessor based Scan Indicator measures the temperature of several channels. It indicates on a digital display the channel being scanned at a regular interval of time, which is adjustable from 1 sec . to 99 secs per channel. The automatic scanning can be disabled by depressing the Manual (M) Key. Manual increment of the channels is possible by pressing the Up (↑) & Down (↓) arrow keys. The instrument accepts inputs from sensors through terminal strips situated on the back panel.

The Artech ASP-500 Pyrometer for Molten Steel combines several advanced features into a single compactuser-friendly instrument. The output is presented on a larg edisplay visible from a distance.The microprocessor controlled unit has a unique measurement and timing algorithm which guides the user through the measurement  sequence with visual indication and hooter output. All these features are provided in a single enclosure,eliminating the need for a mounting panel. The ASP-500 is mains operated and can be either wall or shelf mounted.

The Artech Humidity Transmitter Model RX-01 is a compact two-wire transmitter with its capacitive sensor and electronic circuitry housed in a protective enclosure. The normal configuration is for wall mounting; a duct mounting configuration can be supplied on request. The transmitter is loop powered and controls the loop current at 4-20 mA according to the calibrated range. Model RTX-01 is a combined Humidity & Temperature sensor which has in addition to the above an RTD sensor for temperature sensing, with an additional twowire output loop

Power : 15-24V DC

Accuracy : ±1°C

Brand Name : Artech

The Artech Humidity Indicator Model 210 RH directly indicates Relative Humidity. The Fully solid state circuit with no plug-in-cards enables the instrument to withstand severe vibrations and shocks.

The Artech Humidity Indicator Model 200 RH directly indicates Relative Humidity. The Fully solid state circuit with no plug-in-cards enables the instrument to withstand severe vibrations and shocks.

Model 201 RHT is a relative humidity cum Temperature controller designed for highly accurate humidity and temperature measurement. It receives digital output from Artech RS485 transmitter. It has two four digit LED displays to indicate RH (%) and TEMPERATURE (0C). 201 RHT provides alarm indication with two relay action for RH and TEMPERATURE, Two LED for RH alarm and two for TEMPERATURE indicating low and high alarm. It provides control action using relay with indication on the front panel. Control action provides for humidifier and dehumidifier logic for RH control and heating and cooling logic for TEMPERATURE control. The 201RHT provides a Modbus RS485 output for PC communication. It also provides industrial Isolated 4 to 20 mA output for the given range.

The Artech Temperature-cum-Humidity Indicator Model 200 RHT is a compact, sturdy Instrument for indicating the Temperature and Relative Humidity in enclosed rooms/chambers.
