ASWATHY CORPORATION Bhandup West, MUMBAI, Maharashtra

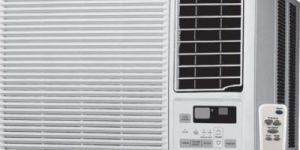

Explosion protection to IECEx CENELEC Can be used in: Zone 2 For explosion-proof window air conditioners, the corresponding product is a cooling-only air conditioner in T1 and T3 group. Perfect for use in high temperature areas such as the Middle East, Middle Africa, Southeast Asia and tropical zones near the equator (Cooling only) The explosion proof window air conditioner is based on a renown brand air-conditioner, with explosion proof modifications made to the internal control units, compressor, indoor and outdoor fan motors, temperature sensor system, protective system, heat-removal system, cooling system, etc. The original outline dimensions and installation are maintained as per the original. ions and installation are the same as the original after explosion-proof treatment.

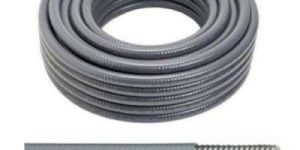

Corrosion-proof, water-proof, anti-aging, good flexibility, firm structure, reliable performance, etc The thread can be specially made upon request (NPT, metric thread etc) The connector is made of high quality carbon steel. If requested, the whole conduit can be made of stainless steel. The length of flexible conduit can be specially made upon request.

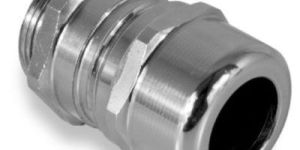

Silicon rubber sealing ring, anti-aging, thermo-stability, high degree of protection Temperature range -40 C – +60 C Type I and type ll cable glands are suitable for unarmored cable; type Ill and type IV cable glands are suitable for armored cable. Type V cable gland is used for shielded cable entry. Assorted mounting and gland accessories available – refer to catalog

Automatic Level Control Drainage (Tide) (Flap) Gates Fabricated Gates Lifts, Stems & Accessories Filtration Systems Flow Instruments Heavy Duty Sluice Gates Hydraulic Power Systems Medium & Light Duty Pumps Slice Gates, Canal Gates

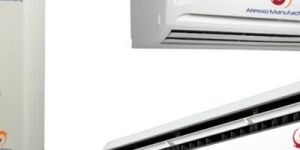

  WALL A Explosion protection to -CENELEC -IEC Can be used in Zone 1 and Zone 2 Zone 21 and Zone 22 Explosion-proof wall air conditioner in both cooling-only and cooling & heating configuration in T1, T2, and T3 are available to meet the different requirements of low, medium and high temperature zones around the world. The Explosion-proof wall air conditioner is based on a renowned brand with explosion-proof modifications to both the indoor and outdoor units. Measures taken to proof the outdoor unit include: by using special techniques and controls, conduct explosion-proof treatment to internal control units, compressor, outdoor fan motor, protective system, heat-removal system, cooling system, etc. Additionally, an explosion-proof control box and sensor system with intrinsic safety are used. The outline dimensions and installation are the same as the original unit after explosion-proof treatment has been performed. Indoor unit: by using special techniques and controls; dismantle internal electric control units and re-design incorporating an explosion-proof structure which enables explosion-proof control box separation. Remote controller and sensor system with intrinsic safety are used. The outline dimensions and installation are the same as the original after explosion-proof treatment. IR CONDITIONERS

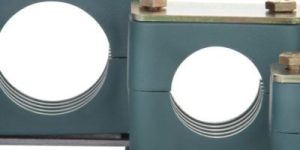

  Tubing clamps are quick and easy to install and can be stacked and staggered to maximize the fitting space available. The protected clamps are independently vibration tested and approved.

The way cables are fixed into place is very important. Poor clamping can damage the cable or put undue strain on cable terminations or the cable conductors, sheathing or insulation. Fault currents in Trefoil cable systems can only be properly controlled with the use of tested, fault rated cable clamps. Secure and easy to use cable cleats ensure data and communications cables are installed rapidly, and free from damage. All cables from data and communications to LV, HV and EHV cables have special clamping requirements to ensure the safe, long term performance of the cable system. ASWATHY is a major manufacturer and supplier of cable clamps to projects around the world. Our expert staff have many years of experience in the design and manufacture of quality cable clamps. ASWATHY designs and manufactures a range of Trefoil cable clamps as well as supplying a range of other cable cleats. This ensures we have the cable clamps and cleats to suit all cable types and applications.

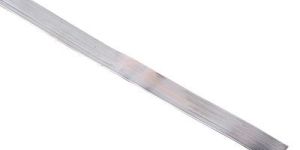

A comprehensive range of copper and aluminium conductors is available in each of the main world standard formats, i.e. flat tape, solid circular and stranded. Additionally each format is available in a variety of conductor sizes, to meet differing lightning protection and earthing requirements. Specification will depend on whether the application is for an above ground structural lightning protection system, or a below ground earthing installation.Conductors for structural lightning protection systems Lightning protection conductors are available in copper and aluminium, and are supplied bare or with PVC coating (see below). For most installations, copper is specified due to its high conductivity and anti-corrosive properties. The following sizes are suitable for the majority of above ground lightning protection systems: Flat tape conductor25 x 3 mm bare tape, or 25 x 3mm PVC covered tape Solid circular conductor8 mm diameter bare or PVC covered solidcircular conductor Stranded conductor70 mm² bare or PVC covered stranded conductor

Product of flame-proof structure; the cavity is of engineering plastic embedded with high strength metal frame structure; with strong corrosion-proof capacity and reliable performance.Built-in Schneider thermal relay.

Explosion protection to-CENELEC-IEC-NEC Can be used inZone 0, Zone 1 and Zone 2Zone 21 and Zone 22Class I, Zone 1 and Zone 2Class I, Division 2, Groups A, B, C, D Stainless steel enclosure. International brand of explosion-proof terminal   Weather Proof Terminal Boxes Enclosure is made of compression molded glass fiber reinforced unsaturated polyester resin with an attractive appearance Anti-aging, deformation-free, impact resistance and corrosion resistance etc. Enclosure is made of bent and welded stainless steel plate with good corrosion-proof performance Enclosure is made of high-quality, bent and welded carbon steel plate with a powder coated surface, with good corrosion-proof performance. Enclosure is made of die-cast aluminum alloy with a powder coated surface, good corrosion-proof performance. Widely used for wire allocation of pipes, pipe contribution, wire connection and distribution. All exposed fasteners are made of stainless steel. Sealing parts adopt on-site foaming technology, with anti-oil, anti-acid, anti-alkali, high temperature resistance and ageing resistance. Cable wiring, compound seal type cable gland, please specify if steel pipe wiring is required. Labyrinth seal structure for the joints, good waterproof and dust-proof performance. Size and direction of cable entries can be customized on request international brand of terminal, wiring is convenient, secure and reliable, various currents can be supported. Normal configuration shall be composite seal type (M thread)

Explosion protection to -CENELEC -IEC Can be used inZone 1 and Zone 2 For explosion-proof tank air conditioner, both cooling-only and cooling & heating products in T1, T2,and T3 are available to meet different requirements of low, medium and high temperature zones in the world. Explosion-proof tank air conditioner is based on renowned brand, by taking explosion-proof measures to indoor and outdoor units. Measures to outdoor unit: by using special techniques and controls, perform explosion-proof treatment to internal control units, compressor, outdoor fan motor, protective system, heat-removal system, cooling system, etc. Additionally, explosion-proof control box and sensor system are applied with intrinsic safety. The outline dimensions and installation are the same as the original after explosion proof treatment. Indoor unit: by using special techniques and controls, perform, dismantle internal electric control units and re-design an explosion-proof structure which enables explosion-proof control box separation. Remote controller and sensor system are applied with intrinsic safety. The outline dimensions and installation are the same as the original after explosion-proof treatment.

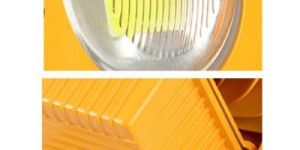

Explosion protection to-CENELEC-IEC-NEC Can be used inZone 1 and Zone 2Class I, Zone 1 and Zone 2Class I, Division 2, Groups A, B, C, D Safe and reliable: the product has good explosion-proof performance and can safely and reliably work in various hazardous areas. Efficient and energy-saving: special gas discharging lamp; high luminous efficiency, luminous flux is 5 times of that of a halogen lamp with the same power, illumination is 3 times that of a 100W halogen bulb, service life is 5-10 times of that of a normal halogen lamp, and for the same brightness the power consumption is 15% of that of a normal halogen lamp, good anti-shock effect, small heating value, safer and more reliable. Waterproof and damage-proof: the light is totally sealed and can work normally in wet environments, a special alloy enclosure ensures the light can resist strong shock and impact Economic and environmental friendly: the memory-free battery can be charged and laid aside for a year, the reserve of electricity is not less than 80% full after two years, it is not less than 50% low-voltage discharging protection circuit is set; reliably protects the battery and prolongs the service life Convenient and durable: a unique lamp cap, the lighting angle can be adjusted at random and there are wheels at the bottom to easily to move the lamp Other: normally a floodlight is provided; however a spotlight is available on request

The role of an air termination system is to capture the lightning discharge current and dissipate it harmlessly to earth via the down conductor and earth termination system. Therefore it is important to use a correctly designed air termination system. IEC/BS EN 62305-3 advocates the following, in any combination, for the design of the air termination: Air rods (or finials) whether they are free standing masts or linked with conductors to form a mesh on the roof Catenary (or suspended) conductors, whether they are supported by free standing masts or linked with conductors to form a mesh on the roof Meshed conductor network that may lie in direct contact with the roof or be suspended above it (in the event that it is of paramount importance that the roof is not exposed to a direct lightning discharge) The standard makes it quite clear that all types of air termination systems that are used shall meet the positioning requirements laid down in the body of the standard. It highlights that the air termination components should be installed on corners, exposed points and edges of the structure. The three basic methods recommended for determining the position of the air termination systems are: The rolling sphere method The protective angle method The mesh method

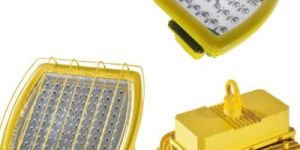

BAT53-250, BAT53-400, BAT85-400 SeriesHRD91-250, HRD91-400 SeriesBDD91-150, BDD91-250, BDD91-400 SeriesBAT86 Series, BnT81 Series, HRT81 Series Explosion protection to-CENELEC-IEC-NEC Can be used inZone 1 and Zone 2Zone 21 and Zone 22 Please refer to the mounting schematic diagram to select the appropriate lamp and mounting type Please refer to the individual light fitting entry for detailed technical data and ordering information for each light fitting. Note: If BAT53-250 type street lamp is required, please specify when ordering. The street lamps are supplied without poles; please specify when ordering.

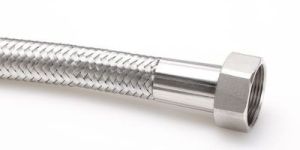

Explosion protection to CENELEC IEC NEC Can be used in Zone 1 and Zone 2 Zone 21 and Zone 22 Class I, Zone 1 and Zone 2 Class I, Division 1, Groups A, B, C, D Ex d structure; stainless steel body; connectors at both ends in stainless steel. Application: Widely used for flexible connection between explosion-proof boxes or explosion-proof light fittings and pipes Protect cable from any damage Highly corrosion-proof

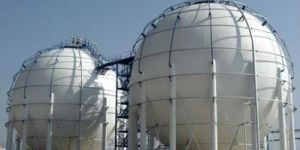

Accessories for Storage tanks, Heat Exchangers: Super coolers, After heaters, Super heaters, Evaporators, After coolers, etc.Pressure vessels, Columns, Reactors, Towers, Regenerators, Storage Tanks and Silos: Fixed roof, Floating roof, Horton spheres, Cryogenic tanks-both shop and field erected.

The conductor network is the means of intercepting/carrying the current of a lightning strike safely to the earth termination network. Use the guidelines of BS EN 62305-1 & 3 for the correct placement of conductors. Selection of the correct conductor type for the installation is highly important, and is likely to be the initial consideration of a lightning protection or earthing system designer. A comprehensive range of Furse copper and aluminium conductors is available in each of the main globally recognised standard formats, i.e. flat tape, solid circular and stranded. Additionally each format is available in a variety of conductor sizes, to meet differing lightning protection and earthing requirements. Specification will depend on whether the application is for an above ground structural lightning protection system, or a below ground earthing installation. Conductors for structural lightning protection systemsFurse lightning protection conductors are available in copper and aluminium, and are supplied bare or with PVC coating. For most installations, copper is specified due to its high conductivity and anticorrosive properties. The following sizes are suitable for the majority of above ground lightning protection systems: Flat tape conductor25 x 3 mm bare tape, or 25 x 3mm PVC covered tape Solid circular conductor8 mm diameter bare or PVC covered solid circular conductor Stranded conductor70 mm2 bare or PVC covered stranded conductor

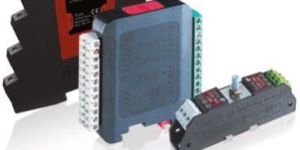

Aswathy provides a wide range of electronic systems accessories, including everything from enclosures and earthing kits, through to cable assembly connections and mounting plates.

  The conductor network is the means of intercepting/carrying the current of a lightning strike safely to the earth termination network. Use the guidelines of BS EN 62305-1 & 3 for the correct placement of conductors. Selection of the correct conductor type for the installation is highly important, and is likely to be the initial consideration of a lightning protection or earthing system designer. A comprehensive range of Furse copper and aluminium conductors is available in each of the main globally recognised standard formats, i.e. flat tape, solid circular and stranded. Additionally each format is available in a variety of conductor sizes, to meet differing lightning protection and earthing requirements. Specification will depend on whether the application is for an above ground structural lightning protection system, or a below ground earthing installation. Conductors for structural lightning protection systemsFurse lightning protection conductors are available in copper and aluminium, and are supplied bare or with PVC coating. For most installations, copper is specified due to its high conductivity and anticorrosive properties. The following sizes are suitable for the majority of above ground lightning protection systems: Flat tape conductor25 x 3 mm bare tape, or 25 x 3mm PVC covered tape Solid circular conductor8 mm diameter bare or PVC covered solid circular conductor Stranded conductor70 mm2 bare or PVC covered stranded conductor

Bearings for Deck Equipment Rope Guard Eddy Fairing Stern Tube Bearing Coupling Cover Rudder Bearings (Upper and Lower) Bulkhead Seals Engine & Gasket Seals Engine Mounts & Engine Equi-Frequency Mounts Fin Stabilizer Bearings Large Structure Equi-Frequency Mounts Structural Sonar Acoustic Tiles Flooring Ultra Light Weight Insulating Foam Interior/Exterior Door & Hatch Seals Equipment Expansion Joints Hangar Door Bearings/Guides Radar Absorbent Material (RAM) Signature Management Firestop Seals Deck Equipment Fire Resistant Deck Davit Crane Bearings Machinery Guide Strips Rotary Dome Seals Machinery Handling/Storage Bearings for Deck Equipment Equipment/Systems Machinery Guide Strips Low Pressure Ship-To-Ship Fenders Sprinkler/Fire Suppression Systems Marine Hoses Equipment Expansion Joints Signature Management Hangar Door Bearings/Guides

The conductor network is the means of intercepting/carrying the current of a lightning strike safely to the earth termination network. Use the guidelines of BS EN 62305-1 & 3 for the correct placement of conductors. Selection of the correct conductor type for the installation is highly important, and is likely to be the initial consideration of a lightning protection or earthing system designer. A comprehensive range of Furse copper and aluminium conductors is available in each of the main globally recognised standard formats, i.e. flat tape, solid circular and stranded. Additionally each format is available in a variety of conductor sizes, to meet differing lightning protection and earthing requirements. Specification will depend on whether the application is for an above ground structural lightning protection system, or a below ground earthing installation. Conductors for structural lightning protection systemsFurse lightning protection conductors are available in copper and aluminium, and are supplied bare or with PVC coating. For most installations, copper is specified due to its high conductivity and anticorrosive properties. The following sizes are suitable for the majority of above ground lightning protection systems: Flat tape conductor25 x 3 mm bare tape, or 25 x 3mm PVC covered tape Solid circular conductor8 mm diameter bare or PVC covered solid circular conductor Stranded conductor70 mm2 bare or PVC covered stranded conductor

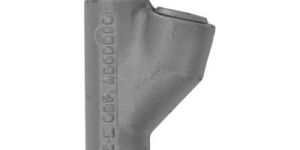

Explosion protection to-CENELEC-IEC-NEC Can be used inZone 1 and Zone 2Zone 21 and Zone 22Class I, Zone 1 and Zone 2Class I, Division 1, Groups A, B, C, D Copper-free aluminium, powder coated surface. Widely used for isolating seal between pipes or pipes and explosion-proof enclosures.

The conductor network is the means of intercepting/carrying the current of a lightning strike safely to the earth termination network. Use the guidelines of BS EN 62305-1 & 3 for the correct placement of conductors. Selection of the correct conductor type for the installation is highly important, and is likely to be the initial consideration of a lightning protection or earthing system designer. A comprehensive range of Furse copper and aluminium conductors is available in each of the main globally recognised standard formats, i.e. flat tape, solid circular and stranded. Additionally each format is available in a variety of conductor sizes, to meet differing lightning protection and earthing requirements. Specification will depend on whether the application is for an above ground structural lightning protection system, or a below ground earthing installation. Conductors for structural lightning protection systemsFurse lightning protection conductors are available in copper and aluminium, and are supplied bare or with PVC coating. For most installations, copper is specified due to its high conductivity and anticorrosive properties. The following sizes are suitable for the majority of above ground lightning protection systems: Flat tape conductor25 x 3 mm bare tape, or 25 x 3mm PVC covered tape Solid circular conductor8 mm diameter bare or PVC covered solid circular conductor Stranded conductor70 mm2 bare or PVC covered stranded conductor

The role of an air termination system is to capture the lightning discharge current and dissipate it harmlessly to earth via the down conductor and earth termination system. Therefore it is important to use a correctly designed air termination system. IEC/BS EN 62305-3 advocates the following, in any combination, for the design of the air termination: Air rods (or finials) whether they are free standing masts or linked with conductors to form a mesh on the roof Catenary (or suspended) conductors, whether they are supported by free standing masts or linked with conductors to form a mesh on the roof Meshed conductor network that may lie in direct contact with the roof or be suspended above it (in the event that it is of paramount importance that the roof is not exposed to a direct lightning discharge) The standard makes it quite clear that all types of air termination systems that are used shall meet the positioning requirements laid down in the body of the standard. It highlights that the air termination components should be installed on corners, exposed points and edges of the structure. The three basic methods recommended for determining the position of the air termination systems are: The rolling sphere method The protective angle method The mesh method
