AVCON CONTROLS PVT LTD MIDC, Mumbai, Maharashtra

Heavily Lined Body with proper selection of diaphragm, provides unique control on corrosive liquids. Fluids are completely isolated from the actuator and environment. This bi-directional valve is 'Hygienic' design can be sterilized and has a low turbulence to flow. Valve Body:CS-ASTM A216 WCB (DIN 1.0619 GS-C 25). SS-ASTM A351 CF8 (DIN 1.4301). SG Iron-ASTM A536, Gr.60-40-18 (DIN 0.7043) (GGG40.3).

pneumatic valve actuators include more than 3500 combinations which satisfy different needs & industrial requirements to control the most diverse liquids & gases such as water, air, steam, oils, corrosive fluids & many others.

End Connections:Standard BSP(F)NPT(F) or Socket Weld.Leakage:As per ANSI B16.104 - 1976. Accessory :Air lock, Solenoid Valve, Filter Regulator Gauge. Other accessories available on application.

Body :Cast Iron : IS 210 Gr. FG 200 SG Iron-ASTM A536, Gr.60-40-18 (DIN 0.7043)(GGG40.3). Cast Steel: ASTM A 216 Gr. WCB St.St.: ASTM A 351CF8 (SS304), or ASTM A351CF8M (SS316).Stem Packing :Self adjusting, Spring loaded, Teflon Packing. Working Fluid Pressure:Refer to table below.

Size : 15 mm

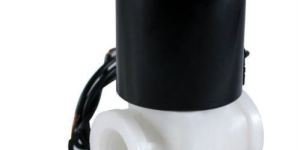

plastic solenoid valve include more than 3500 combinations which satisfy different needs & industrial requirements to control the most diverse liquids & gases such as water, air, steam, oils, corrosive fluids & many others.

Coil insulation & Temperature :Ambient upto 42°C. Class 'H' insulated upto 155°C. Sales Point:Simple, reliable, economical valve for multi-million operation. Manual override as a standard.Application:For operating Diaphragm valves. Single acting cylinders, clutches, automation of any type, compressor loading and unloading, lubrication devices, robots, textile printing and processing machinery.

Type 2372K Series are Full Bor , PVC Construction Ball Valves, fitted with 90° turn Pneumatic Rotary Actuator. Valves can be used for Water, Air, Oil, Corrosive Chemicals, Dirty fluids.The ball Valves in 'Closed ' position isolates completely fluid flowing through valve. 'open' assures very high rate of flow. Bodies are available with both ends union connection, which further can be provided with: 2372KXX2-Standard-Solvent Cement Stocket Metric, 2372KXX1- Optional- Screwed end to 'R' (BSP), 2372KXX5- Optional- Flanged, toANSI CI.150 or DIN PIN 16. Max. fluid temp. : See Pressure-Temp. Chart.

Gland Packing:Carbon filled Teflon for temp. Upto 220°C. Leakage :As per ASME 16.104 CI. IV (0.01% of Kv) for 5512A Series and Class VI Bubble tight for 5512B Series.Body Material:SG Iron-ASTM A536,Gr.60-40-18 (DIN 0.7043) (GGG40.3). CS-ASTM A 216 WCB, (DIN 1.0619 GS-C 25). SS-ASTM A351CF8M (DIN1.4408) (GX6 Cr.Ni MO1810) SS-ASTM A351CF8 (DIN1.4301).

Heavily Lined Body with proper selection of diaphragm, provides unique control on corrosive liquids. Fluids are completely isolated from the actuator and environment. This bi-directional valve is 'Hygienic' design, can be sterilized and has a low turbulence to flow.Valve Body :CS-ASTM A216 WCB (DIN 1.0619 GS-C 25). SS-ASTM A351 CF8 (DIN 1.4301). SG Iron-ASTM A536, Gr.60-40-18 (DIN 0.7043) (GGG40.3).

Type 6827K Valves are External Air Pilot Operated Valves, in PVC material, which can be used for viscous, Dirty and Corrosive fluid. Operating diaphragm seals, isolates body and actuator from incoming fluid, at the same time assures high rate of flow. The under mentioned valve and body configurations are available: Valves are supplied in normally ‘Closed’ condition, with Single Acting, Spring Return Actuator. Optional: Normally ‘Open’ construction, Double Acting Actuator, Electro Pneumatic Valve positioner, Valve travel Indicator with Limit switches and LED. Proximity Switch Sensors, Stroke Limiting Mechanism, Manual Override in lieu of some accessories, Namur 3-way and 4-way Solenoid Valves.

diaphragm actuators current catalogue of diaphragm actuators include more than 3500 combinations which satisfy different needs & industrial requirements to control the most diverse liquids & gases such as water, air, steam, oils, corrosive fluids & many others.

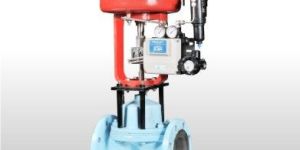

diaphragm actuated valves include more than 3500 combinations which satisfy different needs & industrial requirements to control the most diverse liquids & gases such as water, air, steam, oils, corrosive fluids & many others.

air gas ratio regulator Maintains Constant Air-Gas Ratio. High Precision Regulation. Wide Regulation Range. Available with Inlet Pressure Compensation Diaphragm. Inlet Pressure up to 200 mbar. Practically Maintenance Free. Compliance EN 746-2. Problem free adjustment during operation is possible.

Coil insulation and Temperature :Ambient upto 42 ° C. Class 'H' insulated upto 155°C, Class 'C' insulated upto 180°C. Sales Point:Manual override as a standard feature. Most proven valve in our range , spool & sleeve type design for multimillion , trouble free operations.

Coil Insulation and Temperature :Ambient upto 75 ° C. Class 'F' insulated upto 155°C, Class 'H' insulated upto 180°C.Enclosure:Standard-General Purpose IP-20, Optional- Weatherproof IP-67, Flameproof upto FLP II B - II C.Application:For operating Diaphragm valves. Single acting cylinders, clutches, compressor loading and uploading.

Manual Operation:Hand lever type upto 33053605 Actuator, Side hand wheel from 33063606 Actuator onwords.Application:For air, water, oil, gas, Corrosive chemicals, Combustion equipment, Power stations, Hydro Electric Power Generation, Chemical and Petrochemical Industries.

Enclosure :Standard-General Purpose SQ. moulded coil upto IP-20, Optional- Weatherproof SQ. moulded coil upto IP-67, Flameproof Round coil upto FLP IIB FLP IIC.Application:Steaming equipment, textile, processing equipment, laundry equipments, kitchen equipment and others.

Country of Origin : Standard-230-volts, 50Hz AC.Optional-Any Standard AC range.

Coil Voltage:Standard-230-volts, 50Hz AC, Optional-Any Standard ACDC voltage range.Coil Insulation and Temperature :Ambient upto 42 ° C. Class 'H' insulated upto 155° C, Class 'C' insulated upto 180° C.Enclosure:Standard-General Purpose SQ. moulded coil upto IP-20, Optional- Weatherproof SQ. moulded coil upto IP-67, Flameproof Round coil upto FLP IIB IIC.
