Rapper Piston (Slug / Plunger) made of M.S Bright Bar with a SS button, press-fitted to its bottom face. Product is shipped with coating of anti-rust oil. Usually weighs 20lbs/9kgs.
Rapper Piston (Slug / Plunger) made of M.S Bright Bar with a SS button, press-fitted to its bottom face. Product is shipped with coating of anti-rust oil. Usually weighs 20lbs/9kgs.
Number Of Flower : Industrial Component
Material : M.S Bright Bar, SS Button
Purity : SS Button Press-fitted To Bottom Face
Packaging Type : Shipped With Anti-rust Oil Coating
Rapper Insulator Rod (FRP Shaft) is a critical component that transfers rapper piston impact onto discharge electrodes to dislodge dust particles & isolates the rapper from high voltage frame. Each insulator is built from the finest grade Epoxy Resin Bonded Glass Fibre (ERBGF) yarn under strictly controlled manufacturing process.
Details :
Electrical isolation : 120KV (max)
Thermal insulation : Up to 200degC (~400degF) continuous
Impact strength : 25feet-lbs (avg)
Rapper Insulator Rod (FRP Shaft) is a critical component that transfers rapper piston impact onto discharge electrodes to dislodge dust particles & isolates the rapper from high voltage frame. Each insulator is built from the finest grade Epoxy Resin Bonded Glass Fibre (ERBGF) yarn under strictly controlled manufacturing process.
Details :
Electrical isolation : 120KV (max)
Thermal insulation : Up to 200degC (~400degF) continuous
Impact strength : 25feet-lbs (avg)
Material : Epoxy Resin Bonded Glass Fibre (ERBGF) Yarn
Application : In Industrial Dust Collection Systems
ApplicationClamped To Earth Plate And Tapped On ESP High Voltage Frame
Used during ESP maintenance. One end of the Portable Grounding Stick is clamped to Earth plate and other end is tapped on ESP high voltage frame to discharge residual charge. Sticks are offered in light weight insulating material (PP/FRP/Wood) with 3mtr copper braided wire & Aluminium hook.
Used during ESP maintenance. One end of the Portable Grounding Stick is clamped to Earth plate and other end is tapped on ESP high voltage frame to discharge residual charge. Sticks are offered in light weight insulating material (PP/FRP/Wood) with 3mtr copper braided wire & Aluminium hook.
Number Of Flower : Safety Equipment
Material : Insulating Material (PP/FRP/Wood), Copper, Aluminium
MaterialHeating Element Sheathed In SS304 Tube, MGO Insulating Material
SpecialitiesNickel Plated FINS For Better Heat Dissipation,Powder Coated Terminal Box,Compression Gland Standard With Heater Unit,Thermostat Offered Separately
Storage TypeDry and Safe Place
Power RatingUp To 20W Per Inch
Operating Voltage230V / 415V

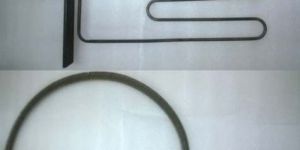

We are a trusted name, actively engaged in manufacturing, exporting & supplying of Insulator & Hopper Heaters. Owing to their wide industrial usage, we make them available in various shapes & power wattage. Our heaters are noted for their high-grade, excellent operational fluency and low maintenance requirements. Interested buyers can acquire them at moderate prices, from us.
More about Insulator & Hopper HeaterHeating element is sheathed in SS304 tube having MGO as insulating material. Nickel plated FINS can be provided for better heat dissipation. Powder coated terminal box with compression gland comes standard with heater unit. Thermostat is offered separately.
Power rating : Up to 20W per inch
Operating voltage : 230V / 415V
We are a trusted name, actively engaged in manufacturing, exporting & supplying of Insulator & Hopper Heaters. Owing to their wide industrial usage, we make them available in various shapes & power wattage. Our heaters are noted for their high-grade, excellent operational fluency and low maintenance requirements. Interested buyers can acquire them at moderate prices, from us.
More about Insulator & Hopper HeaterHeating element is sheathed in SS304 tube having MGO as insulating material. Nickel plated FINS can be provided for better heat dissipation. Powder coated terminal box with compression gland comes standard with heater unit. Thermostat is offered separately.
Power rating : Up to 20W per inch
Operating voltage : 230V / 415V
Number Of Flower : Industrial Heaters
Material : Heating Element Sheathed In SS304 Tube, MGO Insulating Material
Specialities : Nickel Plated FINS For Better Heat Dissipation,Powder Coated Terminal Box,Compression Gland Standard With Heater Unit,Thermostat Offered Separately
PurityWire Heating Elements,Insulated With Two Braids Of Glass-fibre Yarn,Impregnated With Class-H Varnish,Uniform Pitch,Eyelets For Riveting/fixing,Suitable For ESP & Bag Filter Application
Another variety that we bring to our prestigious patrons is Hopper Heating Pad. Made from the finest grade raw material and advanced production techniques, our Hopper Heating Pads feature long service life and optimum quality. We are reckoned as prominent Manufacturer, Exporter & Supplier of Hopper Heating Pads in the global market. Apart from this, we keep all the requisite amenities to address safe and swift deliveries.
More about Hopper Heating PadThis electrical heating pad consists of wire heating elements insulated with two braids of glass-fibre yarn and impregnated with Class-H varnish. The element is spread over closely woven glass cloth carrier at a uniform pitch and sandwiched between two layers of glass-fibre cloth. Eyelets are provided for riveting/fixing these pads onto the hopper. These pads are suitable for both ESP & Bag Filter application. Thermostat is offered separately.
Safe temp : 300degC (max)
Another variety that we bring to our prestigious patrons is Hopper Heating Pad. Made from the finest grade raw material and advanced production techniques, our Hopper Heating Pads feature long service life and optimum quality. We are reckoned as prominent Manufacturer, Exporter & Supplier of Hopper Heating Pads in the global market. Apart from this, we keep all the requisite amenities to address safe and swift deliveries.
More about Hopper Heating PadThis electrical heating pad consists of wire heating elements insulated with two braids of glass-fibre yarn and impregnated with Class-H varnish. The element is spread over closely woven glass cloth carrier at a uniform pitch and sandwiched between two layers of glass-fibre cloth. Eyelets are provided for riveting/fixing these pads onto the hopper. These pads are suitable for both ESP & Bag Filter application. Thermostat is offered separately.
Safe temp : 300degC (max)
Number Of Flower : Electrical Heating Pad
Material : Glass-fibre Yarn, Glass-fibre Cloth, Class-H Varnish
Purity : Wire Heating Elements,Insulated With Two Braids Of Glass-fibre Yarn,Impregnated With Class-H Varnish,Uniform Pitch,Eyelets For Riveting/fixing,Suitable For ESP & Bag Filter Application
FeatureDesigned For High Compressive Strength, Supports And Isolates Discharge Electrodes
Alumina Content45% (avg)
Operating Temperature400degC Continuous
Axial Strength5MT Compressive Load
Wall Thickness30mm (avg)
High Voltage Support Insulator support and electrically isolate discharge electrodes from ESP casing and collecting plates. Our support insulators are designed for high compressive strength to support the loads imposed by the high voltage electrodes and associated high voltage frames.Details :
Alumina Content : 45% (avg)
Operating Temp : 400degC continuous
Axial Strength : 5MT compressive load
Wall Thickness : 30mm (avg)
High Voltage Support Insulator support and electrically isolate discharge electrodes from ESP casing and collecting plates. Our support insulators are designed for high compressive strength to support the loads imposed by the high voltage electrodes and associated high voltage frames.Details :
Alumina Content : 45% (avg)
Operating Temp : 400degC continuous
Axial Strength : 5MT compressive load
Wall Thickness : 30mm (avg)
Number Of Flower : High Voltage Support Insulator
Material : Alumina
Packaging Type : Pallet
Feature : Designed For High Compressive Strength, Supports And Isolates Discharge Electrodes
Safety InstructionClose The Door Before Moving To Operating Position
External Grounding Switch (Disconnecting switch) are used in conjunction with T/R sets and are operated to bring ESP internal potential to zero during maintenance shut down.
Our Grounding Switches are fabricated of 1/8" MS sheet & then electrostatically painted with Epoxy-Polyester powder coating using latest technique.
External Grounding Switch (Disconnecting switch) are used in conjunction with T/R sets and are operated to bring ESP internal potential to zero during maintenance shut down.
Our Grounding Switches are fabricated of 1/8" MS sheet & then electrostatically painted with Epoxy-Polyester powder coating using latest technique.
MaterialClass-F Super Enamelled, Electrolytic Grade Copper Wire
SpecialitiesMoisture Sealed Housing,Epoxy-Polyester Powder Coating,Insulation Checked,Coil Resistance Checked,Piston Lift Test
Storage TypeSuitable For Extreme Weather Conditions
UsageTrouble Free Operation In Various Applications
Caltronic has built & put in operation over 1,00,000 rapper units worldwide till date. Reliability of our rapper is well established by an on-going record of trouble free operation in various applications. Their consistent satisfactory performance and long service life is assured by the use of best quality raw materials and strictly controlled / monitored manufacturing process. Our rappers are built to withstand extreme weather conditions.
Electromagnetic Rapper Coil (MIGI / ESI / EMIGI) are wound from Class-F super enamelled, electrolytic grade copper wire. The external body is welded to achieve moisture sealed housing & then electrostatically painted with Epoxy-Polyester powder coating using latest technique. Each unit is thoroughly checked for insulation, coil resistance & piston lift test using well calibrated instruments & test jigs. Over time the word “Rapper” has become synonymous with “Caltronic” in India.
Caltronic has built & put in operation over 1,00,000 rapper units worldwide till date. Reliability of our rapper is well established by an on-going record of trouble free operation in various applications. Their consistent satisfactory performance and long service life is assured by the use of best quality raw materials and strictly controlled / monitored manufacturing process. Our rappers are built to withstand extreme weather conditions.
Electromagnetic Rapper Coil (MIGI / ESI / EMIGI) are wound from Class-F super enamelled, electrolytic grade copper wire. The external body is welded to achieve moisture sealed housing & then electrostatically painted with Epoxy-Polyester powder coating using latest technique. Each unit is thoroughly checked for insulation, coil resistance & piston lift test using well calibrated instruments & test jigs. Over time the word “Rapper” has become synonymous with “Caltronic” in India.
Number Of Flower : Electromagnetic Rapper Coil
Material : Class-F Super Enamelled, Electrolytic Grade Copper Wire
Boot Seal is a crucial component in the rapping system that prevents moisture, rain water & cold air from entering penthouse; it is recommended to inspect it periodically & immediately replace cracked units for effective ESP operation. High quality rubber granules are used to make our boot seal. As per temp requirement & ambient conditions we make offer choices of Hypalon, E.P.D.M, Silicone, & Viton. We can customize our product with OEM name & logo embossed on it. Stainless steel clamps are offered separately.
Boot Seal is a crucial component in the rapping system that prevents moisture, rain water & cold air from entering penthouse; it is recommended to inspect it periodically & immediately replace cracked units for effective ESP operation. High quality rubber granules are used to make our boot seal. As per temp requirement & ambient conditions we make offer choices of Hypalon, E.P.D.M, Silicone, & Viton. We can customize our product with OEM name & logo embossed on it. Stainless steel clamps are offered separately.
Application : Recommended To Inspect Periodically & Replace Cracked Units For Effective ESP Operation
