coilwinding machine Grant Road, Mumbai, Maharashtra

Wire Range18 to 46 swg, Max. Dia. of Coil200mm Center Height100mm,Center Distance120mm, CounterMechanical.

Winding Gauges: 16 SWG to 26 SWG, Motor : AC 2 H.P. 1440 RPMPower Requirement220 V AC, 50 cs Single Phase, 2 kW. Approx, Controller:Microprocessor Logic Controller, Pitch Control: Through AC Motor & Controller, Fill Counter: 5 - Digit, Preset, LCD Display through controller, Speed Control of Main Motor : Through ACr Drive.

Very ideal machine for repair shop and technical institute. It can wind both single and three phase motor coils. With straight and step coils. Useful for winding motors from 18 hp to 40 hp using five arbors.

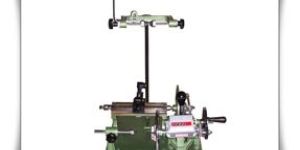

Medium duty winding machine is a winding machine of medium type and we as a leading manufacturer and exporter offer you, suited for transformers with many taps or for motor rewinding.

Max Center Distance 800mm,Max Coil Diameter 600mm,Motor 2HP AC 960 r.p.m., Winding Speed 100 r.p.m., Counter 1 No. Mechanical,Face Plate 300mm, Brake Magnetic Brake,Gear Box Suitable for 2HP motor, Tail Stock Sliding type at 90º to main axis.

ire Diameter(mm):0.06 to 1.50, 0.06 to 2.50, Wire Diameter(mm):0.06 to 1.50,100, Bobbin Diameter(mm):150,125, Speed: 50003000 RPM 1200 RPM, Motor:0.25 HP DC, 0.25 HP DC.

This machine is ideally suited for repair shops. Different type of stator can be accommodated. Hence making it highly reliable and maintenance free hence reducing break down time.

Wire Range 18 to 46 swg, Max. Coil Diameter 300mm, Max. Winding Length 200mm, Min. Winding Length 9mm, Max. Center Distane 430mm.

Wire Range 18 to 46 swg, Max, Coil Diameter 200mm, Max. Winding Length 200mm, Min Winding Length 9mm, Max. Center Distance 200mm.

Max. Core Dia 75mm, Max. Core Lenght 75mm, Max. Shaft Lenght 355mm,Speed Variable upto 1200rpm, Counter Preset Electronic Counter.

Max. Core Dia 75mm, Max. Core Lenght 75mm, Max. Shaft Lenght 355mm, Speed Variable upto 1200rpm, Counter Preset Electronic Counter.
