MFG STDGENERALLY CONFORMING TO BS 5351 | ISO 17292
BLOW OUT PROOF STEMFLOATING BALL FULL BORE TESTING BS 6755
ENDSSCREWED TO BSP | BSPT | NPT | SOCKET WELD TO ASME B 16.11
FLANGED END150#, 300#, 600#
SIZE RANGE15 MM TO 100 MM
CONCORDE VALVES AND AUTOMATIONS is one of the authorized dealer of PNEUMATICALLY OPERATED BALL VALVESengineered for multiple ON/OFF operation in the down stream. Its popular among clients because of its long lasting life performance and coustomers trust on our products.
Product Details:
On / OFF Indicator
NAMUR Standard Solenoid Valve in all Standard Coil Voltage
I/P Transducer (Convertor)
Pneumatic valve positioner
Electro-Pneumatic valve positioner
Declutchable Manual Over - ride
Limit Switches for On / Off Indication at Panel board
Filter + Regulator Combination with Pressure Gauge
Air Lock Valve
CONCORDE VALVES AND AUTOMATIONS is one of the authorized dealer of PNEUMATICALLY OPERATED BALL VALVESengineered for multiple ON/OFF operation in the down stream. Its popular among clients because of its long lasting life performance and coustomers trust on our products.
Product Details:
On / OFF Indicator
NAMUR Standard Solenoid Valve in all Standard Coil Voltage
I/P Transducer (Convertor)
Pneumatic valve positioner
Electro-Pneumatic valve positioner
Declutchable Manual Over - ride
Limit Switches for On / Off Indication at Panel board
Filter + Regulator Combination with Pressure Gauge
Air Lock Valve

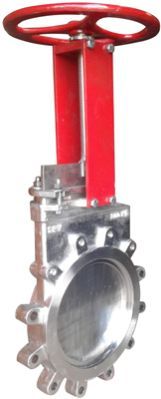

Body , ChestSolid One piece casting of Cast Iron Fg 260 Cast Steel Gr WCB ,CF8,CF8M.
SeatIntegral to Body, Soft, Optional.
GateAISI SS 304,316,316L,317,317L
Screw SpindleAISI SS 410,304,316.
NutBrass
YokePlate type of MS.
Gland FollowerCast Iron , Cast steel , Ductile Iron ,CF8,CF8M.
Hand WheelCast Iron , Cast steel , Ductile Iron
Gland PackingPTFE , PTFE Impregnated.
EndsLugged
PortSTANDARD [Round].Optional V Port, Diamond Port,.
Body Shell TestAs per MSS SP- 81 Norms 10Kg/cm2
Working pressure 6Kg/cm2
Seat Leaking TestMetal Seated Vaalves as per MS SP 81 Norms & Tappi 405.
Soft Seated Valves Zero Leakage

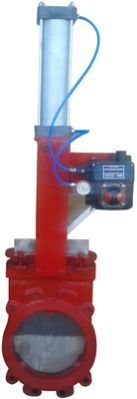

CONCORDE VALVES AND AUTOMATIONS provides variety of , PNEUMATIC OPERATED KNIFE GATE VALVE, these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world.
CONCORDE VALVES AND AUTOMATIONS provides variety of , PNEUMATIC OPERATED KNIFE GATE VALVE, these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world.

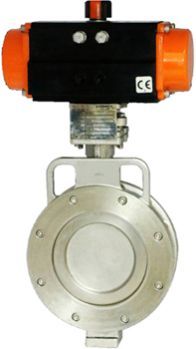

CONCORDE VALVES AND AUTOMATIONS provides wide range of High performance Valves, these type of valves are prefered by clients for its heavy-duty, automatic throttling control flow for applications involving large flow rates and moderate pressure drops. It incorporates the two basic features of the high performance butterfly valve types: a PTFE, RTFE, or metal seal ring instead of a liner and double offset (eccentric operation) to reduce seal friction and operating torque and provide superior performance .We provide some of the high performance valves like Handle Operated Spherical Disc Valve and Worm Gear Operated Spherical Disc Valve too.
CONCORDE VALVES AND AUTOMATIONS provides wide range of High performance Valves, these type of valves are prefered by clients for its heavy-duty, automatic throttling control flow for applications involving large flow rates and moderate pressure drops. It incorporates the two basic features of the high performance butterfly valve types: a PTFE, RTFE, or metal seal ring instead of a liner and double offset (eccentric operation) to reduce seal friction and operating torque and provide superior performance .We provide some of the high performance valves like Handle Operated Spherical Disc Valve and Worm Gear Operated Spherical Disc Valve too.
CONCORDE VALVES AND AUTOMATIONS provides variety of Slim Seal Butterfly Valves , these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world. We are providing the valves with pressure classes, such as PN10, PN16, PN20, PN25, PN40.
CONCORDE VALVES AND AUTOMATIONS provides variety of Slim Seal Butterfly Valves , these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world. We are providing the valves with pressure classes, such as PN10, PN16, PN20, PN25, PN40.
End Connection : Wafer Sandwiched(Lug Type On Request)

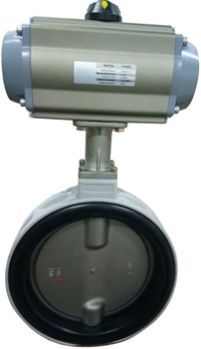

We have the exclusive stock & are the trader of PNEUMATICALLY OPERATED KITZ BUTTERFLY VALVES, ALUMINIUM BUTTERFLY VALVE from sizes ranging from 40mm to 200mm ready stock.
We have the exclusive stock & are the trader of PNEUMATICALLY OPERATED KITZ BUTTERFLY VALVES, ALUMINIUM BUTTERFLY VALVE from sizes ranging from 40mm to 200mm ready stock.
We supply MOISTURE SEPERATOR Compressed Air is vulnerable to Various types of contamination which greatly reduce its value as a power source and which can have a profound effect on the machinery that it operates. Moisture is most common contaminant present, and the one which probably causes the most damage. There is approximately abut 35gms of water in one cubic meter of atmospheric air. A cubic meter of air weighs approximately 1 kg (1000gms). This means 3.5% of air may be moisture, It is harmful in compressed air Pipelines. Over 80% of this nuisance.
Comprises of particles less than 2 microns in size and these easily pass through a typical compressor intake filter. This moisture must be removed from the compressed air line at best it corrodes, erodes pipeline and equipment, damages coatings, contaminates lubricants, washes it from pneumatic loops etc. now 1 NM3 of air will hold only 35 gms of water at ambient temperature. The system will release the liquid water, oil etc. Beyond 35gms i.e. 245gms per IVF of air. The liquid will be in fog/aerosol form and be carried into the pipe work Down-stream. The wet air will generate large quantity of rust and scale. Hence moisture is the most un-welcome product in compressed air system.
We supply MOISTURE SEPERATOR Compressed Air is vulnerable to Various types of contamination which greatly reduce its value as a power source and which can have a profound effect on the machinery that it operates. Moisture is most common contaminant present, and the one which probably causes the most damage. There is approximately abut 35gms of water in one cubic meter of atmospheric air. A cubic meter of air weighs approximately 1 kg (1000gms). This means 3.5% of air may be moisture, It is harmful in compressed air Pipelines. Over 80% of this nuisance.
Comprises of particles less than 2 microns in size and these easily pass through a typical compressor intake filter. This moisture must be removed from the compressed air line at best it corrodes, erodes pipeline and equipment, damages coatings, contaminates lubricants, washes it from pneumatic loops etc. now 1 NM3 of air will hold only 35 gms of water at ambient temperature. The system will release the liquid water, oil etc. Beyond 35gms i.e. 245gms per IVF of air. The liquid will be in fog/aerosol form and be carried into the pipe work Down-stream. The wet air will generate large quantity of rust and scale. Hence moisture is the most un-welcome product in compressed air system.
CONCORDE VALVES AND AUTOMATIONS provides wide range of High performance Valves, these type of valves are prefered by clients for its heavy-duty, automatic throttling control flow for applications involving large flow rates and moderate pressure drops. It incorporates the two basic features of the high performance butterfly valve types: a PTFE, RTFE, or metal seal ring instead of a liner and double offset (eccentric operation) to reduce seal friction and operating torque and provide superior performance .We provide some of the high performance valves like Handle Operated Spherical Disc Valve and Worm Gear Operated Spherical Disc Valve too.
CONCORDE VALVES AND AUTOMATIONS provides wide range of High performance Valves, these type of valves are prefered by clients for its heavy-duty, automatic throttling control flow for applications involving large flow rates and moderate pressure drops. It incorporates the two basic features of the high performance butterfly valve types: a PTFE, RTFE, or metal seal ring instead of a liner and double offset (eccentric operation) to reduce seal friction and operating torque and provide superior performance .We provide some of the high performance valves like Handle Operated Spherical Disc Valve and Worm Gear Operated Spherical Disc Valve too.
MFG STDGENERALLY CONFORMING TO BS 5351 | ISO 17292
BLOW OUT PROOF STEMFLOATING BALL FULL BORE TESTING BS 6755
ENDSSCREWED TO BSP | BSPT | NPT | SOCKET WELD TO ASME B 16.11
FLANGED END150#, 300#, 600#
SIZE RANGE15 MM TO 100 MM
CONCORDE VALVES AND AUTOMATIONS is one of the authorized dealer of ELECTRICALLY OPERATED BALL VALVE. Its popular among clients because of its long lasting life Performance and coustomers trust on our products.
CONCORDE VALVES AND AUTOMATIONS is one of the authorized dealer of ELECTRICALLY OPERATED BALL VALVE. Its popular among clients because of its long lasting life Performance and coustomers trust on our products.
CONCORDE VALVES AND AUTOMATIONS provides wide range of High performance Valves, these type of valves are prefered by clients for its heavy-duty, automatic throttling control flow for applications involving large flow rates and moderate pressure drops. It incorporates the two basic features of the high performance butterfly valve types: a PTFE, RTFE, or metal seal ring instead of a liner and double offset (eccentric operation) to reduce seal friction and operating torque and provide superior performance .We provide some of the high performance valves like Handle Operated Spherical Disc Valve and Worm Gear Operated Spherical Disc Valve too.
CONCORDE VALVES AND AUTOMATIONS provides wide range of High performance Valves, these type of valves are prefered by clients for its heavy-duty, automatic throttling control flow for applications involving large flow rates and moderate pressure drops. It incorporates the two basic features of the high performance butterfly valve types: a PTFE, RTFE, or metal seal ring instead of a liner and double offset (eccentric operation) to reduce seal friction and operating torque and provide superior performance .We provide some of the high performance valves like Handle Operated Spherical Disc Valve and Worm Gear Operated Spherical Disc Valve too.

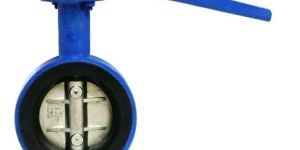

CONCORDE VALVES AND AUTOMATIONS provides variety of Butterfly Valves , these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world. We are providing the valves with pressure classes, such as such as PN10, PN16, PN20, PN25, PN40.
CONCORDE VALVES AND AUTOMATIONS provides variety of Butterfly Valves , these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world. We are providing the valves with pressure classes, such as such as PN10, PN16, PN20, PN25, PN40.
End Connection : Wafer Sandwiched(Lug Type On Request)

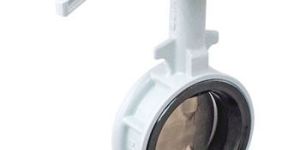

Kitz Ductile Iron Butterfly Valve in a distinctive range of sizes following all the norms and standards set by industry accurately. Kitz Ductile Iron valves are manufactured with impeccable quality.
Kitz Ductile Iron Butterfly Valve in a distinctive range of sizes following all the norms and standards set by industry accurately. Kitz Ductile Iron valves are manufactured with impeccable quality.
SeatEPDM/ Nitrile/ Hayplon/ Viton/ Moulded or Replaceable muffler type
ShaftAISI 410/ CF8/ CF8M/ CF3M
ValveType: Centric Disc Butterfly Valve with a single piece rubber lined body
Body TypeShort wafer (sandwiched between flanges)
Seat typeIntegrally Moulded with the body
Oper.Temp.range-25â to 130â(depending on MOC)
Seat LeakageTight shut off
OperationHand lever for sizes from 40MM to 350MM ,Worm gear boxes for 40 MM to 1000MM
CONCORDE VALVES AND AUTOMATIONS provides variety of Butterfly Valves , these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world. We are providing the valves with pressure classes, such as PN10, PN16, PN20, PN25, PN40.
CONCORDE VALVES AND AUTOMATIONS provides variety of Butterfly Valves , these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world. We are providing the valves with pressure classes, such as PN10, PN16, PN20, PN25, PN40.
End Connection : Wafer Sandwiched(Lug Type On Request)
Country of Origin230V, 110, 24,12V, AC/DC Available on Request
Valve BodyCF8
Connection1/2" BSP
PressureUpto 10kg/cm2
Temperature85° C
Time on0.5 to 10 Sec.
Time Off0.5 to 45 minute
ManualoverrideReset
Auto Drain Valve automatically drains water from compressed air systems. Applications include air dryers, separator, coalescing filters and drop legs. The proper size and quality fittings should be used with ample inside diameters as not to restrict the flow to the ADT-A Adjustment of the timer ON time and OFF cycle time allows for optimal system drainage.
Auto Drain Valve automatically drains water from compressed air systems. Applications include air dryers, separator, coalescing filters and drop legs. The proper size and quality fittings should be used with ample inside diameters as not to restrict the flow to the ADT-A Adjustment of the timer ON time and OFF cycle time allows for optimal system drainage.
Country of Origin : 230V, 110, 24,12V, AC/DC Available on Request
