DELTA MACHINE CRAFT Malad West, Mumbai, Maharashtra

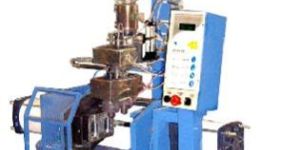

The machines are specially designed for ENTREPRENEURS and small scale units with small to medium budget with reasonable profitability. Screw-type, vertically adjustable, plasticising unit for high out-put cycles.Compact vertical head for space saving. Variable article weight adjustment provided in the head.Double head available at extra cost.Bottom blowing & parison streching unit available at extra cost.Very fast operating cycles with very low operation and maintenance cos.Most simple and easy to maintain systems with less downtime

Plunger type injection unit.Toggle type horizontal mould clamping unit.Injection unit can be raised and lowered as per requirements of moulds.Mould runner centre can be aligned horizontally by shifting the fixed platen.Proven design with reliable and user friendly features components.Can be upgraded to 60-VHS model, by modifications.

Model Number : 60-VH/S

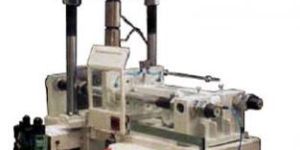

Plunger type injection unit.Hydraulic toggle type clamping unit.Available in fully automatic and semi-automatic models.Models IN-100 and IN-125 are with four tie-bars clamp.Fast cycles. Trouble-free operation.Upgradable to model by modifications.

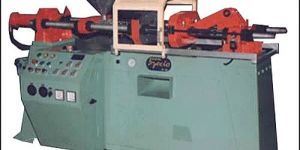

Plunger type injection unit. Hydraulic toggle type clamping unit. Available in fully automatic and semi-automatic models.Models IN-60 and IN-75 are with two tie-bars clamp. Other models are 4 tie bars clamp.Fast cycles. Trouble-free operation.Upgradable to model by modifications.

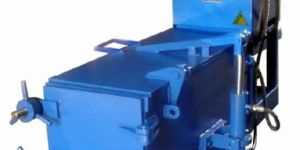

Application: Useful for baling metal scrap, metal turning, paper, cardboard, wood, grass etc. Operation : By lever hydraulic valves. Hydraulic force : 20 tons Electric motor : 7.5 hp Bale size : 450 mm x 450 mm or 600 mm x 600 mm Pressing speed : 1000 mmminute approx. Feed charge : Manual. Bale discharge : Hydraulic push out. Top lid : Hydraulic open-close

Application: Useful for baling metal scrap, metal turning, paper, cardboard, wood, grass etc. Operation : By lever hydraulic valves. Hydraulic force : 20 tons Electric motor : 7.5 hp Bale size : 450 mm x 450 mm or 600 mm x 600 mm Pressing speed : 1000 mmminute approx. Feed charge : Manual. Bale discharge : Hydraulic push out. Top lid : Hydraulic open-close

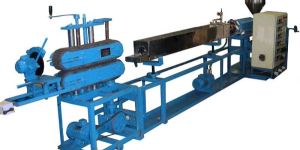

High class single screw extrusion systems. Air pressure sizing as well as vaccum sizing systems are available depending of material to be extruded. Wide range of post extusion systems like stamping machine, manual or automatic cutting machine are available. Profile plants are supplied with tailor made dies and callibrators. Full scale production as well as laboratory scale plants are available.

Useful for blending PVC resin and additives into dry blended compounds with combined mixing and heating of compound. Double vessel construction with S.S inner vessel and M.S outer jacket. Provision is made for circulating cooling medium like water or oil. Material feeding hopper is provided. Sight glass window is provided in the domed lid. Mixing cycle is controlled by timer and temperature controller arrangement with temperature sensor. Alongwith cooling action from the cooling jacket, this results in a fine blend without overheating.

Useful for blending PVC resin and additives into dry blended compounds with combined mixing and heating of compound. Double vessel construction with S.S inner vessel and M.S outer jacket. Provision is made for circulating cooling medium like water or oil. Material feeding hopper is provided. Sight glass window is provided in the domed lid. Mixing cycle is controlled by timer and temperature controller arrangement with temperature sensor. Alongwith cooling action from the cooling jacket, this results in a fine blend without overheating.

Profile Gas Cutting Machine Cantilever tracer arm with electromagnetic head tracer. Fast and accurate cuts. NM technology cutting head. Cuts any shape by tracing metal template. Easy to operate and maintain

Rugged construction. Chamber is machined from thick M.S blocks to withstand heavy grinding loads. Balanced rotor ensures smooth operation and long bearing life. Blades are hardened and toughened. Rotor is specially designed for large intake and efficient cutting of scrap feed. Blades on the rotor are easily changeable and the blade-nip can be varied by its adjustment device. Heavy duty gauge sheet metal hopper and outlet chute, retains form even after long use.

High class single screw extrusion systems. Air pressure sizing as well as vaccum sizing systems are available depending of material to be extruded. Wide range of post extusion systems like stamping machine, manual or automatic cutting machine are available. Profile plants are supplied with tailor made dies and callibrators. Full scale production as well as laboratory scale plants are available.

CONTINOUS PARISON.PARISON WALL THICKNESS CONTROL PROVIDED PARISON PRGORAMMING PROVIDED.FULLY HYDRAULIC OPERATION.INFINITELY VARIABLE SCREW SPEED HOT KNIFE & AIR EJECTION PROVIDED FAST AND RELIABLE OPERATION.

Plunger type injection unit.Hydraulic toggle type clamping unit.Available in fully automatic and semi-automatic models.Models IN-100 and IN-125 are with four tie-bars clamp.Fast cycles. Trouble-free operation.Upgradable to model by modifications.

Plunger type injection unit.Hydraulic toggle type clamping unit.Available in fully automatic and semi-automatic models.Models IN-60 and IN-75 are with two tie-bars clamp. Other models are 4 tie bars clamp.Fast cycles. Trouble-free operation.Upgradable to model by modifications.

Heavy steel fabricated body of l-beam and plates construction. Graded cast-iron platens of liberal thickness. Uniquely designed telescopic main press cylinder. Cylinder is openable at both ends for in-situ-servicing. The use of telescopic cylinder results in fast and accurate operation of the press with mould begning to close at fast speed, low pressure. Slow mould closing at full pressure can be selected to develop desired pressure just before mould is fully closed. This not only provides safety to the mould, but also results in substantial power saving.

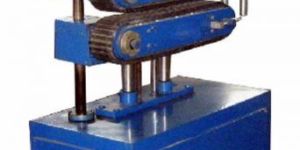

Sturdy and stable construction. Fully adjustable position and height of grip. Fitted with special neoprene belt for firm grip on the pipeprofile. Adjustable haul-off speed through DC drive.

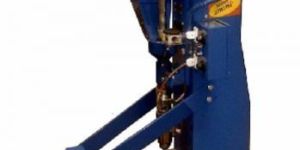

Motorised, Mechanical, Compact bench mounting model.Mechanically motorised plunger injction unit. Hand vice clamping.Uses inexpensive hand moulds.Very low power consumption.Most ideal machine for low volume production of complicated articles.Available in shot sizes of 15 gms., 30 gms, 60 gms., 100 gms., 125 gms., 180 gms., in three phase and single phase models.

Bench mounting, compact, semi-automatic machine, operated by double lever hydraulic valves.Vertical, plunger type injection unit. Direct hydraulic mould clamping unit.Injection and clamping units are vertically adjustable to accomodate various mould heights.Most usefull machine for small scale industries and also for other industries to produce complicated articles using inexpensive moulds.Ideal for producing engineering plastic articles for captive consumption.

Fully standarised machine of very compact design.Heavy duty extrusion unit fitted with nitrided screw and barrel.Vertical head, accumulator type, robust construction with streamlined flow channels.Direct hydraulic screw drive is available optional, extra. This results in low installed power and power consumption.Accurate parison programming unit is provided to obtain parison of adjustable profile.Rapid, direct hydraulic clamping unit is provided with cushioned mould closing and opening features, to avoid damage to machine and mould.Adequate system and operational safety is provided. Automatically operating safety gate is fitted.Available with conventional contractor-timer panel or microprocessor panel at option.Very low power consumption even on full load results in lower operating costs.Standard machine available upto 100 litres size, 200 litres machine is available on request for J ring and L ring drums.

Fully standarised machine of very compact design.Heavy duty extrusion unit fitted with nitrided screw and barrel Vertical head, accumulator type, robust construction with streamlined flow channels.Direct hydraulic screw drive is available optional, extra. This results in low installed power and power consumption.Accurate parison programming unit is provided to obtain parison of adjustable profile.Rapid, direct hydraulic clamping unit is provided with cushioned mould closing and opening features, to avoid damage to machine and mould.Adequate system and operational safety is provided. Automatically operating safety gate is fitted.Available with conventional contractor-timer panel or microprocessor panel at option.Very low power consumption even on full load results in lower operating costs.Very low power consumption even on full load results in lower operating costs.Most widely used machine for moulding plastic drums, carbuoys, jerry cans, water pots, tanks, baby-cycle seats, wheels, large toys like horse, elephant, hippo, etc.
