DIPESH ENGINEERING WORKS Ghatkopar, Mumbai, Maharashtra

In addition to equipment, we also undertake design, detailed engineering and fabrication of Storage Tanks for various Industrial Sectors, we are also well versed with “Onsite Fabrication of Tanks and Silos”.   Project Name : M/s. Lanxess. Designed , Manufactured, Supplied and Erected SS304 Silo Dia 4510 mm X 26137 mm Height X 340 m3 X 33 M.T.   Project Name : M/s. Siemens Ltd. 2 Nos. Storage Tanks of 11000 mm, 8000mm Dia. Tank shall be in carbon and stainless steel construction   Most of the components of Tanks were prefabricated at shop & Supplied to site to minimize the site activities and time.   Project Name : Storage Tanks for Alkyl Amines and Chemicals. 2100 KL X 4 Nos. + 300 CUM. Floating roof  Storage Tanks for Alkyl Amines and Chemicals.

C-GMP finish construction. Used to dry heat sensitive materials at a temperature as low as 60°C. Sizes available from 100 Ltrs. – 4000 Ltrs. Conforms to ASME & other international design codes for pressure parts. Complete body is machined to maintain close tolerence gap between helical blade and vessel. Quick opening type body flange with a motorized mechanism. Choppers are provided to assure very low moisture contents. Available in SS, Hastelloy, Teflon-coated & Halar coating construction.

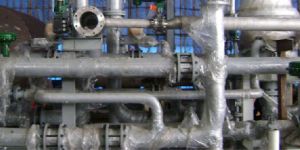

Complete Reaction cum Distillation system as Skid Mounted. Reactor, Condenser, Receiver, Vapor Columns & Reflux Line with Associated components Like Valve, Sight Flow Indicator, Instruments, etc. Components and attachments available from the most reputed Companies across.

C-GMP concept. Mechanical seal for inlet & outlet of hot media. Sizes available from 100 L to 20000 L. Vapour filter with high filter area & easily detachable function. Internal surface finish upto 600 grit mechanical polish having crevice free internals. Provision of sampling valve without vaccum break. Available in SS, Hastelloy & Teflon coated construction. Accessories such as cyclone separator, vaccum pump, condenser, heating & cooling system for solvent recovery can be tailored as per client’s requirement.

Energy Consumption is Low due to higher differential temperatures. Suitable for drying materials which are sensitive to heat, it can maintain low temperatures using high vacuum. Maximum Solvent Recovery is done.

Dipesh offers well-engineered and optimum Agitation Solutions for all your Mixing Tasks. Our agitators are able to meet our client’s complex process requirements thoroughly.We Offer Agitators for : Homogenization / Blending Liquid – Liquid Mixing Gas – Liquid Mixing Solid – Liquid Mixing / Reaction / Suspension High Viscous Mixing Applications Special features of our agitators : High heat transfer rate. Optimum Utilization of gas. High flooding limit. Reliable Containment of gas and the product of the reaction. Higher productivity due to higher mass transfer rates. Homogenous suspension of the catalyst and higher catalyst life.

Availability : 0-100kg

Country of Origin : 220V

Power : 1-3kw

Total Carbohydrate : 2yrs

Design Pressure Shell Side 0.45 Kg/cm2g Tube Side 10 Kg/cm2g Design Temperature Shell Side 150 OC Tube Side 180 OC Material SA240Gr.304 Weight 3.6 Ton Rectangular Tube Sheet OD = 1090 x 720 OD mm Tube Sheet Thk = 45 mm No. of Tubes = 1233

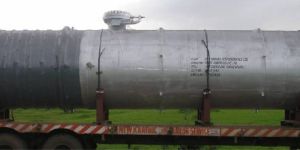

Dipesh offers well-engineered and wide range of Pressure Vessels for various Gas-Liquid storage.

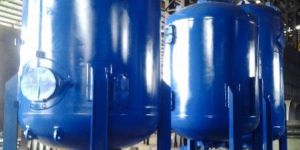

We have designed, Manufactured & supply 12 Nos. Carbon steel Rubber Lined Vessels with ASME “ U “ Certified Vessels for Eskom Kusile Power plant in south Africa. The vessels were inspected under five inspection agencies. The inspection is done by Authorized Inspector of ASME , GEWPT representative, PDNA, Eskom. These Vessels were used for following process. Scavenger Exchanger Cation Exchanger Anion Exchanger Mixed Bed Exchanger

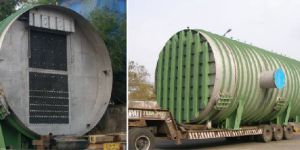

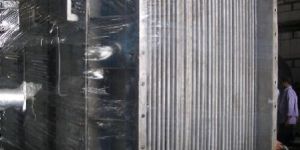

In addition to equipment, we also undertake design, detailed engineering and fabrication of complete process plants on a turnkey basis including structurals, piping and instrumentation.   Project Name : M/s. GE Water & Process Technology. Design and detailed engineering, fabrication and supply of SS90hMo Crystallizer & Deaerator , SS316 Distillate Tanks, Condenser & Other Associated Equipment’s, etc. Stress Analysis of Structure,Fabrication of Complete Structure, Gratings, Chequered Plate ,Painting  & Galvanizing. Supervision of erection of the Structure & Equipment’s. Commissioning assistance and documentation.

Dipesh Engineering Works offers complete package with design, stress and load analysis, bellow selection, fixed and sliding saddle selection for cooling water lines.

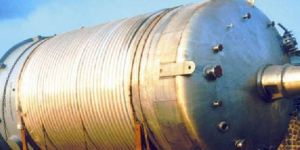

67 KL Total Capacity SS316 Limpeted  Reactor 2 Pitched Blades. One  Ruston Turbine with Bottom Bush Arrangement Flow-Serve make single Dry Mechanical Seal, with Internal Rigid Couplin. SS304 Lantern Stool. Inline Helical Nord make Gear Box and Compton make FLP Motor with internal and external Polishing resting on Skirt Support.

Design Pressure Shell Side 25 Kg/cm2g Tube Side 55 Kg/cm2g Design Temperature Shell Side 250 °C Tube Side – 50 / 150 OC Material Shell Side SA 516Gr.70 Tube SA516Gr.70 Weight 6.5 Tons Tube sheet OD = 1015 mm & Tube sheet Thk = 80 mm No.of Tubes = 892

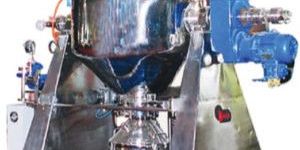

With an experience of over 3 decades in providing solutions for the Chemical Process Industry, Dipesh Engineering Works is ideally placed to offer you well engineered & optimised Vaccum Dryers from their range of Dryers to suit your applications. Our dryers are available in capacities ranging from 100 Ltrs. – 20000 Ltrs. gross volume capacity. Available in maintenance free – directly driven energy efficient shaft mounted gear boxes or in conventional chain and gear drives. Dipesh Engineering Works offers the following types of dryers & mixers to their customers : Spherical Paddle Chopper Dryer Rotocone Vaccum Dryer Rotary Vaccum Paddle Dryer Conical Screw Dryer Co-axial Contra Rotating Mixers

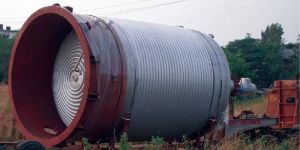

140 KL Total Capacity SS316 Limpeted Reactor With CS Skirt. 3 Nos. Pitched Blade Turbine. One  Curved Turbine with Single Dry Mechanical Seal ,Internal Rigid Coupling. SS304 Lantern Stool. Inline Helical  Bonfiglioli make Gear Box and Compton make FLP Motor with internal and external Pickling Passivation with Lug Supports.

Nitrogen Storage Tank

15 KL Total Capacity SS316  Jacketed Reactor ( Gas – Induction Reactor ) With dual Internal Coil. 2 Nos. Gas –Induction. One  Curved Turbine with Double Mechanical Seal  with Force Lubrication, Internal Rigid Coupling. CS Lantern Stool. Inline Helical  Bonfiglioli make Gear Box and Compton make FLP Motor with internal and external Pickling Passivation with Lug Supports.

Design Pressure Shell Side 27 Kg/cm2g Tube Side 41 Kg/cm2g Design Temperature Shell Side 350°C Tube Side 320°C Material SA 387 Gr.5 Class 2 Weight 30 Tons Floating Head Stack Unit Tube sheet OD = 1400 mm , Tube Sheet Thk. = 120 mm No.of Tubes = 800

At Dipesh Engineering Works, we specialize in designing and supplying coded Hydrogenators with highly efficient impellers and overall agitators for gas liquid reactions in aggressive services. Our impellers are ideal for reaction such as: Hydrogenation, Oxidation, Ethoxylation, Phosgenation, Chlorination, Ammonolusis,Carbonation, Bromination, Sulphonation & Fluorination.   Advantages:   Through our designs, we ensure that during rotation of the impeller, a vacuum is created at the tip due to venturi action. This vacuum overcomes the liquid heat. Fresh or unreacted gases from the vessel upper crest re-circulate into the liquid/slurry through the hollow shaft. Higher gas flow rates and finer bubbles sizes impart a very high gas-liquid interfacial area. A unique flow pattern provides desired movement of the catalyst and excellent contact of the gases with the catalyst or solids Advantages: Through our designs, we ensure that during rotation of the impeller, a vacuum is created at the tip due to venturi action. This vacuum overcomes the liquid heat. Fresh or unreacted gases from the vessel upper crest re-circulate into the liquid/slurry through the hollow shaft. Higher gas flow rates and finer bubbles sizes impart a very high gas-liquid interfacial area. A unique flow pattern provides desired movement of the catalyst and excellent contact of the gases with the catalyst or solids.   Client: M/s. Jubilant Organosys Ltd. Material of Construction: SA240Gr.316 Third Party Inspection :  LRA   Specialty :- A 5 KL Working Capacity SS316 Hydrogenator, having specially designed Gas Recirculation Agitator with Dual Internal Cooling coil with Jacket on the Vessel. Coupled with high pressure in the Vessel along with Agitator rotating at very high speeds (approx. 300 rpm), setting up mechanical sealing arrangement was the biggest challenge in the design and the manufacturing of the Vessel. In consultation with the seal manufacturer in India, we designed a unique in-house double mechanical seal with a forced lubrication system to withstand high pressure and temperature. This Eqpt Lived to the best Standards including Service support and we have supplied two more in last two years.

Dipesh understands processs heat transfer, thermal and flow engineering. We put our knowledge to design and manufacture Shell & Tube Heat Exchangers, Double Pipe, Hair Pin, Finned Type, Silicon Carbide Heat Exchangers, Titanium Heat Exchangers etc. that deliver. Our equipment have stood for decades with unbeatable and lasting performance.

Design Pressure Shell Side 40.8 Kg/cm2g Tube Side 31.62 Kg/cm2g Design Temperature Shell Side 170 °C Tube Side 230 °C Material Shell Side SA106Gr.B Tube Side SA240Gr.316 Weight 6.5 Tons Tube sheet OD = 928 mm & Tube sheet Thk = 45 mm No.of Tubes = 61

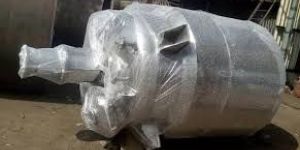

We offer complete GMP Reactors with process & mechanical design meeting C-GMP standards and stringent requirements of International regulatory bodies like USFDA, UKMCA, TGA etc. Offered with Various Types of Agitators such as Anchor, Turbine, Mig, Hydrofoil, Propeller, Pitched, Disc, Paddles, Helical and Contra Mixer etc. Robust drive assembly offered with mechanical seals, gland packing design and even hermetic design. The Nozzle Connections can be provided with sanitary Triclamp, DIN, SMS, IDF or flange ends as specified by the user. Heat Transfer Mechanisms offer to meet service temperatures from – 700°C to 4000°C by either Jacketed, Limpeted, Internal Coil or their combinations.

In addition to thorough mechanical design, detailing, stress and load analysis, Dipesh’s manufacturing and welding of equipment and systems has surpassed client expectations.

Track to have designed and supplied wide shapes, sizes and applications of Tall Columns and Process equipment, including Distillation columns Absorption towers DO Towers Scrubbers with stacks Stacks Venturi Stacks Columns for Lethal Applications. High Pressure Columns. Columns for monomer and Polymer applications. Columns for Reactions. We offer support from Selection of materials, Mechanical Designs, Rigging analysis, Wind, Seismic and Structural Stability. One of our 52 m tall distillation Column of 157 tons was delivered in just 3 months from design finalization and exported to a petrochemical Facility in Singapore.   Client: M/s.Gujrat Flurochemicals Pvt. Ltd Material: SA516Gr.70 Erection weight: Service: Distillation Quantity: 11 nos. (various sizes)   Length: 48 metres
