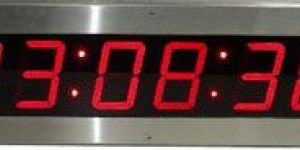

In this system Master clock  generates  12V DC impulse  at Mid-night  and all the connected slaves gets Reset at 00:00 (24H mode). In this system 2 wire is used  for supply to connected slaves and remaining  1 wire is used for midnight pulse. DYNATEK Slaves have opto-coupler interface to accept that as synchronizing Midnight impulse. This system is used only in upgrading of older installations, where a number of old electro-mechanical clocks exists and have to be gradually updated to digital clocks by using existing cable net-work.

DYNATEK Time - zone clocks are designed and manufactured to meet the requirements of the most demanding, prestigious and reliability critical applications in dealing rooms, command, control and communications facilities, conference and reception areas. DYNATEK  Time – Zone clocks are  designed with a latest technology having a TCP-IP communication facility and  provided with  “Dynatek Time Software”  which will be loaded to  PC in existing LAN Network. This PC acts as a Master and communicates  “ Time Data “ (GMT + Offset ) to every  zone clock.   “ DYNATEK TIME SOFTWEAR”  is having following Features : Programmable  Zone - location. Programmable  Day light saving mode. Programmable  (GMT + Offset) Time data for each Time-zone clock. Optional inter-changeable  zone name plates. 2.3"  digits  with RED , GREEN and YELLOW colour. Long distance visibility.

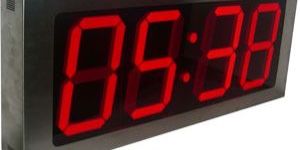

This system is designed with a latest technology having a TCP-IP communication facility. In this system, your existing LAN Network will be utilized for time synchronizing.PC will be connected to your existing LAN network through LAN switch & Dynatek Time Software will be loaded to PC now this PC acts as a Master  & communicates “ PC TIME” to all the clocks connected in LAN network. Hence there is no need of a separate Master Clock. Master PC will be provided with GPS receiver(optional) to synchronize GPS TIME. There is no need to keep the PC continuously “ON”, because each slave clock is provided with RTC hence it works as a standalone clock, therefore even though a PC is not in operation for 1 or 2 days all the clocks will show uniform time.   Advantages of TCP-IP Communication facility:-       Existing LAN network can be used for uniform time synchronization. There is no need of huge Cabling work. Any no. of clocks can be connected. Network connectivity Status can be checked through PC. Installation & maintenance cost is very low as compare to conventional clock    system. Time synchronizing software can be loaded to any working PC in LAN Network There is no need to keep PC continuously “ON”. Any Converter for PC communication is not required. Each Clock can be assigned individual IP address. GMT offset is settable. Day light saving mode. GPS receiver connectivity.

Display Type : SG = 7 SEGMENT

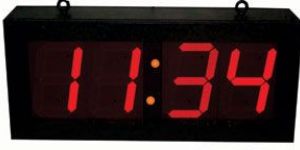

This system is designed with a latest technology having a TCP-IP communication facility. In this system, your existing LAN Network will be utilized for time synchronizing and Alarm Programming. PC will be connected to your existing LAN network through LAN switch & Dynatek Time Software will be loaded to PC now this PC acts as a Master  & communicates “ PC TIME” and programming of  different  Alarm schedule, Assign of schedule for each day and Yearly holidays.

2.0.1  Master / Slave  type1  : In this system,Master & Slave Clocks are provided  RS-485 communication facility. A simple two wire twisted pair cable is required to connect Master & Slave Clock together to form the synchronize  network system.Mater clock communicates Time data at fixed interal of 15 minute.  2.0.2  Master / Slave  type2  : In this system all Slave clocks are connected to your PC through RS-232 to RS-485 converter to form a synchronized network. PC acts as a Master & controls all slave clocks by transferring Time data at set intervals. Master PC can be provided with GPS receiver ( optional ) to synchronize with GPS TIME.

Display Type : SG = 7 SEGMENT

With the ever growing student population, more extra curricular activities & ever increasing workload due to modernizaton of education, every staff member in school from the principal to the peon are under tremendous stress to finish a daily task in a fixed time limit.To ring the school bell at the right time is a task in itself and an investment of time, effort & money. Imagine a school bell acting as a full-time staff member & working on its own! Yes we have turned your imagination into reality. Our engineers at 'Dynatek' have developed a 'AUTOBELL', which elements the need of human attention the working of a school bell.   Salient Features : Autobell is a sophisticated programmable unit which ring an electrical bell / siren automatically as per the programmed schedule. It has built in Real Time Clock with LCD display. Autobell is designed to program 7 schedules. Each schedule consists of 50 bells. Hence, user can set 50 different bells for each day. User can assign any schedule on any day. Some schedule can also assigned for more than one day. Autobell can be configured as a Master or a Slave in case it is used in the synchronized digital clock system. Autobell has a provision of holiday setting. For sudden changes in schedule, the Auto/Manual mode is provided. This function enables the bell to be rung manually according to the change without disturbing the previous setting. Ball length from 1sec. to 60 sec. can be set, keeping in mind the necessity for long / short bell. Autobell is provided with this unique feature of setting the length of every single bell. Autobell has the provision for a double bell in case the schedule requires two consecutive bells to be rung. In case of failure of main power bell will not ring but built in clock operates on bettery back up hence programmed schedule will not be disturbed.
