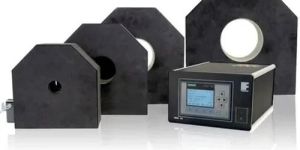

Effective demagnetization via the pulse method Magnetized components can lead to interference signals during crack or microstructure testing with eddy current component conditions, therefore resulting in false readings. To avoid this, FOERSTER offer a powerful demagnetization unit: the ZMAG CM. The pulse method used enables high penetration depth to demagnetize the components effectively and promptly. The Siemens control and pre-configuration allows an easy integration of the unit into your production process. Thus, your process quality and reliability can be significantly increased.   Your advantages at a glance •                Flexible spool size: There are four spool sizes available with 30/75/110/220 mm. Other sizes on request. •                It can be automated: I / O interface for control available. Alternatively, manual operation is possible. •                Plug & Play: Pre-configured degaussing: You don't have to set anything; you can start right away. •                High demagnetization performance: Powerful pulse shape for effective demagnetization. •                Pulse method: The pulse method allows a greater penetration of the component than at a constant frequency.     Applications: 1.              Elimination of misinterpretations 2.              False signals during microstructure testing 3.              Magnetic particle testing 4.              Magnetic adhesion of metal chips 5.              Coating processes 6.              Compliance with manufacturing standards

Voltage : 230 VAC,50 / 60 Hz

Brand : Institut Dr. Foerster GmbH & Co. KG, Germany

SCOPE: Modern Digital Ultrasonic Test Electronics 5 channels PLC based fully automated operation PC based Data Logging & Test Report generation Line focused Immersion Probes Defect Location Marking Precision 5 axis manipulator Test Mechanics including Immersion Tank Conveyor System & Accept / Reject Collection Cradles Meets International Test Speci cations

Material : Stainless Steel (Welded & Seamless)

Country of Origin : India

Brand Name : EECI

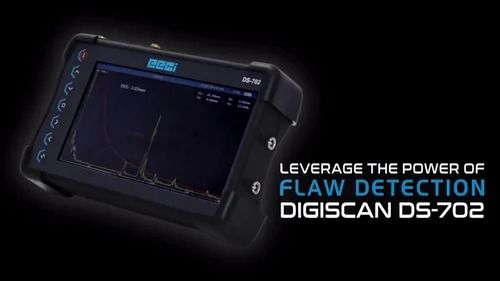

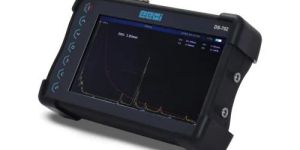

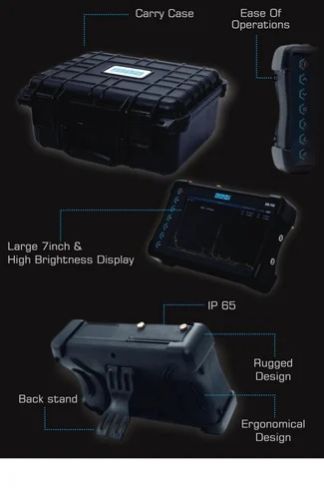

The DIGISCAN DS702 is a powerful Ultrasonic Flaw Detector, reliable and state-of-the-art universal Flaw Detector. It’s ergonomical and rugged IP65 design makes it ideal for everyday applications in the toughest field environments, as well as lab applications for dependable inspection results. The DS702 is feature packed for all your inspection demands and conveniences, with no compromise on performance and quality.Features such as DAC, TCG, Universal DGS, FlexiDGS, AWS, video recording along with square & spike pulser, high PRF, variable pulser voltage and a 120dB gain, ensure adherence to various international testing standards.The DS702 was designed keeping in mind the ultrasonic ndt demands of industries such as Aerospace, Automotive, Nuclear, Defence, Steel manufacturing, Oil and Gas, Power/Energy, Railways, Heavy engineering, Forging, Castings, Composites and Research Applications.

Condition : New

Power : USB C Fast Charger, 100 - 240 VAC, 50-60 Hz, 1.5 A

Feature : Easy To Use

Packaging Type : Box

Display Type : Digital

Battery Backup : Upto 8 hrs

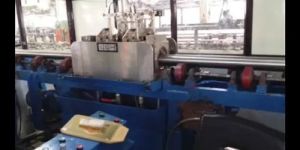

Automated ultrasonic inspection solution for Bar Core defects by the linear travel of job & putting multiple probes 8 nos or multiple of 8, across the circumference to cover all the possible core flaws detection in Auto mode with registering the test graph, report by each jobs, shift etc.The other way to test full cross-sectional, we shall offer probe rotating or Job rotating based test system. In Job rotating, there will be helical movement of job with static probe. In this test system, there will be 3-4 Immersion probes (or 6-8 probes) placed in the Immersion tank. 2 nos probe will be for Longitudinal oriented flaws clockwise and anti-clockwise directions & the balance 1-2 no probe will be used for the normal beam testing/lamination testing/Flat bottom hole detections. The probe rotating based test system will have rotation of probe & linear pass of the job.

Country of Origin : India

Brand Name : Electronic & Engineering Co. (I) Pvt. Ltd. (EECI)

Application : Bar Testing

Compact and robust, the STATOGRAPH CM+ / CM consists of powerful hardware and software to guarantee reliable inspections. Both STATOGRAPH modules are network-compatible and can thus be operated via a tablet or smartphone. Production line status can therefore be checked anytime and anywhere, meaning that immediate corrective action can be taken if necessary. Test parameters and other settings can be captured and adjusted on the fly. The STATOGRAPH CM+ also has a touch screen for use directly in the line.On the STATOGRAPH CM, a multi-color LED tells the device status with a quick glance into the control cabinet.SENSOR TECHNOLOGY:All existing probes can be connected as usual to the new STATOGRAPH CM+ / CM modules. A broad portfolio of standard and special-purpose probes is available. This means that, with FOERSTER, you’re optimally prepared for any challenge.Standard probes:For crack testing on components, stationary differential-eddy-current probes are usually installed directly in the test station. These have a very high test sensitivity and generate reproducible test results.Special probes:Components with complex geometries require special test solutions. For this reason, FOERSTER’s probe portfolio includes, among others, angled sensors and its FLEXPROBES, which are flexible probes that can be adapted to the unique geometry of the test piece.In addition, we can also develop customer-specific  probes for high-resolution testing.

Brand Name : Institut Dr. Foerster GmbH & Co. KG, Germany

SENTINEL™ 880 Series Gamma-Ray Source Projectors. Experience extreme durability, simple operation, and low operator dose. With over 12,000 in service worldwide from Alaska’s North Slope to harsh Middle East desert environments, the SENTINEL 880 Series has nearly two decades of proven reliability and durability giving you the most uptime from your equipment and maximum production for your clients.   The versatility in using Ir-192, Se-75, and Yb-169 radioisotope sources maximizes the non-destructive testing applications where you can utilize your SENTINEL 880 Series projector while advanced safety features minimize operator dose. Designed, tested, and manufactured to the requirements of ANSI N432-1980, ISO 3999:2004(E), IAEA TS-R-1 (2009), IAEA SSR-6 (2012), USNRC 10CFR34, USNRC 10CFR71, and USDOT 49CFR173.

SENTINEL™ 1075 SCARPro.Experience 24/7 SCAR Productivity. Perform Small Controlled Area Radiography (SCAR)  radiographic inspections in close proximity to other trades, nucleonic process control equipment, and critical safety systems, such as visual flame detectors, to minimize the impact of RT on continuing operations or outage schedules.  With the SENTINEL 1075 SCARPro, you can obtain up to 98% reduction in exclusion zones compared to conventional radiography techniques. Designed, tested, and manufactured to the requirements of ANSI N432-1980, ISO 3999:2004(E), IAEA TS-R-1 (2009), IAEA SSR-6 (2012), USNRC 10CFR34, USNRC 10CFR71, and USDOT 49CFR173.

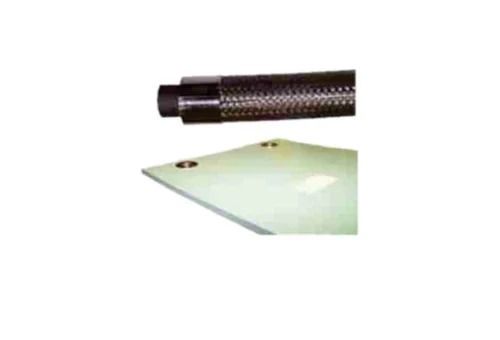

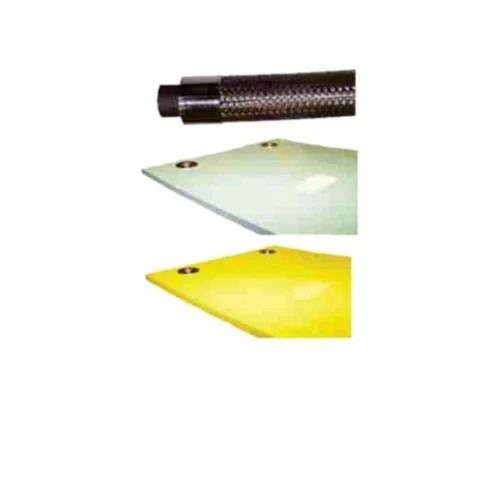

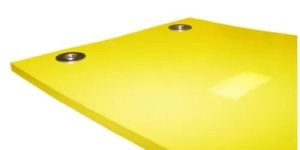

The Radishield Radiation Protection System is a patented totally encapsulated shielding system. Its unique formulation gives flexible shielding in inaccessible and restricted applications where traditional methods of shielding are difficult to provide. Available in flat sheets of special sizes and guide tube shields of standard and custom lengths, Radishield provides the necessary protection for any NDT company.   Benefit: High flexibility Low on-site installation time Custom sizes available Lead free sheets available A hermetically sealed encased system allows for no sharp edges and no surface oxidation of lead Impermeable to water, dirt and other contaminates Easy to clean

Country of Origin : India

Size : 20x30 mm

Application : Industrial

Condition : New

The PY-2, Permanent Magnetic Yoke, is a portable, permanent magnetic yoke designed for surface & subsurface cracks without requirement of electrical supply.Product Details: Rugged Construction for Reliable Magnetic Inspection Easy to use, Simple & Highly Economical No power requirements Lifting Capacity: Above 18 Kg, At 100 mm pole spacing Suitable for both Dry & Wet applications. Ideal in Petrochemical, Off Shore, Chemical Industries, etc. Small, Reliable & Strong Magnet with no requirement of Remagnetisation. Durable and for long life use. Technical Specifications: Field Strength: With poles together 7000 guass, In Centre of a 50mm air gap 400 guass Battery Operation: Not applicable Remagnetisation: Not required Additional Information: Item Code: PY-2 Packaging Details: Standard Packaging

Country of Origin : India

Brand Name : EECI

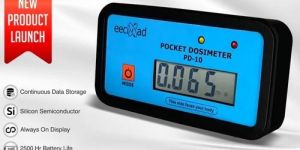

EECIRAD Pocket Dosimeter is designed for professionals as well as for general use. It is reliable, accurate, lightweight, rugged & easy to use.This Pocket Dosimeter serves as a personnel radiation dosimeter, to cater the needs of radiation works in Nuclear Installations, Radio Chemical Plants, Medical, Industrial Applications etc, where radioactive materials are used. Features: Light weight with compact size and easy to fit in pocket Continuous display of dose of Gamma and X-rays radiation Ultra long battery life of 2500 hours Additional Information: Item Code: Pocket_Dosimeter_PD10 Delivery Time: 4-5 Weeks Packaging Details: Standard Packaging

Color : Black & Blue

Application : Nuclear Power Industry,Radiography,Radiation Protection,Civil / Defense,Industrial,Industrial, Laboratory

Country of Origin : India

Brand Name : EECI

Material : ABS Plastic

Display : Lcd to Indicate: - Dose, Dose Rate, Dose Alarm, Dose Rate Alarm, Battery %, Dose Clear

Weight : 80 gm

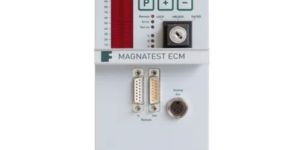

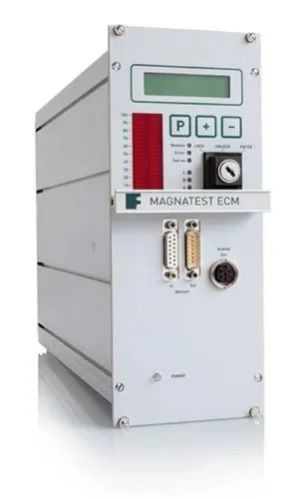

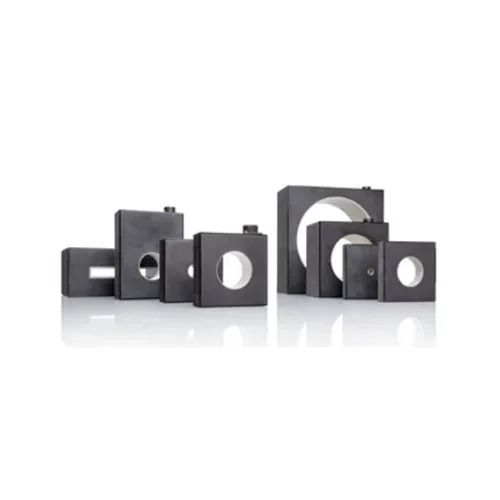

MAGNATEST ECM is the line-ready compact module for simple testing tasks. The unit simply and reliably performs testing tasks such as material mix and deviation measurements as well as deviations in surface hardness and case-hardening depth. MAGNATEST ECM is designed to be used as the core component in quality assurance systems during series production and for installation in production systems. It is particularly suitable for applications that primarily focus on profitability and less on multiple functions. Low-cost eddy-current module for non-destructive testing using the magneto-inductive method. Genuine magneto-inductive testing by evaluation of harmonics. Test parameters variable over wide ranges. Simple operation. Test pieces sorted in two groups: o.k. / n.o.k. One-dimensional display of measured value by LED bar graph. Key-operated switch for locking operating functions.  Technical Data Excitation frequency: 2 Hz to 128 kHz, 17 levels Throughput: depending on excitation frequency, approx. 10 items at 1 kHz Test resolution: manual, external, internal Sorting threshold: circle, ellipse, rectangle  Stimulation: mono-frequency

Brand Name : Institut Dr. Foerster GmbH & Co. KG, Germany

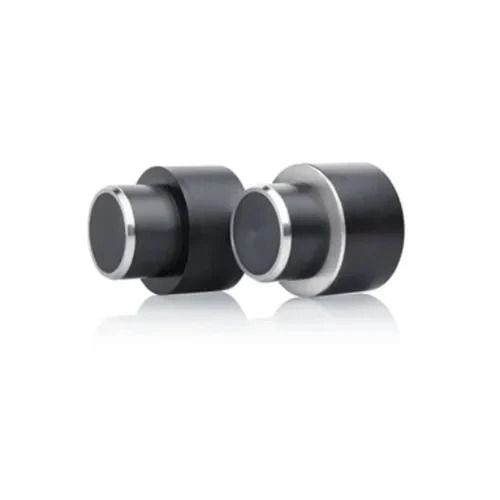

The FOERSTER MAGNATEST D 3.623 is an electronic instrument for non-destructive testing of conductive materials for their different magnetic and/or electrical properties.It is ideal for testing mass-produced components (such as fasteners, shafts, studs, rings, valves, sprockets, gears, forged parts, cast parts, machined parts, sintered parts, and more) for differences in: Alloy Composition Heat treatment Grain Structure Hardness Case Depth Dimensional and Geometrical Differences Features & Benefits: PC controlled electromagnetic test electronics for fully automated and rapid testing of every individual component produced (can also be employed manually and offline) Automated micro-structure and hardness testing with coils and probes:The sensors for testing material properties are available as coils or probes, depending on the material concerned. A broad range of standard testing coils and standard testing probes is available for the various MAGNATEST test instruments. In addition, we offer individually adapted customized solutions for special sizes or geometries.

Brand Name : Institut Dr. Foerster GmbH & Co. KG, Germany

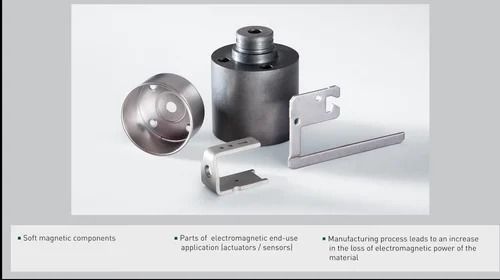

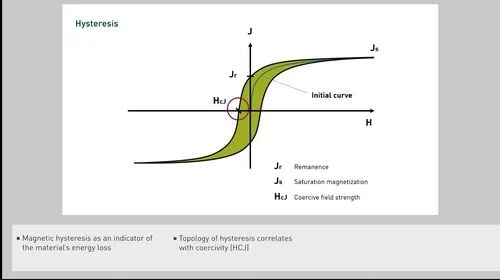

Material evaluation based on magnetic properties Magnetic values such as coercivity HCJ correlate with numerous important process parameters and material properties in the production of sintered hard metals and powder-metallurgical components. The KOERZIMAT 1.097 HCJ measuring system by FOERSTER facilitates the accurate, automatic, and fast measurement of the coercivity HCJ. The largely geometry-free measurement is particularly suitable for testing samples with complex shapes. The extension module J-H measurement offers the possibility to determine the complete J-H Hysteresis on soft magnetic steel incl. the initial curve. The applications of the KOERZIMAT include the control of the sintering level and particle size of hard metals and the quality control of metallic powders for the production of magnets and hard metals. The unit can also be used for monitoring the quality of the annealing and the mechanical stress state of soft-magnetic components (SMC) and for controlling electromechanical components in the electronics, automotive, computer, and clock sectors.  Your advantages at a glance: •          Determination of coercivity in accordance with IEC 60404-7 •          Determination of hysteresis J(H) for soft magnetic steel bars •          Determination of relative permeability µr(H) for soft magnetic steel bars •          PC-controlled measuring system •          Geometry-free measurement •          Lightweight, extremely compact design •          Software for controlling individual and series measurements •          Database for collecting measurement data and parameter sets •          Customer-specific reports •          Remote port for automation, data access, etc.   Technical Data: KOERZIMAT 1.097 HCJ/J-H Measurement range:  HCJ           0 – 100 kA/m µr(H)     100 – 2500 Magnetization field strength: up to 450 kA/m Homogenous field area:         170 x 40 mm (LxD), coil 40 120 x 60 mm (LxD), coil 60 Measurement uncertainty:    1 % of measured value Sensor elements:        Foerster probes (fluxgates) Power supply: 100 – 240 VAC, 50/60 Hz

Brand Name : Institut Dr. Foerster GmbH & Co. KG, Germany

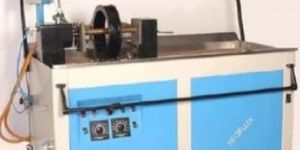

Horizontal Bench Type Equipment is a multidirectional magnetization unit with capability to magnetize up to 2000 Amps. It provides alternating current (AC) and full wave DC (HWDC) as test current for effective magnetization and surface and subsurface detection of cracks. It can be used in industries like Forging Shops, Aircraft Overhaul Stations, Heat treatment Plants where high magnetizing currents are required with high level of accuracy.   Features: Contact shot for Circular Magnetization & Coil Shot for longitudinal magnetization of parts 4500 Amps AC & 5000 Amps FWDC Fabricated Frame (M.S.) with splash guard & wood grill assembly Stainless Steel circulation tank of SS304 grade material with Turbulence Agitation System, Mono-Block Pump and Hand Nozzle Rugged construction for reliable magnetic inspection. In-built power source with infinitely variable self-regulating current control 5 turn 300-mm. dia base mounted coil Pneumatically operated headstock with foot switch (100 mm stroke length) & rail mounted hand-operated tailstock, both with steady rest for heavy job handling Analog Ammeters with calibration facility Control Panel with push bar assembly In-built AC decay Demagnetization facility Black color Inspection hood of resin for ???uorescent wet particle inspection of jobs under ultraviolet lights. AC / FWDC changeover by selector switch Magnetization of time controlled by logic control PCB Current assurance indicator with audio visual facility.   Additional Information: Item Code: EECIFLUX--6000 Packaging Details: Standard Packaging

Brand : EECI

Pocket Size, Compact and Light Weight 2 in 1 Survey Meter and Dosimeter Ultra long battery life Alarm indication by Visual, Audible and Vibrator APPLICATIONS: Nuclear Power Industry Radiography Radiation Protection Civil / Defense Industrial SCOPE The main features of this versatile pocket meter are the compact size, the ease and flexibility of operation and its quick and accurate measurement performance, which is provided by the use of sophisticated low power technology. It displays Dose Rate and accumulated dose in single device. Different threshold levels for doserate and dose alarm is provided, alarm indication is given by Audible, Visual and Vibrator. The built in vibrator provides silent alarm function in Noisy environment

Brand : EECIRAD

Application : Survey

Automated ultrasonic inspection solution for Industrial Cylinder for Longitudinal & transverse oriented OD/ID flaws as well as wall thickness monitoring symultaneously in one go. The test system follow the test requirement as per specification IS 8451. The economical test electronics DS 848 – max 8 channel manufactured by EECI has been used to test the job. The UT test channel has independent setting of UT parameters for each channel & can be generate the encoder based test report or time based test report having each channel strip chart. The customer logo can be incorporated on the test report if required. The high end solution can also be done with using the DUT-e08 based test electronics which will have industrial grade PC hosts the acquisition and analysis software.

Brand Name : Electronic & Engineering Co I Pvt Ltd (EECI)

EF-6Y is a new generation electromagnetic yoke creating AC Magnetic field for detection of surface cracks during Magnetic Particle Testing.EF-6Y is handy & lighter (only 2 kgs) than conventional yokes. Articulating & double joined legs contour easily & adapt to any shape to assure good contact. It has robust and chemical-resistant construction and is equipped with a 2 meter long mains cable for convenience in field applications.EY-6Y’s engineering plastic body has grooved rubber gasket which virtually seals the internal circuit, operator switch housed in a sealed cavity and stress relieved mains cord are built in safety features.Features: Ease of handling with greatly reduced fatigue due to soft grip, angled construction, better positioning, light weight & optimized location of magnetizing control Strong & rugged construction Additional safety features Exceeds ASTM 709 lift weight requirement Additional Information: Item Code: EF-6Y Packaging Details: Standard Packaging

Country of Origin : India

Application : Weld inspection, Component inspection, Spot inspection, In-service inspection

Brand : EECI

To fulfill many test problems in some industries like foundries, welding shops & Aircraft Overhaul Stations, magnetic particle inspection demands portability with a high level of magnetizing current, we manufacture Mobile Power Type Equipment & Accessories. Features: The unit is suitable for working on AC & HWDC as test currents. Rugged construction for reliable magnetic inspection. Heavy-duty caster wheels make it possible to carry unit anywhere on the shop floor. Detects surface as well as subsurface defects. Capable of detecting defects in all directions using prods, Central conductor or 5 turn coil. Inspection can be done with dry as well as wet method. Equipment confirms to international specifications Thyristorised self-regulating current control with closed-loop feedback for compensation of voltage fluctuations, electrical resistance & Prod placements. Thermal Overload relay switch. Remote control option for convenience & productivity. Equipped with two output ports of 230 V, for attachment of backlight and AC/HWDC Yoke. Push Button for automatic AC Demagnetization Provided with heavy-duty bolt type connectors. Switch over from AC to HWDC is manual.   Accessories: Prods with replaceable tips Scissor Clamps C Clamps Split Coils Cables for Wrap Magnetization Copper Central Conductors Additional Information: Item Code: 4000-Amps Packaging Details: Standard Packaging

Weight : 340 Kg.

Country of Origin : India

Brand Name : EECI

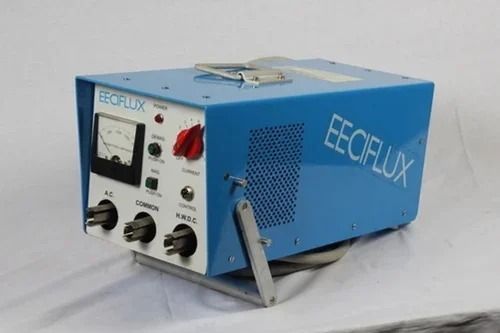

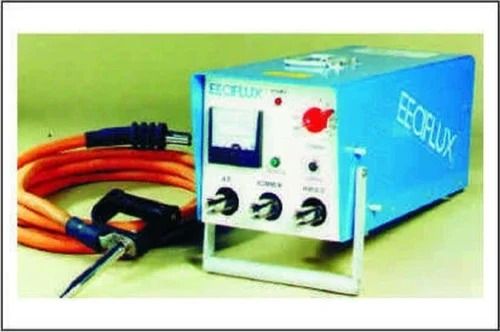

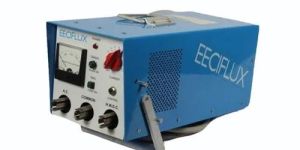

Features:   Equipped with Thermal overload relay to prevent failures of components. Thyristorised stepless solid-state current control. Quick disconnect type of prod connections. Rugged construction for reliable magnetic inspection. Compact lightweight and portable. Can detect surface as well as sub-surface defects. Equipment is built standard for continuous inspection.

Country of Origin : India

Weight : 45 Kg.

Brand Name : EECI

Type : AC and HWDC output

EF-9 Y is a new generation electromagnetic yoke which can create AC HWDC magnetic fields for detection of surface sub surface cracks during magnetic particle inspection.EF-9Y is a portable and rugged yoke, which can be used seamlessly in tough inspection environments It's double joined legs can easily adapt to various job contours while maintainingthe magnetic field strength and lifting capacity The flexibility of the pole distances make the EF-9Y ideal for small and large jobs as well.The carefully engineered body of the EF-9Y makes it very ergonomical to operate Meticulous construction protects the internal circuitry from external dangers, making it safe and durable.   Features: AC and HWDC magnetization for surface and sub surface inspection Ergonomically design with optimised controls for ease of use Durable and rugged construction Conforms to ASTM E709, ASTM E1444 standards Built for safe operations with optimal duty cycle Additional Information: Item Code: EF-9Y Packaging Details: Standard Packaging

Country of Origin : India

Application : Overhead application, Weld inspection, Component inspection, Spot inspection, In-service inspection

Brand Name : EECI

Weight : 2.2 kg

DZM-10m, Area Radiation Monitor Small, self-contained, and powered by the mains In DZM-10m, DOSE RATE RANGE is 0.001 mR/h to 10 mR/h A big, vivid 7 Seg display with a 5″ Touch screen TFT Display, fault or error indicator, and alarm notifying IP-65 ingress protection, compact and rugged case construction Environmental and EMC compliance with N42.17 Modbus RTU – RS485 or TCP/IP communication protocol SCADA Based, Web-based browser for monitoring up to 250 instruments APPLICATION Nuclear Power Industry Nuclear Process Labs Radiography Environmental Survey / Health Physics Labs SCOPE Area Radiation Monitor, Model DZM is a compact, simple to use, stand alone instrument to monitor Gamma Radiation. It is useful in Health Physics applications in Nuclear laboratories, reactors and power plants. It is ideally designed for area and process monitoring in Nuclear facilities. Area Radiation Monitor, DZM is completely self contained, mains operated and SBC based unit. Main function of DZM is to display Dose rate level of the area and give visual indication if any alarm situation arises. It includes Geiger Muller detector to detect Gamma Radiation, necessary high voltage to operate the GM detector and pulse processing electronics. DZM provides 7seg LED and 5” touch screen TFT LCD display. It also provides Audio and Visual indication for Alarm whenever Dose rate exceeds threshold level. DZM is housed in robustly constructed wall mounting type enclosure to provide immunity against EMI/RFI or line transients and IP65 rated. Additional Information: Item Code: DZM_10m Delivery Time: 3 Weeks Packaging Details: Standard Packaging

Application : Industrial,Nuclear Power Industry, Nuclear Process Labs, Radiography, Environmental Survey / Health Physics Lab

Brand Name : EECIRAD

Color : Yellow

Gamma monitor model DZM100/100R/100RE are microprocessor based instruments designed specifically for remote radiation monitoring. It's main function is to display radiation levels in the work area to caution radiation workers. It alerts the user with audiable/ visual alarms when preset radiation levels are exceeded. A battery backup provides up to 8 hours of additional use after the primary power is removed, is a very useful safely feature in areas expecting power failures. It is useful for Industrial Radiography, Nuclear Power Plants, Healthcare and Irradiation facilities. Product Details: Detector: Shock-proof, halogen quenched GM tube. Internal (DZM100) External with 10m connecting cable for remote measurements (DZM100R / DZM100RE) Detected Radiation Type: Gamma(γ), X-Rays Energy Response: ± 30% 200KeV to 2 MeV (Ref Co-60) Minimum Radiation Detection:: 0.1 mR/hr OR 1 μSv/hr Maximum Radiation Detection: 999.9 mR/hr OR 9999 μSv/hr Dose Rate Linearity: ±15% (Ref Co-60) Display: Extra Bright 4 Digit Seven Segment LED Display Display Resolution: 0.01 mR/hr OR 0.1 μSv/hr Measurement Unit: Roentgen/ Sievert (User Selectable) Output Interface: Relay Output NO, NC and COM for Alarm condition Operating Temperature: -10° to 50° C Alarm: User selected, non-volatile alarm value Visual (red and green lights) and Audio (siren) LED Indicator on External Probe   Additional Information: Delivery Time: 4-5 Weeks Packaging Details: Standard Packaging

Country of Origin : India

Usage/Application : Industrial

Brand : EECI

Material : DZM 100/100R/100RE

Weight : 1.5 kg

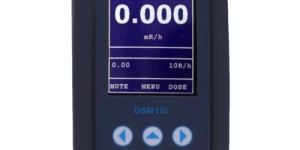

DSM-10 is a versatile instrument incorporating the latest technology, with smart algorithm for accurate reading.Features: Portable, rugged, handheld design  Dose & dose rate measurements up to 10R  60 hours of dose rate storage  PC interface for data logging & reporting  Headphone jack for audio alarms  Large 2.8 inch colour LCD Additional Information: Item Code: DSM-10I Delivery Time: 4-5 Weeks Packaging Details: Standard Packaging

Country of Origin : India

Application : Industrial

Brand Name : EECI

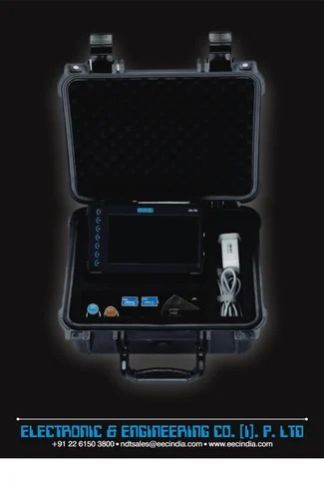

The DIGISCAN DS702 is a powerful Ultrasonic Flaw Detector, reliable and state-of-the-art universal Flaw Detector. It’s ergonomical and rugged IP65 design makes it ideal for everyday applications in the toughest field environments, as well as lab applications for dependable inspection results. The DS702 is feature packed for all your inspection demands and conveniences, with no compromise on performance and quality.Features such as DAC, TCG, Universal DGS, FlexiDGS, AWS, video recording along with square & spike pulser, high PRF, variable pulser voltage and a 120dB gain, ensure adherence to various international testing standards.The DS702 was designed keeping in mind the ultrasonic ndt demands of industries such as Aerospace, Automotive, Nuclear, Defence, Steel manufacturing, Oil and Gas, Power/Energy, Railways, Heavy engineering, Forging, Castings, Composites and Research Applications.

Packaging Type : Box

Display Type : Digital

Color : Black

Power : USB C fast charger, 100 - 240 VAC, 50-60 Hz, 1.5 A

Battery Backup : Upto 8 hrs
