The V-MASTER is a lightweight, small diameter end prep tool for beveling tubes from 15.875mm (5/8”) I.D. to 76.2mm (3”) O.D. Featuring a patented push-pull clamp and release mechanism and permanently attached wrenches, it allows the clamps to release from a tube as easily as they tighten. Ideal for performing bevel facing and boring on a wide range of tube and pipe alloys, the V-MASTER has dual opposed tapered roller bearings and employs the rigid FABMAX blade locking system to provide chatter-free performance and produce a thick chip without cutting fluids.   Key Features : Bevels, faces & bores stainless steel & other highly alloyed tubing Patented, self-centering, push-pull clamp and release mechanism has permanently attached wrenches Only 57.15mm (2-1/4”) wide Rugged with torque-free operation

Designed to prep all schedules of pipe from 3.75" I.D. to 14" O.D., the V-CHAMP features a state of the art I.D. clamping system that spreads the contact points of the clamps radially inside the pipe. This minimizes vibration for chatter-free end preps on both thin and heavy wall pipe. To assure stable, smooth rotation of the cutterhead, this rugged tool employs opposed tapered roller bearings that are easy to adjust and never wear out.   Key Features : One mandrel and 7 sets of clamps cover entire range Wide clamp ribs spread the contact force for superior clamping Three powerful drive choices : 3 hp pneumatic straight drive motor 1800 watt electric motor Hydraulic motor drive with speed control Motor drive options are easily changed and are interchangeable with the rhino Optional off-set gear box reduce the rpm & multiplies the torque Ultra rugged gears & dual opposed tapered bearing set-up deliver produces a low maintenance tool designed for years of trouble free service Fully portable for on-site use

The TUBEMASTER is a lean, extremely durable tool that performs end preps on all boiler tube alloys quickly and efficiently. Featuring a right angle gear head drive system which incorporates dual opposed tapered roller bearings, this compact tool is capable of removal of large amount of material though it requires only 708 lt./min (25 cfm) of air to pull a heavy continuous chip.   Key Features : Right angle tool rigidly mounts to tube I.D. Sealed construction allow use in any orientation Fits a “Dutchman” window and handles hard alloys Clamping system is self-centering and easy to use FABMAX blade locking system securely holds cutting blades Chatter-free end preps produce thick continuous chip Torque-free operation with TiN coated cutting bits Requires only 708 lt./min (25 cfm) air flow Right angle head drive system which incorporates dual opposed tapered roller bearings, this compact tool is capable of removal of large amount of material. Field proven simple to operate and maintain

The SPRINT has a “C” shaped border that firmly attaches to the tube outside diameter (O.D.) using a saddle with a massive clamp that minimizes chatter and vibration. This rugged construction allows the tool’s cutting blade to bevel / Face quickly. Several cutter heads are available for tubes up to 3” O.D. Both the saddle and cutter heads are extremely durable and easy to change.   Key Features : The SPRINT has a “C” shaped border that firmly attaches to the tube outside diameter (O.D.) using a saddle with a massive clamp that minimizes chatter and vibration. This rugged construction allows the tool’s cutting blade to bevel / Face quickly. Several cutter heads are available for tubes up to 3” O.D. Both the saddle and cutter heads are extremely durable and easy to change. Designed for maximum comfort, efficiency, safety, and ease of use, the SPRINT’S attached ratchet feed wrench lets the operator comfortably feed the tool as it preps the tube end. This ergonomic tool allows you to perform prep-after-prep all day long with minimal fatigue. Securely grips to the tube O.D. Tooling is very easy to change for tubes up to 3” O.D. Narrow body 44.45mm (1 3/4”) wide Ideal for small bore heavy wall stainless steel & chrome tubes Ergonomic feed with 25.4mm (1”) strock Compact, light weight and rugged wedge-style blade lock system Uses standard FABMAX cutting blades Robust ratchet wrenches are securely attached

The RHINO features three drive choices that are capable of performing any degree of end prep on pipe up to 18" schedule 160 without cutting fluids. This portable tool has many advances including a self-centering draw rod actuated clamping system and wide clamps that produce a superior clamping force for chatter free end preps while assuring maximum blade life. Designed for years of trouble free service the proprietary gear and bearing system delivers the stability and performance that all FABMAX tools have become known for.   Key Features : One mandrel and 8 sets of clamps needed to cover entire range. Three powerful drive choices: 3 hp pneumatic straight drive motor produces 345 kg-m (2,500 ft. lbs.) of torque (standard). Recommended for 3 hp pneumatic straight drive motor with off-set gear reduction produces 691 kg-m (5,000 ft. lbs.) of torque. Hydraulic motor drive with speed control produces 829 kg-m (6,000 ft. lbs.) of torque.

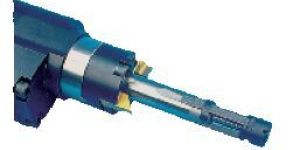

The PREPMASTER is a right angle, I.D.Clamping Pipe end prep tool for small diameter boiler tubes and pipes. Featuring a push-pull clamp and release mechanism with permanently attached clamps and wrenches, this self-centering tool performs any angle of bevel and produces a smooth continuous chip. Eliminating the possibility of loose parts falling down the tubes, this high performance tool utilizes theFABMAXTM wedge-style blade lock system and TiN coated blades for chatter-free beveling.   Other Key Features Self-centering torque-free operation Permanently attached clamps and wrenches Rigidly mounts to tube I.D., easy to release Produces a smooth, continuous chip Compact, low-maintenance end prep tool Performs any angle of bevel Steel housing with integral radial-thrust ball bearing Chatter-free cutter blade locking design Uses TiN coated cutter blades

Country of Origin : 220 to 240 V

Brand Name : Fabmax

The PREPMASTER is a right angle, I.D.Clamping Pipe end prep tool for small diameter boiler tubes and pipes. Featuring a push-pull clamp and release mechanism with permanently attached clamps and wrenches, this self-centering tool performs any angle of bevel and produces a smooth continuous chip. Eliminating the possibility of loose parts falling down the tubes, this high performance tool utilizes theFABMAXTM wedge-style blade lock system and TiN coated blades for chatter-free beveling.

fabmax™ cold cutting and beveling machines are portable pipe cutting machines for in-situ precision cutting and beveling of all pipe sizes, schedules and materials. The range covers a wide range of pipe sizes from ½" to 120" od and are designed so that minimal radial and axial clearance are required for easy installation on in-line closed loop pipe.   the machines are broadly classifiable into three design types. low clearance series - the low clearance series is designed to fit into tight working areas as well as minimize machine weights. These machines are lightweight, but retain rigidity during operation. The low clearance models are available from ø ½" -16" ultra strong & slim series - this series of machines combines low clearance while providing additional strength. They are made of heavy duty construction offering greater rigidity during operation and can be used for higher wall thicknesses. The machines from dia range 16"(overlap model) to 36" belong to this series. the worm drive series - of machines feature a worm drive gear system which provides the necessary power to cut extra heavy wall pipe and operate on pipes greater than 30". The machines from dia. Range 30" - 120" belong to this series

The BOILERMAX is a right angle, I.D. clamping end prep tool that feature an efficient, low-maintenance design incorporating dual opposed tapered roller bearings. This makes the BOILERMAX rigid, stable and extremely durable. Built for boiler makers, there are no bushings to wear out and the sealed mandrel prevents debris from getting inside the tool, allowing it to be used in any orientation. What’s more the compact design requires a minimum of 67mm (2-5/8”) to fit between tubes.   Key Features : A heavy duty ratchet wrench and knurled knob allows easy clamping & is perfect for limited access areas Mounts rigidly to produce a clean, continuous chip Requires no cutting lubricant Simultaneously bevels, faces and bores Lightweight and requires no special training Efficient chatter-free cutter blade clocking design Torque-free operation prevents operator fatigue Low maintenance, compact, air-powered tool

The Admiral is a powerful, easy to use ID clamping end prep machine capable of delivering precision end preps on pipe of all alloys including Super Duplex and has a working range of 219mm (8-5/8") ID to 915mm (36") OD pipe. A powerful 5 h.p. pneumatic motor or available hydraulic motor provide smooth quite operation and are easily interchanged. The Admiral rigidly mounts to the pipe ID and uses form tool bits for wall thicknesses in excess of 63.5mm (2.5"). The available ID Tracker creates precision symmetrical end preps on out of round pipe at any angle, including "J" Bevel.   Key Features : Rigidly clamps to pipe ID up to 36" All angles of end prep attainable Formed tool bits for m.w.t. in excess of 63.5mm (2"). Pneumatic or Hydraulic Driven ID tracker produces symmetrical end preps Performs any angle of prep Only eight sets of clamps and two wedges required to cover entire range Simple to operate, quick set-up Preps all pipe alloys
