Firefly Fire Pumps Pvt. Ltd. Shirgaon, Mumbai, Maharashtra

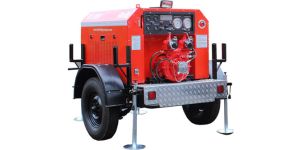

Single stage centrifugal pump is directly coupled with a suitable engine and mounted on a trailer for surface transportation. The Pump is equipped with Exhaust priming system as standard for fast & effective priming from deep lift. However Firefly’s reciprocating priming system "Primatic" which is completely automatic in operation can also be supplied with these pumps as optional. The engine is air cooled as well as water cooled for better performance. The complete set up is equipped with radiator, heat exchanger, battery, electric starter, 40 liters diesel tank, control panel etc. This unit can be used to combat fire for longer times.

Single stage centrifugal pump is directly coupled with a suitable engine and mounted on a trailer for surface transportation. The Pump is equipped with Exhaust priming system as standard for fast & effective priming from deep lift. However Firefly's reciprocating priming system "Primatic" which is completely automatic in operation can also be supplied with these pumps as optional. The engine is air cooled as well as water cooled for better performance. The complete set up is equipped with radiator, heat exchanger, battery, electric starter, 40 liters diesel tank, control panel etc. This unit can be used to combat fire for longer times.Pump capacities can be made available up to 4000 LPM pumps with higher capacity engines.   ENGINE: The pump is driven by a close coupled suitable diesel engine. The engine is supplied complete with: Alternator  Radiator Starter motor 12v battery Oil filter Fuel filter Oil cooler Cooling fan Exhaust silencer Air cleaner Heat Exchanger he Performance data stated above is observed at test conditions (3.0 meters suction lift at NTP conditions) For capacities other than stated above, please contact technical department.     Suction Inlet : - 100 mm Priming: - Priming is provided by exhaust ejector priming. Discharge Couplings: - 2 x 2.5” instantaneous screw down delivery outlets. The shaft is supported by two sealed ball bearings. Shaft sealing is by the well known Firefly automatic mechanical seal incorporating a carbon seal running on a stainless steel counter face. The mechanical seal is pre-loaded and requires no maintenance or attention during its life. PRIMER : - As standard, pump is equipped with Exhaust primer capable of priming from 7 meters suction height within 7 seconds. However 'PRIMATIC' piston primer (Capable of priming from 9 meter suction height) is also available as an option to exhaust. The pump and engine combination is supported on anti-vibration mounts to cut down the noise and vibration. The complete unit is mounted on a heavy duty trailer for easy surface transport. Equipment can easily be maneuvered by two persons by help of two foldable handles. Equipment can be easily towed by any vehicle for surface transport. A tool box is provided for essential operational & maintenance tools. Suction hoses can be carried along with the trailer.   The right of technical modifications & improvement without prior notice is reserved. The Performance data stated above is observed at test conditions (3.0 meters suction lift at NTP conditions). For capacities other than stated above, please contact technical department.

The Firefly skid mounted fire pumps are self contained fire pump driven by a close coupled diesel engine and mounted on a heavy duty base for fixed installation. The complete unit is designed for extended fire pump duty, and every consideration has been given to ease of operation and servicing. The pump and engine combination is supported on anti-vibration mounts to cut down noise and vibration. The pump is driven by a close coupled TATA 497 Diesel Engine or equivalent engine. The Performance data stated above is observed at test conditions (3.0 meters suction lift at NTP conditions) For capacities other than stated above, please contact technical department.   The shaft is supported by two sealed ball bearings. Shaft sealing is by the well known Firefly automatic mechanical seal incorporating a carbon seal running on a stainless steel counter face. The mechanical seal is pre-loaded and requires no maintenance or attention during its life.

Compact digital RPM meter for measuring pumps RPM Digital pump running hour meter, allows you to carry out scheduled maintenance work of pump & PTO at right intervals.

All pump pressures like discharge pressure, vacuum etc. are digitally displayed. Digital pump RPM meter. Digital pump running hour meter, allows you to carry out scheduled maintenance work of  pump & PTO at right intervals. Pump oil temperature indicator with high temperature audio & video alarm. Illuminated keys for Auto & Manual priming mode selection. Auto prevention for use of primer above 2500 RPM. Emergency bell key on panel. Auxiliary display unit can be fitted in drivers cabin if required.

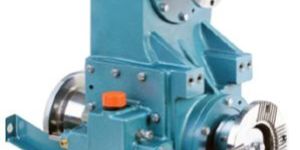

We are Manufacturer, Exporter, Supplier of Power Take Off For Fire Tenders, Fire Hawk PTO and our setup is situated at Kolhapur, Maharashtra, India   FM Series FireHawk" split shaft inline power take off are perfectly designed to transmit power & torque upto 300 HP vehicles. Installed in midship position between the truck transmission and & the rear axle. Throughput Torque Capacity - 10,000 Nm  Output Shaft Torque - 700 to 1000 Nm Weight - 92.5 kg Available Ratios Available in four different ratios (1:1.17, 1:1.31, 1:1.48, 1.1.62). Other ratios can also be made available on request.   Gear case:- Made of high strength aluminum alloy making the PTO lighter (92.5 kgs approx) yet durable, which makes mounting/maintenance job much easier Gears: Helical gears; made from special alloy steel, carburized, are hardened and ground. Bearings: Oil lubricated oversized bearings make the P.T.O. stronger, silent in operation & operates at low temperature. Ratios: Available in four different ratios (1:1.17, 1:1.31, 1:1.48 & 1:1.62). Other ratios available on request. Torque: Designed to transfer Road shaft torque of 10,000 Nm and Pump shaft torque of 700 to 1000 Nm. Cooling mechanism: Inbuilt water cooling system is provided for continuous operations. Sufficient fins are provided on PTO body for cooling while operating on road. Oil Seals: High quality double lip oil seals provided with dust guards offer virtually leak proof operations for extended periods, no frequent oil level check up is necessary. Gear Shifting mechanism: Automatic pneumatic self locking gear shift as standard. ( Air power allows the operator to shift from road or pump position by actuating a single button. Illuminated signal indicates completion of shift from road to pump.) Manual gear shift mechanism available as option is supplied with flexible control lever assembly.  This makes fitment of control lever very flexible and easy in the driver’s cab, especially with vehicles having tilting cabs. Front and rear bearing/bearing caps can be easily removed without removing the gear box from the vehicle; so reduced break down time Flanges to suit any requirements are available. Sufficient mounting pads are provided to suit mounting on any chassis.

This specially designed FIREHAWK P.T.O. is perfect for modern age fire engines to transmit high power & high torque. Installed in a midship position between the truck transmission and & the rear axle. The sliding gear is positioned by a manual or air powered shift mechanism.

Firefly diesel powered fire fighting pump is one of the lightest & most efficient portable fire fighting pump available in its class today. It can be stowed in the equipment lockers of fire tenders very easily. Besides fire fighting; pump can be used for the applications like dewatering, booster tank filling, washing, and etc. Light weight aluminum alloy components of pump are further heat treated & hard anodized for increased strength & life. The pump has a strong wrap around steel cradle with four collapsible handles.

Firefly diesel powered fire fighting pump is one of the lightest & most efficient portable fire fighting pump available in its class today. It can be stowed in the equipment lockers of fire tenders very easily. Besides fire fighting; pump can be used for the applications like dewatering, booster tank filling, washing, and etc. Light weight aluminum alloy components of pump are further heat treated & hard anodized for increased strength & life. The pump has a strong wrap around steel cradle with four collapsible handles.

Firefly has developed second generation NXT-200 high pressure gun taking in to consideration the difficulties encountered in combating Indoor fire operations, incipient fires and forest fires. NXT-200 is advisedly designed so that fireman can rely completely on his equipments. The gun has proven its capability to achieve optimum extinguishing effects. It is extremely handy and user friendly. We strongly recommended NXT-200 gun in combination with Firefly MP series fire pumps or any high pressure technology fire pump. In practical terms NXT-200 consumes very little water during the operations and the micro-droplets evaporate completely and thus extract a maximum heat from the fire. Due to this; massive cooling effect are achieved. This cooling effect has two advantages; it cools the object on fire immediately and also saves the fireman from radiant heat from the fire, over & above it also saves the property being damaged due to heavy throw of water. Adjustable jet to four operational conditions : - i) Full Jet ii) 30o narrow spray iii) 60o wide spray iv) 120o self protection water shield

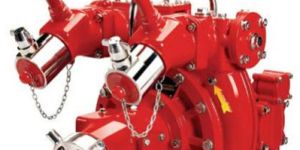

We are Manufacturer, Exporter, Supplier of Normal Pressure Vehicle Mounting Fire Pumps, Vehicle Mounted Fire Fighting Pumps and our setup is situated at Kolhapur, Maharashtra, India   CE marked & UL classified Pumps.   Normal Pressure Performance of 2000 lit/min at 10 bar pressure. Available in Aluminium / Gun Metal / Stainless Steel material of construction. Step up gear box attachment to pump option also available with variety of gear ratios. Total Compliance with EN 1028 & NFPA 1901.

We are Manufacturer, Exporter, Supplier of Multi Pressure Vehicle Mounting Fire Pumps, Vehicle Mounted Normal Pressure Fire Pumps and our setup is situated at Kolhapur, Maharashtra, India.   CE marked & UL classified Pumps. Normal Pressure Performance of 2000 lit/min at 10 bar pressure. High Pressure performance up to 400 lit/min at 40 bar pressure. Available in Aluminium / Gun Metal / Stainless Steel material of construction. Step up gear box attachment to pump option also available with variety of gear ratios. Fitted with fully automatic Pressure Relief Valve & Thermal Relief Valve for safety of equipment as well as operator. Total Compliance with EN 1028 & NFPA 1901.

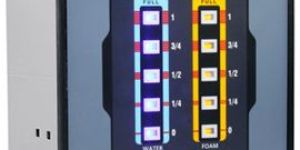

Compact LED illuminated water/foam tank level indicators Audio/ Video signal is given once water/foam tank level is below 25% of total volume which help to avoid dry running of the fire pump. Auxiliary display unit can be fitted in drivers cabin if required.

It is a multiplier step up gear box which is compatible with all kinds of our vehicle mounting pumps. We can provide ratios from 1:1 and above as per customer requirement. This unit is perfect for fire engines which have rated torque at low rpm. Helical gears; made from special alloy steel, carburized, hardened and ground are mounted on an alloy steel shaft and installed in cast iron housing. Water cooling facility is provided for continuous operation. High quality double lip oil seals are provided which offer virtually leak proof operations for extended periods. Gear box can be attached to any firefly made vehicle mounted pump. To see specifications of pump go to required pump and download the respective technical data sheet.

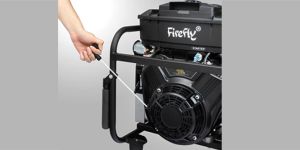

Light weight, stainless steel cradle carried, fitted with light Aluminum Alloy centrifugal pump having one 100 mm male round threaded suction inlet and Two 63 mm instantaneous female delivery outlets located at each side of pump. Highly reliable & extremely fast VANE PUMP type priming system (up to 8 meters within 30 seconds). Briggs & Stratton “Vangaurd” Gasoline engine 18 HP V-Twin overhead valve (OHV) type. The complete pump unit is suitable for effective fire fighting & for dewatering purpose.   Performance - 600 lpm @ 6 bar & 800 lpm @ 5 bar Compliance - Full Compliance to PFPN 6-500 according to EN 14466 Engine - Highly reliable Briggs & Stratton 2-cylinder 4-stroke Gasoline Engine Carrying Frame - Tubular steel carrying frame with easy four – folding handles Priming System - Vane type priming system capable to lift water from 7 meters in less than 24 seconds and from 7.5 metres in less than 30 seconds Extremely Compact & Light in weight Flood lamp for night operations Available in Aluminium / Gunmetal / Stainless Steel Material Hassle free electric & Recoil type Rope Start for instant Start Economical - Fuel Tank capacity sufficient to run the Pump for 1.5 hours

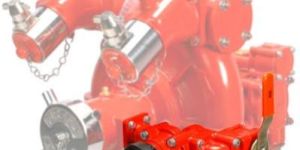

All current "Firefly" Fire Pumps of LP & MP Series, up to 2000 to 4000 L/min ranges of pumps can be fitted with a “Round–the-pump” Foam System (RTP) capable of inducing up to 120 liters per minute of foam compound into the pump. The system is compact and self-contained and is mounted on the pump suction tube and volute. Material of Construction: For light alloy pumps: The pipe work and inductor are produced from aluminum alloy & the inductor itself is hard anodized. For Bronze Pumps: the body of inductor is available in bronze construction. Formula to calculate Foam meter knob reading : Foam meter knob reading = total discharge of pump × foam percentage to be injected. Eg. If; Total discharge of pump = 2000 LPM Foam percentage to be injected = 3% Foam Intake size
