Flow Sensors Dealers in Mumbai

The FS1000 is an insertion type airflow sensing element designed for quick, easy installation through a small cutout in the existing ductwork. Where multiple elements are required for proper duct traversing, the output ports are manifolded together, external to the ductwork. Each element is furnished complete with mounting hardware and sealing gaskets. Standard aluminum elements also include all brass compression fittings required to manifold the elements together. The FS1000 airflow sensing element is a head type device, which generates a differential (velocity) pressure signal similar to the orifice, venturi, and other head producing primary elements. The FS1000 is constructed so that strategically located sensing ports (based on duct size) continually sample the total and static pressures, when inserted normal to flow. The total pressures sensed by the upstream ports are continually averaged within the element in an isolated chamber. The static sensing ports (located where the influence of the velocity head is zero) are averaged in a second isolation chamber. Each chamber is then connected to one side of a differential measurement device (gauge, transmitter, etc.) for flow measurement and indication purposes.   Special Features : Low signal-to-noise ratio Multiple total and static pressure sensing ports along the length of the element Averaging internal manifold Insensitive to flow angle variations of as much as ±20° when faced in the normal direction of flow ±2% accuracy throughout the velocity rages of 100 fpm and over Standard construction is 6063-T5 aluminum with anodized finish Available in optional corrosive resistance materials including Type 316L stainless steel, Hastaloy, and Type 1 PVC Standard elements can be operated (in air) continuously in temperatures up to 350°F or inter mittently in temperatures up to 400°F All elements can be operated in humidity ranges of 0 to 100% Standard elements have good salt air and mild acid resistance; excellent solvent and aromatic hydrocarbon resistance

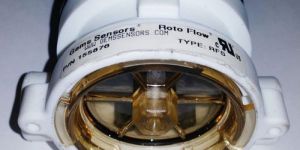

We are offering flow sensor. The haris paddle wheel flow sensor, works on this simple but accurate principle. Four blades spin past a sensor in the housing body. As the fluid flow causes the rotor to rotate, a signal is produced proportional to the flow rate. The design of the rotor ensures a linear repeatable output upto a flow velocity of 7 msec with an accuracy of ± 0.06 ms.

Flow Sensors, ECG Cable, Nibp Hose, Temperature Sensor

Server Rack Airflow Sensor, RFID Swing Handle Lock, Security Sensor

Paddle Wheel Flow Sensor - PP, Sight Glass Indicato

Metal Averaging Flow Sensor, Temperature Controlle

Air Flow Sensor, Microchip PIC Microcontrollers, Power Managemnet I
