PVDF lined agitated Nutche Filter for a bromine manufacturing company. By lining of agitated Nutche filters by fluoro polymers we are replacing the expensive haste alloy Nutche filters. The cost of PVDF lined mild steel Nutche Filter is 50% of haste alloy Nutche filters. We have lined more than two dozen Nutche filters & have extensive experience in executing these kind of jobs.
PVDF lined agitated Nutche Filter for a bromine manufacturing company. By lining of agitated Nutche filters by fluoro polymers we are replacing the expensive haste alloy Nutche filters. The cost of PVDF lined mild steel Nutche Filter is 50% of haste alloy Nutche filters. We have lined more than two dozen Nutche filters & have extensive experience in executing these kind of jobs.

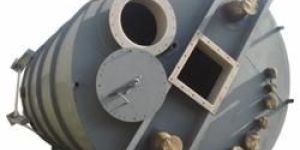

2 mm FEP lining on Mild steel equipment of 150 KL. The size of the equipment is 4200 mm Diameter x 11,200 mm height. Other equipments were of 3000 mm Diameter x 6266 mm height. The equipment is used by a fluorine handling company based in Abu Dhabi. It has given satisfactory performance installed since 2002. Total FEP consumed is more than 1000 m2. It has been the single largest order for 2 mm FEP fabric backed sheets for the FEP sheet manufacturer.
2 mm FEP lining on Mild steel equipment of 150 KL. The size of the equipment is 4200 mm Diameter x 11,200 mm height. Other equipments were of 3000 mm Diameter x 6266 mm height. The equipment is used by a fluorine handling company based in Abu Dhabi. It has given satisfactory performance installed since 2002. Total FEP consumed is more than 1000 m2. It has been the single largest order for 2 mm FEP fabric backed sheets for the FEP sheet manufacturer.
TFM + FRP REACTION VESSEL USED BY SURFACTANT INDUSTRY FOR THE REPLACEMENT OF DUPLEX STEEL WITH M-PTFE. M-PTFE PROVIDES GOOD WELDAIBILITY WITH CORROSION RESISTANCE. POLYPLAST IS THE FIRST COMPANY IN INDIA TO MADE SUCH A BIG REACTION VESSEL IN M-PTFE. THE REACTION CONTENTS ARE PURGED WITH STEAM AT 150°C, THE ACTUAL WORKING TEMPERATURE IS CLOSE TO 110°C.
TFM + FRP REACTION VESSEL USED BY SURFACTANT INDUSTRY FOR THE REPLACEMENT OF DUPLEX STEEL WITH M-PTFE. M-PTFE PROVIDES GOOD WELDAIBILITY WITH CORROSION RESISTANCE. POLYPLAST IS THE FIRST COMPANY IN INDIA TO MADE SUCH A BIG REACTION VESSEL IN M-PTFE. THE REACTION CONTENTS ARE PURGED WITH STEAM AT 150°C, THE ACTUAL WORKING TEMPERATURE IS CLOSE TO 110°C.

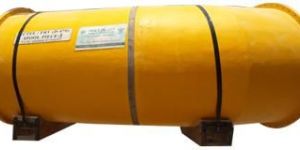

2.3 mm ECTFE lined with FRP using Derakane 470-300 Momentum resin used for manufacturing ducting connected to SO2 quench tower working at high temperature of 120 Degree Centigrade. SO2 gas at high temperature is quiet corrosive & ECTFE is highly resistant for this application.
Diameter of ducting : 1500 mm , total length : 60 meters & 900 mm diameter with 20 m length
2.3 mm ECTFE lined with FRP using Derakane 470-300 Momentum resin used for manufacturing ducting connected to SO2 quench tower working at high temperature of 120 Degree Centigrade. SO2 gas at high temperature is quiet corrosive & ECTFE is highly resistant for this application.
Diameter of ducting : 1500 mm , total length : 60 meters & 900 mm diameter with 20 m length

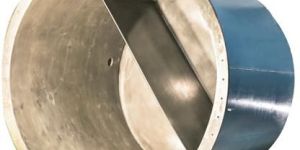

ECTFE coated carbon steel equipment for 96% sulphuric acid (H2SO4) application used by wet sulphuric acid plant based in Indonesia for a renowned pulp & paper mill. Inside partition plate has to be designed properly in order to take care of the hydrostatic load when filled partially.
800 micron coating of good quality works very well for this application with average service life of 8- 10 years.
ECTFE coated carbon steel equipment for 96% sulphuric acid (H2SO4) application used by wet sulphuric acid plant based in Indonesia for a renowned pulp & paper mill. Inside partition plate has to be designed properly in order to take care of the hydrostatic load when filled partially.
800 micron coating of good quality works very well for this application with average service life of 8- 10 years.

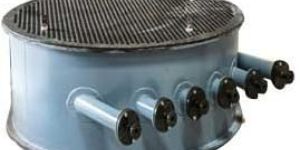

ECTFE COATED CARBON STEEL DISTRIBUTOR FOR SPRAYING 96% H2SO4 IN SO2 QUENCH TOWER. Dimensions of the ECTFE coated distributor Diameter : 2900 mm x Height : 1000 mm Plate on top of the distributor have number of holes which was a challenge during ECTFE coating, we had to make sure that the complete plate with all holes are coated properly.
ECTFE COATED CARBON STEEL DISTRIBUTOR FOR SPRAYING 96% H2SO4 IN SO2 QUENCH TOWER. Dimensions of the ECTFE coated distributor Diameter : 2900 mm x Height : 1000 mm Plate on top of the distributor have number of holes which was a challenge during ECTFE coating, we had to make sure that the complete plate with all holes are coated properly.
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
PPCIL specializes in providing solutions to industries which have corrosion applications / high purity applications. Using various engineering plastics from PP, PPH, HDPE, PPH2222, PVC, CPVC to Fluropolymers like PTFE, M-PTFE, ETFE, ECTFE, FEP, PFA for manufacturing storage vessels, pipings & other equipments PPCIL provides one stop solutions to clients. We undertake complete package of manufacturing the MS equipments along with the fluoro polymer lining or only fluoro polymer lining of free issue MS items / equipments. Fluropolymers are good for acidic as well as alkaline applications & can be repaired in-situ condition. Fluropolymers are the best solution for ultra pure chemicals, ultra pure water & wafer industry, Sulfuric Acid Plants, Fertiliser Industries and Semiconductor Industries as it does not allow cross contamination.
