Gemini Engi-fab Pvt. Ltd Marol, Mumbai, MAHARASHTRA

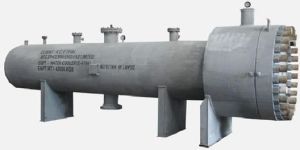

We are offering water cooler. Tube m.o.c: sa 789 uns 31803 (duplex steel) size: ‘u’ tubes 19.05 x 2.11 x 5869 st. Lg. Tubesheet m.o.c: sa 266 cl 2 with duplex overlay size: ø 1854 x 360 thk total weight of equipment: 42m tons hydro testing: shell side-12 kgcm2(g); tube side-320 kgcm2(g) tube to tube sheet joint strength welding and light expansion helium leak test done to check the tube to tube sheet weld joint before expansion third party inspection: lloyd’s register aisa

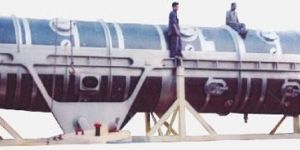

We offer Vibro Fluidizer. Item: Vibro Fluidizer with CIP Nozzle arrangements Purpose: For Final Drying of Milk Powder Capacity: @ 60 Tons per Day MOC: Completely AISI 304 & Frame of Mild Steel Qty: 1 No

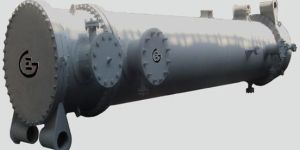

We are offering item: titanium tubes heat exchangers total qty: 3 nos shell ft dish: sa 516 gf 70 channel & floating head dish: sa 516 gr. 70 + sb 127 clad tube: sb 338 gr. 2 tube sheet: sa 266 cl. 4 + 265 gr. R. Clad & sb 171 uns c63000 flange: sa 266 gr. 2 sa 336 f11 cl 2 sa 336 f11 cl 2 + ss321 clad baffles: sa 171 uns c46400 flange: sa 266 cl. 4, sa 266 cl. 4 + monel weld deposit, sa 105 & sa 105 + monel weld diposit third party inspection: lloyd's register asia

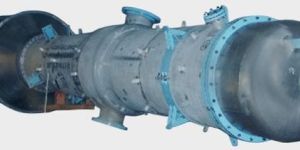

We are offering item: second effect evaporator and vapour separator total weight of equipment: ~10, 176kgs total length: 36 feet evaporator shell size: i.d. 1060mm x 8043mm long tube m.o.c.: nickel (sb 161 no 2201) tube sheet: nickel (sb 162 no 2201) vapour separator shell size: i.d. 2100 mm x 4771 mm long shell m.o.c.: nickel (sb 161 no 2201) third party inspection: protech consultants pvt. Ltd.

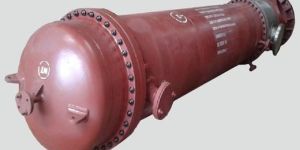

We are offering inconel tube heat exchanger. Main shell: sa 516 gr. 70 channel shell & dish: ss 240 tp 316 sa 516 gr. 70 flange: sa 182 f 316 sa 266 cl.2 sa 105 tube: sb 444 uns no 6625 (inconel 625) tube sheet: sb 564 uns no 6625 (inconel 625) third party inspection: lloyd's register asia

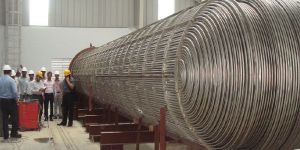

We are offering item: e-504 heat exchanger empty weight: 82 tons tubes (make sandvik europe) m.o.c.: sa 789 uns s32304 (lean duplex) size: ‘u’ tubes 19.05 mm x 27111 mm st. Lg. Tubesheet m.o.c.: sa 508m gr.3 cl. 2 with duplex weld overlay size.: 350mm thk tube to tube sheet joint: strength welding and light expansion helium leak test: tube to tube sheet weld joint before expansion hydro testing tube side: 318 kgcm2(g); shell side: 9.1 kgcm2(g) third party inspection: lloyd’s register asia

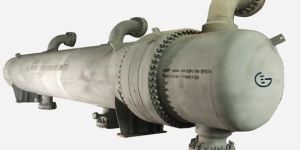

We are offering heat exchanger (5 units). Item: heat exchangers stacked empty weight: 79,665 kgs. Shell & dish: sa 516 gr. 70 sa 387 gr 11 cl 2 chanl. Shell & dish: sa 516 gr. 70 sa 387 gr. 11 cl 2 + ss321 clad ‘u’ tube: sa 213 tp 321 sa179 flange: sa 266 gr. 2 sa 336 f11 cl 2 sa 336 f11 cl 2 + ss321 clad tube sheet: sa 965 gr 321 (224 thk) sa 336 f11 cl 2+ ss321 clad (147 thk) sa 266 gr.2 (230 thk) third party inspection: uhde india pvt. Ltd.

We are offering final condenser. Size: 1120 id x 8700 lg. Shell: sa 240 typ. 304 (44 thk & 60 thk) tube: sa 312 typ 304 tube sheet & flange : sa 336 gr f 304 third party inspection: lloyd's register asia tube to tube sheet joint: strength weld & light expansion hydrotest pressure: shell side - 125kgcm2 (g); tube side - 10 kgcm2 (g)

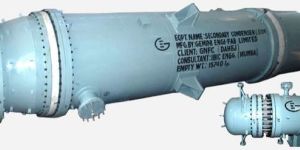

We are offering double tubesheet heat exchanger. Total qty.: 16 nos. (exotic materials) shell & dish: sa 240 tp. 304l sa 516 gr. 70 tube: sb 622 n10276, sb 163 n06600, sb 163 n08800, sb 165 n04400, sa 789 s32750 & sa 312 tp. 304 flange: sa 266 gr. 2, sa 336 f 304l & sa 350 lf 2 tube sheet: (sa266gr.2+sb575 10276), (sa266gr.2+sb 168 n0660), (sa266gr.2+sb409 n08800), (sa266gr.2+sb127 n04400), (sa 350 lf2+sa240 s032750) & (sa266gr.2+sa240 s032750). Third party inspection: ibic engineering, lloyd's register asia & ibr

We are offering ammonia condenser. Size: 2200 height x 2100 width x 8000 long tube m.o.c.: sa-789 uns 31803 (duplex steel) size: o.d 25 x 2.3 thk x 6026 lg tubesheet m.o.c.: sa 266 gr.2 with sa 240 uns s31803 clad size: ø 1653 x 150 + 10 thk clad hydro testing: shell side- 45 kgcm2; tube side: 15 kgcm2 third party inspection: lloyd’s register asia
