Grabit Engineers Powai, Mumbai, Maharashtra

Spirax vacuum breaker vb 14 description :the vb 14 is a small purpose designed vacuumbreaker for general purpose applications oncondensing vapour (steam) or liquid systems. Limiting conditions :body design conditions pn 16maximum design temperature 2600cmaximum cold hydraulic test pressure 24 barg

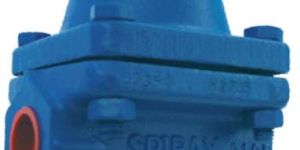

Spirax thermostatic steam trapair vent bpt 21 av 21 description :thermostatic steam trap air vent fitted with an inbuilt flatstrainer screen having 0.8 mm dia. Perforations. Size and pipe connections :15 nb and 20 nbscrewed bsptnptsocket weldable ends. Limiting conditions:maximum operating conditionspmo - max. Operating pressure 21 bargo tmo - max. Opearting tempreture 285 ccold hydraulic test pressure 42 barg

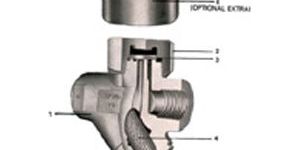

Description:thermodynamic steam trap with inbuilt strainer and fullstainless steel construction, best suited for header andmainline drains and drop legs. Sizes and pipe connections:15nband20nbscrewed bsptnpt & socket wieldable ends note:1. Available with asa - 150, 300 & 600 weld on flanges on request.2. Available with ibr certificate

Description: fig. 32 strainers are available in cast ironcaststeel with stainless steel screen having 0.8 mm diaperforations as standard. Available sizes and pipe connections:c.i. Fig. 32 strainer - nb 40, 50, 80, 100, 150 & 200.c.s. Fig. 32 strainer - nb 40,50, 80, 100, 150, 200,250,300note: 1) for flanged strainers available in specificsize type of strainer, please refer table 1 &2.2) also available with ibr certificate on request.

Spirax sight glasses the forbes marshall sight glass is a novel product that allows you to visualize the flow of steam, water or oil inside pipelines. The visualization of flow helps diagnose problems occurring in equipment upstream or downstream of the sight glass. It overcomes the problems of poor visibility and improper distinction between vapor and condensate flow by using a deflector plate to separate the vapor and condensate. This new design is ideal for applications in which one wants a clear indication of flow, such as downstream of paper drying cylinders, in dm water lines or monitoring steam traps and heat exchangers

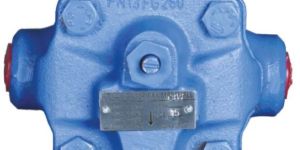

Spirax ball float steam trap ft 14 description :ft - 14 ball float steam trap is a condensate drain trap of castiron body and stainless steel internals. Available sizes and pipe connections :40 and 50 nb screwed bspt nptnote : available non-ibr only. Available types and limiting conditions :ft 14 tv with thermostatic air ventft 14 slr with steam lock release body design conditions :16 barg at 120 deg c13 barg at 220 deg ccold hydraulic test pressure 32 barg.

Spirax marshall ae 20 and ae 20s description and available types : the ae 20 and ae 20s are float type automatic air and gas vents for liquid systems. The body and cover are of steel and the valve head is available in synthetic rubber designated ae 20 or in stainless steel designated ae 20s

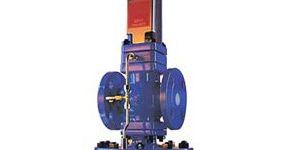

DP 23 is a SG Iron pilot operated pressure reducing valvesuitable for steam or compressed air. Available Sizes & Pipe Connections :15,20,25,40 & 50 NB Screwed : BSPT NPT for 15,20,25NB Flanged : BS10 table “FH” for 40& 50NB Limiting Conditions :PMO - Maximum allowable Pressure : 17TMO - : Maximum allowable Temperature 232 C.Cold hydraulic test pressure : 34 bar g Spring range : 0.3 to 17 bar g

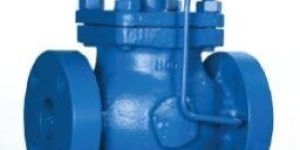

Limiting conditionsmaximum working condition 26 kg cm2 at 300° c.body design conditions 42 kg cm2 at 427° c.cold hydraulic test pressurewithout internals 52 kgcm2 three colour coded pressure adjustment springs are available for the following downstream pressureranges:yellow :02 to 3 barblue :2.5 to 7 barred :6.0 to 17.3 bargrey :16.0 to 24.4 bar sizes:nb 15,20, 25,40, 50 and 80.std. Accessories: pr. Gauge, syphon & gauge cockpipe connections:flanged to -bs10 table - 'j' * & 'k' ansi - 300' * & '600' din - nd - '25' & * '40'*note - 80 nb has these flanges only. Available with ibr certificate. Also available for air applications. Pressure sensing pipe:the dp 143 valve controls the downstream pressureby sensing the down stream pressure through anexternal sensing pipe taken from down stream to thepilot valve chamber (10) fitting of this externalpressure sensing pipe is described in the usermanual if the external sensing pipe is not provided then thevalve controls by internal pressure sensing pipe (19).however the capacity in this case will be reduced.installation:see user manual supplied with the valve.how to specify:example 1) 20 nb spirax marshall dp -143for steam flanged to bs 10 table 'k' ibr(or nibr). 2) 40 nb spirax marshall dp 143 for airflangedto ansi 300 nibr.pressure reducing valvedp 143

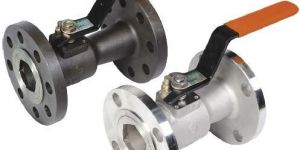

L&T Single Piece Design Ball Valve 150# 300# Reduce Bore Full Bore MOC: ASTM A216 Gr. WCB SS 316 Size Range: 15mm to 150mm ( 12 Inch to 6 Inch ) Product Code: L1FF1C L1RF1C L1FF1S L1RF1S L1FF3C L1RF3C L1FF3S L1RF3S

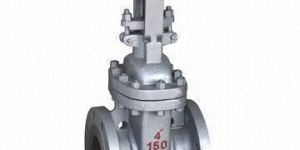

The api 600 bs 1873 bs 1868 family of l&t gate, globe and swing check valves is exceptionally sturdy, rugged and durable, with a reputation for quality, integrity and long service. They are designed for tight sealing and ease of operation. The valves are available with flanged ends or butt- weld ends, in pressure ratings from asme class 150 to class 1500, and in a variety of materials of construction. gate valves are of flexible wedge, outside screw- and-yoke and bolted-bonnet construction. The valves conform to api 600.

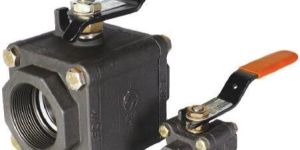

Make: L&T Valve Series: L3 Deisgn: 3 Piece Design End Connection: Screwed End Socket Weld. Working Pressure: 69 bar with PTFE, 103 Bar with RPTFE Size Range: 8mm to 100mm ( 14 Inch to 4 Inch) for Screwed End Socket End Product Code: L3FBTC L3FSWC L3RBTC L3RSWC L3FBTS L3FSWS L3RBTS L3RSWS

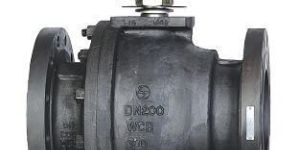

L&T Make 2 Peice Design Ball Valve Full Bore, Flanged End to 150# 300# Material of construction: ASTM A216 Gr. WCB SS 316 Size Range: 15mm to 200mm ( 12 Inch to 8 Inch) Product Code: L2FF1C L2FF1S L2FF3C L2FF3S

The L&T Trunnion Mounted Ball Valve is preferred choice of ball valve in higher sizes and pressure ratings, and in critical process. The valves are of two pc design, bolted at the body connection joint and with flanges or butt-weld ends. -> Catalogue no : TR15 TR30 Reduced bore [class 150 300] TF15 TF30 Full bore [class 150 300] -> Size range : 4" - 20" -> Pressure rating : Class 150 300 -> Material : Cast Steel -> End connection : Flanged

AUDCO Series AF5152 Ball valves are single piece flanged ball valves. Antistatic and fire safe, these valves have excelled in the industry by finding themselves on some of the most arduous applications. -> Catalogue no : L1RF1C L1RF3C -> Material : Carbon Steel -> Catalogue no : L1RF1S L1RF3S -> Material : Stainless Steel -> Size range : 12" - 8" -> Pressure rating : Class 150300 -> End connection : Flanged

This 3-piece Ball Valve is the most easily on-line maintainable in its class. By removing three body connector bolts and loosening the fourth, the body can be swung away using the fourth bolt as the fulcrum, to carry out any installation or maintenance operation on the valve, thus reducing down time. -> Catalogue no : L3RBTC L3RSWC -> Material : Carbon Steel Stainless Steel -> Size range : 14" - 2" -> Pressure rating : Cold Working Pressure 69 bar -> End connection : Screwed Socket weld

Specification: Class 125 flange dimensions and drilling in accordance with ANSI B 16.1 BSPT "D" AND "F" flange dimensions and drilling in accordance with BS10. These valves have a port area substantially equal to the bore of pipe where full area is not essential economies can be made by the use of short pattern valves having reduced area. Product Name: AUDCO Make CI Plug Valve (Light Duty) Figure Number: IN123 Size Range: 15mm – 50mm ( ½ Inch to 2 Inch) Pressure Rating: 125 Max Working Pressure Material: Cast Iron End Connection: Screwed End. Product Name: AUDCO Make CI Plug Valve (Heavy Duty) Figure Number: MW12 Size Range: 15mm – 40mm ( ½ Inch to 1 ½ Inch) Pressure Rating: 150 Max Working Pressure Material: Cast Iron End Connection: Screwed End. Product Name: AUDCO Make CI Plug Valve (Long Pattern) Figure Number: MW11F13 Size Range: 15mm – 200mm ( ½ Inch to 8 Inch) Pressure Rating: 150 Max Working Pressure Material: Cast Iron End Connection: Flanged End.

The Maxseal is an IBR certified valve, which has revolutionized the concept of using ball valves for steam applications. -> Catalogue no : L6RBTC L6RSWC -> Material : Carbon Steel -> Size range : 14" - 2" -> Pressure rating : CWP 69 bar -> End connection : Screwed Socket weld

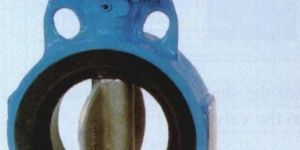

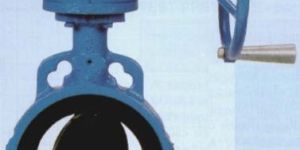

AUDCO (L&T) Butterfly Valve PN 16 (Slim Seal) Gear Operated Body: Cast Iron Liner: Nitrile Rubber Disc: CI Coated with Nylon Shaft: CS Operation: Worm Gear Operated.

L&T (AUDCO) Make Butterfly Valve AQUA SEAL PN 10 Body: Cast Iron Gr. 200 Gr. 250 Body Liner: Nitrile EPDM Disc: Cast Iron with Nylon Coating Product Code: IBFLPC

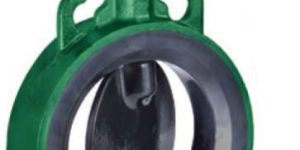

AUDCO (L&T) Make Butterfly Valve PN 10 (Aqua Seal) Gear Operated Body: Cast Iron SG Iron Carbon Steel Liner: Nitrile Rubber EPDM Disc: CI with Nylon coated SS 316 Shaft: CS Operation: Gear Operated. Size: 2 inch to 12 inch Product Code: IBGLPC Operation: Gear Operated. Size: 2 inch to 12 inch Product Code: IBGLPC

L&T (AUDCO) Make Butterfly Valve PN 16 (Slim Seal) Lever Operated Design Standard: BS 5155 API 609 MSS SP 67 ISO 5752 Body: Cast Iron SG Iron WCB Body Liner: Black Nitrile EPDM Disc: SG Iron with Nylon coating SS 316 Shaft: AISI 410 PTFE coated Product Code: IBF2JS

This 3-piece Ball Valve is the most easily on-line maintainable in its class. By removing three body connector bolts and loosening the fourth, the body can be swung away using the fourth bolt as the fulcrum, to carry out any installation or maintenance operation on the valve, thus reducing down time. -> Catalogue no : L3FBTC L3FSWC -> Material : Carbon Steel -> Catalogue no : L3FBTS L3FSWS -> Material : Stainless Steel -> Size range : 12" - 2" -> Pressure rating : WP 69 bar -> End connection : Screwed [NPT BSPT] Socket weld
