High Voltage Breakdown Tester Dealers in Mumbai

(4 products available)

All IndiaMumbaiNavi Mumbai Delhi Thane Pune Ambala Kolkata Nashik Chennai Bangalore

Bhopal

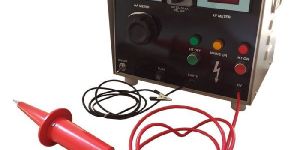

High Voltage Breakdown Tester

Get Price Quote

Voltage0 to 5KV AC, 0 to 30mA
Dimensions290 x 250 x 200 mm
Weight12 kg

High Voltage Breakdown Testers are useful for checking breakdown (flash –over) voltages of motors, transformers, pumps, chokes, coils, switches, connectors, plastics, rubbers, PCB’s, insulation materials, electrical and electronic components etc.Automatic tripping facility, HT ON and HT OFF visual indications, HT ON buzzer, high voltage safely probe with push button enable feature, provide operator’s safety. HT voltage and leakage current meters provide continuous reading, simultaneously.

...more
ACCESS TECHNOLOGIES

Vikhroli, Mumbai

14 yrs
High Voltage Breakdown Tester

Get Price Quote

"Delta" H.V. Flash Tester are made heavy duty, keeping in mind long term reliability. Rating are 0 - 5 kV @ 100 mA. Trip current settings can be provided as 25 mA - 50 mA - 75 mA - 100 mA OR 10 mA - 25 mA - 50mA- 75 mA. As an option, a timer can be provided to test an object for a preset time. Most of the capacitors used in the lighting industry are hand made, esp. the metallization of electrodes . The qualitiy of these capacitors change from batch to batch." Delta" has developed a test panel with high discharge currents (up to 10 kA pulse) to test the capacitors samples cyclically for a specified duration. If during this test, any capacitor short-circuits; a lamp- inside the panel will light up. After the test capacitors have to be tested for their impedance by passing the current at rated voltage This is a destructive test; all the capacitors tested on this panel have to be destroyed afterwards & not to be used.
...more

Delta Control Engineering Corporation

Goregaon, Mumbai

9 yrs
High Voltage Breakdown Tester

11,000 - 20,000 / Per pc

Brand NamePremier Electrosystems
ConditionNew
Power230 V
Power SourceElectric
Automation GradeAutomatic
CertificationISI Certified
FeatureEasy To Use
Number Of FlowerHigh Voltage Breakdown Tester, AC HV Tester
Frequency40-60 Hz
Total Carbohydrate1yr, 1 Year
Country of OriginIndia
Operating CurrentSingle Phase
Set pointDigital Set point through keypad
BuzzerAlarm on test ON and Alarm on test FAIL
Test Voltage0-3kv/ 5 kv/ 10 kv
Test Current0-30 mA/ 100 mA
CustomizationOn Request
OperationSingle Button Easy Operation
ProbeHigh quality Probe with remote switch
LEDsON, OFF, PASS, FAIL

Model : PE 100 Test Voltage : 0 – 3/ 5/ 10 KV AC continuously adjustable by Dimmer. Display : 4 digit LED display Resolution : 0.01 KV Accuracy : 0.6% +/- 1 count Test Current : Up to 30 mA/ 100 mA digitally adjustable through keypad Display : 4 digit LED display Resolution : 0.1 mA Accuracy : 0.6% +/- 1 count Timer : Programmable Digital Timer Timer Range : 0 – 9999 Sec/ Min/ Hour , Settable by membrane key switches on front Facilities : 1. Single button operation for HV ON, HV OFF, Test Pause and Test Resume 2. LED Indication of HV On, HV Off, Product OK, Product Fail 3. Buzzer programmable for On during HV ON or Alert when Test Fail 4. Remote start switch for momentary on 5. Memory : Auto restart on power failure- Same test voltage, same set point and timer resume (To be specified) Power : 230 V AC + 10%, 50 Hz Calibration : Traceable to NABL Warranty : 1 year

...more
Premier Electrosystems

Vile Parle, Mumbai

GST 8 yrs

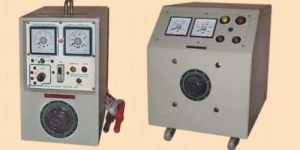

HIGH VOLTAGE BREAKDOWN TESTER / POWER FREQUENCY WITHSTAND TEST SET (HVT/HVPF TEST SET)

Get Price Quote

Brand NameAEL
Country of OriginMade In India
ApplicationIndustrial
VoltageYes
Power SupplyUniversal Auxillary
DimensionStandard

...more
www

Automatic Electric Ltd.

Wadala, Mumbai

GST 11 yrs 4.7 (30)
